Air-Cooled VW Engines — kit, long block, or turn-key?
Three ways to buy the same displacement, at three very different prices. Most people buy the wrong one because nobody explains the difference. Here it is.
Long block kit — the box of matched parts
Case, crank, rods, pistons and cylinders, heads, cam, and the gaskets and hardware to put it together — all matched and shipped in one box. You assemble it. It is the cheapest route to a fresh engine by a wide margin, and if you have built an engine before, or you have a shop doing your build, it is the one to buy. A 1914cc kit runs roughly $5,500 against $9,800 for the same displacement delivered running.
Buy this if: you are building the car anyway, you have a torque wrench and a clean bench, and you want the most engine per dollar.
Long block — assembled short of accessories
Case, crank, rods, pistons, cylinders, heads and cam, assembled and sealed. No carburetor, no exhaust, no tin, no cooling fan, no distributor. You bolt on the outside parts and set it up. Costs roughly $1,000–$1,400 more than the kit and saves you the machine-shop-adjacent part of the job.
Buy this if: you are comfortable with carbs, tin and timing, but do not want to be responsible for bearing clearances.
Turn-key — crated, broken in, ready to drop in
Complete and running: carbs, exhaust, tin, fan, distributor, run in and tuned. The convenience is real and so is the price — typically $3,500–$4,500 more than the same displacement as a kit. Ships freight on a pallet, and shipping is quoted when it is crated, not at checkout.
Buy this if: the car is otherwise finished and you want to bolt in an engine and drive.
Which displacement?

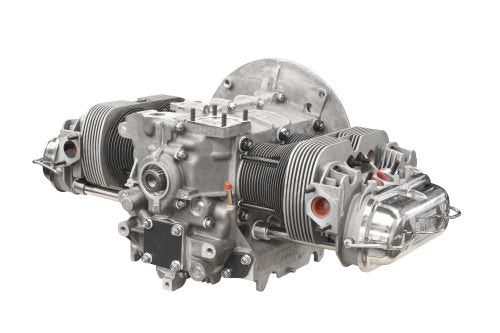

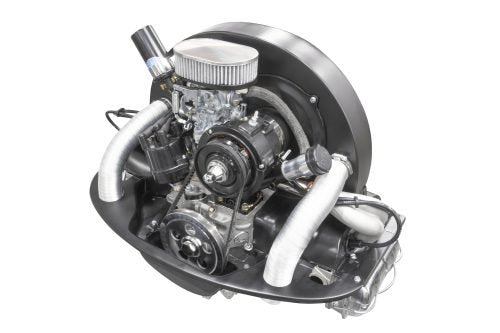

- 1600cc — stock replacement. Right answer for a driver, a Bus, or any car where you want factory manners and single-carb simplicity.

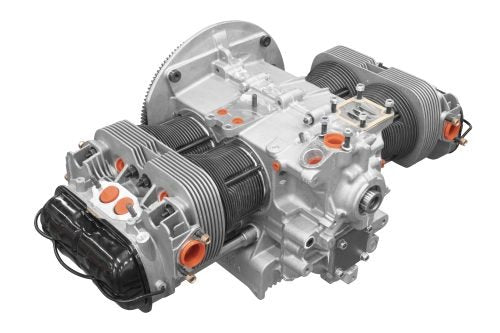

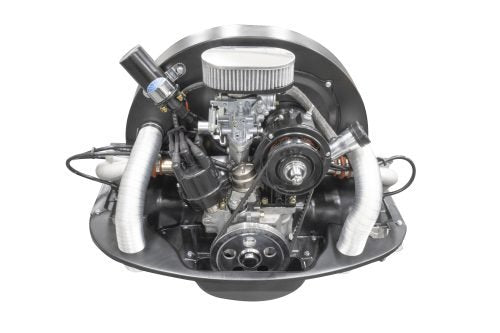

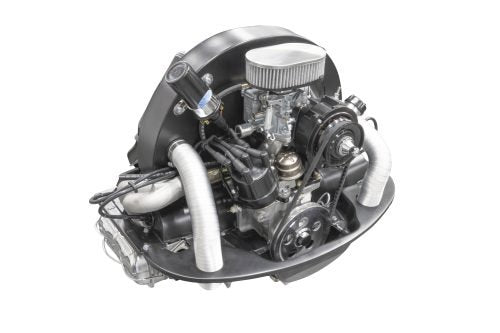

- 1776cc — the classic first step up. 90.5mm pistons on a stock stroke. Noticeably quicker, still happy on pump gas, still easy to tune. This is the most common upgrade for a reason.

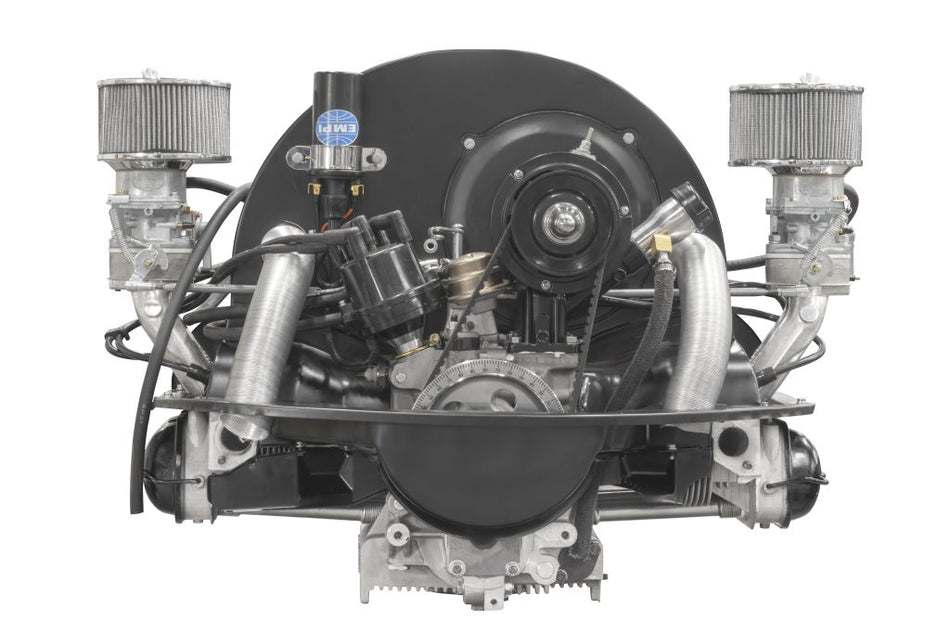

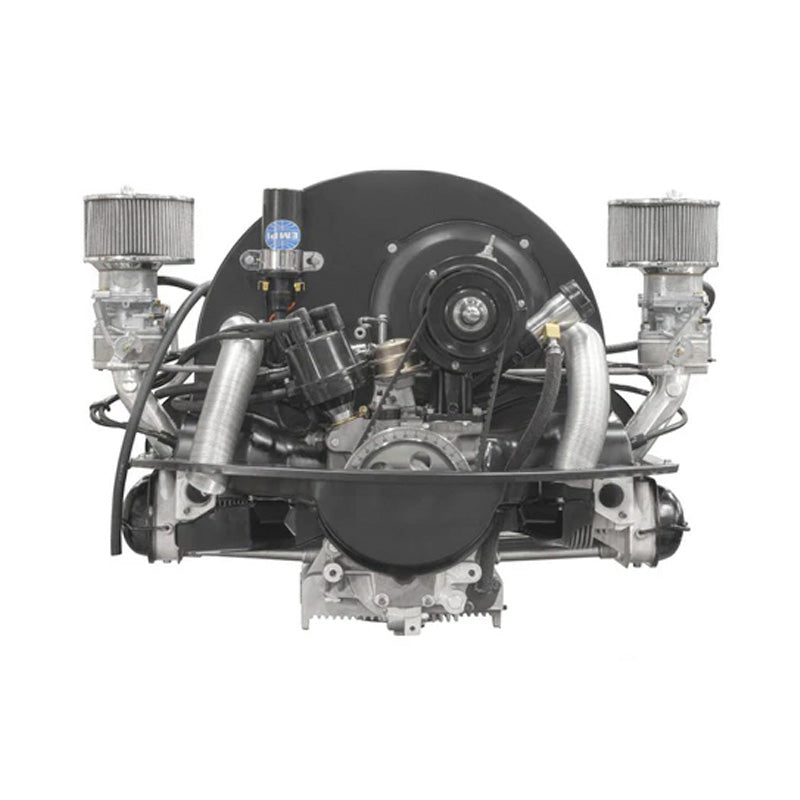

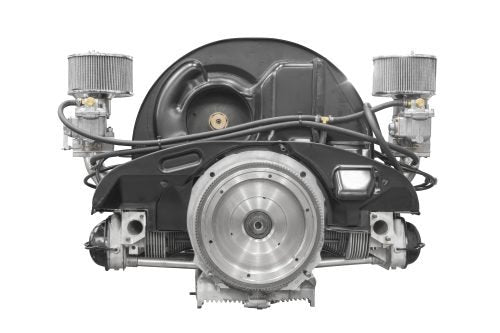

- 1914cc — 94mm bore, bubble-top case. Real power, and the point at which dual carbs, a better exhaust and a serious look at cooling stop being optional.
Above 1914cc you are into stroker territory and a conversation, not a catalog page. Call us.
What nobody tells you until it is too late
A bigger engine needs room to breathe. Dual carburetors on a Type 1 will not clear a stock engine lid, and the fix is either cutting the lid or fitting access panels. We make the panels — laser-cut, weld-in, in our own shop — because we got tired of watching people finish an engine and then discover the problem. Ask us about the right combination before you order, not after.
Built and shipped from Orange, California
We are a metal shop that restores these cars, not a warehouse. If you tell us what the car is and what you want out of it, we will tell you which of these three to buy — including when the answer is the cheapest one.
