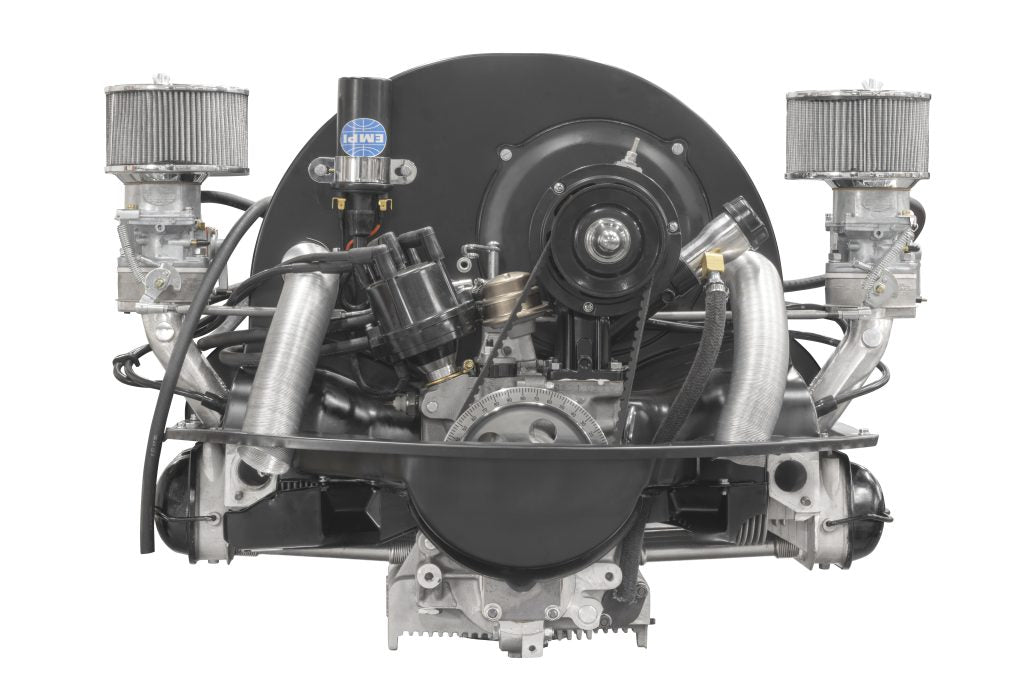

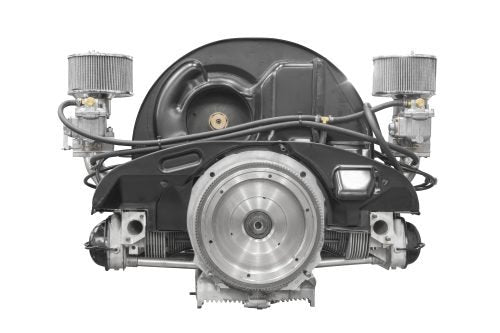

EMPI 1914cc Turn-Key Engine — H.D. Aluminum Case, Dyno-Tested

Short answer: This is EMPI's 98-0499-0 complete, dyno-tested 1914cc turn-key engine on an H.D. aluminum bubble-top case, for the 1954–1977 Beetle, 1971–1979 Super Beetle, 1956–1974 Karmann Ghia, 1955–1971 Bus, 1973–1974 Thing and buggies running a 12-volt 200mm flywheel. Add your exhaust and clutch; it does not fit Type 3 or the 1972-and-later Type 4 Bus.

The EMPI 1914cc Turn-Key delivers real street performance with zero build hassle — it arrives dyno-tested and tuned, ready to drop in. It is a 100% new engine built on EMPI's H.D. aluminum "Bubble Top" case with AutoLinea heads and a 3-angle valve job done in Anaheim.

Add your exhaust and clutch and you're running. Backed by a 12-month / unlimited-mileage warranty. No core required.

Vehicle Fitment

• VW Beetle: 1954–1977. Straight swap on 1971–1977 12-volt cars; earlier cars need a 12-volt conversion, and 180mm-flywheel bellhousings need clearancing for the 200mm flywheel.
• VW Super Beetle: 1971–1979 — sedan through 1975, Convertible through 1979.
• VW Karmann Ghia: 1956–1974, coupe and convertible.
• VW Bus / Transporter (Type 2): 1955–1971 only. The 1972-and-later US Bus is a Type 4 car — this is a Type 1 engine and it does not fit one.
• VW Thing (Type 181): 1973–1974 — the only two model years the Thing was sold in the US.
• Buggy, sand rail, Baja and kit car: any build running a 12-volt 200mm flywheel.
• Not confirmed: 6-volt / 6-dowel flywheel setups without conversion; VW Type 3 (Squareback, Fastback, Notchback), which needs its own pancake cooling tin and oil-cooler layout; anything with a Type 4 engine.

Key Features & Benefits

• 100% new: No core required; dyno-tested and tuned
• 1914cc displacement: 94mm bore × 69mm stroke
• Case: AutoLinea-EMPI H.D. aluminum "Bubble Top". If you want 1914cc on an AS41 magnesium case, that is EMPI 98-0505-B (with heat).
• AutoLinea dual-port heads: OSVAT OE-style valves with a proprietary 3-angle valve job (EMPI Anaheim)
• EMPI HEI ignition: Electronic ignition, no points to set
• Charging & fuel: New 55-amp alternator and new EMPI 40K carburetor kit
• Complete package: New sheet metal and PennGrade 1 break-in oil included

Technical Specifications

• Displacement: 1914cc
• Bore × stroke: 94mm × 69mm — the standard air-cooled Type 1 1914cc combination
• Case: AutoLinea-EMPI H.D. aluminum "Bubble Top"
• Crankshaft: Direct-drilled, 69mm stroke
• Heads: AutoLinea dual port, OSVAT valves, 3-angle job
• Ignition: EMPI HEI
• Carburetor: EMPI 40K kit
• Alternator: 55 amp
• Flywheel: 12V 200mm
• Break-in: Required — see the break-in note below
• Core charge: None. No core required
• Part Number: 98-0499-0
• UPC: 707924581652
• Country of Origin: USA
• Shipping Weight: 280 lb (palletized, crated) — LTL freight, ground only
• Crate size: 36 × 36 × 36 in (EMPI published)
• Warranty: 12 months / unlimited mileage

Break-In — Read This Before You Start It

This engine is dyno-tested and tuned before it ships, but it still needs a proper street break-in — that is why PennGrade 1 break-in oil comes in the crate. Run it on that oil, then change it and re-adjust the valves to factory spec early; 50 miles is the shop standard on a fresh air-cooled motor. After that, keep the revs varied, stay off sustained high rpm and full-throttle pulls for the first several hundred miles, and never lug it. Running the wrong oil or lugging a new engine is the fastest way to lose both the motor and the warranty on it. EMPI does not publish a separate turn-key break-in sheet — call us and we will walk you through it.

How It Ships

This is a complete engine on a pallet: shrink-wrapped and crated at roughly 280 lb in a 36 × 36 × 36 in crate, moving by LTL freight, ground only. A crated engine cannot travel by air. We arrange the freight quote and the delivery appointment with you; plan on a lift gate or a forklift at the receiving end.

Frequently Asked Questions

• Is this a complete, running engine? Yes — 100% new, dyno-tested and tuned, ready to install. Add exhaust and clutch.
• What displacement is it? 1914cc.
• What are the bore and stroke? 94mm bore × 69mm stroke.
• Mag or aluminum case? Aluminum — EMPI's H.D. "Bubble Top" case. For 1914cc on an AS41 magnesium case, see EMPI 98-0505-B.
• Will it fit my 1975 Bus? No. A 1972-and-later US Bus uses the Type 4 engine. This Type 1 engine fits Buses through 1971.
• Does it fit a VW Thing? Yes — 1973 and 1974, the only years the Thing was sold in the US.
• Does it need a break-in? Yes. Run the PennGrade 1 break-in oil it ships with, change it and re-adjust the valves at about 50 miles, and stay off sustained high rpm for the first several hundred miles.
• Do I need a core? No core required.
• Is there a warranty? Yes — 12 months / unlimited mileage.
• How does this ship? Palletized and crated at about 280 lb in a 36 × 36 × 36 in crate, by LTL freight, ground only. We arrange the freight quote and delivery appointment.
• What is the part number? EMPI 98-0499-0 (UPC 707924581652).
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, so this is new, genuine EMPI stock with full factory support.
