EMPI 14" Braided Copper Battery Ground Strap | Universal Fit | Crimped Tinned Terminals (00-9469-0)

14" Braided Copper Battery Ground Strap | Crimped Tinned Terminals (00-9469-0)

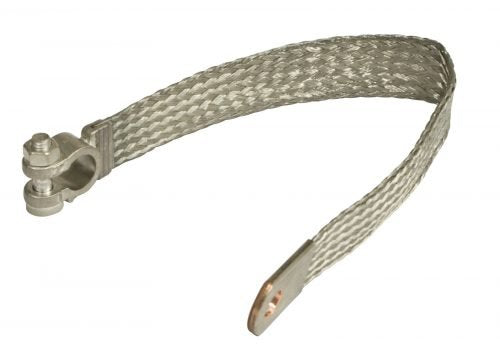

A 14-inch braided copper battery ground strap with crimped, tinned terminals on both ends. A universal-fit replacement for the corroded, frayed, or undersized ground straps that cause hard starting, dim lights, and erratic electrical behavior on classic vehicles. EMPI part #00-9469-0.

Why the Ground Strap Matters

On a classic VW (or any older vehicle), the battery ground strap carries every amp the starter draws — typically 150 to 300+ amps during cranking. When the strap is undersized, corroded, or has loose terminals, resistance climbs and the starter sees a fraction of the voltage it should. Symptoms include slow cranking, a clicking solenoid, dim dash lights when you turn the key, and gradually worsening starting in cold weather. A new 14" braided strap restores full current flow and fixes problems that get misdiagnosed as bad starters, weak batteries, or bad solenoids.

Why Braided Instead of Solid Cable

Braided strap construction handles vibration and flex far better than a solid copper cable. On an air-cooled VW where the engine moves on rubber mounts, the ground path between the battery, chassis, and transmission flexes constantly. A solid cable will work-harden and crack at the terminals; a braided strap won't.

Vehicle Fitment

• Universal fit: Any vehicle needing a 14" high-current ground strap
• Classic VW: Beetle, Bus, Karmann Ghia, Type 3, Thing — both 6V and 12V applications
• Also suits: Vintage Porsche, BMW, Mercedes, other classic European; hot rods, restorations, custom builds

Note on length: 14" is the standard length for VW battery-to-body grounds. Measure your existing strap before ordering if your application is non-standard.

Technical Specifications

• Length: 14 inches
• Construction: Braided copper
• Terminals: Crimped ring terminals at both ends, tinned
• Application: Battery-to-chassis ground, chassis-to-engine ground, or any high-current ground connection
• Part Number: 00-9469-0

Frequently Asked Questions

• Where does this go on a VW? On most air-cooled VWs, the battery negative terminal grounds to the body via a strap, and then a separate strap grounds the engine/transmission to the chassis. Both should be checked when chasing electrical problems — a clean battery ground is useless if the engine ground is bad.
• Is 14 inches the right length for a Beetle battery ground? Yes for most installations. The Beetle battery is under the rear seat on most years, and the ground strap runs to a nearby chassis bolt — 14" is the typical run.
• Will this work for 6V? Yes. Cable gauge and length are determined by current and distance, not voltage. A 6V starter actually draws more amps than a 12V starter (to produce the same power), so good grounds are even more critical on 6V cars.
• Can I use it for the engine-to-chassis ground? Yes, that's one of its most common uses. The transmission-to-chassis or engine-to-chassis ground on a classic VW is often a corroded, undersized factory strap that's a prime upgrade target.
• Do I need to clean the mounting points? Absolutely. A new strap on a corroded chassis bolt is half the job. Bare the metal to shiny steel, install the new strap, and use a thin coat of dielectric grease over the connection to prevent future corrosion.
