Cal-Look 4-Wheel Disc Makeover Bundle — Ball Joint 5x130 IRS (Wilwood Front & Rear, Bilstein, Torque Star II Wheels)

The premier 4-wheel disc brake, suspension, and wheel package for your 1967–77 Beetle or Karmann Ghia. True Wilwood front-to-rear performance, Bilstein-controlled ride, and an aggressive Porsche-pattern stance — all matched, all in one bundle. Save $430 vs. buying separately.

What's in the Bundle

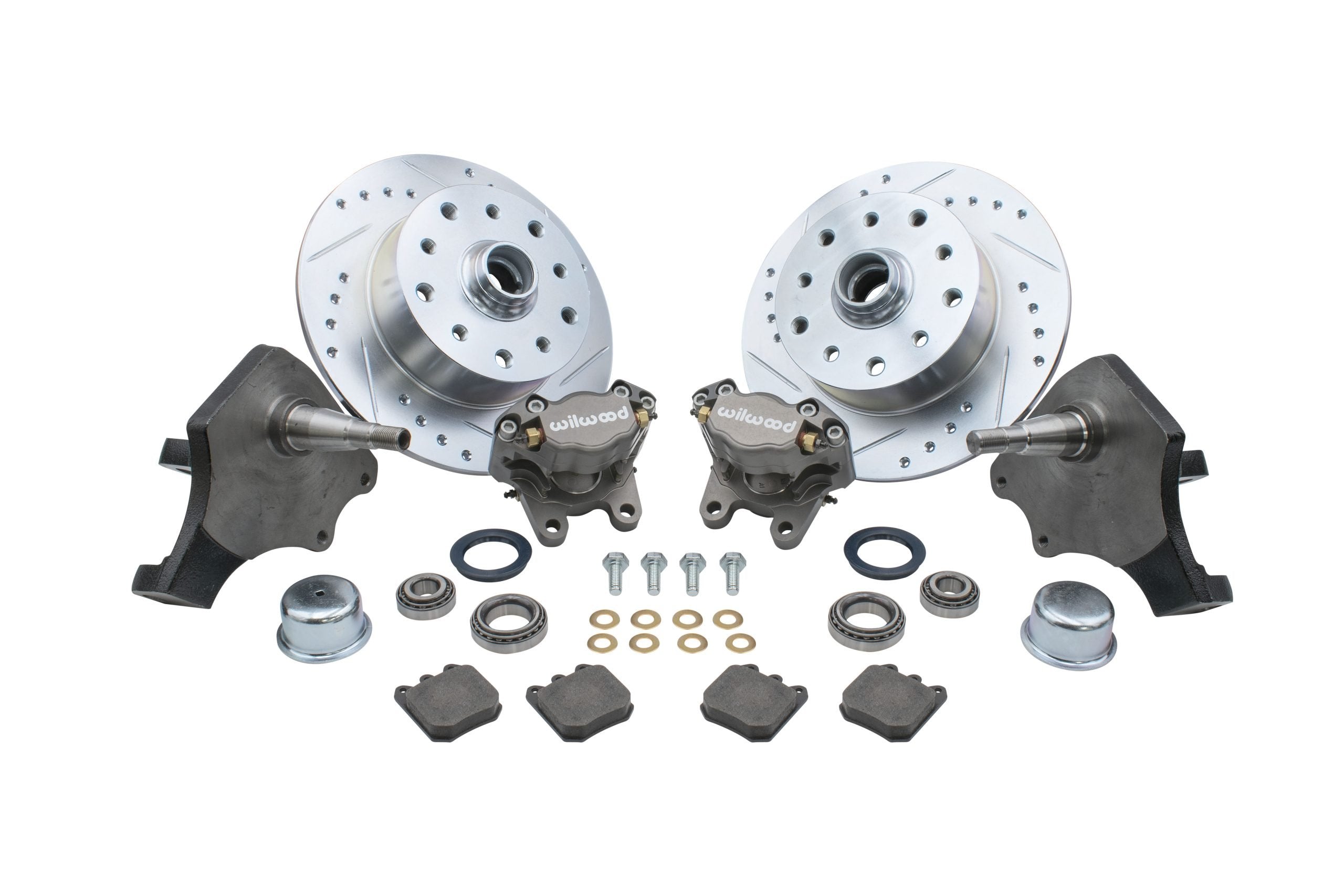

• Wilwood Front Disc Brake Kit (22-6152-0): 2.5" forged drop spindles, billet aluminum Wilwood calipers, Wilwood-spec pads, double-drilled 5x130mm & 5x4.75" zinc-plated rotors, SKF bearings.

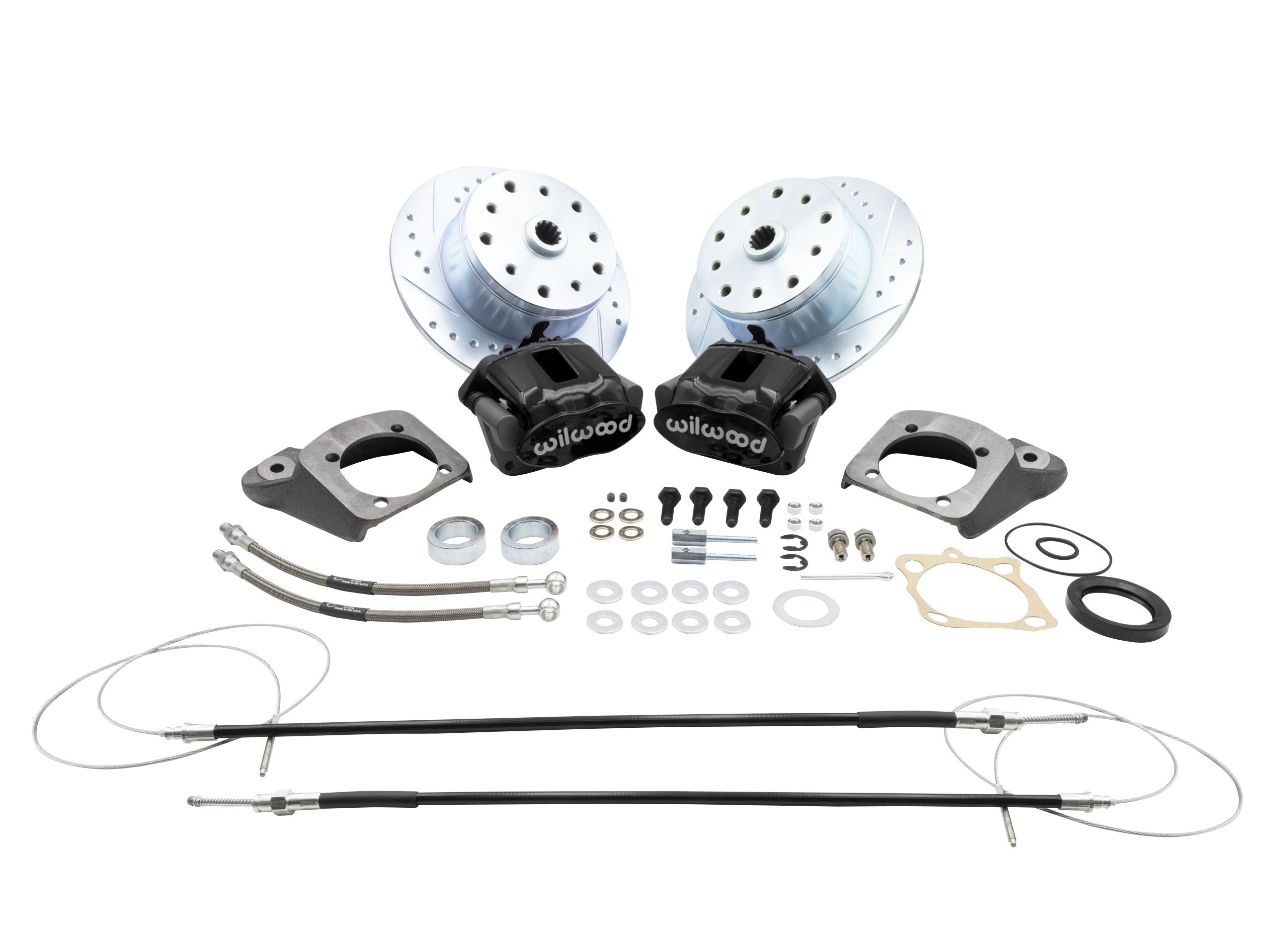

• Wilwood Rear Disc Brake Kit with E-Brake (22-6155-0): 4-piston aluminum Wilwood calipers, directional drilled/slotted rotors, integrated parking brake, stainless braided hoses.

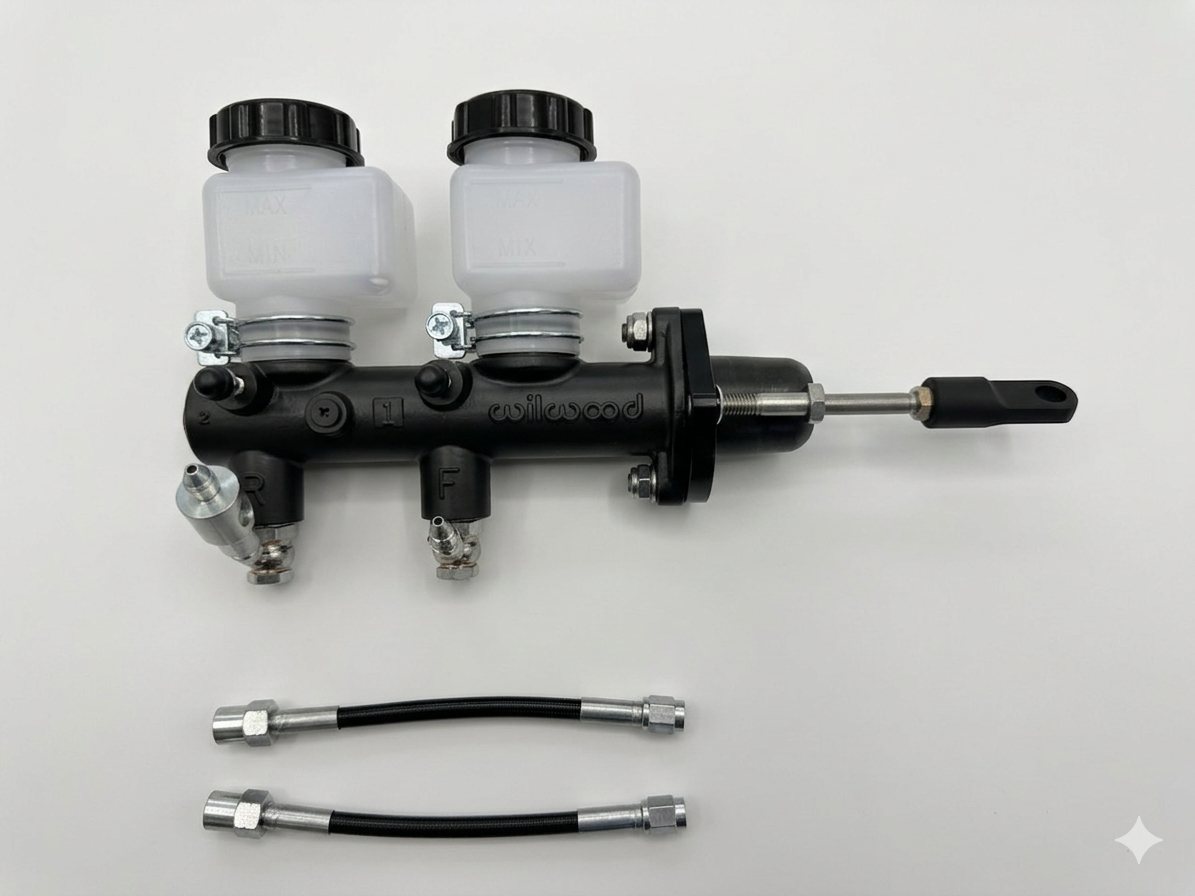

• Wilwood 1" Tandem Master Cylinder Kit: Required for 4-wheel disc; dual-circuit safety with precise bias.

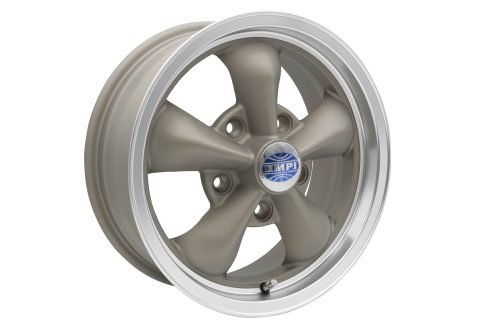

• (4) EMPI Torque Star II Wheels 15x6 Bronze Mag (5x130 Porsche Pattern): Aggressive Cal-Look styling, machined lip.
• (2) Bilstein B6 Performance Front Shocks (Ball Joint, 1966-79): Gas-pressure, street-performance valving.
• (2) Bilstein B6 Performance Rear Shocks (IRS, 1968-79): Matched rear damping.

Vehicle Fitment

• VW Beetle: 1967–1977, ball-joint front end with IRS rear suspension
• VW Karmann Ghia: 1967–1974, ball-joint front end with IRS rear suspension

Requires 1969-and-later tie rod ends.

Why Choose This Bundle?

Every component is matched to work together: Wilwood billet calipers front and rear, a Wilwood tandem master cylinder sized for 4-wheel disc, Bilstein performance damping, and EMPI Torque Star II wheels in the Porsche 5x130 pattern. Assembled and checked as one package by Washburn's Metal in Orange, California before it ships.

Technical Specifications

• Bundle Part Number: BDL-CALLOOK-BJ-5x130
• Front Brakes: Wilwood disc kit 22-6152-0 with 2.5" drop spindles
• Rear Brakes: Wilwood disc kit with E-brake 22-6155-0
• Master Cylinder: Wilwood 1" tandem
• Wheels: (4) EMPI Torque Star II 15x6, 5x130 Porsche pattern
• Shocks: Bilstein B6 front (ball joint) and rear (IRS)
• Bolt Pattern: 5x130mm

Frequently Asked Questions

• Does this bundle fit my car? It fits ball-joint front end, IRS rear VW Beetles from 1967 to 1977 and Karmann Ghias from 1967 to 1974. It also requires 1969-and-later tie rod ends.
• What is in the bundle? Wilwood front disc kit 22-6152-0 with 2.5 in drop spindles, Wilwood rear disc kit with e-brake 22-6155-0, a Wilwood 1 in tandem master cylinder kit, four EMPI Torque Star II 15x6 5x130 wheels, and Bilstein front and rear shocks.
• Do I need to buy brake pads separately? No. All Wilwood components include Wilwood-spec pads.
• Are tires included? No. The four 15x6 wheels are included; you source and mount tires (165/80R15 or similar is a good fit).
• What else will I need? Brake fluid and lug nuts, which are not included.
• What bolt pattern does it give me? 5x130mm, the Porsche pattern, front and rear.
• Who puts the bundle together? Washburn's Metal in Orange, California. The components are Wilwood, Bilstein and EMPI; we spec and match them so they work as one system.

Installation

• 15" minimum wheel size (included wheels are 15x6)
• Customer to source/mount tires of choice (Yokohama 165/80R15 or similar recommended)
• All Wilwood components include Wilwood-spec pads — no separate pad purchase needed
• Brake fluid and lug nuts not included — sold separately if needed
