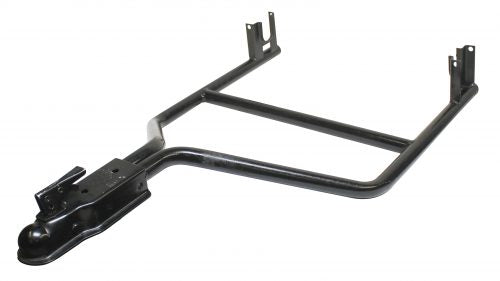

EMPI Narrowed Beam Tow Bar | VW Beetle & Buggy 2" Narrowed Front End | 2" Ball Receiver (00-3128-0)

EMPI Narrowed Beam Tow Bar — 2" Ball Receiver, for 2" Narrowed Front Ends (00-3128-0)

The EMPI 2" Narrowed Beam Tow Bar is the specialized version of the standard Type 1 tow bar, engineered for cars running a narrowed front end. Built from the same heavy-wall steel as the original, it uses adjusted geometry to clamp securely onto the lower tube of an EMPI or custom 2" narrowed beam.

Equipped with a 2" ball receiver, it is the professional choice for moving narrowed-beam Beetles, Ghias, or tube-chassis buggies that will not fit a standard-width tow bar. It provides reliable, straight-line tracking and is designed for a quick-release setup.

Vehicle Fitment

• VW Beetle (narrowed beam): All years
• Buggy: Shortened & narrowed builds

Important Note: This model is not compatible with Super Beetles.

Why Choose EMPI?

EMPI is a long-established manufacturer of air-cooled Volkswagen and buggy parts. This bar is purpose-built for narrowed front ends where a standard-width tow bar will not fit.

Key Features & Benefits

• Narrowed-Beam Geometry: Clamps to the lower tube of a 2" narrowed beam (often fits up to 4" narrowed).
• Front-End Compatibility: Works with King pin, Link pin, or Ball Joint front ends.
• Standard Coupler: 2" ball hitch coupler for most tow vehicles.
• Rigid Steel Build: Heavy-duty reinforced steel for straight-line tracking.

Technical Specifications

• Compatibility: 2" narrowed beams (often fits up to 4" narrowed)
• Front-End Fitment: Clamps to the lower beam tube on King pin, Link pin, or Ball Joint front ends
• Beam Spread: Inner U-channel dimensions approximately 23-1/4"
• Dimensions: Overall length 48", overall width 26-3/4"
• Construction: Heavy-duty reinforced steel with 2" ball hitch coupler
• Part Number: 00-3128-0

Frequently Asked Questions

• What front ends does it fit? It clamps to the lower beam tube on King pin, Link pin, or Ball Joint front ends running a 2" narrowed beam.
• Will it fit a Super Beetle? No — this model is not compatible with Super Beetles.
• What are the dimensions? Overall length 48", overall width 26-3/4", with an inner U-channel spread of approximately 23-1/4".
