EMPI 30 PICT-1 Carburetor | VW & Off-Road Buggy | Modified, Externally Vented, SCORE Approved (98-1287-B)

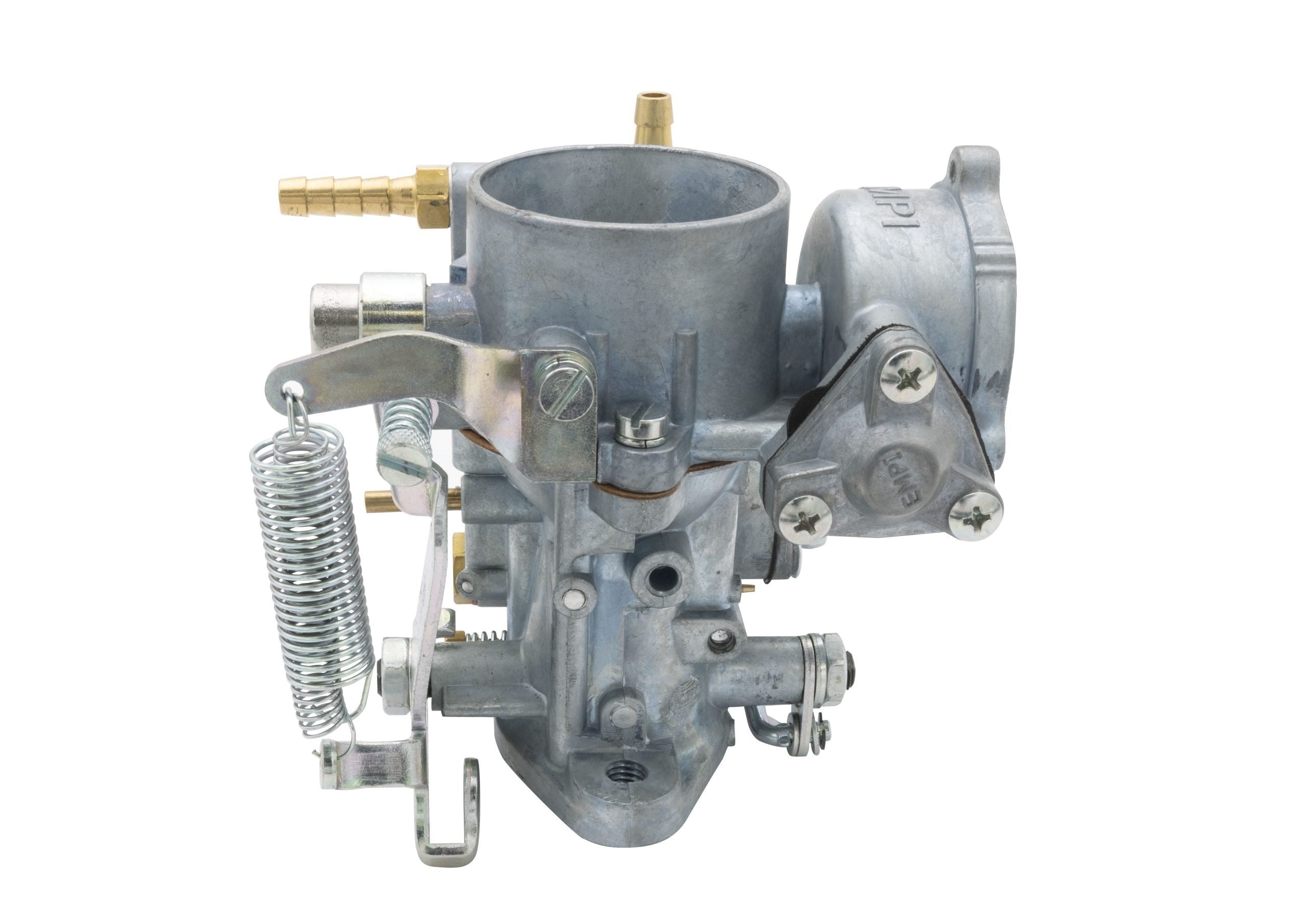

EMPI 30 PICT-1 Carburetor — Modified for Off-Road, SCORE Approved (98-1287-B)

For the hardcore competitor, EMPI offers this modified version of the popular 30 PICT-1. Baja 1000 tested and SCORE approved, the float bowl is externally vented to help avoid fuel slosh and flooding on rough terrain, the old vent tube is removed and plugged, the fuel inlet is threaded with a supplied screw-in fitting, and dual return springs guard against a stuck-open throttle. The choke assembly is removed and plugged on both sides — purpose-built for race and off-road use only.

Vehicle Fitment

• Off-road / race use: Class 1, 2, 5, 9, 11 buggies and sand rails
• Engine compatibility: single-port 1500cc-1600cc air-cooled engines
• Street use: NOT recommended (no choke for cold starts)

Key Features & Benefits

• Externally vented float bowl: eliminates fuel slosh and flooding on rough terrain
• Vent tube: removed and plugged
• Threaded fuel inlet: with supplied screw-in fitting
• Dual return springs: prevents stuck open throttle
• Choke assembly: removed and plugged on both sides
• Baja 1000: race-tested

Technical Specifications

• Part Number: 98-1287-B
• SCORE Approval: Classes 1-2/1600, 5/1600, 9, 11
• Main Jet: 120
• Idle Jet: 55
• Air Correction: 115
• Pump Jet: 50
• Needle Valve: 150
• Carburetor Rebuild Kit: 00-2500-0 or 00-9936-0
• Deluxe Carburetor Rebuild Kit: 00-2505-0
• Shipping Weight: ~3 lbs
• Shipping Box Dimensions: 7 x 7 x 7 in

Frequently Asked Questions

• Is this carburetor street legal / usable on the street? No — the choke assembly is removed and plugged, so it is purpose-built for race and off-road use only and is not recommended for street use.
• Why is the float bowl externally vented? The external vent helps eliminate fuel slosh and flooding on rough off-road terrain.
• Is it approved for off-road competition? Yes — it is SCORE-approved for classes 1-2/1600, 5/1600, 9, and 11 and is Baja 1000 race-tested.
