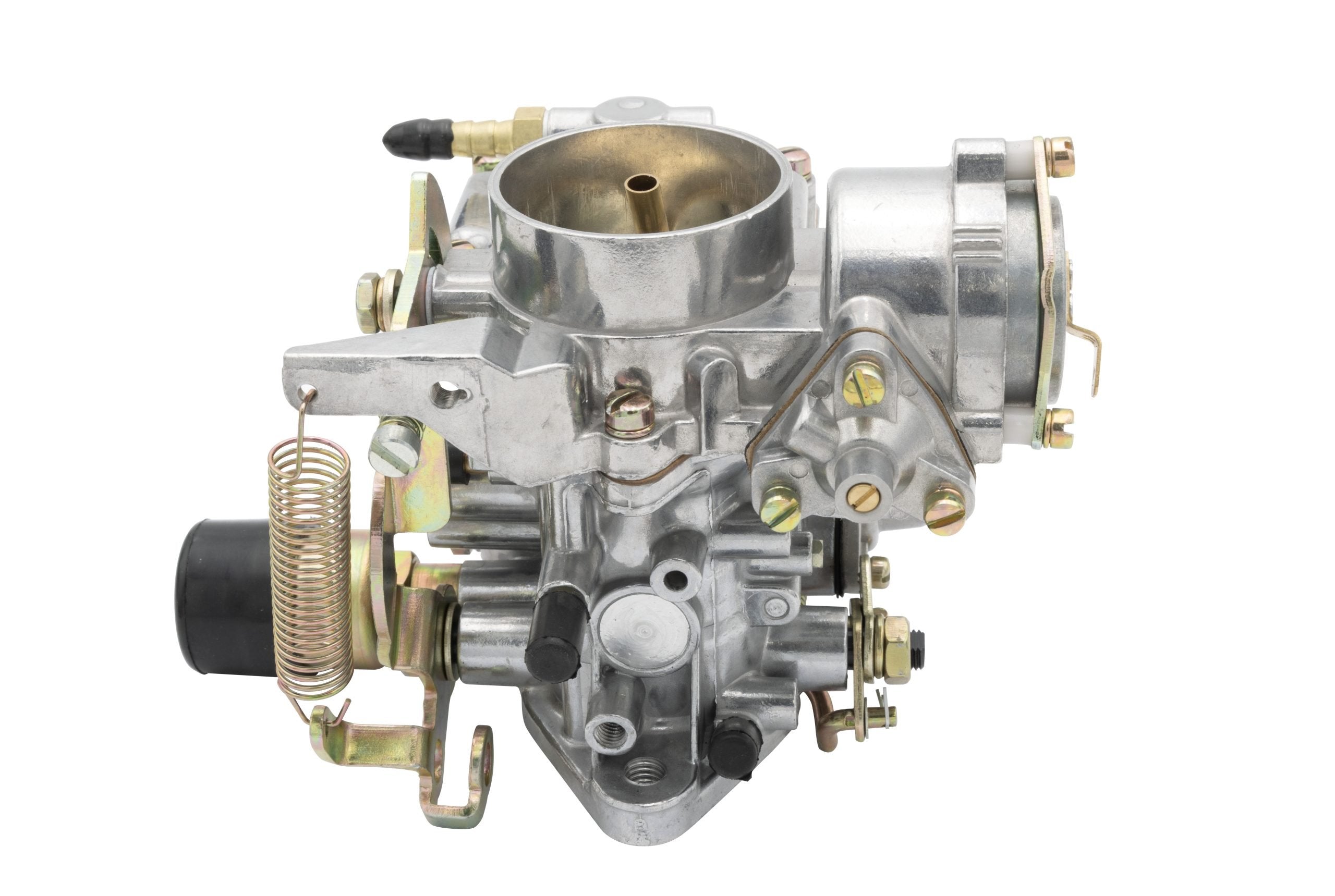

EMPI 39 PICT-3 Carburetor | VW Type 1 & 2 | 12V Choke, 1600cc Dual-Port (98-1291-B)

EMPI 39 PICT-3 Carburetor — 12V Electric Choke, 1600cc Dual-Port (98-1291-B)

The largest of EMPI's PICT-3 series, the 39mm PICT-3 is the upgrade for owners who want maximum airflow from a stock-style single carburetor. Designed for 1600cc dual-port air-cooled engines and tuned for stronger top-end performance than the 34mm and 37mm models, it features a 12V electric choke for cold-start reliability and includes a complete jet pack for tuning to your specific application, ethanol fuel, or header.

Vehicle Fitment

• VW Type 1 Beetle & Super Beetle: 1971-1979 (dual-port)
• VW Type 2 Bus: 1971+ dual-port applications
• Karmann Ghia: 1971-1974
• Thing (Type 181): 1973-1974
• Engine compatibility: mild-to-medium performance builds up to ~1776cc

Key Features & Benefits

• 39mm throat: largest PICT-3 single carburetor
• High-flow heads: best for mild performance builds
• 12V electric choke: cold-start reliability
• Throttle shaft bushings: on each end for long service life
• Alternator clearance: clears alternator on late-model applications
• Jet pack included: for ethanol fuel and header tuning
• Aluminum body: construction

Technical Specifications

• Part Number: 98-1291-B
• Throat: 39mm
• Choke: 12V electric
• Body: aluminum
• Main Jets: 130, 132, 137, 140 (factory + included)
• Idle Jets: 50, 60
• Carburetor Rebuild Kit: 00-2500-0 or 00-9936-0
• Deluxe Carburetor Rebuild Kit: 00-2505-0
• Shipping Weight: ~4 lbs
• Shipping Box Dimensions: 8 x 8 x 8 in

Frequently Asked Questions

• What size engine is this carburetor for? It is designed for 1600cc dual-port air-cooled engines and suits mild-to-medium performance builds up to about 1776cc.
• Does it come with tuning jets? Yes — it includes a jet pack (main jets 130, 132, 137, 140 and idle jets 50, 60) for tuning to your application, ethanol fuel, or a header.
• Will it clear a late-model alternator? Yes — it will clear the alternator on late-model applications.
