EMPI Dual Weber 48 IDA Carburetor Kit | VW Type 1 (Beetle, Ghia) | Round-Bar Linkage, 37mm Venturi (43-7328-0)

EMPI Dual Weber 48 IDA Carburetor Kit — VW Type 1, 37mm Venturis

The Weber 48 IDA is the carburetor of choice for serious air-cooled performance builds — drag cars, big-bore strokers, and Type 1 engines pushing 150+ horsepower. This complete EMPI kit pairs genuine Weber 48 IDA downdraft carburetors with everything needed to bolt on a no-compromise induction setup.

Vehicle Fitment

• VW Type 1 dual-port engines: 1915cc and larger recommended
• Applications: Beetle, Karmann Ghia, Dune Buggy, Sand Rail, Baja Bug
• Clearance: Will not clear a stock fan shroud without modification — 36HP-style shroud recommended. Verify hood/decklid clearance before ordering.

Why Choose the Weber 48 IDA?

The Weber 48 IDA is a true downdraft design with massive 48mm throats — significantly larger than 40mm or 44mm sidedraft alternatives. For engines over 1915cc, big-bore strokers, or any build targeting peak top-end power and RPM, the IDA is the racing standard. Below that displacement, an HPMX 40/44 or IDF kit will make better street power and drive smoother.

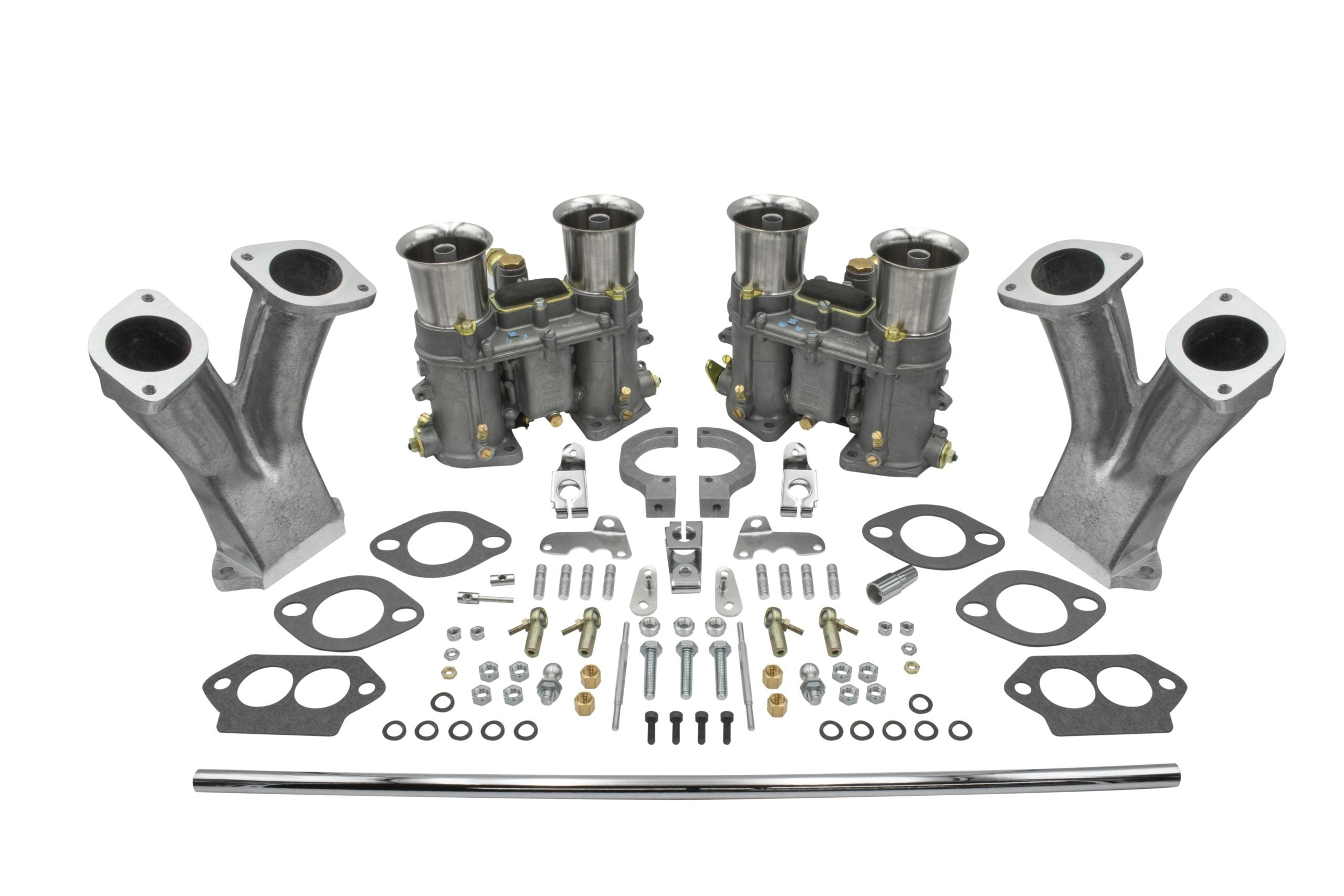

Kit Includes

• Two genuine Weber 48 IDA 4R carburetors (pre-jetted, 37mm venturis, jet screens installed)
• Standard-length aluminum intake manifolds (clearanced for stock heads, port-match ready)
• Round-bar Tayco competition cross-bar linkage (EMPI 43-5240)
• Aluminum velocity stacks
• Steel mounting brackets (allow optional air cleaner use)
• Fuel line, brass tee fitting, inline filter
• Manifold gaskets and complete mounting hardware

Key Features & Benefits

• Genuine Webers: Real Weber 48 IDA 4R carburetors, pre-jetted with jet screens installed.
• Complete bolt-on: Manifolds, linkage, velocity stacks, fuel plumbing, and hardware all in one kit.
• Built for power: 48mm downdraft throats feed big-bore, high-rpm Type 1 engines.

Technical Specifications

• Part Number: 43-7328-0
• Carburetors: Two genuine Weber 48 IDA 4R (pre-jetted)
• Venturis: 37mm
• Throat Size: 48mm downdraft
• Manifolds: Standard-length aluminum
• Linkage: Round-bar Tayco cross-bar (EMPI 43-5240)
• Approx. Carton: 24 × 18 × 14 in
• Approx. Weight: 32 lbs

Frequently Asked Questions

• What engine size is recommended? The 48 IDA suits VW Type 1 dual-port engines 1915cc and larger. Below that, an HPMX 40/44 or IDF kit makes better street power.
• Are air cleaners included? No — air cleaners are sold separately.
• Will it clear the stock fan shroud? No. It will not clear a stock fan shroud without modification; a 36HP-style shroud is recommended.
• How does it ship? This high-value kit ships fully insured with signature required via UPS/FedEx Ground from California. It is an oversized box; additional handling fees may apply outside the contiguous US, and final freight is calculated at checkout.

Installation

Installation note: Air cleaners not included (sold separately). Single carb applications require a vacuum-assisted distributor for proper performance. Tuning a 48 IDA is more involved than a stock carb — be prepared to dial in jetting for your specific engine combination. Professional tuning recommended for first-time IDA users.

Pairs with: EMPI Pro-Sync carb synchronizer (43-5712-0) for proper dual carb balancing.
