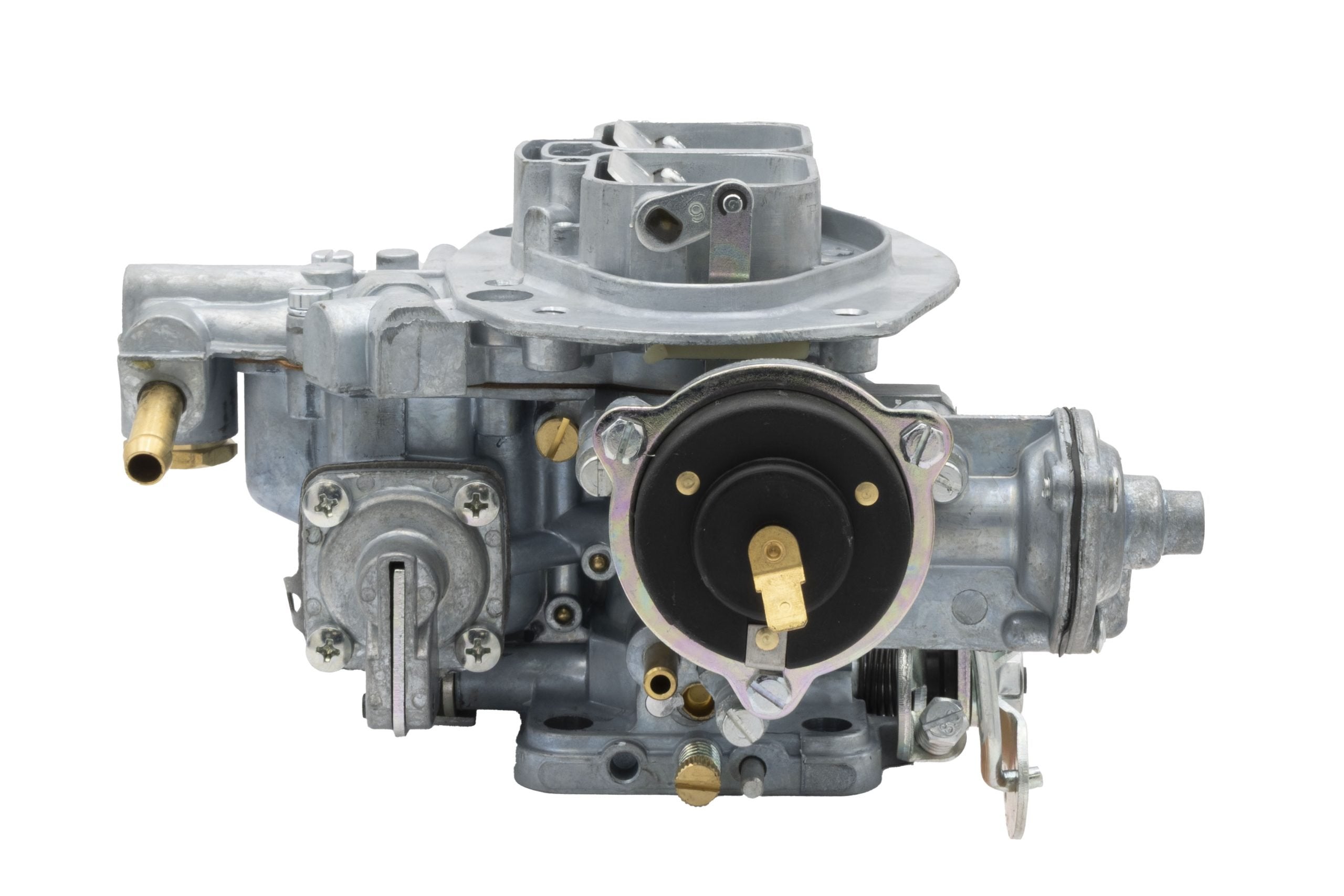

EMPI EPC 32/36F Progressive Carburetor | VW Type 1 & 2 | Dual-Barrel, Carb Only (44-1018-1)

EMPI EPC 32/36F Progressive Carburetor — Dual-Barrel, Carb Only (44-1018-1)

The EMPI EPC 32/36F is a single dual-barrel progressive carburetor — the ideal upgrade for 1600-1641cc engines that improves performance without sacrificing fuel economy. The 32mm primary barrel handles cruising for excellent gas mileage; when you step on it, the 36mm secondary opens progressively to deliver real power. Carburetor only — kit components sold separately.

Vehicle Fitment

• VW Type 1 Beetle: 1300cc-1641cc applications
• VW Type 2 Bus: same engine sizes
• Replaces / upgrades: stock 30 / 34 PICT-3 carbs

Key Features & Benefits

• Progressive dual-barrel: 32mm primary, 36mm secondary
• Cruise economy: runs on one barrel for fuel economy
• Performance on demand: step on it for true dual-barrel power
• Displacement range: recommended up to 1700cc
• Test-run & adjusted: for smooth out-of-the-box performance
• Weber interchange: directly interchangeable with Weber 32/36 DFEV (same jets, same parts)
• Carb only: manifold, linkage, and air cleaner sold separately

Technical Specifications

• Part Number: 44-1018-1
• Design: progressive dual-barrel (32mm primary / 36mm secondary)
• Primary Main Jet: 1.37
• Secondary Main Jet: 1.40
• Primary Idle Jet: .060
• Secondary Idle Jet: .050
• Primary Air Jet: 1.65
• Secondary Air Jet: 1.60
• Pump Jet: .55
• Needle Valve: 2.00
• Primary E-Tube: F-66
• Secondary E-Tube: F-50
• Auxiliary Venturi: 3.4mm
• Carburetor Rebuild Kit: 00-2202-0 or 00-9932-0
• Deluxe Rebuild Kit: 43-5804-0
• Sold as: carburetor only — manifold, linkage, and air cleaner sold separately
• Shipping Weight: ~4 lbs
• Shipping Box Dimensions: 8 x 7 x 7 in

Frequently Asked Questions

• Is this the complete kit or the carburetor only? This is the carburetor only — the manifold, linkage, and air cleaner are sold separately.
• Will it improve fuel economy? Yes — it cruises on the 32mm primary barrel for economy and opens the 36mm secondary only when you need power.
• Are the jets the same as a Weber 32/36 DFEV? Yes — it is directly interchangeable with the Weber 32/36 DFEV, using the same jets and parts.
