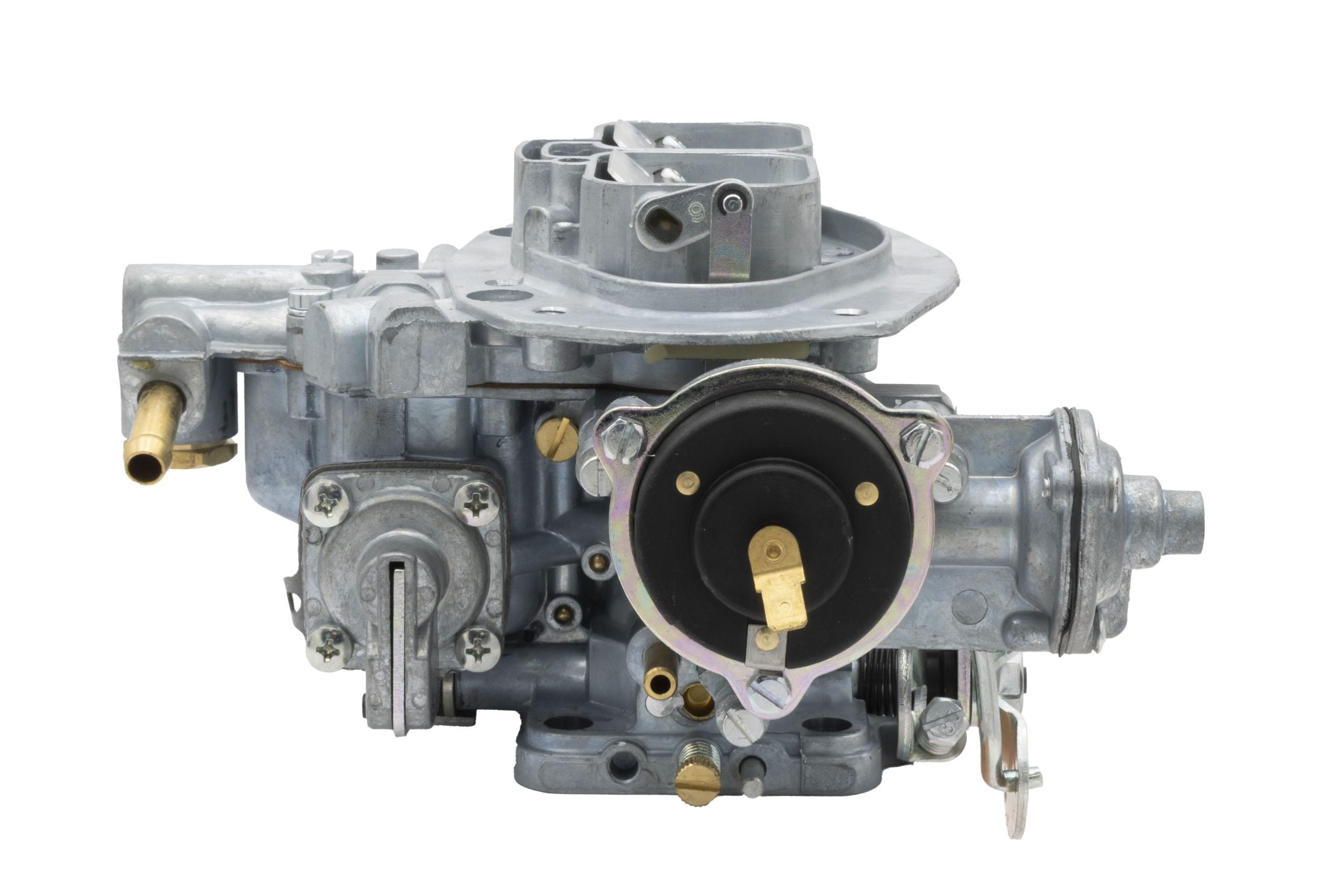

EMPI EPC 32/36F Progressive Carburetor | VW Type 2/4 & Porsche 914 | Dual-Barrel, Carb Only (47-0670-7)

EMPI EPC 32/36F Progressive Carburetor — Type 4 Platform, Carb Only (47-0670-7)

The Type 2/4/914 variant of EMPI's EPC 32/36F progressive carburetor — the same proven dual-barrel design, tuned and supplied for the Type 4 engine platform (Bus, Type 4, and Porsche 914). The 32mm primary delivers economy at cruise; the 36mm secondary opens progressively for performance. Carburetor only — kit components sold separately.

Vehicle Fitment

• VW Type 2 Bus: 1972-1979 (Type 4 engine)
• VW Type 4 (411/412): 1968-1974
• Porsche 914: 1.7L / 1.8L / 2.0L (1969-1976)

Key Features & Benefits

• Progressive dual-barrel: 32mm primary, 36mm secondary
• Cruise, then power: cruise on one barrel, step on it for performance
• Test-run & adjusted: from EMPI
• Weber interchange: identical jets and parts to the Weber 32/36 DFEV
• Carb only: kit components sold separately

Technical Specifications

• Part Number: 47-0670-7
• Design: progressive dual-barrel (32mm primary / 36mm secondary)
• Primary Main Jet: 1.37
• Secondary Main Jet: 1.40
• Primary Idle Jet: .060
• Secondary Idle Jet: .050
• Primary Air Jet: 1.65
• Secondary Air Jet: 1.60
• Pump Jet: .55
• Needle Valve: 2.00
• Primary E-Tube: F-66
• Secondary E-Tube: F-50
• Auxiliary Venturi: 3.4mm
• Carburetor Rebuild Kit: 00-2202-0 or 00-9932-0
• Deluxe Rebuild Kit: 43-5804-0
• Sold as: carburetor only — manifold, linkage, and air cleaner sold separately
• Shipping Weight: ~4 lbs
• Shipping Box Dimensions: 8 x 7 x 7 in

Frequently Asked Questions

• Does this fit a Porsche 914? Yes — this variant is tuned for the Type 4 engine platform, including the Porsche 914 (1.7L / 1.8L / 2.0L, 1969-1976).
• Is this the carburetor only? Yes — the carburetor is supplied on its own; kit components are sold separately.
• Are the parts shared with a Weber 32/36 DFEV? Yes — it uses identical jets and parts to the Weber 32/36 DFEV.
