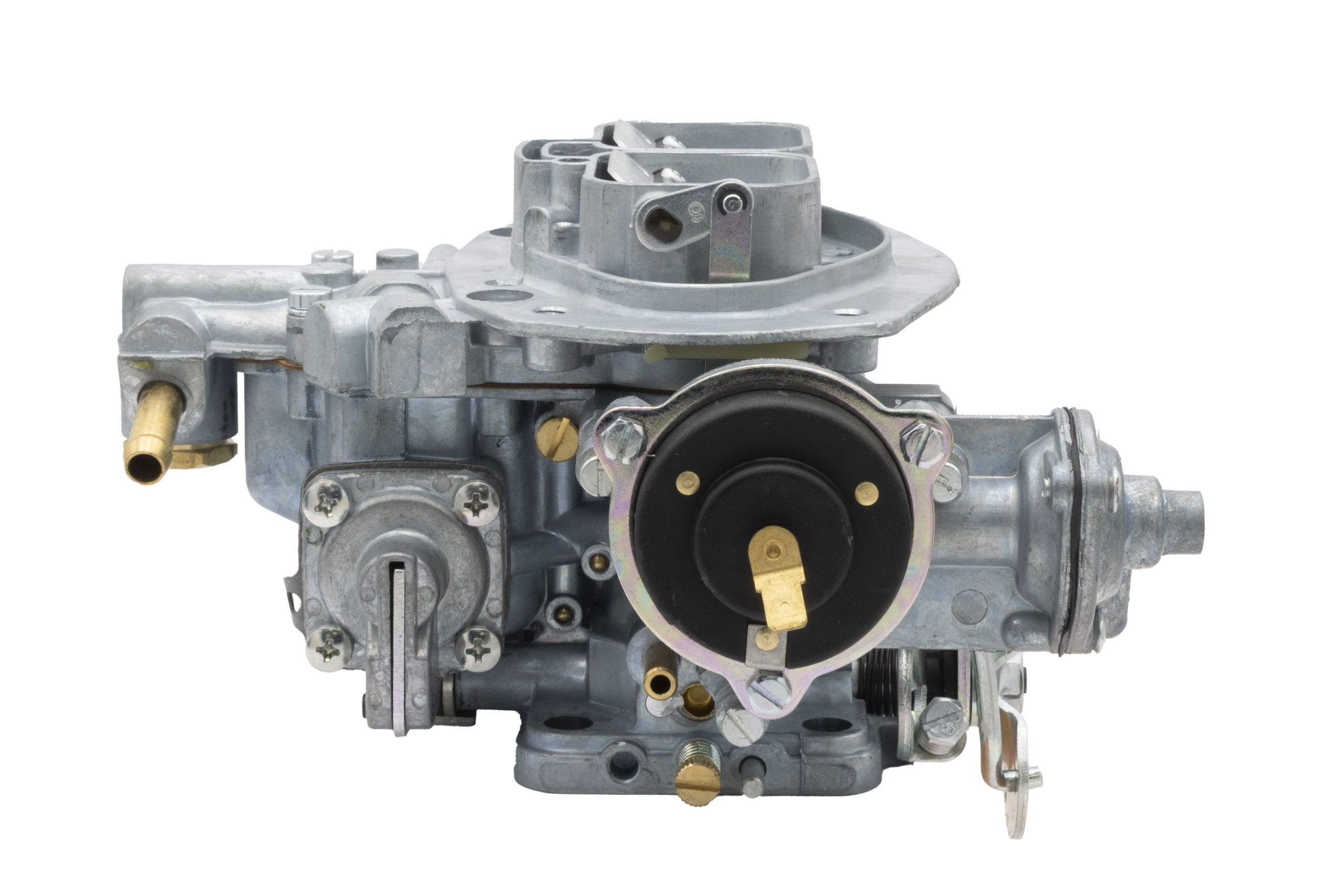

EMPI EPC 32/36F Progressive Carburetor | VW Type 3 | Dual-Barrel, Carb Only (47-0634-7)

EMPI EPC 32/36F Progressive Carburetor — VW Type 3, Carb Only (47-0634-7)

The Type 3 variant of EMPI's EPC 32/36F progressive carburetor for VW Notchback, Squareback, and Fastback. The same proven progressive design, tuned for the Type 3 platform: the 32mm primary delivers economy at cruise while the 36mm secondary opens progressively under load for real power gains. Carburetor only — Type 3 kits with the proper manifold and decklid bubble are sold separately.

Vehicle Fitment

• VW Type 3 Notchback (1500/1600): 1961-1973
• VW Type 3 Squareback: 1961-1973
• VW Type 3 Fastback: 1965-1973

Key Features & Benefits

• Progressive dual-barrel: 32mm primary, 36mm secondary
• Test-run & adjusted: from EMPI
• Weber interchange: identical parts to the Weber 32/36 DFEV
• Type 3 tuned: for the Type 3 engine layout
• Carb only: kit components sold separately

Technical Specifications

• Part Number: 47-0634-7
• Design: progressive dual-barrel (32mm primary / 36mm secondary)
• Primary Main Jet: 1.37
• Secondary Main Jet: 1.40
• Primary Idle Jet: .060
• Secondary Idle Jet: .050
• Primary Air Jet: 1.65
• Secondary Air Jet: 1.60
• Pump Jet: .55
• Needle Valve: 2.00
• Primary E-Tube: F-66
• Secondary E-Tube: F-50
• Auxiliary Venturi: 3.4mm
• Carburetor Rebuild Kit: 00-2202-0 or 00-9932-0
• Deluxe Rebuild Kit: 43-5804-0
• Sold as: carburetor only — manifold, linkage, and air cleaner sold separately
• Shipping Weight: ~4 lbs
• Shipping Box Dimensions: 8 x 7 x 7 in

Frequently Asked Questions

• Which VW Type 3 models does this fit? VW Type 3 Notchback and Squareback (1961-1973) and Fastback (1965-1973).
• Do I need a special manifold? Yes — Type 3 kits with the proper manifold and decklid bubble are sold separately; this listing is the carburetor only.
• Are the parts shared with a Weber 32/36 DFEV? Yes — it uses identical parts to the Weber 32/36 DFEV.
