EMPI EPC 38 EGAS Carburetor | VW Type 1/2/3 | Synchronous 38mm Dual-Barrel, Carb Only (47-0628-7)

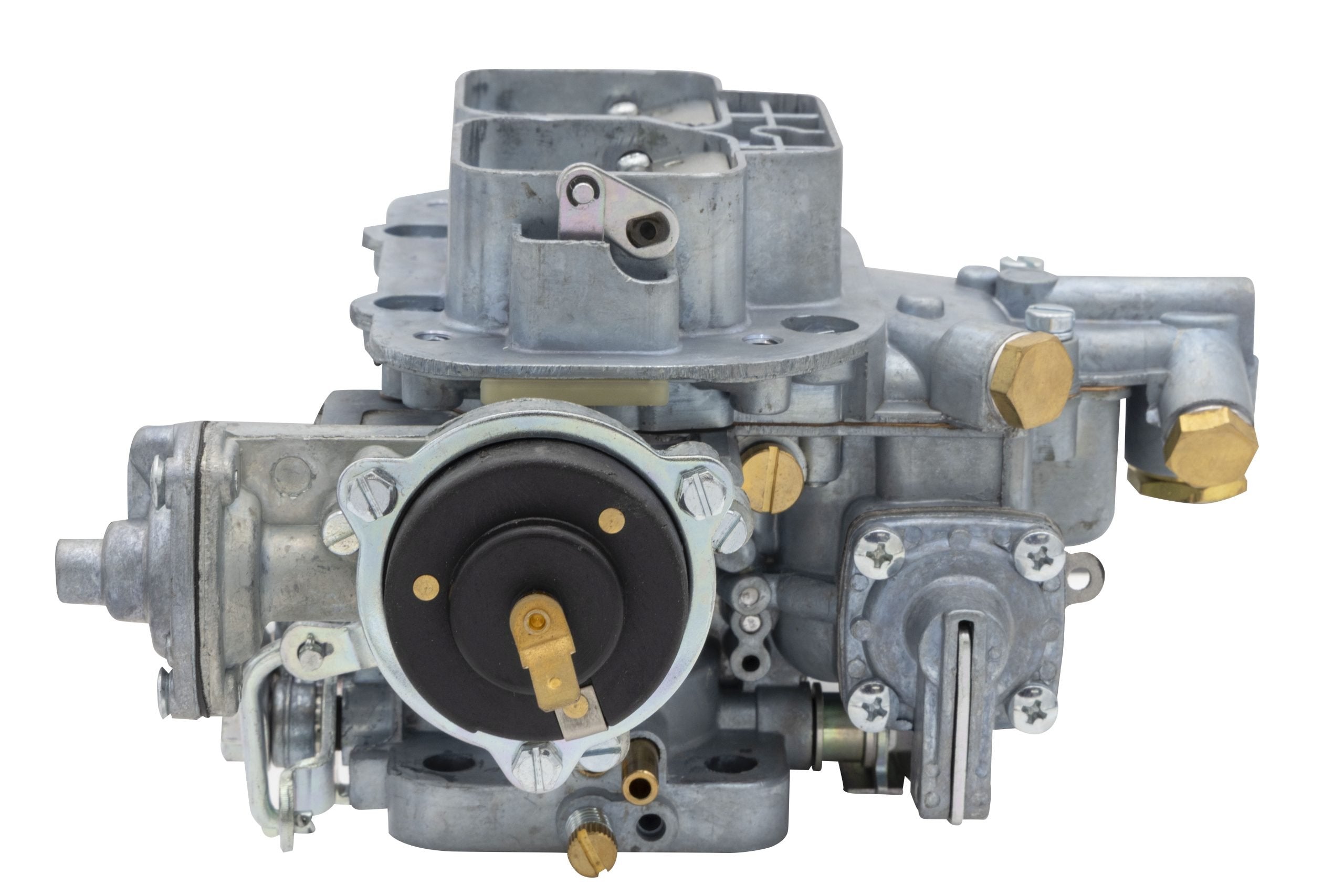

EMPI EPC 38 EGAS Synchronous Dual-Barrel Carburetor — Carb Only (47-0628-7)

The EMPI EPC 38 EGAS is a synchronous 38mm dual-barrel carburetor — a real performance upgrade over the progressive 32/36F that opens both barrels together for stronger mid-range and top-end. It delivers excellent power, performance, and drivability for street or off-road use. Carburetor only.

Vehicle Fitment

• VW Type 1 Beetle / Bus / Karmann Ghia: upright applications
• VW Type 2 Bus (Type 4 engine), Type 4, Porsche 914
• VW Type 3 Notchback / Squareback / Fastback
• Best for: 1600cc–1914cc applications

Why Choose EMPI?

EMPI's EPC series is engineered as a modern, affordable performance carburetor for air-cooled VWs. The synchronous EPC 38 steps up from the progressive 32/36 for builders who want stronger mid-range and top-end pull.

Key Features & Benefits

• Synchronous 38mm dual-barrel: both barrels open together
• Stronger mid-range and top-end vs a progressive 32/36
• Electric choke: reliable cold starts
• Carb only: pair with the matching EMPI manifold and air cleaner kit

Technical Specifications

• Part Number: 47-0628-7
• Type: Synchronous 38mm dual-barrel
• Choke: Electric
• Factory Jetting: Main Jet 145 / Idle Jet 45 / Air Correction 170 / Pump Jet 67 / Emulsion Tube F-50
• Matching Kits: 47-0628-0 (Type 1), 47-0645-0 (Type 2/4/914), 47-0640-0 (Type 3)
• Rebuild Kits: 00-2361-0 or 00-9947-0; Deluxe 43-5802-0
• Sold As: Carburetor only
• Shipping: ~4.5 lbs, box 8 x 8 x 8 in

Frequently Asked Questions

• Is this a complete kit? No — the carburetor only. Pair it with the 47-0628-0 Type 1 kit, 47-0645-0 Type 2/4/914 kit, or 47-0640-0 Type 3 kit (manifold, linkage, and air cleaner sold separately).
• How is the EPC 38 different from a 32/36? It is a synchronous 38mm dual-barrel design that opens both barrels together, giving stronger mid-range and top-end than a progressive 32/36.
• What engine size is it best for? It is best suited to 1600cc–1914cc applications.
