EMPI Ultra 44mm HPMX Dual Carburetor Kit | VW Type 1 Dual-Port | Offset Manifolds (47-7336-0)

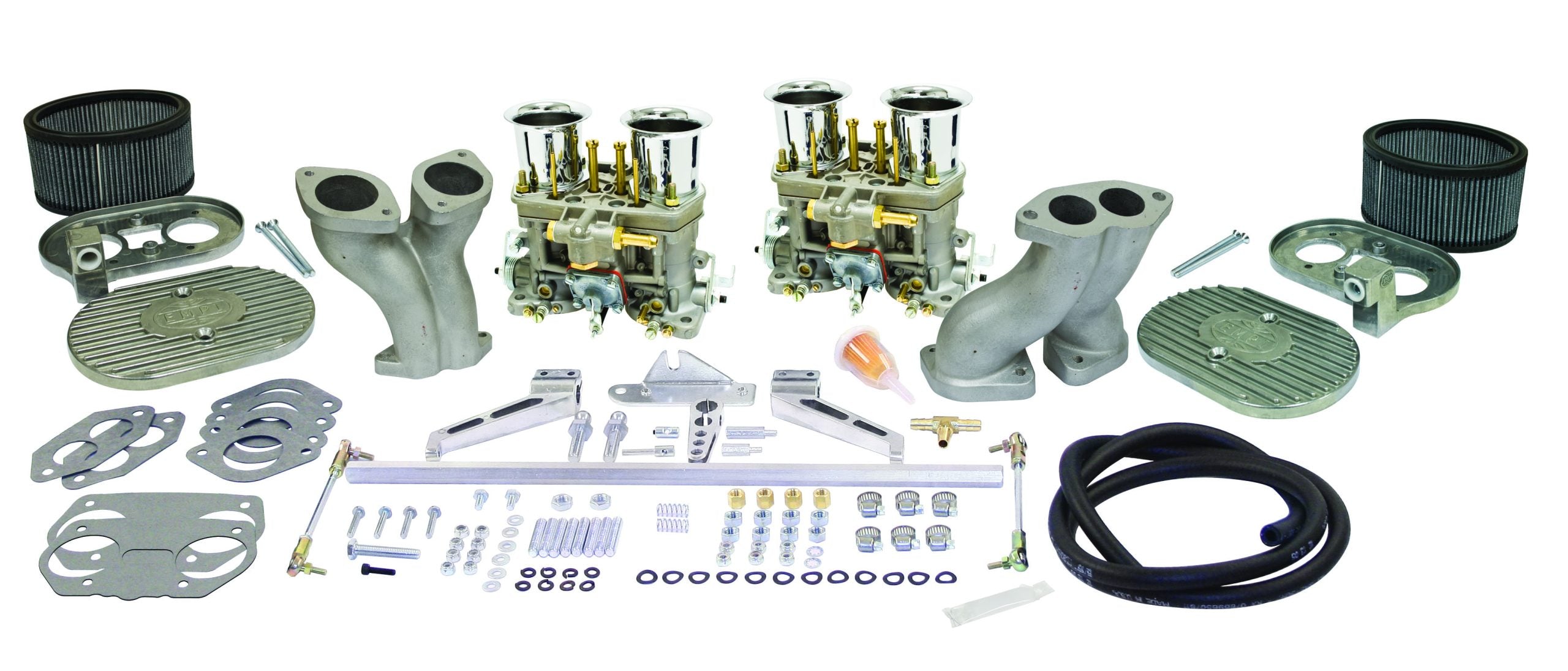

EMPI Ultra 44mm HPMX Dual Carburetor Kit — VW Type 1 Dual-Port, Offset Manifolds

Squeeze every bit of power from your Type 1 engine with the EMPI Ultra 44mm HPMX Dual Carburetor Kit. Specifically engineered for larger displacement or high-performance builds, this "Ultra" series kit features the sought-after offset intake manifolds, which align the carburetors straight across the engine bay. This not only improves aesthetics but effectively eliminates common body clearance issues found in many VW models.

The heart of the kit is the upgraded Hex Bar/Air Cleaner Linkage Combo. Built with heavy-duty cast aluminum tops and bottoms and reinforced with integrated X-bar support, this system provides the rock-solid synchronization required for high-performance driving. If you're looking for crisp throttle response and a kit that can handle custom port matching, this is the definitive setup for your dual-port engine.

Vehicle Fitment

• VW Beetle: Dual-port engine
• VW Bus: Dual-port engine
• VW Karmann Ghia: Dual-port engine

Key Features & Benefits

• Maximum Performance: Dual 44mm HPMX carburetors are ideal for larger engines (up to 2200cc) needing increased airflow.
• Precision Alignment: Offset manifolds ensure perfect carburetor positioning and easier fitment in tight engine bays.
• Pro-Grade Linkage: The aircraft-quality hex bar linkage eliminates flex, ensuring both carbs open in perfect sync.
• Port-Match Ready: Manifold walls are cast thick specifically to allow for custom porting to match your cylinder heads.

Technical Specifications

• Carburetors: Dual 44mm HPMX
• Manifolds: Offset intake, port-match ready (cast thick for custom porting)
• Linkage: Hex bar / air cleaner combo with cast aluminum tops and bottoms and integrated X-bar support
• Engine Fitment: VW Type 1 dual-port, up to 2200cc
• Part Number: 47-7336-0

Frequently Asked Questions

• What engine size is this kit designed for? The dual 44mm HPMX carburetors are ideal for larger Type 1 engines up to 2200cc that need increased airflow.
• Why does this kit use offset manifolds? The offset intake manifolds align the carburetors straight across the engine bay, improving aesthetics and eliminating common body clearance issues found in many VW models.
