EMPI Wheel Lug Bolts & Nuts | Air-Cooled VW | Conical, Ball Seat & Mag Hardware

EMPI Wheel Lug Bolts & Nuts — Aftermarket Wheel Hardware

Wheel lug hardware from EMPI for air-cooled VW and aftermarket wheels. Match the seat type and thread to your wheels: 60° conical seats for most aftermarket alloys and steelies, a ball seat for 911-style alloys, and acorn/mag nuts for 1/2-20 stud-mount applications.

Vehicle Fitment

• VW Beetle: All years
• VW Bus: All years
• VW Karmann Ghia: All years

Key Features & Benefits

• Correct Seat Types: 60° conical for most aftermarket alloys and steelies; ball seat for 911-style alloys.
• Stud-Mount Options: 1/2-20 acorn and mag nuts for stud-mount applications.
• Multiple Threads & Finishes: 12mm and 14mm bolts, plus chrome sets with install tool.

Technical Specifications

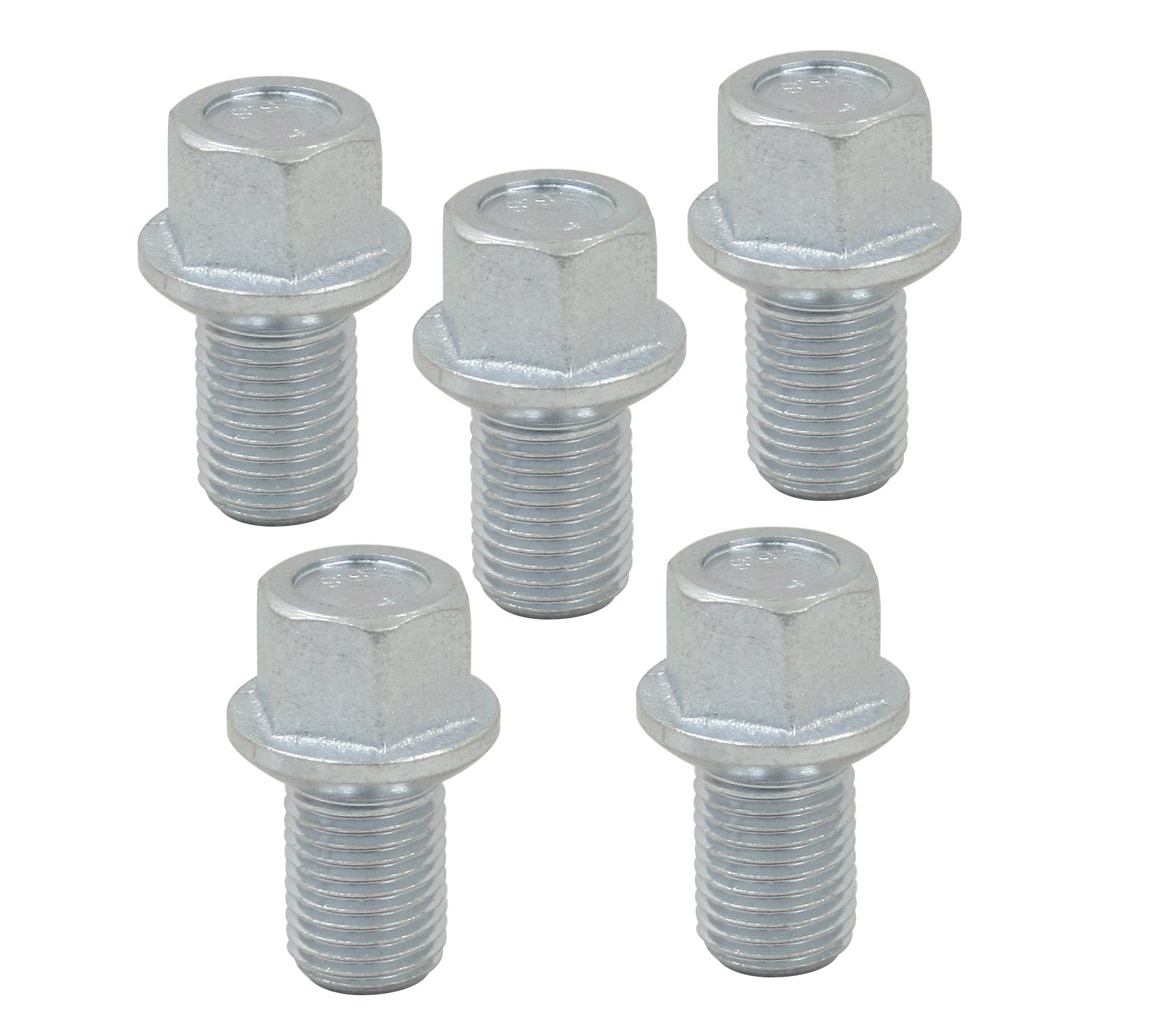

• 14mm VW Style Lug Bolt, 17mm Head — Set of 5: 70-2863-0
• 12mm-1.5, 60° Bolt, 23mm Thread — Set of 4: 70-2706-0
• 14mm-1.5, 60° Bolt, 23mm Thread — Set of 4: 70-2707-0

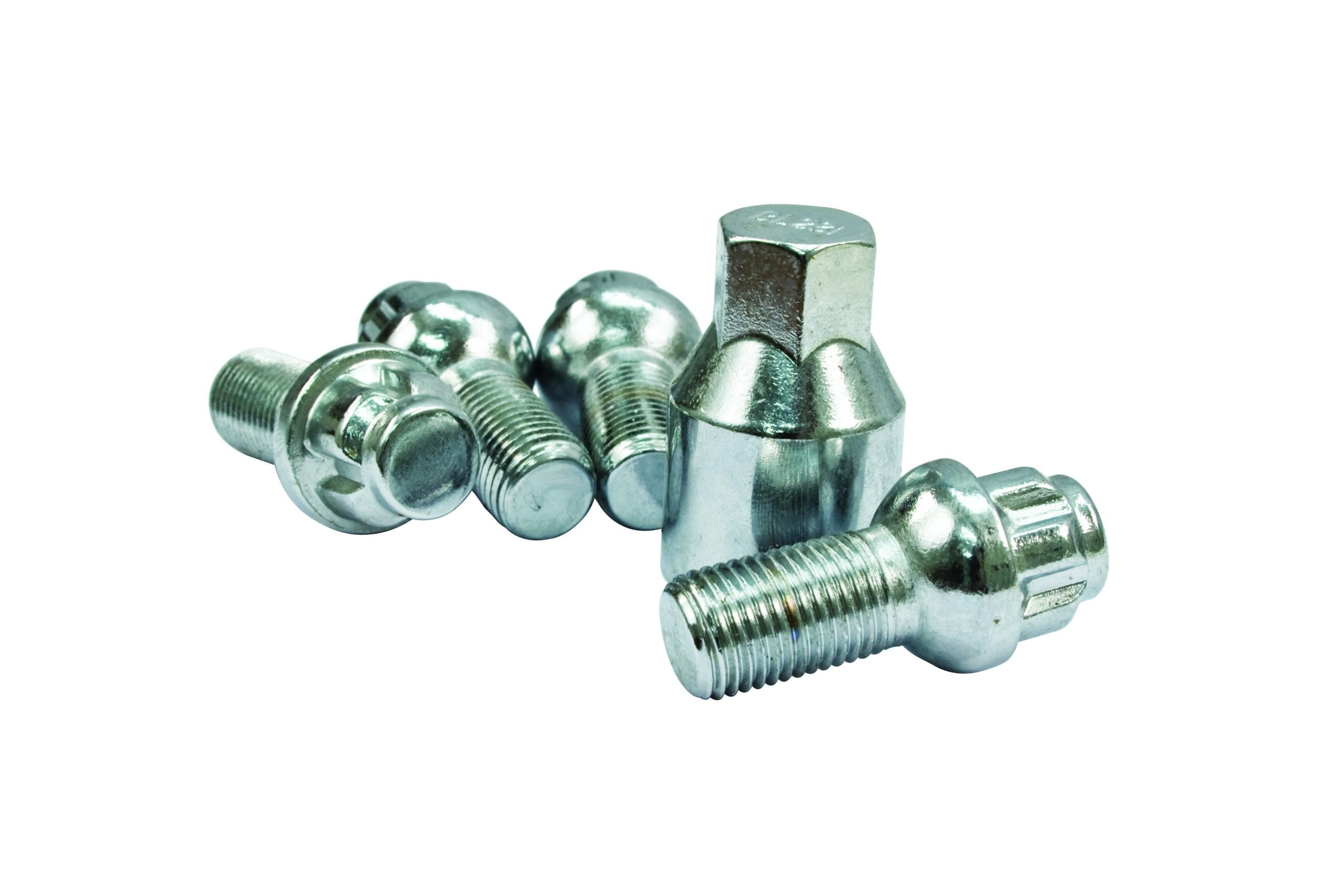

• 14mm-1.5 Ball Seat (911 Alloys), 25mm Thread — Set of 4: 70-2708-0
• 1/2-20 Acorn Nut — Set of 4: 70-2704-0
• 1/2-20 Mag Nut — Set of 4: 70-2703-0
• 1/2" 60° Chrome w/Tool, 5x112 — Set of 5: 00-9548-0
• 12mm 60° Chrome w/Tool, 5x112 — Set of 5: 00-9549-0
• 14mm 60° Chrome w/Tool, 5x112 — Set of 5: 00-9547-0

Frequently Asked Questions

• Which seat type do aftermarket alloys and steel wheels use? Most use a 60° conical seat bolt.
• Which option fits 911-style alloys? The 14mm-1.5 ball-seat bolt (25mm thread, 70-2708-0).
• What about 1/2-20 stud-mount wheels? Use the 1/2-20 acorn (70-2704-0) or mag (70-2703-0) nuts.
