Short answer: These are weld-in CNC-cut steel brackets that locate IRS trailing arms on a swing-axle VW Beetle, Karmann Ghia or Type 3 pan (and Manx/buggy flat-pan builds) for a swing-to-IRS conversion; factory IRS chassis do not need them (#CH05).

Model #CH05

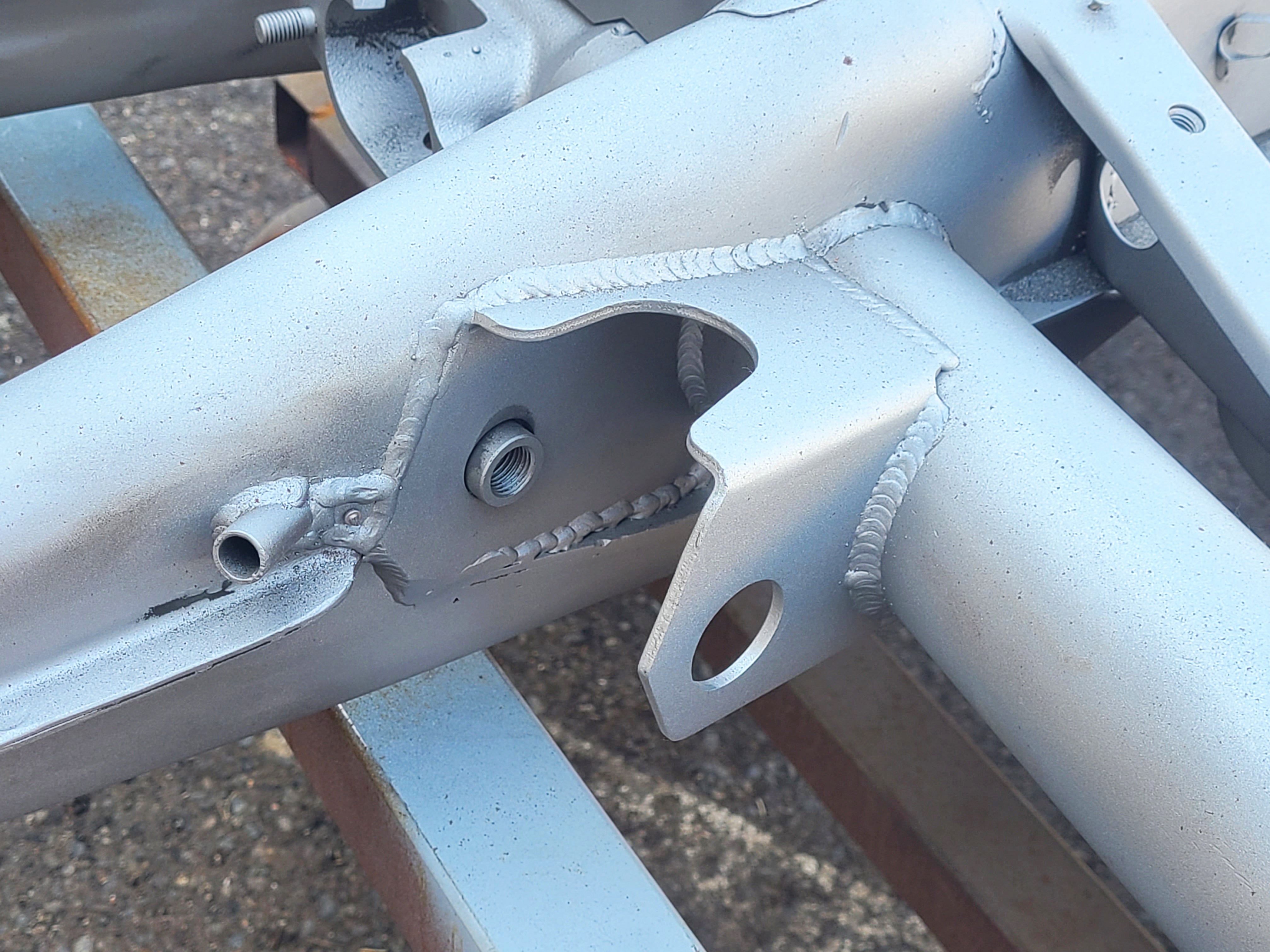

Convert your swing-axle VW to independent rear suspension (IRS) with the correct geometry the first time. These weld-in trailing arm conversion brackets locate your IRS trailing arms in the right position on a swing-axle pan, giving you the handling, ride quality, and durability upgrade that an IRS swap is known for.

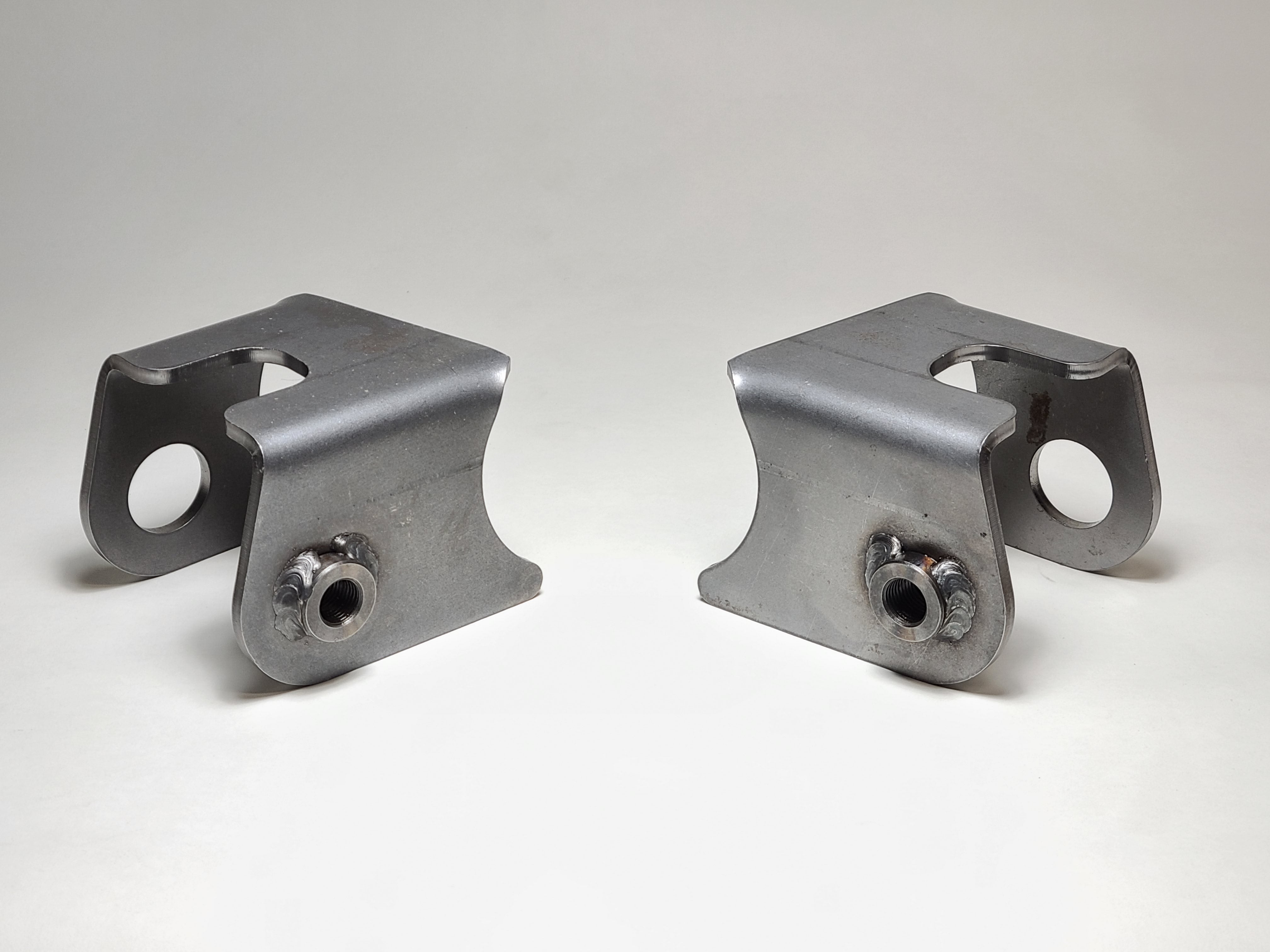

CNC-cut from thick-gauge steel for a strong, permanent foundation under your rear suspension — built to take street and off-road abuse on Bugs, Ghias, Type 3s, and Manx/buggy builds.

Why Do a Swing-to-IRS Conversion?

• Better handling: IRS keeps the rear tires planted through corners and over bumps, eliminating the swing-axle "jacking" effect.
• Smoother ride: Independent arms soak up road and trail irregularities far better than a swing axle.
• Correct geometry built in: Brackets are cut to locate the trailing arms properly so your conversion drives right.
• CNC-cut thick-gauge steel: Strong, permanent foundation built for street and off-road abuse.
• Made in-house: Designed and cut by Washburn's Metal in Orange, California.

Fitment

CONFIRMED:

• VW Beetle: 1949–1968 swing-axle chassis being converted to IRS
• VW Karmann Ghia: 1956–1968 swing-axle chassis
• VW Type 3: 1962–1968 swing-axle chassis
• Manx / dune buggy and custom flat-pan builds on a swing-axle (1949–1968) donor pan

NOT CONFIRMED: chassis that already came with IRS from the factory do not need these brackets. If you are unsure which rear suspension your pan has, send us a photo before you order.

Technical Specifications

• Material: CNC-cut thick-gauge steel
• Installation: Weld-in
• Function: Locates IRS trailing arms on a swing-axle pan
• Part Number: #CH05
• Shipping weight: 2.75 lb
• Boxed dimensions: 10 x 6 x 3 in

Frequently Asked Questions

• What do these brackets do? They locate your IRS trailing arms in the correct position on a swing-axle pan, so a swing-to-IRS conversion has the right geometry.
• Will they fit my swing-axle Beetle, Ghia or Type 3? Yes. CH05 is made for air-cooled VW Beetle, Karmann Ghia and Type 3 swing-axle chassis being converted to IRS, plus Manx/dune buggy and custom flat-pan builds.
• How do they install? Weld-in installation for experienced fabricators. Correct placement is critical to suspension geometry — measure carefully and tack before final welding, or have a qualified shop perform the conversion.
• What else do I need for the conversion? CH05 is the bracket set only. You supply the IRS trailing arms and the rest of the IRS running gear for your build.
• Who makes CH05? Washburn's Metal designs and cuts CH05 in-house in Orange, California. CH05 is our part number.
• How does it ship? Ships from our shop in Orange, California, at about 2.75 lb boxed (10 x 6 x 3 in).
• What is the part number? Washburn's Metal CH05.
