JayCee AN10 Fuel Pump Block-Off — One-Piece Billet 6061-T6 Aluminum
The #10 AN version of JayCee's fuel pump port block-off, built for high-flow builds that need a larger return or vent line at the fuel pump port. One-piece billet construction, O-ring sealed, and CNC machined in Anaheim.
Vehicle Fitment
- VW Beetle: All Years
- VW Bus: All Years
- VW Karmann Ghia: All Years
- VW Type 3: All Years
Why Choose JayCee?
Genuine JayCee, CNC machined in Anaheim, CA and supplied through Washburn's Metal as an authorized EMPI/JayCee dealer.
Key Features & Benefits
- #10 AN fitting: Larger fitting for high-flow return or vent lines.
- One-piece design: CNC machined with no separate fittings to leak.
- O-ring sealed: Clean, leak-resistant seal at the fuel pump port.

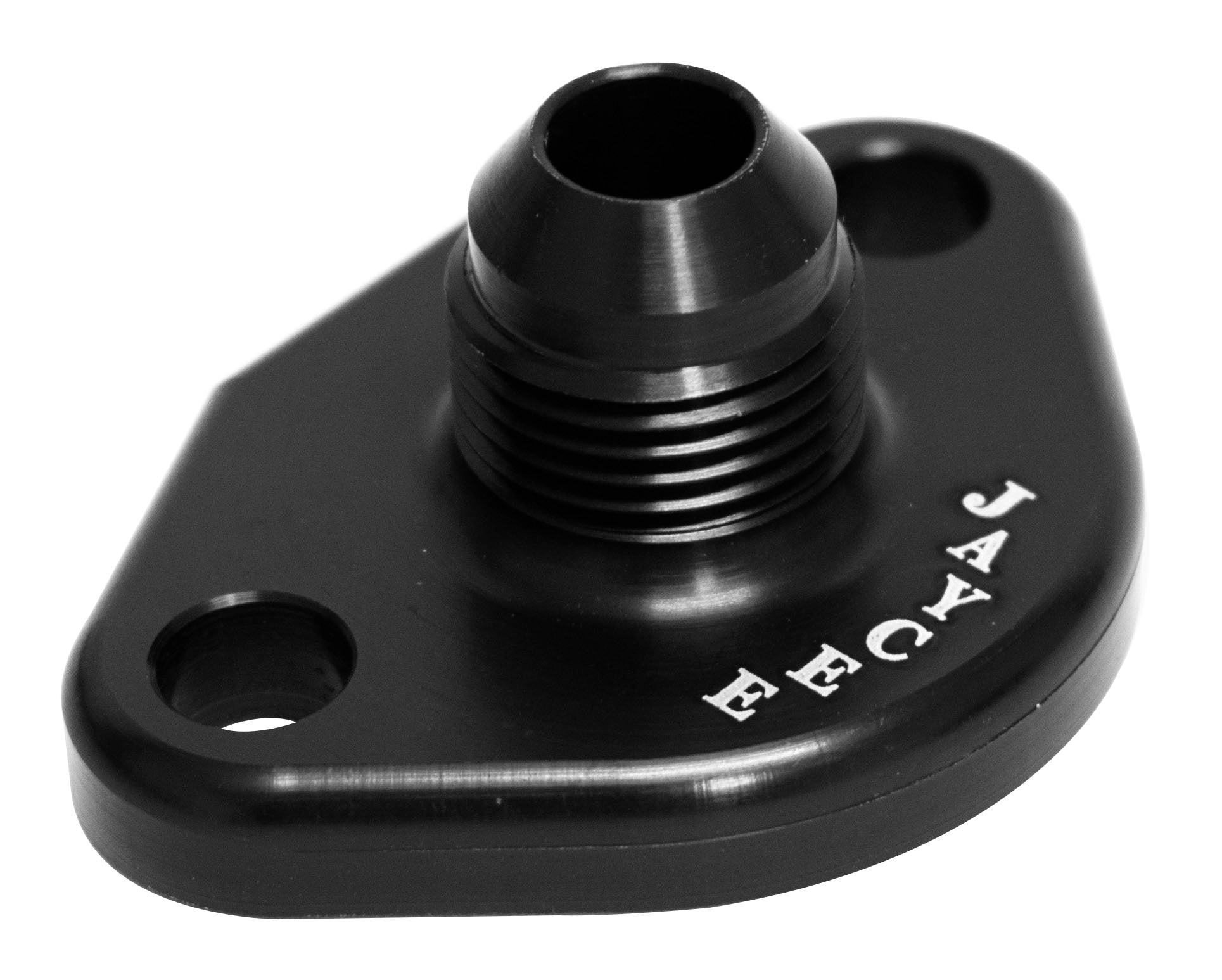

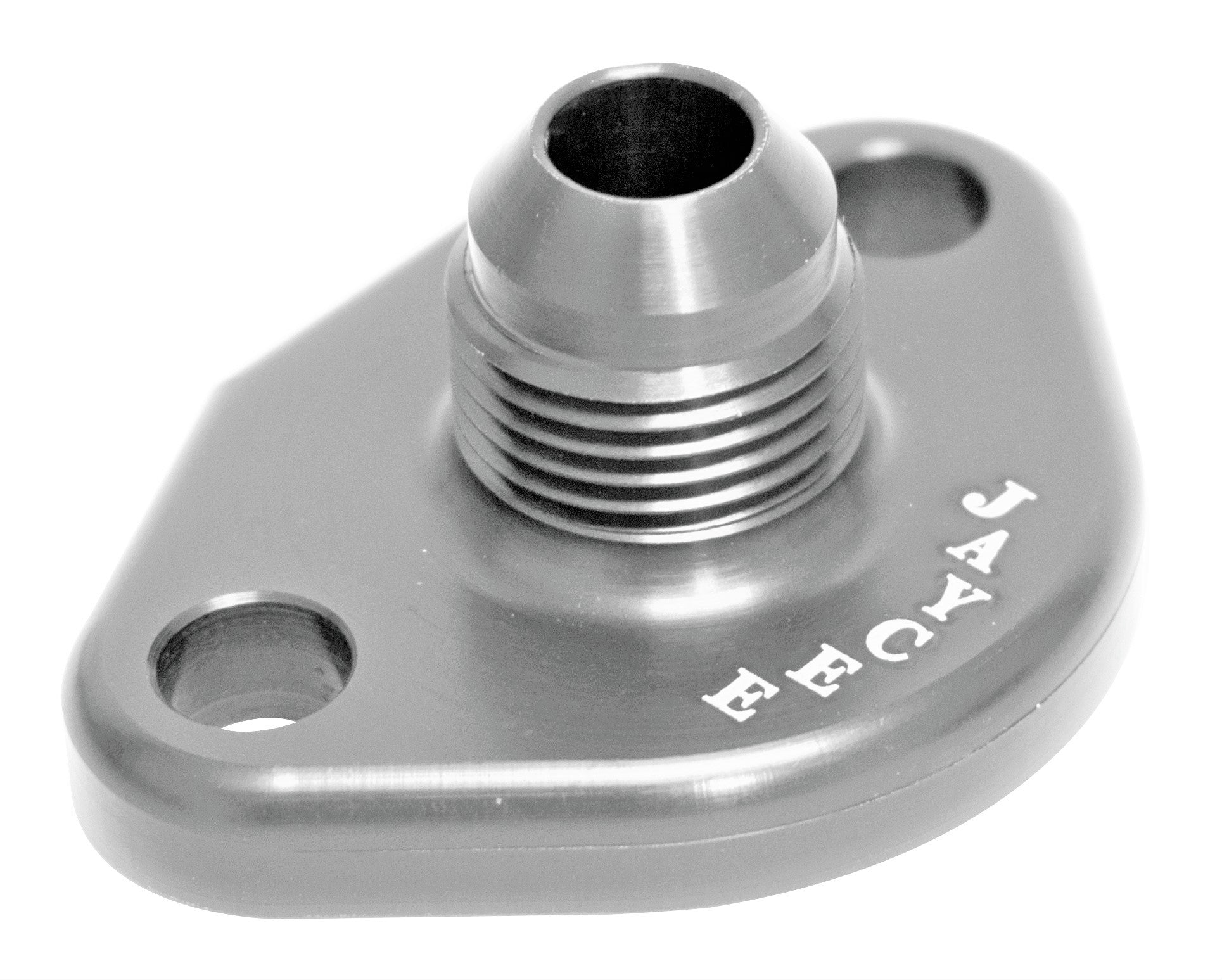

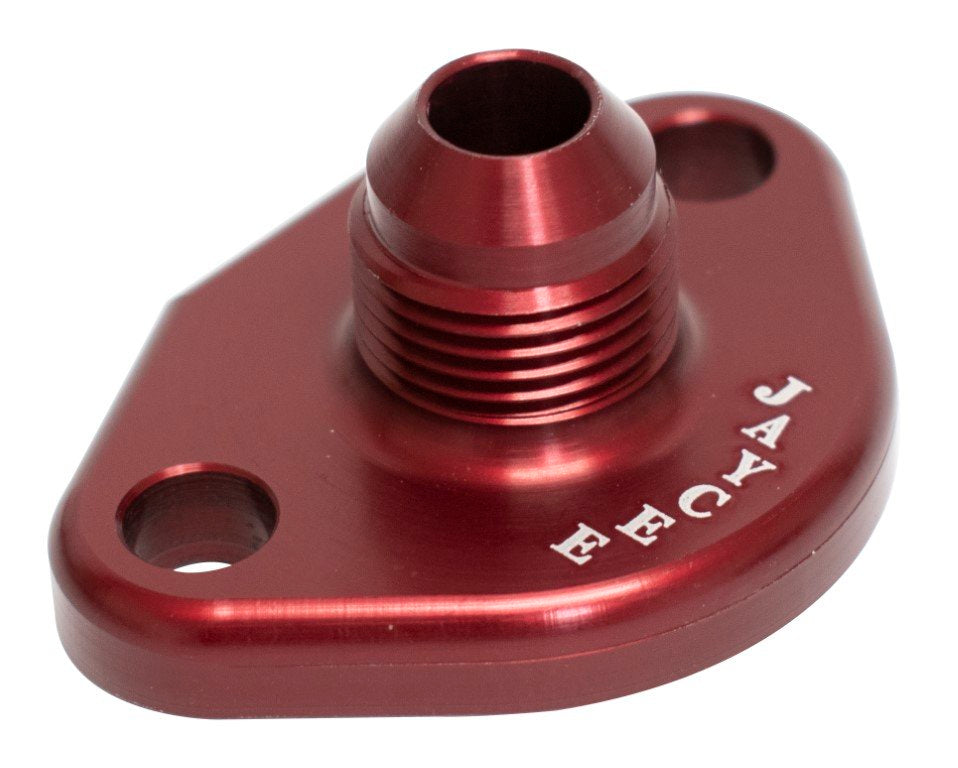

- Hard-anodized finish: Available in Black, Blue, or Red.
Technical Specifications
- Brand: JayCee
- Material: 6061-T6 aircraft aluminum
- Fitting: #10 AN — integrated
- Seal: O-ring
- Construction: One-piece, CNC machined in Anaheim, CA
- Finish: Hard-anodized (Black, Blue, or Red)
- Application: Fuel pump port block-off
- Part Numbers: JC-2320-0, JC-2321-0, JC-2323-0
Frequently Asked Questions
- What size fitting does it use? An integrated #10 AN fitting for high-flow return or vent lines.
- What is it made from? One-piece 6061-T6 aircraft aluminum, CNC machined in Anaheim, CA.
- What finish options are available? Hard-anodized in Black, Blue, or Red.
Material & Construction
This piece is machined from solid 6061-T6 billet aluminum stock rather than cast or stamped, which is why dual-carb and single-carb builders alike specify JayCee parts by name for Weber- and EMPI-based induction systems. The result is tighter tolerances at the carburetor interface and a part that seals and seats consistently, build after build.
Installation Notes
Dry-fit against your specific carburetor body before final assembly, and torque fasteners evenly in a criss-cross pattern to avoid warping the sealing surface. Because this is a fuel-system component, use a fuel-safe thread sealant or o-ring where called for, and re-check for leaks after the first heat cycle.
