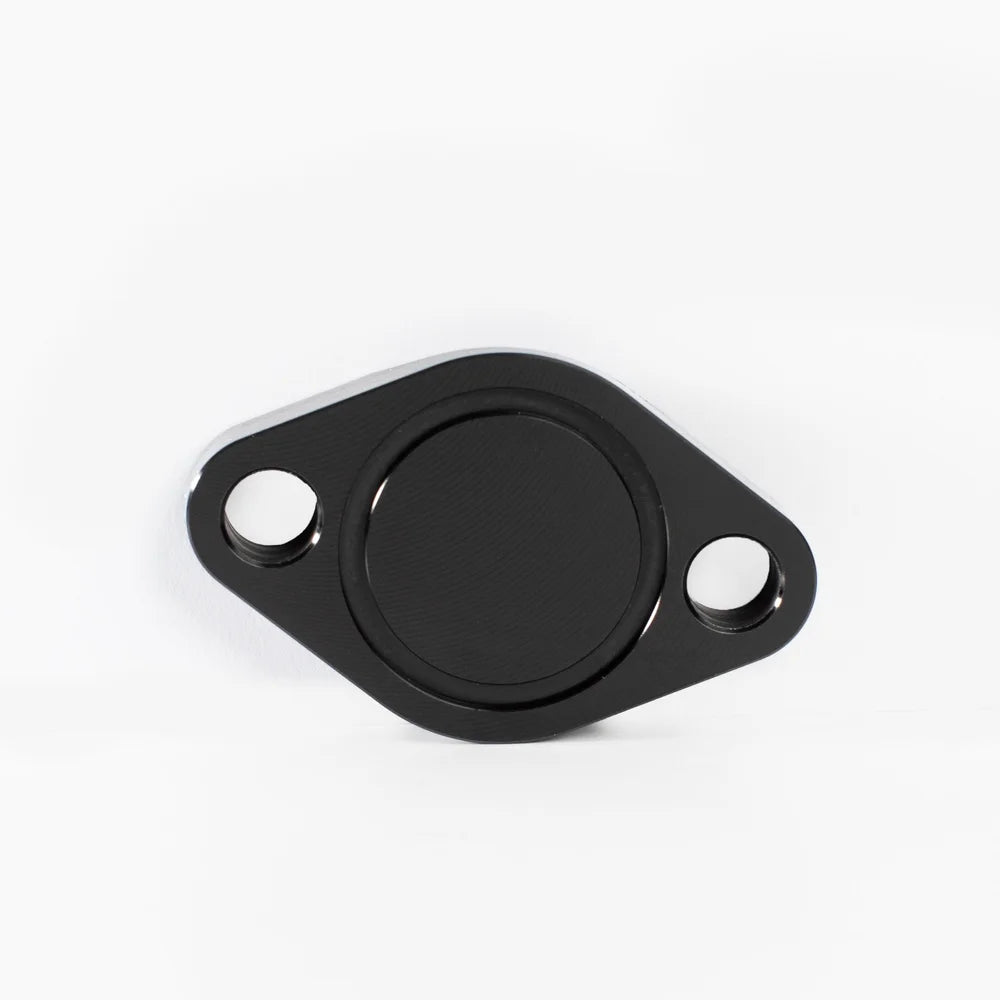

King Performance Billet Fuel Pump Block-Off Plate | VW Type 1/2/3 | O-Ring Seal, 6061-T6 Billet (#E10)

King Performance Billet Fuel Pump Block-Off Plate — O-Ring Sealed, 6061-T6 Billet

When converting to an electric fuel pump, sealing the factory mechanical pump location is a necessity. Standard block-off plates rely on messy paper gaskets and RTV silicone, which often lead to unsightly oil seeps.

The King Performance Block-Off Plate features a precision-engineered O-ring seal, providing a modern, leak-free solution that installs in seconds and stays dry for the life of your engine.

Vehicle Fitment

• VW Type 1, 2 & 3: Fits all standard VW Type 1, 2, and 3 engine cases.

Why Choose King Performance?

King Performance builds a clean, race-ready solution around a high-temp O-ring rather than paper gaskets and silicone, so the pump location stays leak-free and looks the part. Every plate is CNC-machined from billet and shipped with premium titanium hardware.

Key Features & Benefits

• Superior Sealing: High-temp O-ring design eliminates the need for paper gaskets or silicone.
• Premium Hardware: Every kit includes two titanium 12-point bolts for a high-end, race-ready finish.
• Precision Machined: CNC-cut from 6061-T6 billet aluminum and finished in a durable black anodizing.
• Easy Installation: Includes a small packet of assembly grease to hold the O-ring securely in the groove during install.

Available Versions

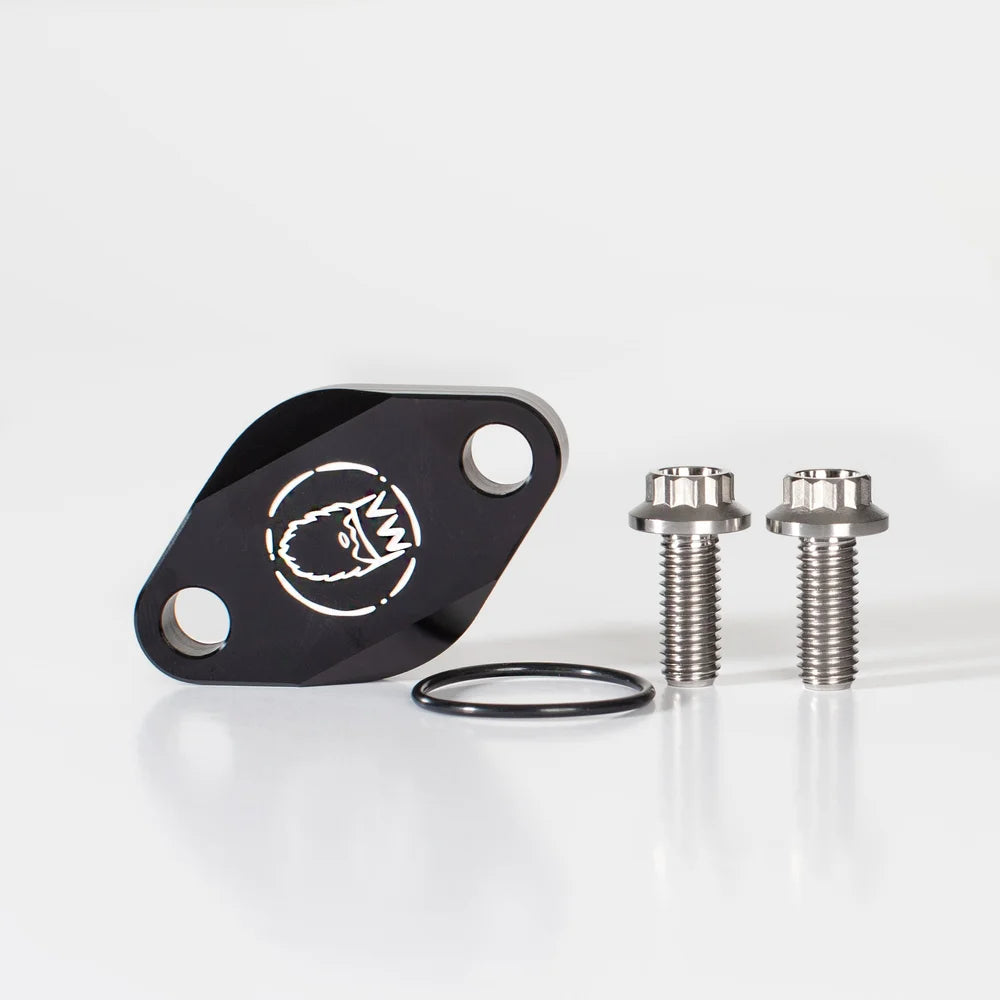

• Solid Block-Off Plate: The "clean-look" solution for standard electric fuel pump conversions where no additional crankcase ventilation is required. Includes solid billet plate, O-ring, assembly grease, and (2) titanium 12-point bolts.
• Vented Block-Off Plate: For high-performance, high-displacement engines needing extra breathing — uses the pump location as an auxiliary breather vent. Includes vented billet plate (tapped for -8 ORB), black -8 ORB to AN fitting, O-ring, assembly grease, and (2) titanium 12-point bolts.

Technical Specifications

• Material: 6061-T6 billet aluminum.
• Finish: Durable black anodizing.
• Hardware: Aerospace-grade titanium 12-point bolts (2).
• Fitment: Standard VW Type 1, 2, and 3 engine cases.
• Part/SKU: #E10.
