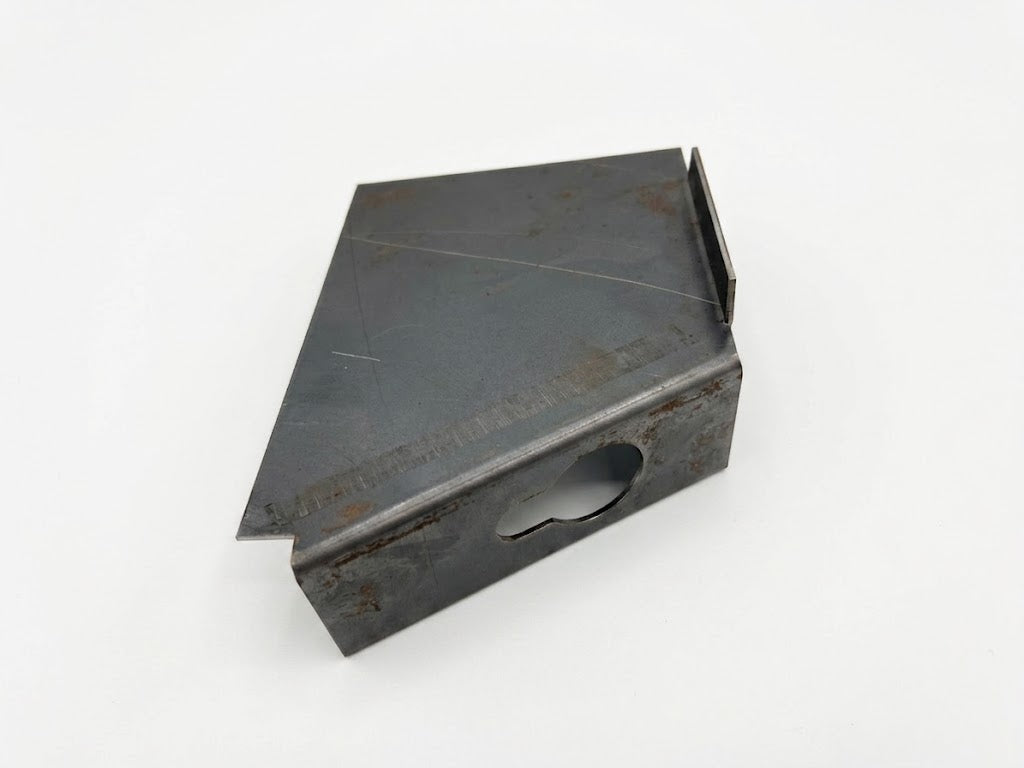

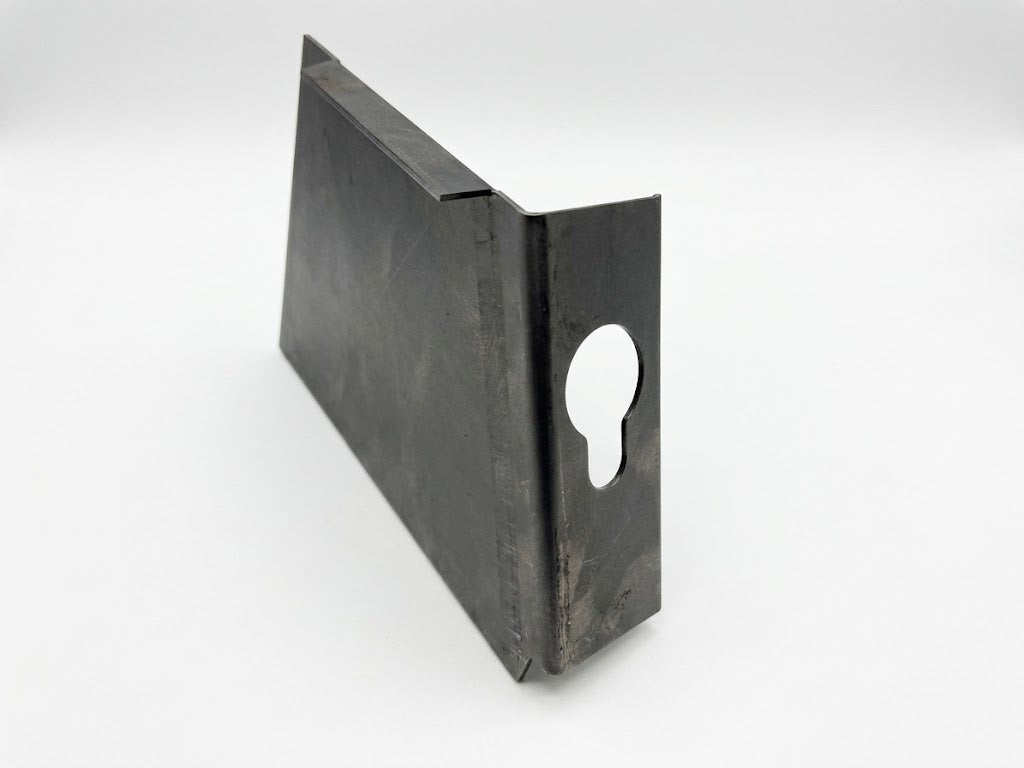

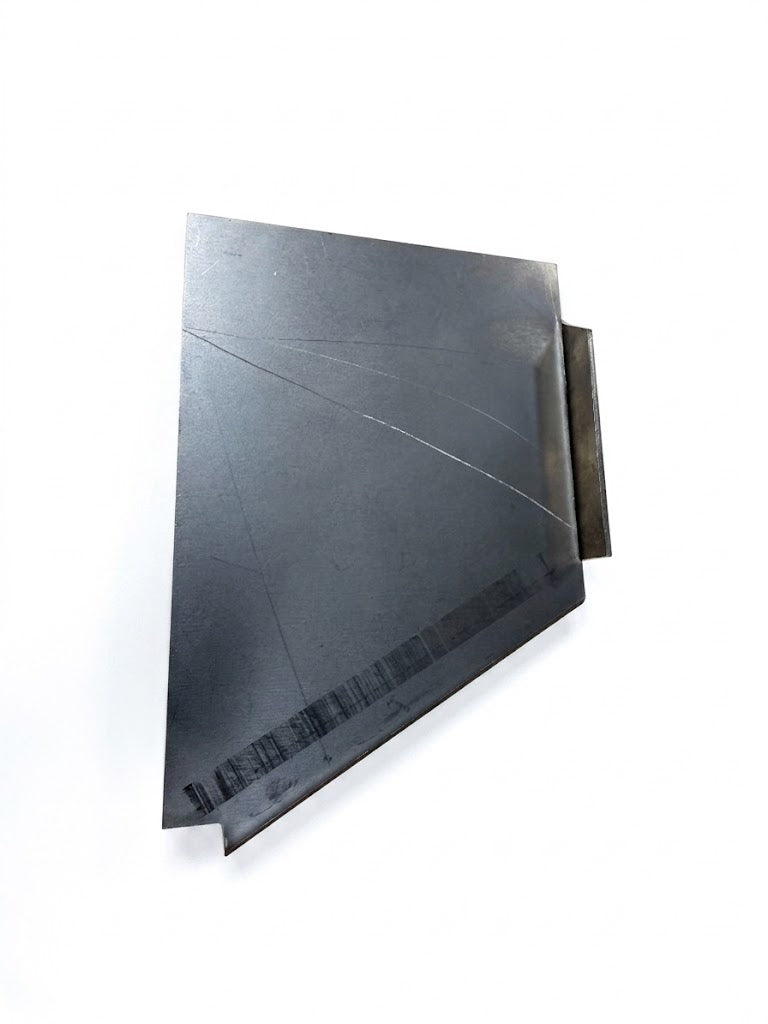

Split Window VW Bus Frame Patch — Heater Tube Crossmember Repair Section, Laser Cut

The frame around the heater tube crossmembers is a known rot spot on a split-window Bus: it traps moisture, it is hidden until the day you get under there, and it is structural. This is a laser-cut, exact-fit repair section in the correct gauge steel — cut the rot out, weld this in, and the frame goes back to its factory profile with the heater tube cutout where it belongs.

Vehicle Fitment

• VW Bus (Type 2) — CONFIRMED: split-window Bus frames, heater tube crossmember area.
• Positions available: front-left, front-right, rear-left and rear-right — select the position you need.
• If you are unsure which position matches your application, message us with photos or your VIN / chassis number before ordering.

Key Features & Benefits

• Laser cut: a precise, consistent fit instead of a hand-shaped patch.
• Correct gauge steel: matched to the frame it is repairing, so the section carries load the way the factory metal did.
• Factory profile and heater tube cutout: reproduced in the frequently-rusted area.
• Four positions: the same repair is available for each corner rather than one generic blank.

Technical Specifications

• Type: Weld-in structural frame repair section
• Area: Heater tube crossmember, split-window Bus frame
• Material: Correct-gauge sheet steel, laser cut
• Positions: Front-left (VW-SW-FRAME-FL), front-right (VW-SW-FRAME-FR), rear-left (VW-SW-FRAME-RL), rear-right (VW-SW-FRAME-RR)
• Sold As: Each

Frequently Asked Questions

• Which positions can I order? Front-left, front-right, rear-left and rear-right. Each is sold individually — choose the position you need.
• What area of the frame does it repair? The frame around the heater tube crossmembers, a common rust-out spot on the split-window Bus.
• Does it weld in? Yes — cut the rusted section out and weld this in. It is a structural repair, so it should be done by someone competent with a welder.
• What is it made of? Correct-gauge sheet steel, laser cut to the factory profile including the heater tube cutout.
• How many do I need? One per rusted position. Sold each.
• What does it fit? Split-window VW Bus frames. Send photos or your chassis number if you are not certain.
• Is this an original factory part? No. It is a new laser-cut repair section, not an original stamping.
