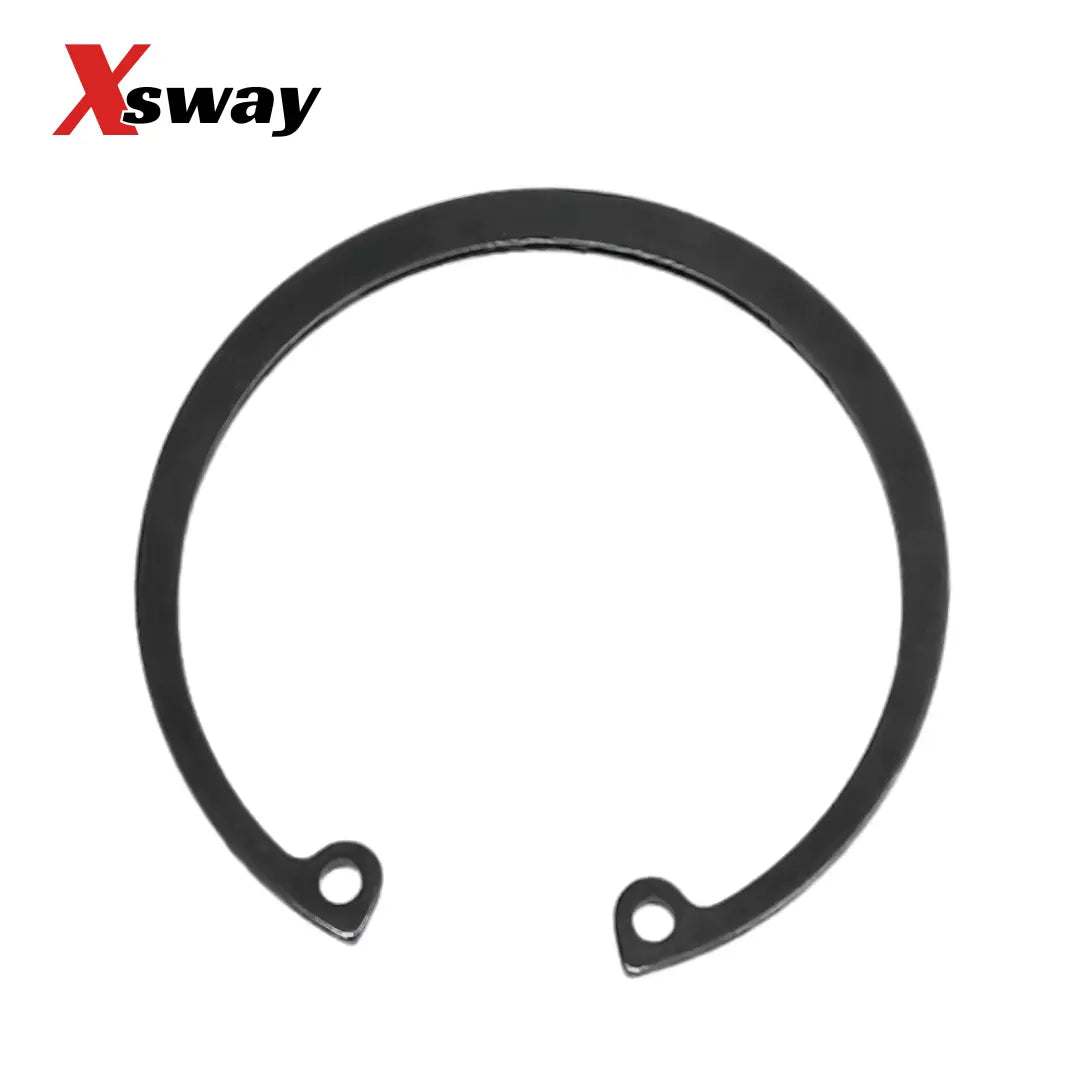

Sway-A-Way Circlip | VW Axles | CV Joint Retaining Ring (2410)

Sway-A-Way Circlip | VW Axles | CV Joint Retaining Ring (2410)

Sway-A-Way essential drivetrain hardware designed to securely retain CV joints on the axle shaft, keeping critical components in place during high-torque operation and suspension cycling.

Vehicle Fitment

• VW Beetle: All Years
• VW Karmann Ghia: All Years

Why Choose Sway-A-Way?

Sway-A-Way manufactures this retaining ring from high-strength spring steel and heat-treats it to hold clamping force through repeated heat cycles and high-vibration racing conditions, providing a critical barrier against axle separation.

Key Features & Benefits

• High-strength spring steel: maximum tension and resistance to stretching.
• Precision tolerances: snaps into the axle groove with a secure fit, preventing the CV joint from walking or sliding off the splines.
• Heat-treated: maintains clamping force even after multiple heat cycles and high-vibration racing conditions.
• Safety barrier: helps prevent catastrophic drivetrain failure caused by axle separation.

Technical Specifications

• Designed For: Volkswagen axles
• Fits: axle part numbers 2015 through 2023
• Function: locks the CV joint "star" onto the splined section of the axle
• Material: high-strength spring steel
• Sold As: one circlip (sold individually)
• Manufacturer Part Number: 2410 (SKU SAW-2410)
• Warranty: 1-year warranty

Frequently Asked Questions

• Is this sold individually or in a set? It is sold individually as one circlip.
• Which axles does this fit? It is designed for axle part numbers 2015 through 2023. It may not provide the correct tension or fitment for OEM factory axles or other aftermarket SKU ranges not listed.
• Can I reuse my old clip? No. It is strongly recommended to never reuse old clips; always install new SKU 2410 hardware when servicing or replacing CV joints to prevent fatigue failure.

Installation

• Incompatible Axle Series: This hardware is specifically designed for axle part numbers 2015 through 2023. It may not provide the correct tension or fitment for OEM factory axles or other aftermarket SKU ranges not listed.
• Single-Use Recommendation: Retaining rings and snap rings are subject to high stress. It is strongly recommended to never reuse old clips; always install new SKU 2410 hardware when servicing or replacing CV joints to prevent fatigue failure.
• Proper Tooling: Use only dedicated snap ring pliers for installation. Over-stretching the ring during installation can lead to a permanent set, reducing its spring back and compromising the security of the CV joint.
