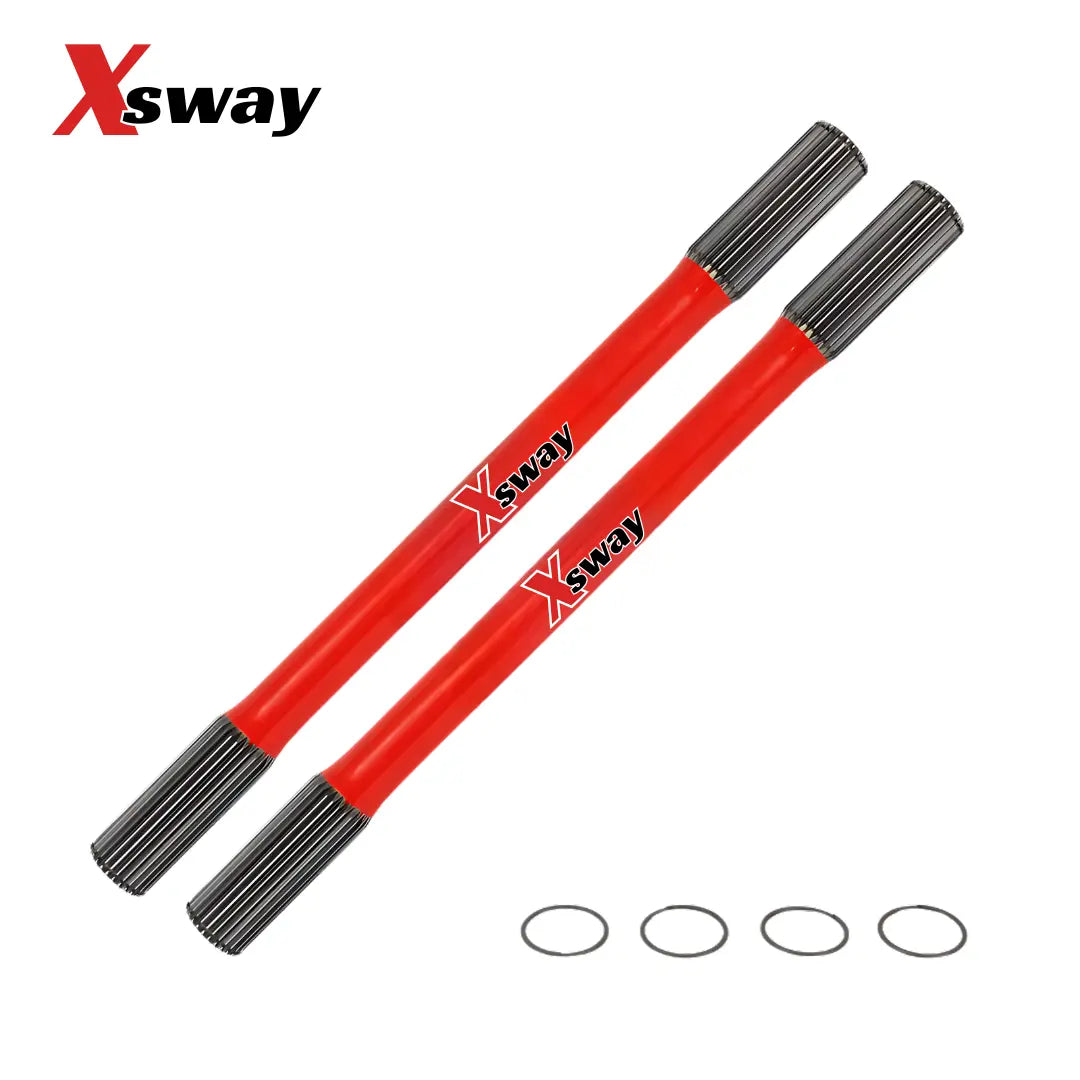

Sway-A-Way VW IRS Axle Set | 33-Tooth Spline | 16 3/4" (2016-7)

Sway-A-Way VW IRS Axle Set | 33-Tooth Spline | 16 3/4" (2016-7)

Sway-A-Way specialized IRS axle set for high-performance Volkswagen Independent Rear Suspension setups. An extended spline design removes the inboard shoulder, allowing the CV joint to float along the shaft.

That float is critical for long-travel off-road buggies or lowered street cars, preventing the CV cage from bottoming out and shattering during extreme suspension articulation.

Vehicle Fitment

• VW Beetle (IRS): 1968–1979
• VW Super Beetle: 1971–1979
• Buggy IRS Builds: All Years

Why Choose Sway-A-Way?

Sway-A-Way manufactures these axles from solid high-strength alloy steel, through-hardens them for the right balance of surface hardness and core flexibility, and centerless grinds them for a consistent diameter and smooth surface.

Key Features & Benefits

• Extended floating spline: the 2 3/8" spline without a shoulder lets the CV slide freely, eliminating cage breakage caused by axle bind.
• High-strength alloy steel: solid alloy construction.
• Through-hardened: balance of surface hardness and core flexibility.
• Powder-coated: industrial-grade finish for long-term corrosion resistance.

Technical Specifications

• Application: high-performance IRS rear axle set
• Length: 16 3/4"
• Spline: 33-tooth (1.062" OD, 2 3/8" spline length)
• Fitment: VW Type 1 (Beetle/Bug), Type 2 (Bus/Transporter), and Type 3 (Notchback, Squareback, Fastback) IRS models
• CV Compatibility: standard 33-spline CV joints (typically Type 1 or Type 2 / 002 styles)
• Material: solid high-strength alloy steel
• Finish: industrial-grade powder coating
• Sold As: one pair, with Spirol Lock circlips to secure the CV joints
• Manufacturer Part Number: 2016-7 (SKU SAW-2016-7)
• Warranty: 1-year warranty

Frequently Asked Questions

• What is the axle length and spline count? Each axle is 16 3/4" with a 33-tooth spline (1.062" OD, 2 3/8" spline length).
• What is included? The set includes a pair of VW IRS axles and Spirol Lock circlips to secure the CV joints.
