Sway-A-Way VW IRS Axle Set | VW Beetle, Super Beetle & Buggy | 33-Spline (SAW-2021-1)

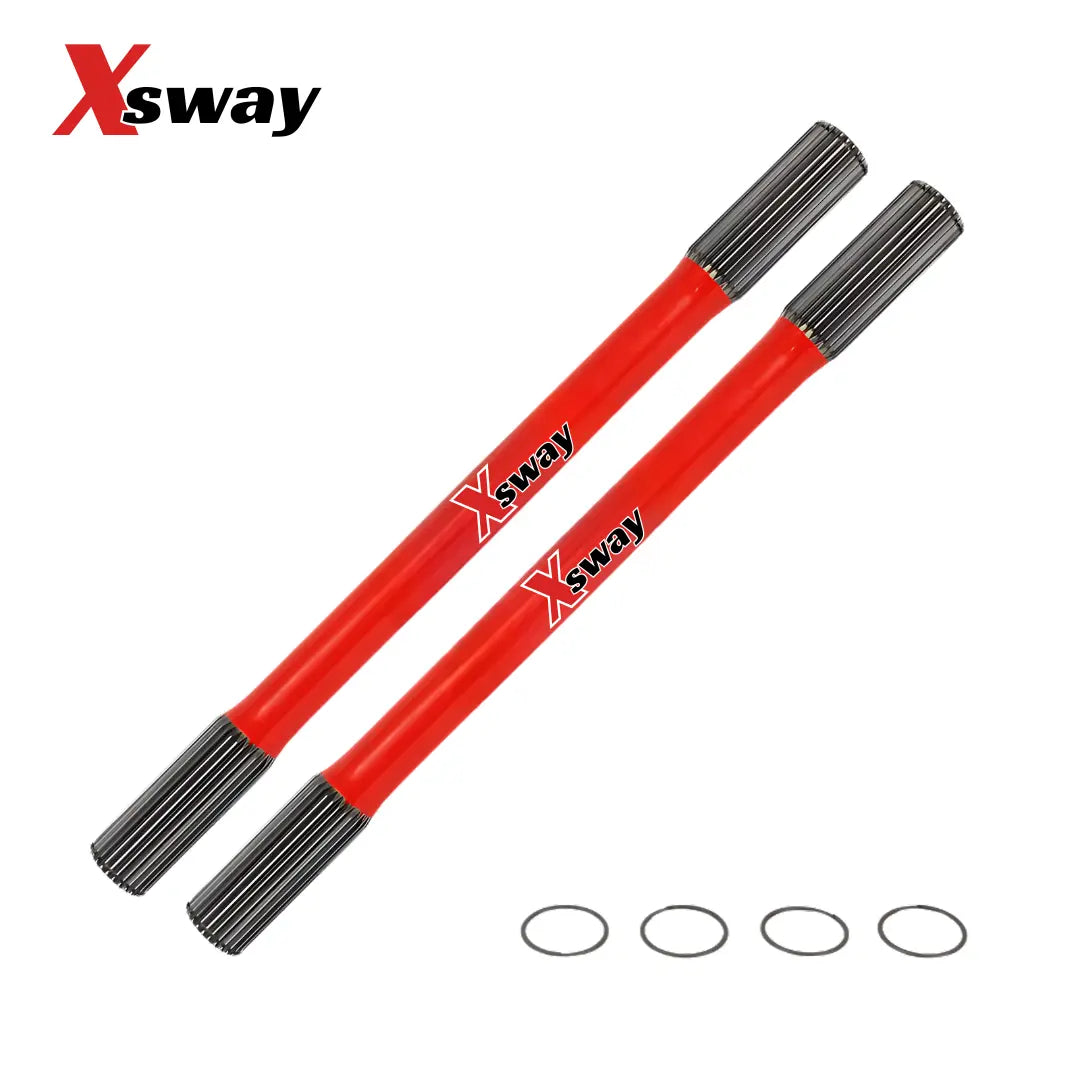

Sway-A-Way VW IRS Axle Set — 33-Spline (SAW-2021-1)

The Sway-A-Way VW IRS Axle Set is a specialized axle solution for high-performance Volkswagen Independent Rear Suspension (IRS) setups. Its extended spline design removes the inboard shoulder, allowing the CV joint to float along the shaft — critical for long-travel off-road buggies or lowered street cars to prevent the CV cage from bottoming out during extreme suspension articulation.

Vehicle Fitment

• VW Beetle (IRS): 1968–1979
• VW Super Beetle: 1971–1979
• Buggy IRS Builds: All Years

Key Features & Benefits

• Extended Spline Design: 2 3/8" long spline without a shoulder lets the CV slide freely, eliminating cage breakage caused by axle bind.
• Through-Hardened: Heat treated for a balance of surface hardness and core flexibility.
• Centerless Ground: Consistent diameter and smooth surface finish.
• Broad Compatibility: Works with standard 33-spline CV joints (typically Type 1 or Type 2 / 002 styles).

Technical Specifications

• Application: High-Performance IRS Rear Axle Set
• Spline: 33-Tooth (1.062" OD, 2 3/8" spline length)
• Material: Solid high-strength alloy steel
• Finish: Industrial-grade powder coating
• Sold As: Pair (includes Spirol Lock circlips)
• Part Number: 2021-1 (SAW-2021-1)
• Warranty: 1-year

Frequently Asked Questions

• What CV joints are these axles compatible with? They are designed to work with standard 33-spline CV joints, typically Type 1 or Type 2 / 002 styles.
• Are these axles sold as a pair? Yes. Each set includes a pair of VW IRS axles along with Spirol Lock circlips to secure the CV joint.
