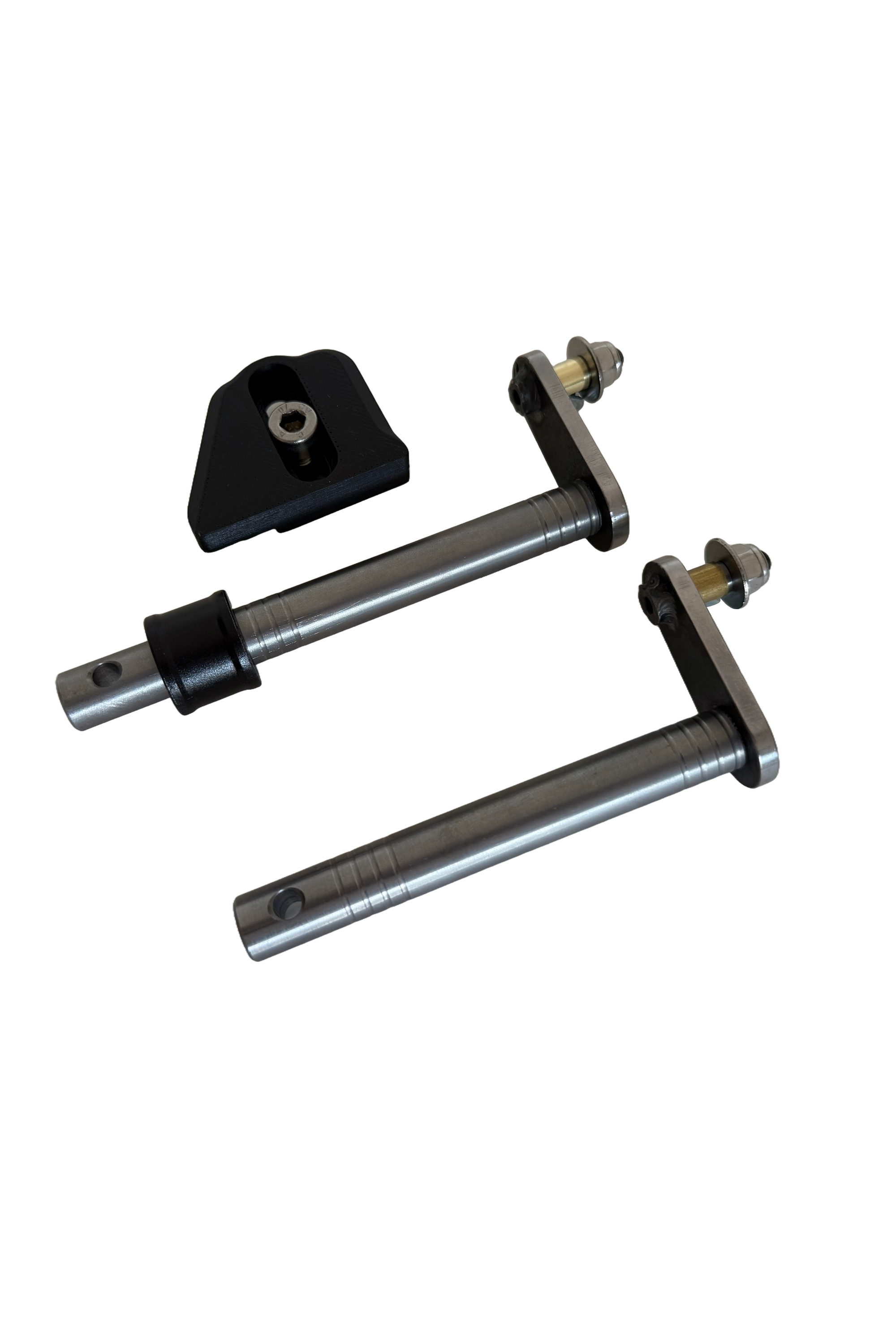

TK Pro-Formance Billet-Proof Clutch Pedal Shaft — Stock-Width or Fat-Foot | VW Type 1, Ghia, Type 3, Thing 1958–1979

Stop Replacing Broken Clutch Pedal Hooks — Go Billet-Proof

The factory clutch pedal shaft in every air-cooled VW pedal cluster uses a thin steel "hook" to grab the clutch cable — and that hook is a known weak point, especially on cars with a stiffer aftermarket clutch. The TK Pro-Formance Billet-Proof Clutch Shaft Upgrade replaces that hook entirely with a precision-turned 1018 steel shaft and a TIG-welded tool-steel shoulder bolt riding on a bronze pivot bushing. It's a direct drop-in for your existing pedal cluster and clutch cable — no mods required.

Key Features:

• Precision-Turned 1018 Steel Shaft: laser-cut arm with a precision-cut interface that times the shaft and arm correctly before TIG welding, so the geometry is right every time.
• .080" Deep Lubrication Grooves: machined at the bushing contact points inside the pedal mount for long-term smooth pivot action.
• Bronze Pivot Bushing + Tool-Steel Shoulder Bolt: eliminates the failure-prone factory hook design at the source.
• Includes New Wolfsburg West Clutch Arm Retention Pin.
• Works With Your Stock Clutch Cable: no special cable required.
• Guaranteed for Life by TK Pro-Formance.

Fitment:

Confirmed: VW Beetle, Karmann Ghia, Type 3, and Thing, 1958–1979, with the original German (113-series) pedal assembly. Also fits Manx and dune-buggy builds running a German VW pedal cluster.

Not for VW Bus — TK Pro-Formance sells a dedicated Bus pedal upgrade separately; this shaft is sized for the Type 1/Type 3/Thing pedal cluster only.

Super Beetle: fitment not confirmed by the manufacturer. Contact us before ordering if your car is a Super Beetle.

Specifications:

• Material: 1018 steel shaft, laser-cut steel arm, tool-steel shoulder bolt, bronze pivot bushing
• Included: Wolfsburg West clutch arm retention pin
• Stock-Width: direct stock-position replacement
• Fat-Foot: moves the clutch arm 3/4" outboard; includes billet spacer and Super-Stop
• Weight: approx. 0.8–1 lb (estimated pending physical confirmation)

Q: Does this fit a 1972 VW Beetle? Yes — confirmed for 1958–1979 Beetle, Karmann Ghia, Type 3, and Thing with the original German pedal assembly.

Q: Does this fit a VW Bus? No — TK Pro-Formance sells a separate, dedicated Bus pedal upgrade; this shaft fits the Type 1/3/Thing pedal cluster only.

Q: What's the difference between Stock-Width and Fat-Foot? Stock-Width replaces the shaft at the factory position. Fat-Foot moves the clutch arm 3/4" outboard and includes a billet spacer and Super-Stop for a wider pedal stance.

Q: Do I need a new clutch cable? No — it's designed to work with your factory clutch cable.

Q: Are you an authorized dealer? Yes — Washburn's Metal sources this directly through TK Pro-Formance.
