Heavy-Duty VW Shifter Mounting Box with Bearing-Supported Shaft & Linkage (#CH35)

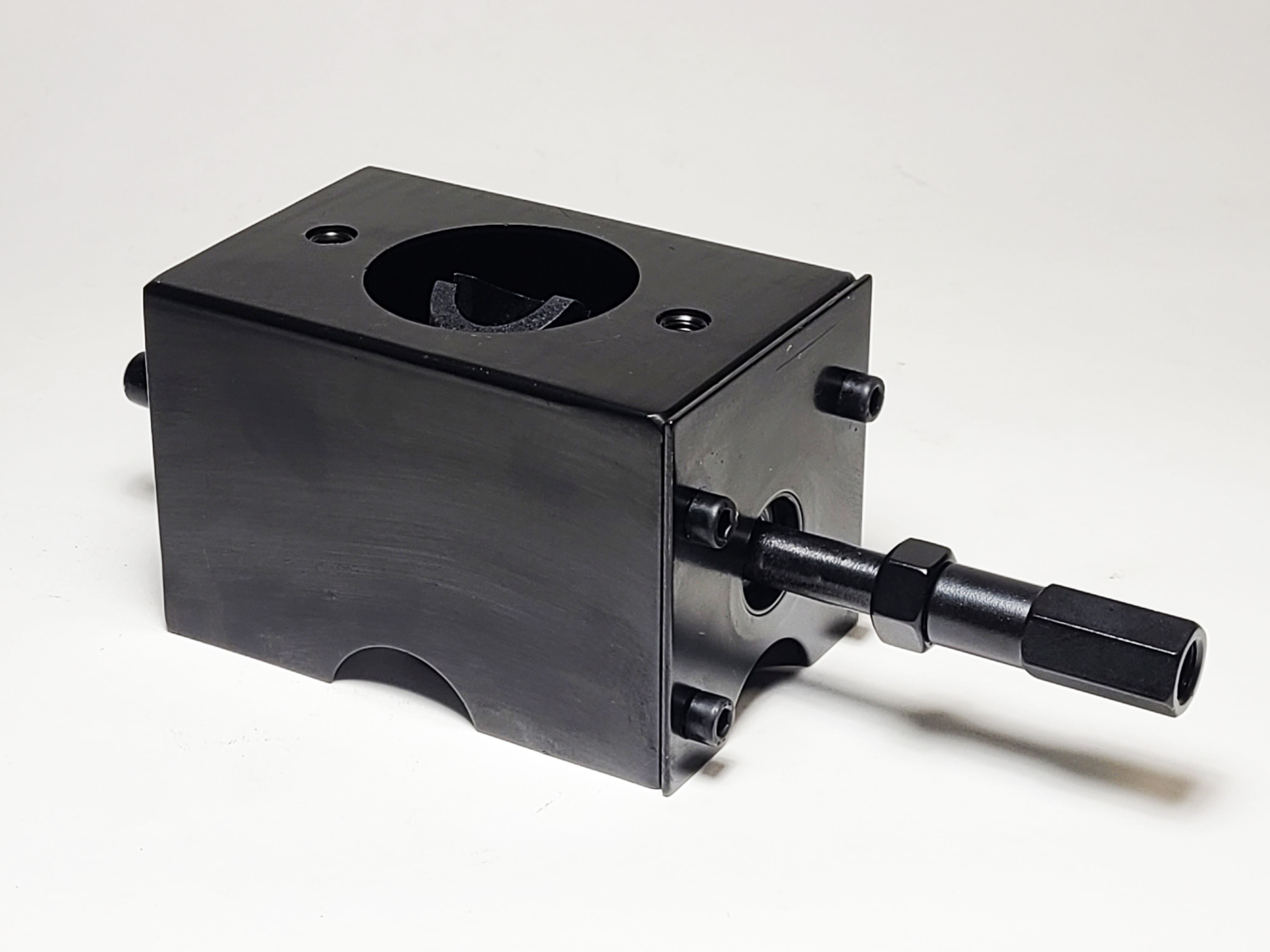

The Washburn's Metal shifter mounting box is a heavy-duty replacement for the factory shifter box used on VW Beetle, Bus, and other Type 1 / Type 2 applications. It uses a bearing-supported shaft and a tapered, slotted engagement cup for crisp, positive, repeatable shifter feel.

Classic VW shifters pivot at a small box on the chassis tunnel. Over time the factory bushings wear, letting the shifter develop lateral and vertical play — the famously vague feel where you stir around looking for the gate and hunt for reverse. This box eliminates that play and gives you a rigid, precise mounting point.

Vehicle Fitment

• VW Beetle (Standard): All years
• VW Bus / Transporter (Type 2): All years
• Off-road builds, dune buggies, Manx, sand rails: Using stock-pattern VW shifter location
• Torsion-raise / lifted suspension applications

Why Choose Washburn's Metal?

Built for street, off-road, and torsion-raise use where the factory box's tolerances and durability fall short, our box gives torsion-raise and shortened-pan builds a proper, rigid mounting point that doesn't add new sloppiness on top of whatever you're fixing.

Key Features & Benefits

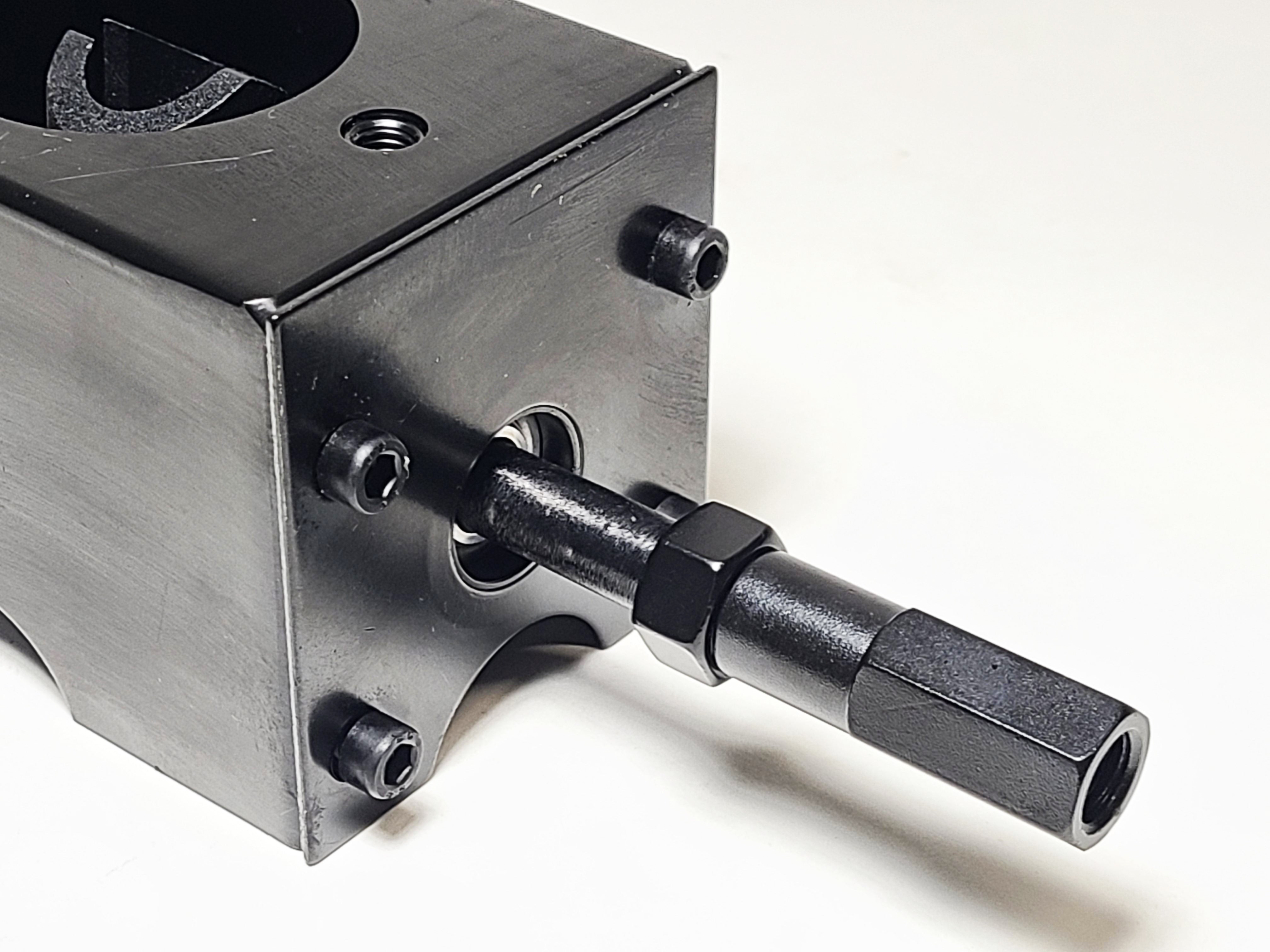

• Bearing-supported shaft: Crisp, repeatable shifter feel that doesn't wear into slop.

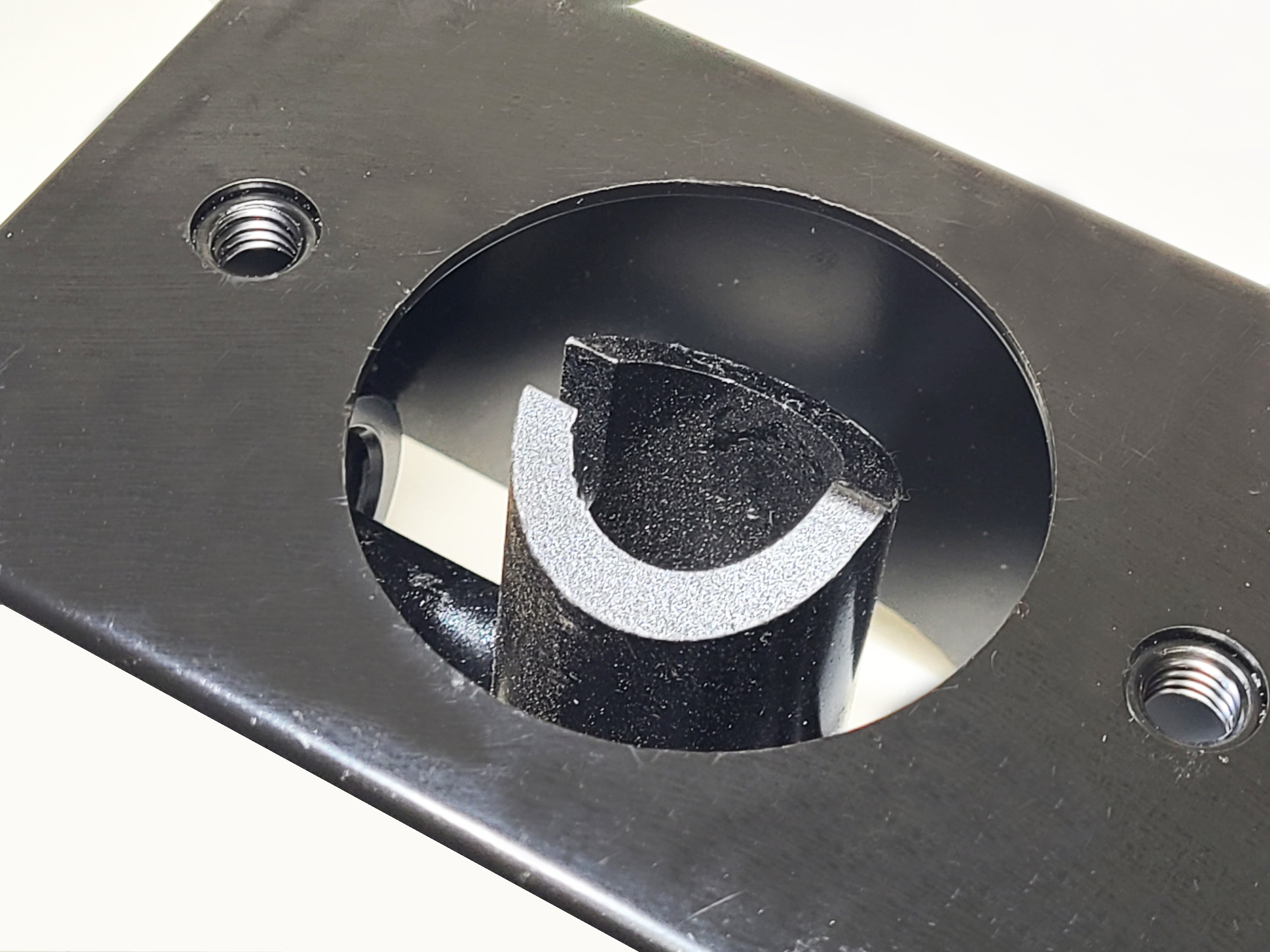

• Tapered, slotted engagement cup: Positive shifter location for confident gear selection.
• Universal compatibility: Works with any standard VW shifter.
• Built for hard use: Rigid mounting for street, off-road, and torsion-raise builds.

Technical Specifications

• Construction: Steel box with bearing-supported shaft
• Engagement: Tapered, slotted cup for positive shifter location
• Length: 5"
• Width: 3-1/8"
• Compatibility: Works with any standard VW shifter
• Application: Street, off-road, torsion raise
• Part Number: #CH35
• Manufacturer: Washburn's Metal

Frequently Asked Questions

• Will this fix my sloppy shifter? A worn factory shifter box is one of the top three causes of sloppy VW shifter feel (along with a worn shift coupler and worn shift rod bushing). Replacing the box addresses one of those three; for a complete rebuild, plan to address the coupler and bushing as well — our #CH01 Delrin shift bushing is the recommended upgrade there.
• Does it use the factory mounting location? Yes. The box mounts at the factory shifter location on the chassis, bolting or welding in place depending on your specific chassis and build.
• Can I use my existing shifter handle? Yes. It works with any standard VW shifter — factory, aftermarket, or short-throw — via the standard VW shifter shaft interface.
• What's a "torsion raise" application? A torsion raise rotates the VW front and rear torsion housings to lift the car. This changes shifter angle and location, and many torsion-raise builds need a different shifter mounting solution than stock. This box handles those geometry changes.
• Will it work on a Manx or shortened-pan buggy? Yes, with appropriate mounting. The box itself works; you'll need to position it correctly for your shortened chassis. For Manx applications, see also our shortened shift rods (#CH20A/B/C depending on donor year).
• Is the bearing serviceable? The bearing is sealed for the life of the box. No periodic maintenance required.
