Wilwood 2-Piston Billet Caliper Set | Air-Cooled VW Type 1 Front | Bolt-On, Made in USA (16-2526)

Wilwood 2-Piston Billet Caliper Set — Bolt-On Front (VW Type 1)

Wilwood 2-piston billet caliper set for the air-cooled VW front disc brake setup. This bolt-on billet caliper set replaces any Karmann Ghia / 311-style front VW caliper and requires no special brackets or brake line adapters.

Vehicle Fitment

• Beetle: All years (Type 1), front disc brake applications
• Karmann Ghia: Replaces Karmann Ghia / 311-style front VW calipers

Key Features & Benefits

• Billet aluminum: Lightweight, high-strength caliper body
• 2-piston design: Stainless steel pistons
• Correct inlet: 10mm x 1.0 inlet
• Bolt-on: No special brackets or brake line adapters required
• Set includes: 2 Wilwood front calipers, 1 Wilwood brake pad set, 4 3/8" hardened flat washers, 4 M10-1.05 x 25 HHCS
• Made in the USA: US-manufactured Wilwood components

Technical Specifications

• Construction: Billet aluminum
• Pistons: Stainless steel, 2-piston
• Inlet: 10mm x 1.0
• Origin: Made in the USA

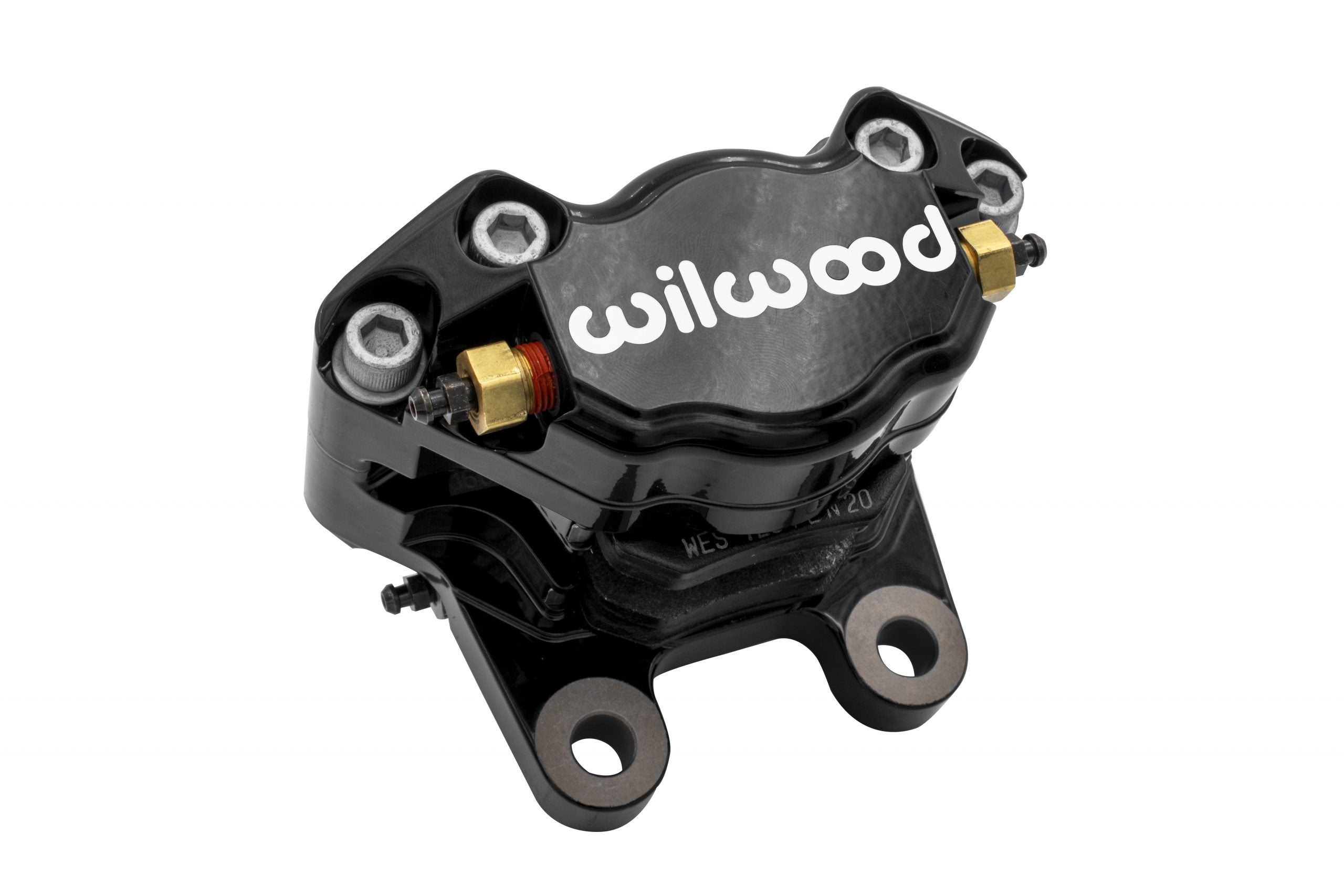

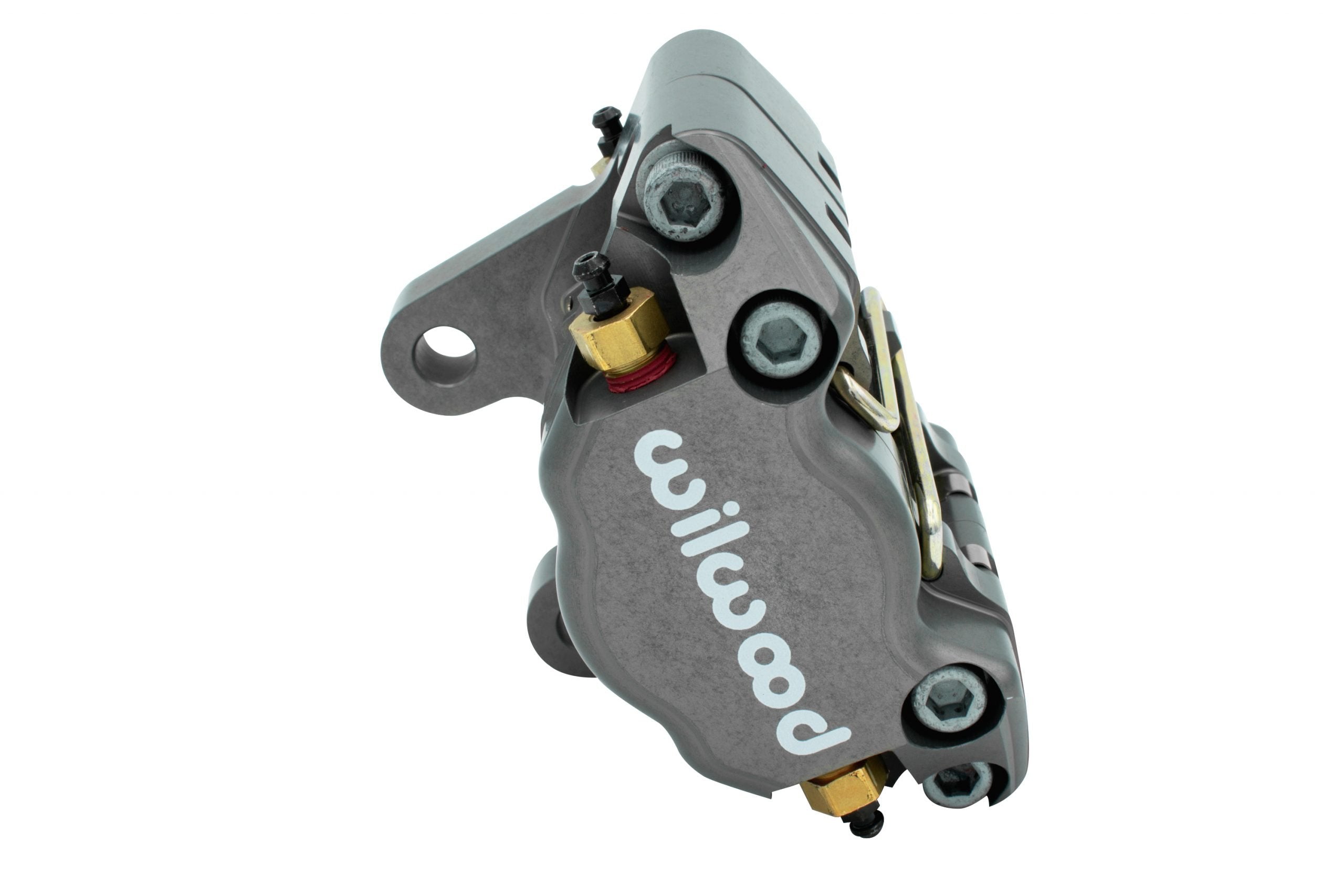

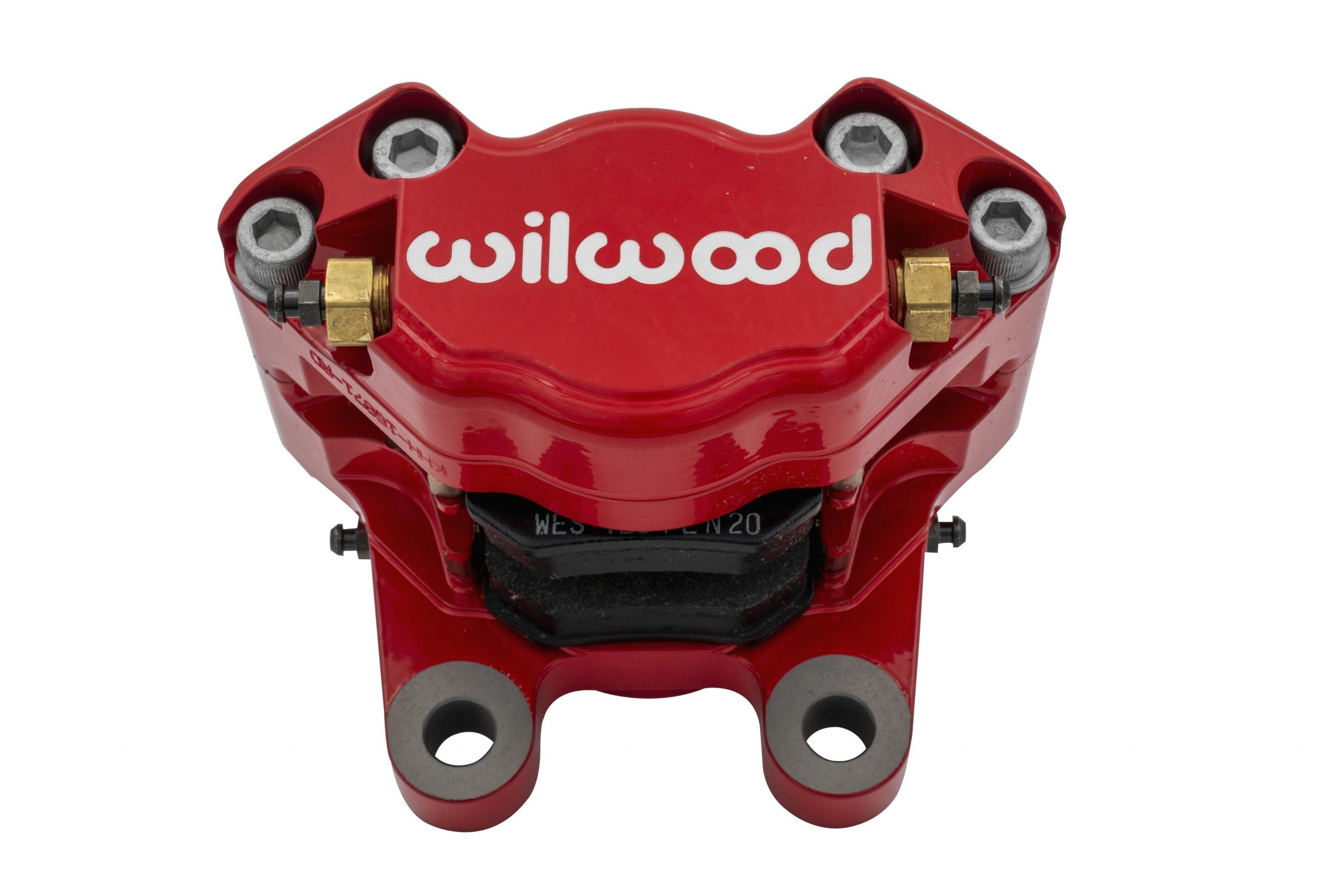

• Finishes: Natural (16-2526-0), Black (16-2526-B), Red (16-2526-R)
• Part Number: 16-2526

Frequently Asked Questions

• Does this require special brackets or brake line adapters? No — it bolts on and replaces Karmann Ghia / 311-style front VW calipers with no special brackets or adapters.
• What is included in the set? 2 Wilwood front calipers, 1 Wilwood brake pad set, 4 3/8" hardened flat washers, and 4 M10-1.05 x 25 HHCS.
• What finishes are available? Natural (16-2526-0), Black (16-2526-B), and Red (16-2526-R).
