Wilwood Rear Disc Brake Kit — Swing Axle 5-Lug, Black Caliper w/ E-Brake (22-6154-B)

Complete rear disc brake conversion kit for Swing Axle 5-lug VWs — engineered around Wilwood billet aluminum calipers with an integrated emergency brake mechanism and double-drilled directional rotors. Pair with any front Wilwood kit for a full 4-wheel disc setup.

Black-painted calipers for a custom look.

Vehicle Fitment

• VW Type 1 / Beetle: 1958–1967 (swing axle rear)
• VW Karmann Ghia: swing axle rear (year ranges similar to Beetle)

Why Choose Wilwood?

Wilwood Engineering has been designing and manufacturing high-performance disc brake systems in California since 1977. Their billet aluminum calipers and forged components are the standard in motorsport and street-performance braking. EMPI has partnered with Wilwood to develop these VW-specific bolt-on conversion kits.

Key Features & Benefits

• Integrated e-brake: Calipers include a parking-brake mechanism; emergency brake cables and hardware are included.
• Bolt-on installation: No fabrication required.
• Dual wheel pattern: Double-drilled directional rotors fit both 5×130mm (Porsche) and 5×4.75" (GM) patterns.
• Full 4-wheel disc: Pairs with any Wilwood front kit.

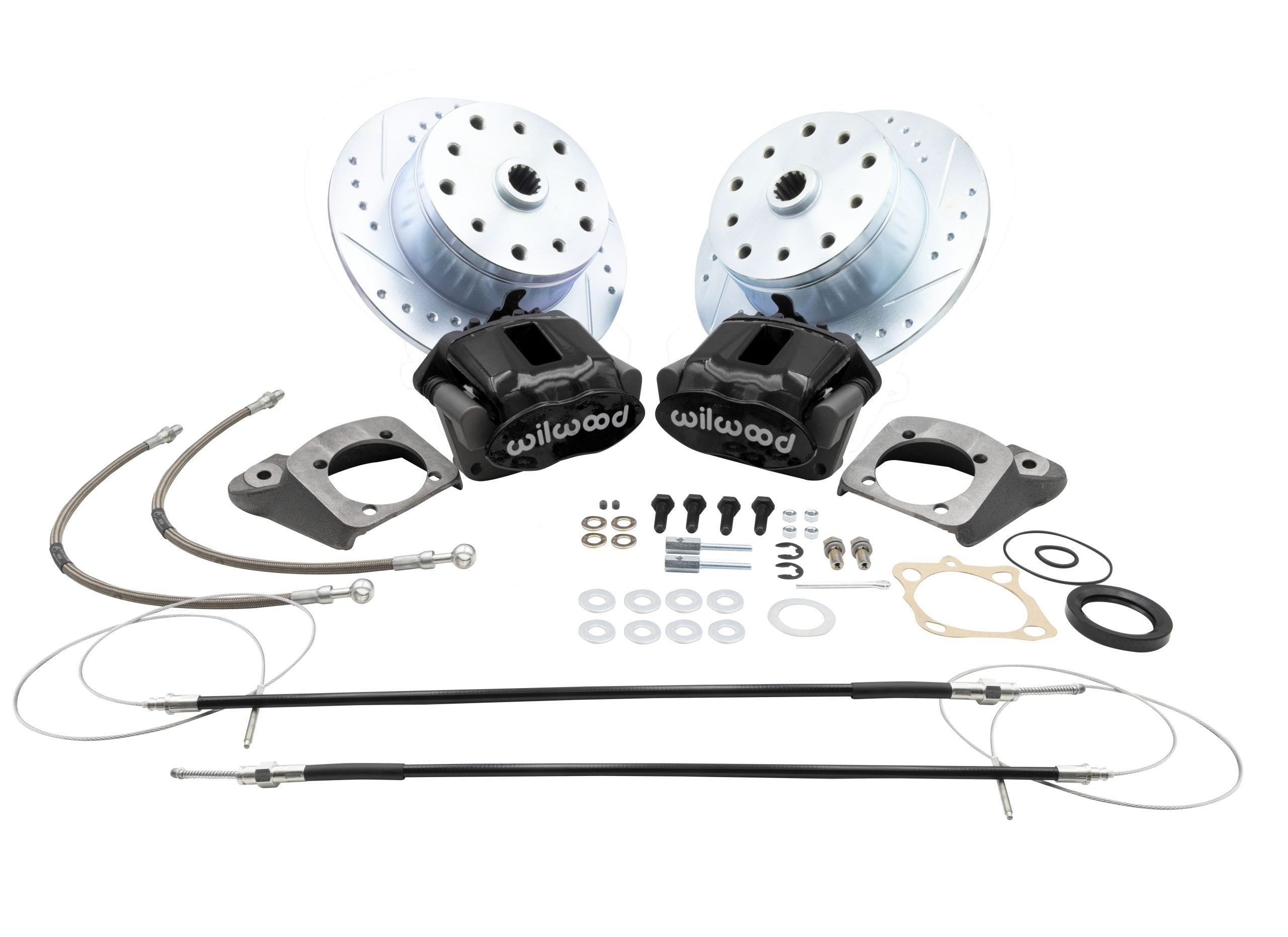

Kit Includes

• Zinc-plated double-drilled directional drilled and slotted brake rotors (5×130mm + 5×4.75")
• Wilwood billet aluminum brake calipers with integrated parking-brake mechanism — Black finish
• Wilwood brake pads (replacement: 16-2527-7)
• Caliper brackets and mounting hardware
• Emergency brake cables and hardware
• Installation instructions

Technical Specifications

• EMPI Part #: 22-6154-B
• Caliper: Wilwood billet aluminum with integrated parking brake, Black finish
• Wheel pattern: Double-drilled 5×130mm and 5×4.75"
• Rear suspension: Swing Axle
• Minimum wheel size: 15" (caliper/rotor package will not clear smaller wheels)
• UPC: 707924557282
• Shipping weight: 58.25 lb
• Also available: Red caliper (22-6154-R) (this rear kit is offered only in Black or Red)

Compatibility Note

This kit is for the early swing axle rear suspension (1958-1967 Beetle). For 1968+ Beetles with IRS (Independent Rear Suspension), use the IRS-specific rear kit — 22-6155-B (Black) or 22-6155-R (Red). The two rear configurations are NOT interchangeable.

Frequently Asked Questions

• Does this kit require fabrication? No — it is a bolt-on installation with no fabrication required.
• Does it include an emergency brake? Yes — the Wilwood calipers have an integrated parking-brake mechanism, and the kit includes emergency brake cables and hardware.
• What wheel size do I need? Minimum 15" wheels; the caliper and rotor package will not clear smaller diameters.
• Will it fit my wheels? The double-drilled rotors fit both 5×130mm (Porsche) and 5×4.75" (GM) wheel patterns.
