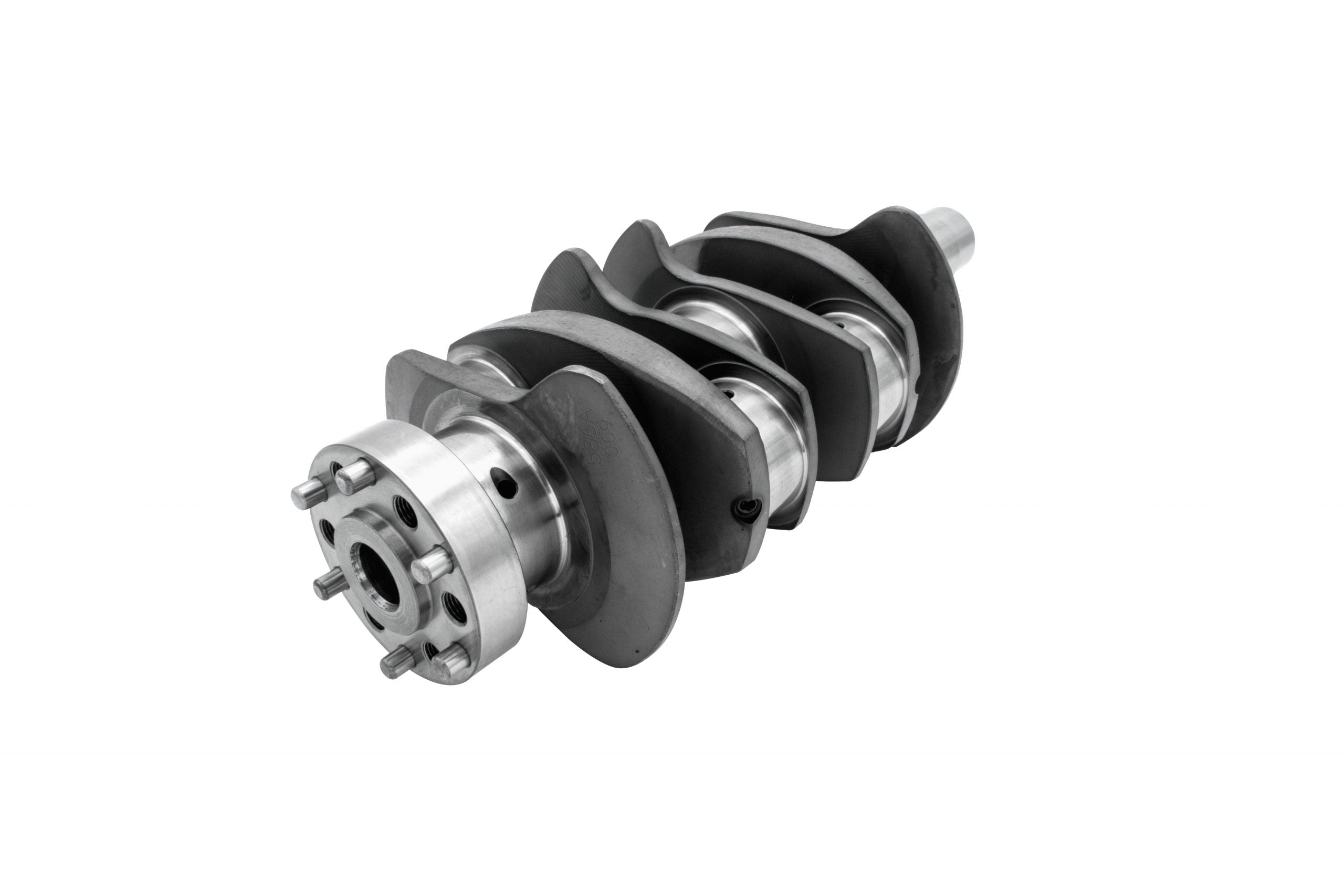

BUGPACK Forged Flanged Crankshaft — 4340 Nitrided, Chevy Journal

BUGPACK forged flanged crankshaft for high-horsepower air-cooled VW engine builds — forged from 4340 chromoly steel with nitrided Type-IV main journals and Chevy rod journals. The 6-bolt, 6-pin flange eliminates flywheel-to-crank movement that costs power and durability at high RPM. Select your stroke from the dropdown.

Cast cranks fail at high RPM and high load. A forged 4340 chromoly crank, properly nitrided and balanced, is the foundation for any engine making real power. The Chevy journal allows use of a far wider range of high-end aftermarket rods (Carrillo, Eagle, Manley, Scat, etc.) than the OEM VW journal sizes permit — cost-effective compared to building around custom VW-journal rods.

Vehicle Fitment

• Beetle: All years (Type 1)
• Bus: All years
• Karmann Ghia: All years
• Type 3: All years
• Thing: All years

Why Choose BUGPACK?

BUGPACK is EMPI's high-performance engine and chassis line for the air-cooled VW community. The forged crank program targets serious horsepower builds where stock or cast components won't survive.

Key Features & Benefits

• High-horsepower ready: For air-cooled VW engine builds requiring a forged crank
• Chevy rod journals: Builds spec'd for 2.000" small-block Chevy rods
• Type-IV mains: Type-IV main journal compatibility
• Flange mounting: Flange-style flywheel mounting (6-bolt, 6-pin)

Technical Specifications

• Material: 4340 chromoly forged
• Main Journals: Nitrided, Type-IV
• Rod Journals: Chevy (2.000")
• Flywheel Flange: 6-bolt, 6-pin
• Stroke Options: 78mm (B4-0002-5), 82mm (B4-0003-1), 84mm (B4-0002-6)
• Sold As: Each
• Weight: ~24 lb (shipping)

Frequently Asked Questions

• What rod journal size does this crank use? Chevy (2.000" small-block Chevy) rod journals.
• What stroke options are available? 78mm (B4-0002-5), 82mm (B4-0003-1), and 84mm (B4-0002-6, big-stroke option).
• Why choose a forged crank? Cast cranks fail at high RPM and high load; a forged 4340 chromoly crank, properly nitrided and balanced, is the foundation for a high-power build.
