EMPI 60° Chrome Lug Bolt Kit, Set of 20 — M12x1.5 for EMPI 5x205 Alloys | VW Beetle 1949–67, Ghia (4× 00-9711-0)
Couldn't load pickup availability

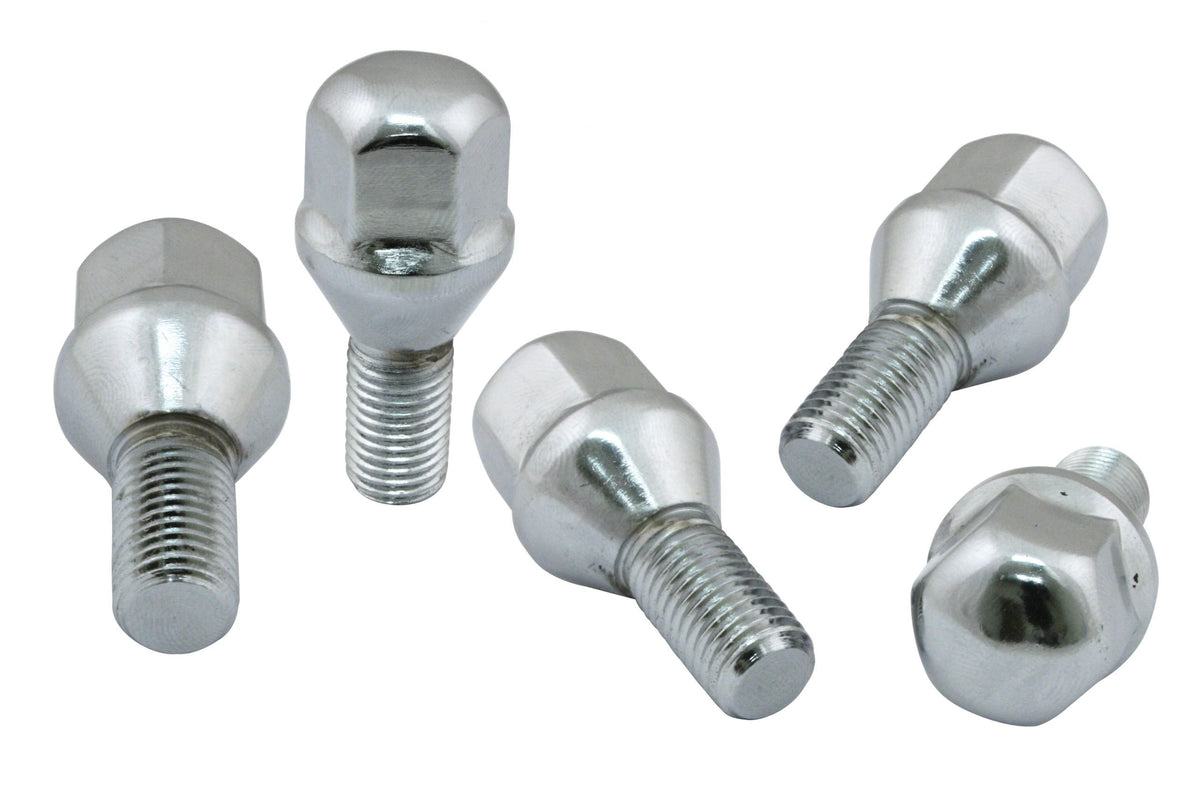

EMPI 60° Chrome Lug Bolt Kit — Set of 20, M12x1.5, for EMPI 5x205 Alloy Wheels
Short answer: This kit is 20 EMPI 00-9711-0 chrome lug bolts (four sets of five): M12x1.5 thread with a 60° cone seat, the hardware EMPI specifies for its 60° cone-seat 5x205 (wide-five) alloy wheels. Twenty bolts mount a full set of four wheels on a 1949–1967 Beetle, 1956–1966 Karmann Ghia, 1961–1965 Type 3 or a 1973–1974 Thing. It does not fit 4-lug cars, the wide-five Bus, or ball-seat wheels such as the EMPI 911-style 5x205 alloys, the Mobelwagen Vintage 190 and factory VW steel wheels.
Part numbers: KIT20-00-9711-0 (kit) · contains 4× EMPI 00-9711-0 / 0097110 · single bolt 00-9711-7
Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1949–1967 | VW Beetle (5x205) | Fits |
| 1956–1966 | VW Karmann Ghia (5x205) | Fits. The 1967 Ghia is 4x130. |
| 1961–1965 | VW Type 3 (5x205) | Fits |
| 1973–1974 | VW Thing (181) | Fits |
| 1963–1967 | Pan-based dune buggy on 5x205 drums | Fits |
| 1950–1970 | VW Bus with 5x205 drums | Does not fit — the Split and 1968–1970 Bay Bus use M14x1.5 wheel bolts. EMPI does not list 00-9711-0 for the Bus |
| 1966–1979 | 4-lug (4x130) Beetle 1968–1979, Ghia 1967–1974, Type 3 1966–1973 | Does not fit — use KIT16-00-9712-0 |
| All | Ball-seat wheels: EMPI 911-style (Fuchs-style) 5x205 alloys 10-1108-0, 10-1109-0, 10-1110-0 and 10-1111-0; Mobelwagen Vintage 190 (10-1171-0, 10-1172-0, 10-1174-0); factory VW steel wheels | Does not fit — these wheels have a ball (radius) seat; this kit is 60° cone seat only. Use M12x1.5 ball-seat bolts instead |
Specifications
| Spec | Value |
|---|---|
| Thread | M12 x 1.5 |
| Seat | 60° cone (taper) |
| Finish | Chrome |
| Quantity | 20 bolts (4 sets of 5) |
| For | EMPI 60° cone-seat 5x205 alloy wheels (not the ball-seat 911-style or Vintage 190) |
| Kit weight | 4.00 lb |
| Components | 4× EMPI 00-9711-0 |
What's Included
- 20 chrome 60° lug bolts, M12x1.5 (four EMPI 00-9711-0 sets of 5)
Not Included
- Wheels, center caps, valve stems
- Wheel locks (see EMPI 70-2706-0, 12mm 60° locks)
Why It Matters
Wide-five VW drums take lug bolts, not studs, and the seat on the bolt has to match the seat machined into the wheel. Factory VW steel wheels use a rounded ball seat; most EMPI aluminum wheels use a 60° cone. The exceptions are EMPI's 911-style 5x205 alloys and the Mobelwagen Vintage 190, which are ball seat. Run a ball-seat bolt in a cone-seat wheel, or a cone-seat bolt in a ball-seat wheel, and only a thin ring of metal touches, so the bolt can loosen and the wheel can crack around the hole. This kit gives you the exact EMPI-specified bolt for every hole on a 4-wheel set of cone-seat alloys, at a 5% kit discount over buying four packs.
Install Notes
- Thread every bolt in by hand first; the threads should start without force.
- Tighten in a star pattern in two or three passes.
- Torque to your vehicle's factory wheel-bolt spec and re-check after the first 50 miles.
- Do not use these with wheel spacers; spacers need longer bolts (EMPI 70-2875-0).
Frequently Asked Questions
- What lug bolts do EMPI 5x205 alloy wheels use? For EMPI's 60° cone-seat 5x205 alloys, EMPI specifies its 00-9711-0 chrome bolts: M12x1.5 thread with a 60° cone seat. This kit is 20 of them, enough for four wheels. EMPI's 911-style 5x205 alloys are ball seat and need ball-seat bolts instead.
- Will these fit my stock VW steel wheels? No. Stock VW steel wheels use a ball seat. These are 60° cone-seat bolts for EMPI and other aftermarket alloys.
- Do these fit EMPI 911-style (Fuchs-style) 5x205 wheels or the Mobelwagen Vintage 190? No. EMPI 911-style 5x205 wheels (10-1108-0, 10-1109-0, 10-1110-0, 10-1111-0) and the Mobelwagen Vintage 190 have a ball (radius) seat. Use M12x1.5 ball-seat lug bolts on them, not this 60° kit.
- How many lug bolts do I need for a wide-five Beetle? Twenty: five per wheel on four wheels. This kit is exactly 20.
- Do these fit a 1968 or later Beetle? No. 1968 and later Beetles (and 1967 and later Karmann Ghias) use the 4x130 pattern with M14x1.5 bolts. Use the 16-bolt kit KIT16-00-9712-0.
- Can I buy them in smaller quantities? Yes, EMPI 00-9711-0 is also listed as a set of 5 in our store.
- Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, so this is genuine EMPI hardware shipped from our Orange, California shop.
Explore Related Categories
Wheels, Hardware, Lug bolt sets of 5, Air-Cooled VW
Parts are legal for use on pre-pollution-controlled vehicles only.
