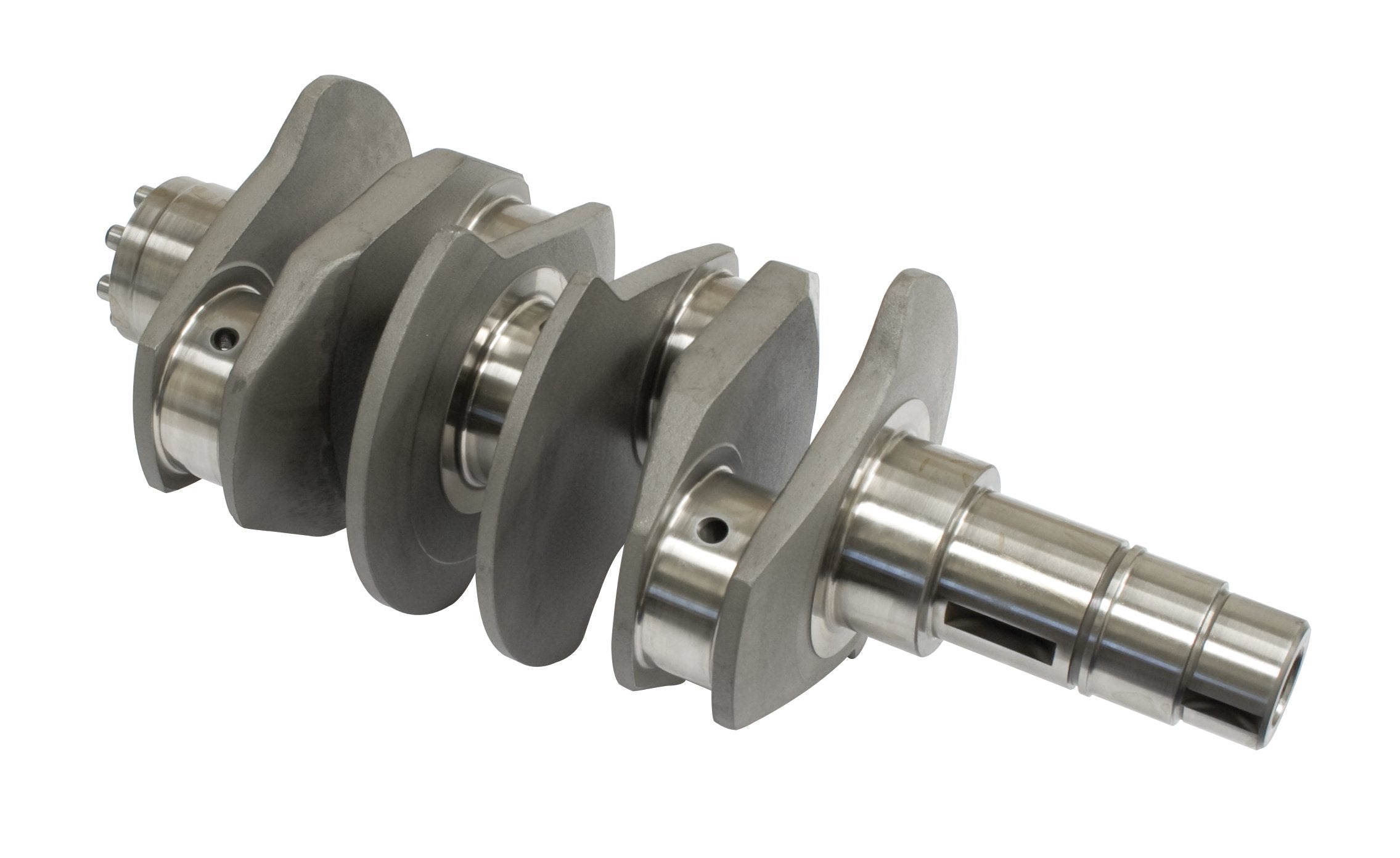

EMPI 82mm 4340 Counterweighted Stroker Crankshaft — Air-Cooled VW Type 1, 2276cc (00-8182-0)

If you're chasing real displacement out of a Type 1 case, the stroke is where it starts. This is EMPI's 82mm 4340 counter-weighted crankshaft (00-8182-0) on standard VW journals — the backbone of a 2276cc build when you pair it with 94mm cylinders. Forged 4340 steel, counterweighted for balance at the RPM a stroker actually sees.

Vehicle Fitment

• VW Beetle: Type 1 case machined for 82mm stroke
• VW Super Beetle: Type 1 case machined for 82mm stroke
• VW Bus: Type 1/Type 2 case machined for 82mm stroke
• VW Karmann Ghia: Type 1 case machined for 82mm stroke
• VW Type 3: Type 1 case machined for 82mm stroke
• VW Thing / 181: Type 1 case machined for 82mm stroke
• Buggy / Baja: Type 1 case machined for 82mm stroke

This is a build component, not a bolt-in. An 82mm crank swings a larger arc than stock and requires case clearancing at the cam tunnel, lifter bores, and case webbing, plus a matching 94mm cylinder bore. Not confirmed: stock un-clearanced cases, Type 4 engines.

Why Choose EMPI?

Forged 4340 steel and counterweighting give a stroker crank that stays balanced and durable at high RPM.

Key Features & Benefits

• Forged 4340 steel: chromoly-grade material for high-output, hard-use motors.
• 82mm stroke: combines with 94mm pistons for 2276cc, the most popular air-cooled stroker displacement.
• Counter-weighted: smoother high-RPM operation and reduced bearing load.
• Standard journals: standard VW rod and main journals run standard-size bearings.

Technical Specifications

• Stroke: 82mm
• Material: Forged 4340 steel, counterweighted
• Journals: Standard VW (rod and main)
• Target Displacement: 2276cc with 94mm pistons/cylinders
• Part Number: 00-8182-0 | UPC: 707924330717
• Country of Origin: Mexico
• Shipping Weight: 23.9 lb | Boxed: 17 x 7 x 7 in

Frequently Asked Questions

• Does this fit a stock 1600 case? Not without machine work — an 82mm stroker crank requires case clearancing for the rod and counterweight swing.
• What displacement does it make? Paired with 94mm pistons and cylinders it builds a 2276cc engine.
• What bearings does it use? Standard-size VW rod and main bearings, since the journals are standard.
• What's the part number? EMPI 00-8182-0 (UPC 707924330717).
• How does it ship? Standard ground; no hazmat restriction.
