EMPI Chrome Lug Bolts — 60° Taper Seat | For EMPI & Aftermarket Custom Wheels

Chrome lug bolts with a 60° tapered seat, the profile used by most modern EMPI wheels and by the wider aftermarket. If you have just fitted a set of custom wheels to an air-cooled VW, these — not your old factory bolts — are almost certainly what the wheels need.

This is the single most common wheel-fitting mistake on an air-cooled VW. Factory VW bolts use a rounded ball seat; most aftermarket wheels are machined with a straight 60° cone. Put a ball-seat bolt into a taper-seat wheel and the two surfaces touch on a narrow ring instead of a broad cone. The joint feels tight, torques up normally, and then loosens, because there is almost no clamp area doing the work. It is worth thirty seconds with a flashlight to confirm which seat your wheels have.

Vehicle Fitment

• EMPI custom wheels and most aftermarket wheels machined with a 60° taper seat
• Air-cooled VW: Beetle, Super Beetle, Karmann Ghia, Bus, Type 3, Thing
• Dune buggy, Baja & sandrail builds on custom wheels

Will NOT fit: stock VW steel wheels and any wheel with a ball (radiused) seat — use EMPI 00-9564-0 / 00-9565-0 / 00-9568-0 instead.

Choose Your Size

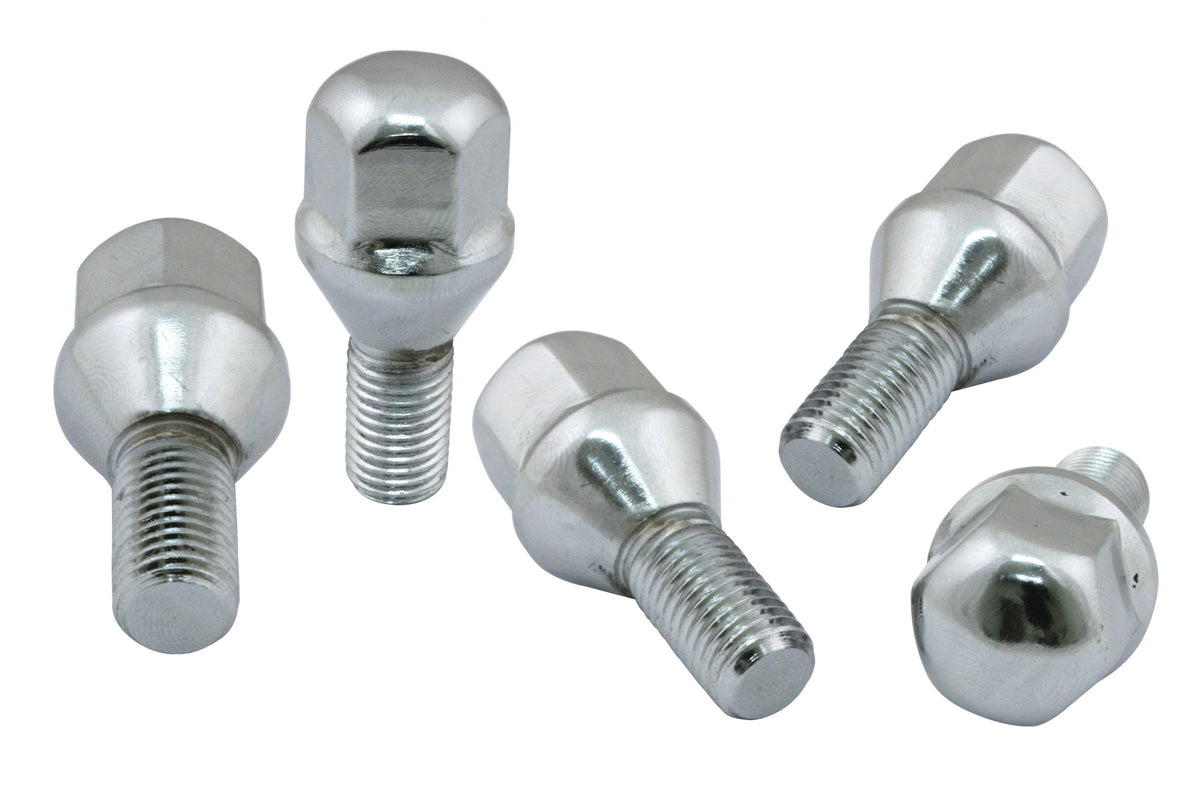

• 12mm, Set of 5 — for EMPI 5x205 wheels: The wide-5 bolt pattern used on early Beetle, Bus and Type 3 hubs.

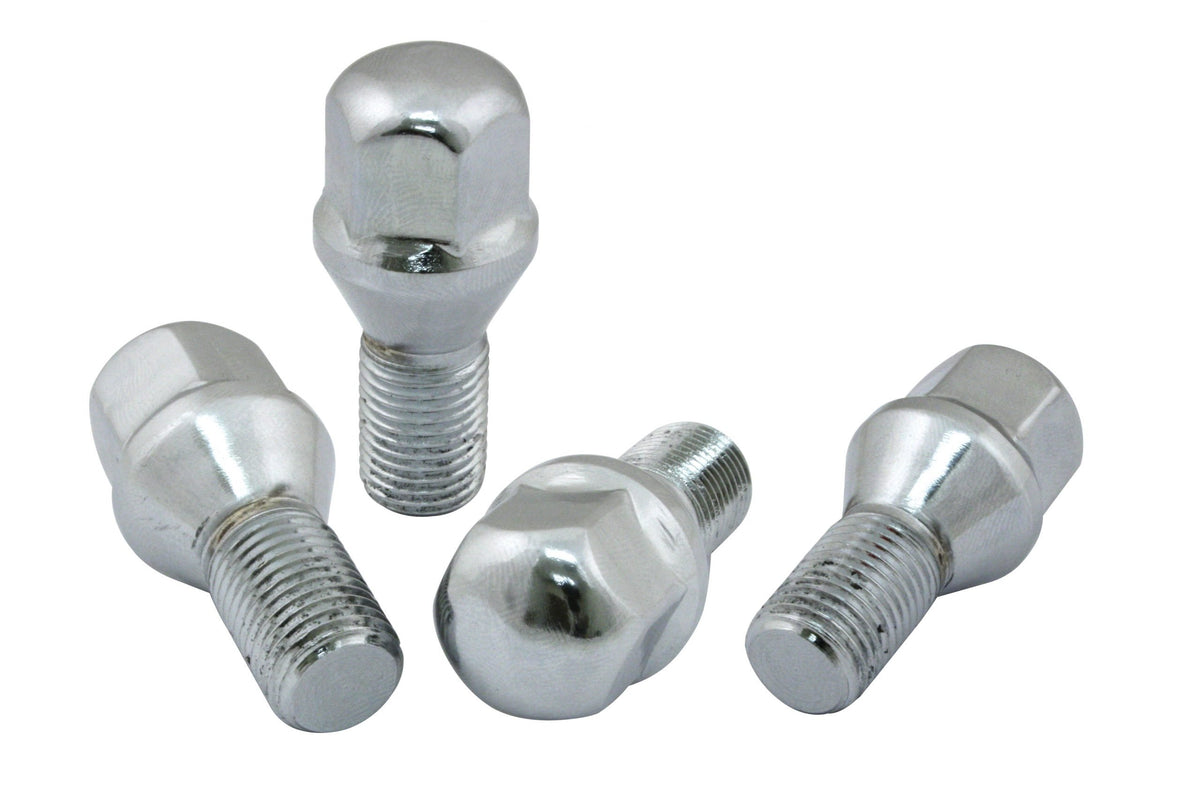

• 14mm, Set of 4 — for EMPI 4x130 wheels: The later 4-lug pattern.

Technical Specifications

• Part Numbers: 00-9711-0 (12mm, 5x205) / 00-9712-0 (14mm, 4x130)
• Manufacturer: EMPI
• Seat: 60° taper
• Head: 19mm hex
• Threaded Length: 24mm
• Finish: Chrome
• Shipping Weight: 1.00 lb (12mm) / 0.85 lb (14mm)
• Package Dimensions: 6 x 6 x 1.18 in (12mm) / 3 x 2.5 x 1 in (14mm)
• UPC: 707924408683 / 707924408676

Installation Notes

• Confirm the seat profile against your wheel before ordering. This is the whole ballgame.
• Check clearance behind the drum or rotor with one bolt fitted before doing all four corners.
• Anti-seize on threads only, never the seat.
• Torque in a star pattern, then re-check after about 50 miles.
• Running spacers? You will need extra length — see the long 12mm taper bolts, EMPI 70-2875-0.

Frequently Asked Questions

• How do I confirm my wheels are taper seat? Look into the bolt hole. A 60° taper is a straight-sided cone; a ball seat is a smooth radius. If the wheels are EMPI or another modern aftermarket brand, taper is the likely answer — but check.
• Can I reuse my factory bolts on new wheels? Only if the wheels are ball seat. Mismatched seats will not stay tight.
• How many do I need? 20 for a 5-lug car, 16 for a 4-lug car.
• What head size is the wrench? 19mm hex — note that this differs from the 22mm head on the ball-seat bolts.
• Do these work with wheel spacers? Only short ones. Anything substantial needs longer bolts and a test fit.
