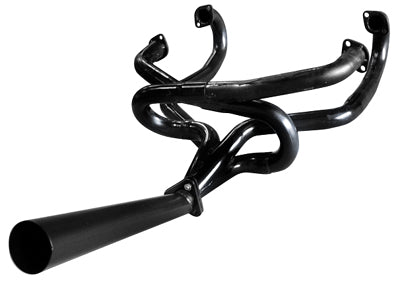

EMPI Competition Merged Exhaust Header | VW Beetle, Ghia & Type 1 | 1-5/8" Mandrel-Bent, Dual Carb (3699)

EMPI Competition Merged Exhaust System — 1-5/8" Mandrel-Bent Type 1 Header

Built for serious performance. The EMPI Competition Merged Header features 1-5/8" mandrel-bent tubing with a hand-cut and fitted longer collector that maximizes exhaust scavenging and unlocks top-end power. Designed for dual-carb performance builds, this header eliminates heater boxes for maximum airflow.

Comes with a non-baffled black stinger and all the gaskets and hardware needed for the stinger. For a quieter setup, add an EMPI merged-compatible muffler (part numbers 3700, 55-3700, 3701, 3702, or 3703).

Vehicle Fitment

• VW Beetle: All years, Type 1 air-cooled engine (1300-1600cc, dual carb)
• VW Karmann Ghia: All years, Type 1 air-cooled engine (1300-1600cc, dual carb)
• VW Type 3: All years, Type 1 air-cooled engine (1300-1600cc, dual carb)

Key Features & Benefits

• 1-5/8" Mandrel-Bent Tubing: Smooth, consistent bends for maximum flow.
• Hand-Cut Long Collector: Hand-fitted for maximum scavenging and top-end power.
• No Heater Boxes: Pure performance setup for dual-carb builds.
• Included Stinger & Hardware: Non-baffled black stinger plus flange gaskets and stinger mounting hardware.

Technical Specifications

• Part Number: 3699
• Tubing: 1-5/8" mandrel-bent
• Engine Fit: Type 1 air-cooled engines (1300-1600cc base, dual carb)
• Vehicle Fit: VW Beetle, Karmann Ghia, Type 3
• Finish: Black (paint burns off after install — recommend stripping and re-coating with high-temp paint)

Important Notes

• Not for use with single carburetors — the exhaust has no heat riser attachments
• If using black paint, strip it before install or it will burn off in the first few hours
• Compatible muffler must be purchased separately for street use

Compatible Mufflers (sold separately)

• EMPI #3700 — Standard merged muffler
• EMPI #55-3700 — Stainless merged muffler
• EMPI #3701 / 3702 / 3703 — Premium quiet pack options

Frequently Asked Questions

• Does this fit single-carb engines? No — it has no heat riser attachments and is not for use with single carburetors.
• Is a muffler included? No — it comes with a non-baffled black stinger; a compatible muffler (EMPI 3700, 55-3700, 3701, 3702, or 3703) is sold separately for street use.
• What comes in the box? The merged header, a non-baffled black stinger, and the flange gaskets and stinger mounting hardware.
