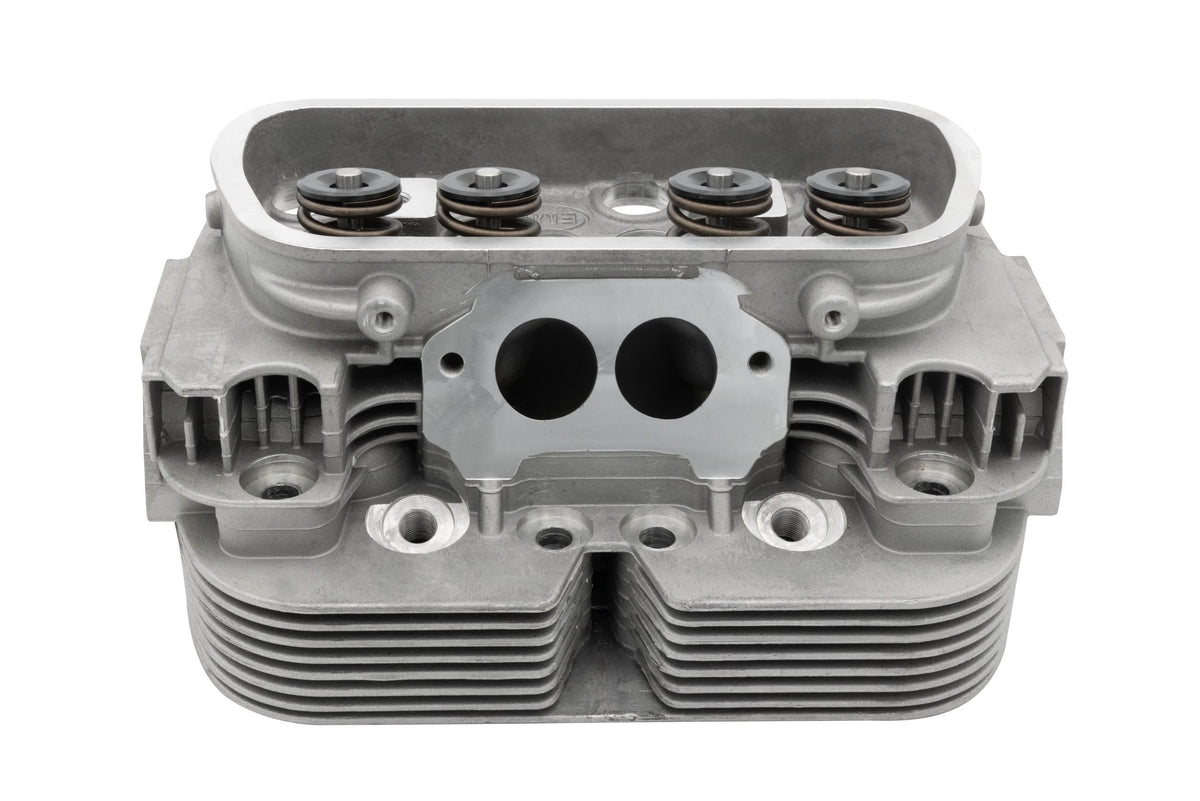

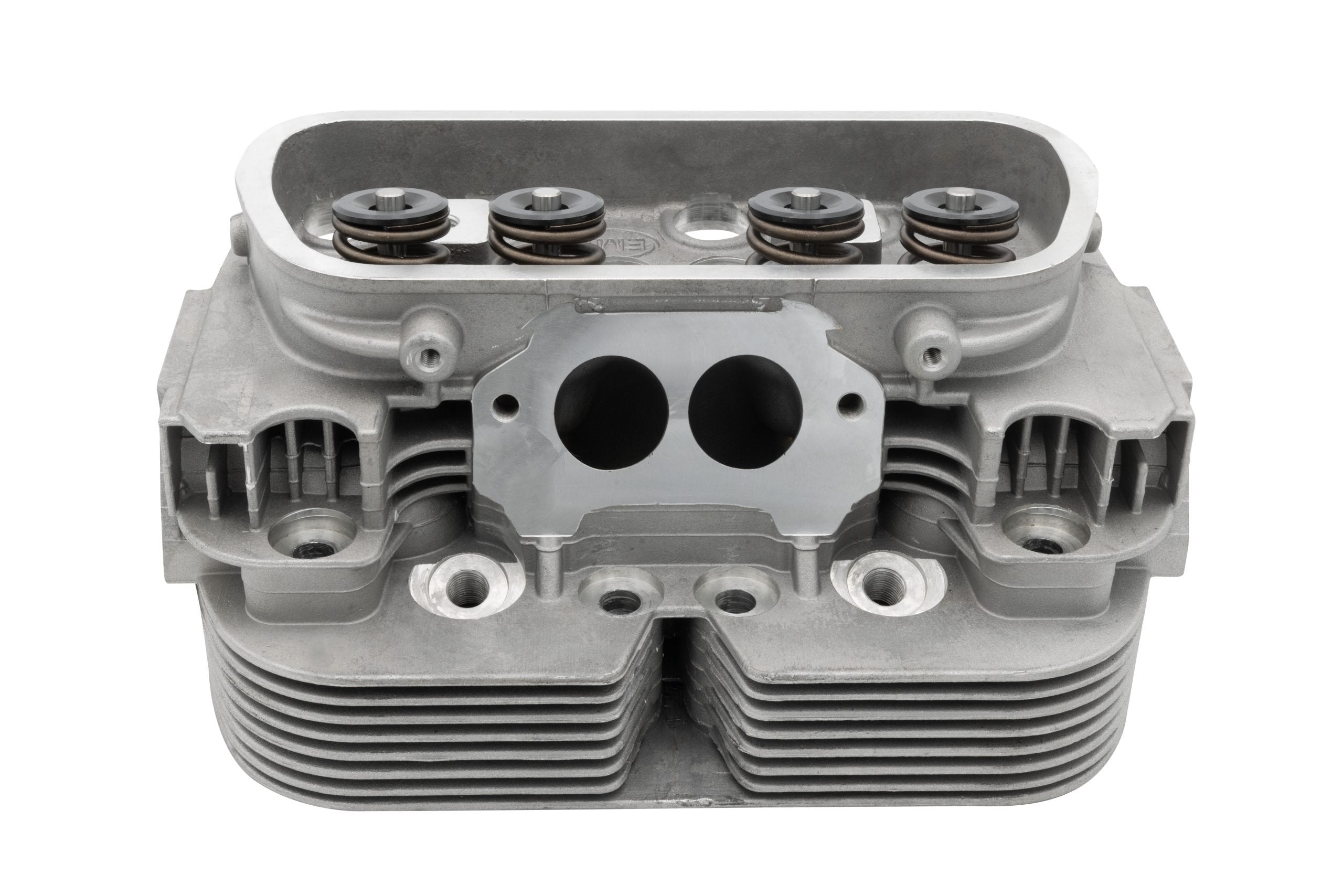

EMPI GTV-2 Dual Port Cylinder Head | VW Type 1 Aircooled | 85.5mm, 40/35.5mm SS Valves, Single Spring (98-1381-B)

EMPI GTV-2 Dual Port Cylinder Head — 85.5mm Bore, 40/35.5mm Stainless Valves, Single Spring (98-1381-B)

If you want a head that can grow with your build, the GTV-2 casting is the one to start from. EMPI's GTV-2 dual-port head (98-1381-B) has intake and exhaust ports 20% larger than stock and extra chamber material for deep fly-cutting — run it as-is for strong performance, or hand/CNC port it from mild to wild. Machined for 85.5mm bore with 40×35.5mm stainless Manley valves and single hi-rev springs. Sold each.

Vehicle Fitment

• VW Beetle: 1971–1979 (dual-port, 85.5mm or 87mm pistons)
• VW Bus: 1971 and later (dual-port)
• VW Karmann Ghia: 1971–1974
• VW Type 3: dual-port builds
• VW Thing: dual-port builds

Not confirmed: big-bore 90.5/92/94mm builds (use the matching-bore GTV-2 head), single-port engines, Type 4 engines.

Why Choose EMPI?

You get genuine parts backed by real support.

Key Features & Benefits

• Port-ready GTV-2 casting: 20% larger intake and exhaust ports than stock, with added material around the combustion chamber for deep fly cutting.
• Stainless Manley valves: 40mm intake / 35.5mm exhaust.
• Single hi-rev valve springs: with chromoly retainers and hardened keepers.
• Bronze valve guides: for durability.
• 3-angle performance valve job.
• Studs included: rocker, exhaust, and intake studs.
• Sold each.

Technical Specifications

• Bore: 85.5mm, GTV-2 dual port casting
• Valves: 40mm intake / 35.5mm exhaust, stainless Manley
• Springs: single hi-rev
• Ports: 20% larger than stock, ready for hand/CNC porting
• Spark plugs: 12mm 3/4" reach
• Part Number: 98-1381-B (UPC 707924430769)

Important: Lash caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately. 12mm long-reach spark plugs (e.g. NGK D8EA) must be used in place of stock Bosch plugs.

Frequently Asked Questions

• Can I port these? Yes — the GTV-2 casting has 20% larger ports and extra chamber material specifically so you can hand or CNC port from mild to wild.
• What bore do they fit? 85.5mm or 87mm pistons.
• What spark plugs? 12mm 3/4" long-reach (e.g. NGK D8EA), not stock Bosch.
• Do I need lash caps? Yes — required with stainless valves, sold separately (00-4006-0).
• What's the part number? EMPI 98-1381-B (UPC 707924430769).
• Are you an authorized dealer? Yes.
