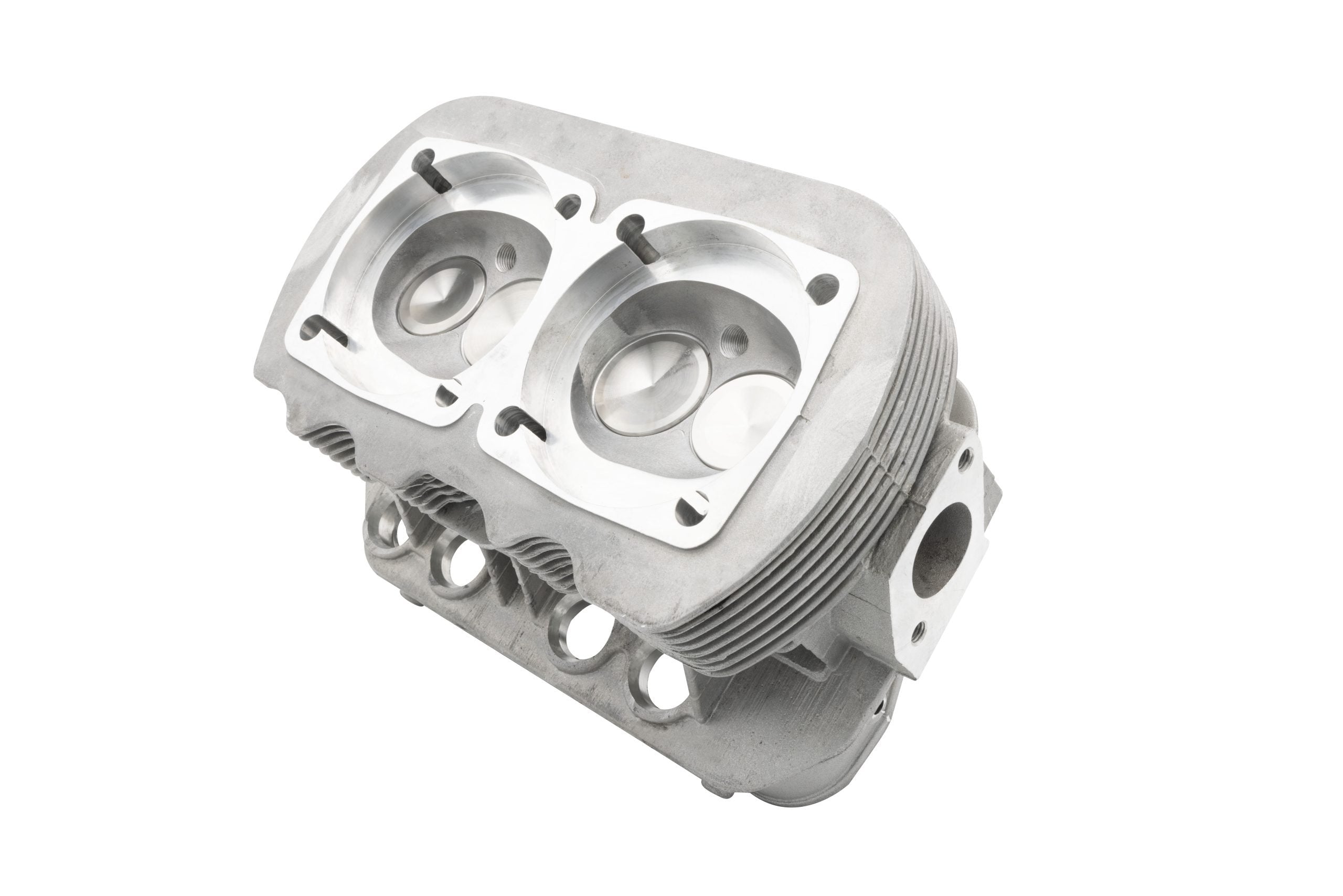

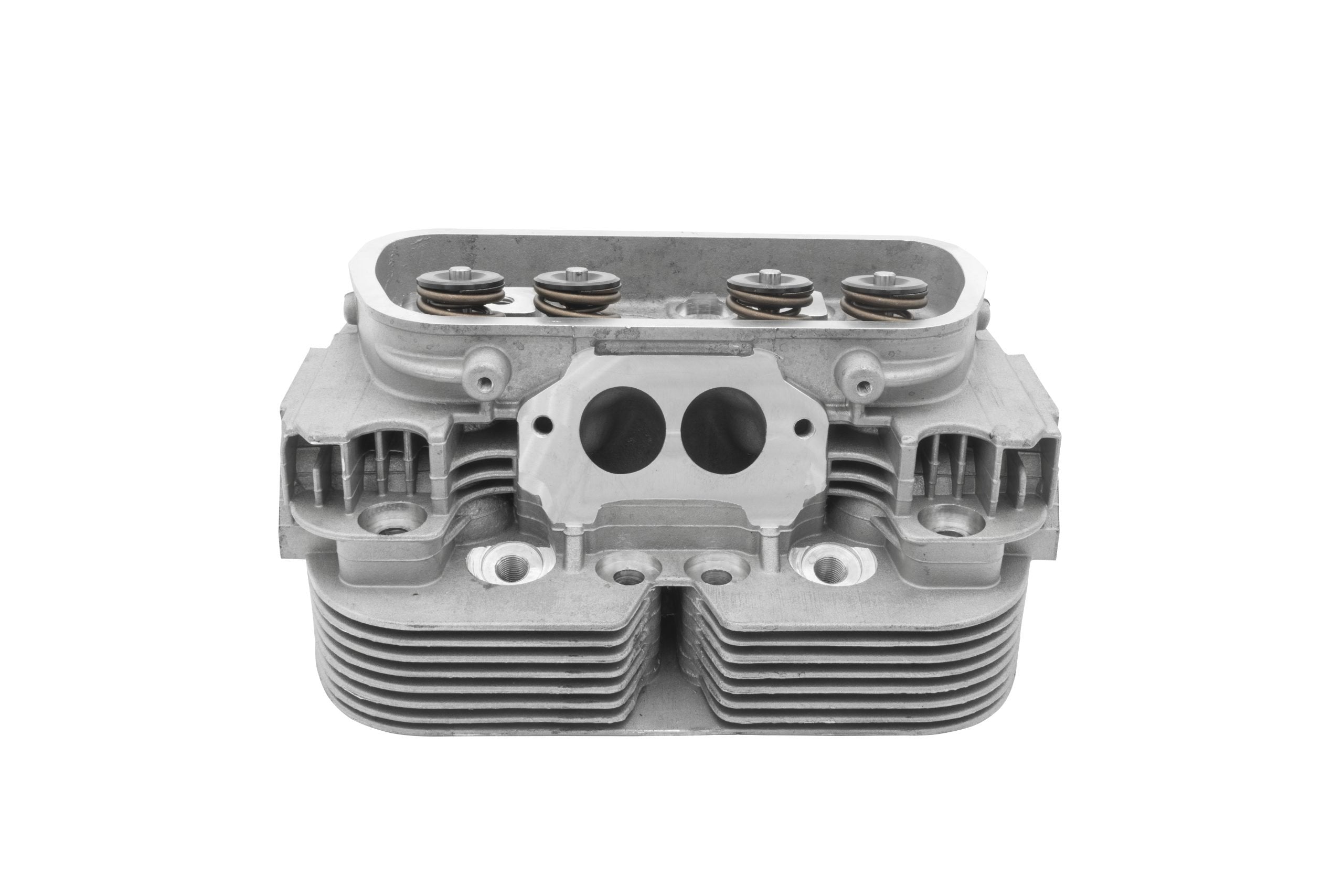

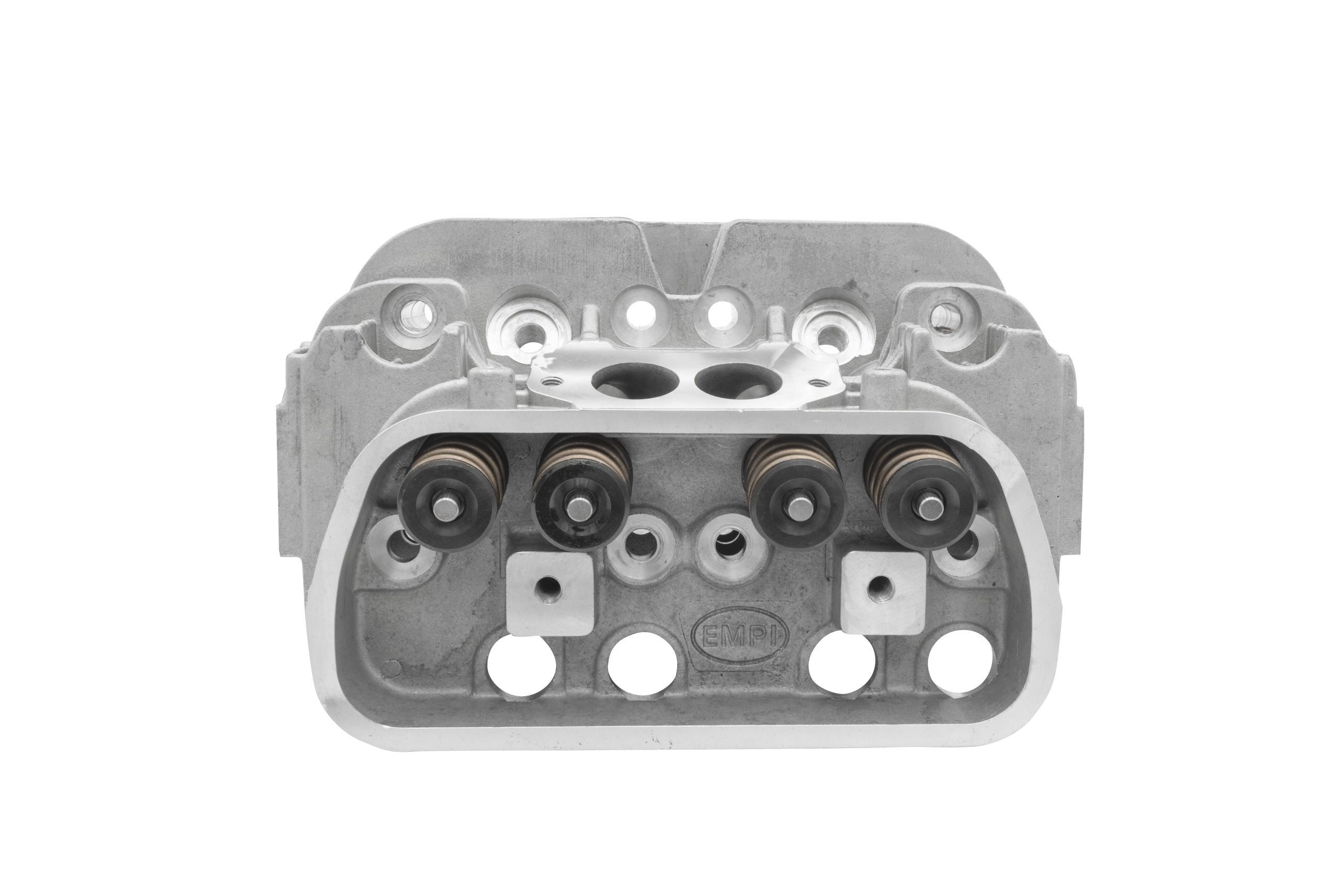

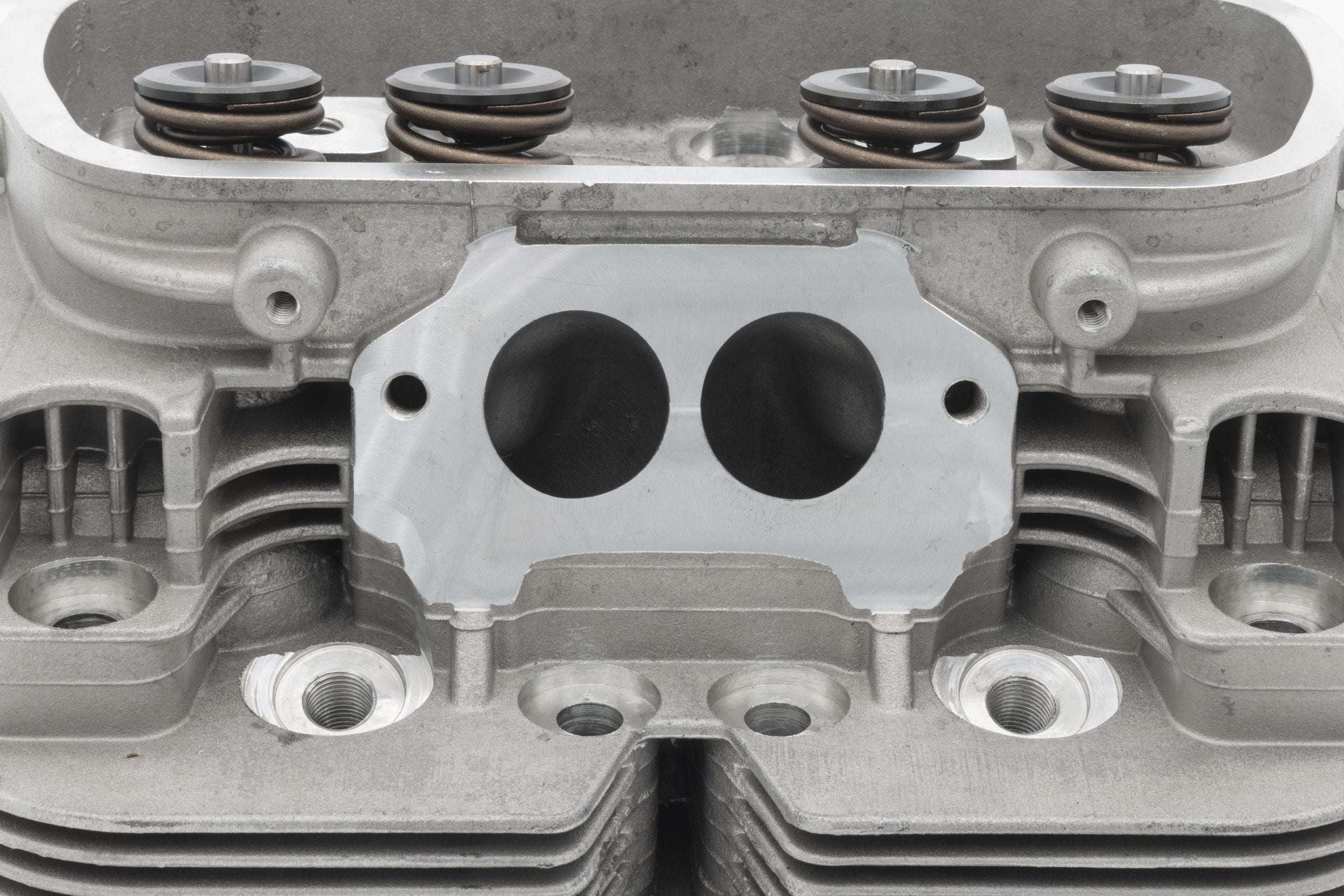

EMPI GTV-2 Dual Port Cylinder Head | VW Type 1 94mm | 42/37.5mm SS Big Valves, Dual Spring (98-1439-B)

EMPI GTV-2 Dual Port Cylinder Head — 94mm Bore, 42/37.5mm SS Big Valves, Dual Spring (98-1439-B)

When you need the most valve and flow EMPI puts in a GTV-2 dual-port head, this is it. The 98-1439-B is the big-valve racing version — machined for 94mm pistons and built with massive 42mm intake / 37.5mm exhaust stainless Manley valves on dual hi-rev springs.

The oversized valves need the dual-spring valvetrain to keep up with high-lift cams. Sold each.

Vehicle Fitment

• VW Beetle: dual-port engine, 94mm bore
• VW Bus: dual-port engine
• VW Karmann Ghia: dual-port engine

Confirmed: VW Type 1 dual-port big-bore / racing builds running 94mm bore with high-lift, high-RPM cams — 1914cc, 2110cc, 2276cc, 2332cc (Beetle, Bus, Karmann Ghia, Type 3, Thing). Not confirmed: stock 85.5mm or 90.5/92mm bore, single-port engines, Type 4 engines.

Why Choose EMPI?

This big-valve GTV-2 head is the top of its dual-port range.

Key Features & Benefits

• 94mm bore, GTV-2 dual port casting.
• 42mm intake / 37.5mm exhaust stainless Manley valves (3-groove).
• Dual hi-rev valve springs.
• Chromoly retainers and hardened keepers.
• Bronze valve guides.
• 57cc combustion chamber.
• Ports 20% larger than stock.
• 12mm 3/4" reach spark plug holes.
• Rocker, exhaust, and intake studs included.
• Competition 3-angle valve job.
• Sold each.

Technical Specifications

• Valves: 42mm intake / 37.5mm exhaust, stainless Manley
• Springs: dual hi-rev
• Combustion Chamber: 57cc
• Material: special aluminum alloy
• Spark plugs: 12mm 3/4" reach
• Part Number: 98-1439-B | UPC: 707924461909
• Sold as: each

Frequently Asked Questions

• How big are the valves? 42mm intake, 37.5mm exhaust — the largest in the GTV-2 dual-port range.
• Why dual springs? The big valves and high-lift cams need the dual-spring valvetrain to control valve motion at high RPM.
• What bore are these for? 94mm pistons (1914-2332cc).
• Do I need lash caps? Yes — required with stainless valves, sold separately (00-4006-0).
• What's the part number? EMPI 98-1439-B (UPC 707924461909).
• Are you an authorized dealer? Yes.

Installation

Lash caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately. 12mm long-reach spark plugs (e.g. NGK DCPR8E) must be used in place of stock Bosch plugs. Verify rocker arm geometry and check for coil bind with dual springs.
