EMPI HD Bubble-Top Aluminum Engine Case 90.5 92mm Bore Full-Flow 98-0453-B
EMPI

EMPI HD Bubble-Top Engine Case | VW Type 1 Air-Cooled | 90.5/92mm Bore, Full-Flow (98-0453-B)

In stock
No reviews
Usually ships within 24 hours
$2,594.20
Product details
  • Vendor EMPI
  • SKU 98-0453-B
  • Barcode 707924368123
  • Fits
    • 1966-1979|VW|Beetle
    • 1971-1979|VW|Super Beetle
    • 1966-1979|VW|Bus
    • 1966-1974|VW|Karmann Ghia
    • 1966-1973|VW|Type 3

Not sure it fits? Call the shop: (657) 438-7002.

Ask an expert

Description Shipping information Reviews

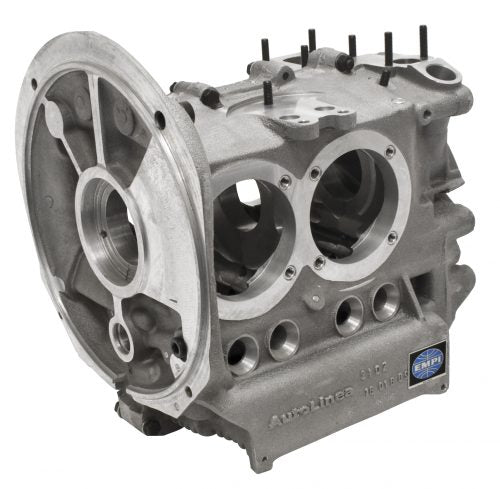

EMPI HD Bubble-Top Aluminum Engine Case — 90.5/92mm Bore, Full-Flow (98-0453-B)

The 90.5/92mm full-flow case is the foundation for the two most popular street big-bores there are — the 1776cc and 1835cc. EMPI's HD bubble-top aluminum case (98-0453-B) is an all-new casting, machined for 90.5/92mm cylinders and already drilled and tapped for full-flow oiling, so you can run an external filter and cooler without extra machine work.

Vehicle Fitment

  • VW Beetle: 1966–1979
  • VW Super Beetle: 1971–1979
  • VW Karmann Ghia: 1966–1974
  • VW Type 3: 1966–1973
  • VW Bus: 1966–1979

Confirmed for VW Type 1 90.5/92mm big-bore builds — 1776cc (90.5×69) and 1835cc (92×69). Not for stock 85.5mm or 94mm builds (use the matching bore case) or Type 4 engines.

Key Features & Benefits

  • All-new heavy-duty aluminum bubble-top casting: added strength in the upper case
  • Machined for 90.5/92mm cylinder spigots: ready for 1776cc and 1835cc builds
  • Drilled and tapped for full-flow oil: plumb a filter/cooler with no added machining
  • Fresh machining throughout: cam tunnel, mains, lifter bores

Technical Specifications

  • Material: Heavy-duty aluminum, bubble-top, new casting
  • Bore: Machined for 90.5/92mm
  • Oiling: Full-flow drilled and tapped
  • Part Number: 98-0453-B
  • UPC: 707924368123
  • Country of Origin: Brazil
  • Shipping weight: 45 lb

Frequently Asked Questions

  • What cylinder sizes does it take? Machined for 90.5mm or 92mm barrels.
  • Is it ready for full-flow oil? Yes — drilled and tapped for full-flow.
  • What displacements? 1776cc (90.5mm) and 1835cc (92mm) with stock stroke.
  • Will it take 94mm barrels? No — use the 94mm-bore case for those.
  • What's the part number? EMPI 98-0453-B (UPC 707924368123).
