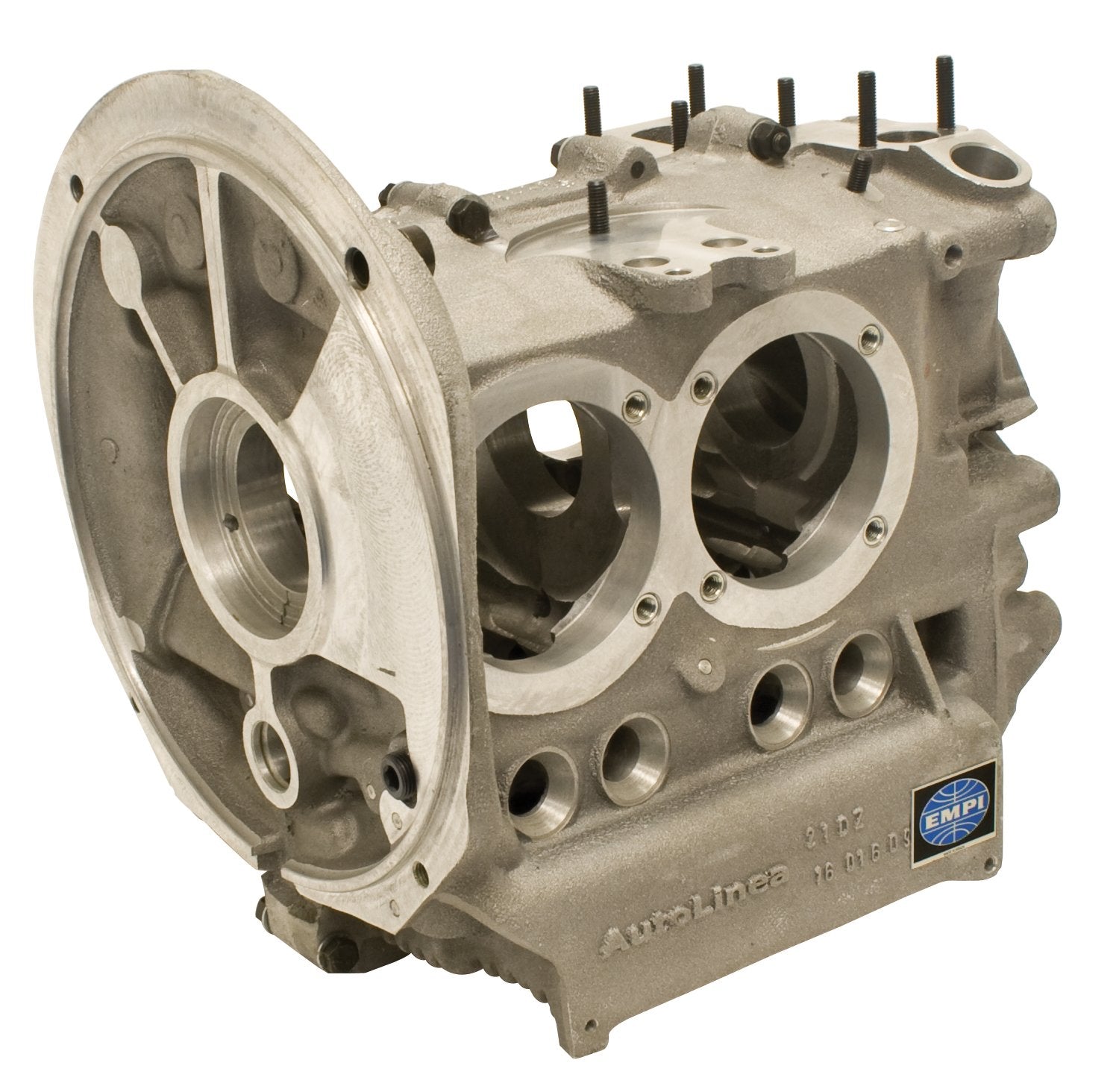

EMPI 98-0454-B HD Bubble-Top Engine Case 94mm Bore Full-Flow Drilled VW Type 1
EMPI

EMPI HD Bubble-Top Engine Case | VW Type 1 Air-Cooled | 94mm Bore, Full-Flow, 8mm Studs (98-0454-B)

Not currently available

Not currently available.

This part is discontinued or out at our supplier. We often have used stock, a substitute, or can fabricate an alternative.

Call (657) 438-7002 or send us your chassis number.

No reviews
Usually ships within 24 hours
$2,178.10
Product details
  • Vendor EMPI
  • SKU 98-0454-B
  • Barcode 707924368130
  • Fits
    • 1966-1979|VW|Beetle
    • 1971-1979|VW|Super Beetle
    • 1966-1979|VW|Bus
    • 1966-1974|VW|Karmann Ghia
    • 1966-1973|VW|Type 3

Not sure it fits? Call the shop: (657) 438-7002.

Ask an expert

Description Shipping information Reviews

EMPI HD Bubble-Top Aluminum Engine Case — 94mm Bore, Full-Flow (98-0454-B)

If you're building a 94mm big-bore or stroker motor, you can't run it in a stock case — the cylinder spigots have to be cut for the larger barrels. EMPI's HD bubble-top aluminum case (98-0454-B) is all-new, machined for 94mm cylinders and already drilled and tapped for full-flow oiling. It's the proper foundation for a 1914cc, 2110cc, or 2276cc build.

Vehicle Fitment

  • VW Beetle: 1966–1979
  • VW Super Beetle: 1971–1979
  • VW Karmann Ghia: 1966–1974
  • VW Type 3: 1966–1973
  • VW Bus: 1966–1979

Confirmed for VW Type 1 94mm big-bore/stroker builds — 1914cc (94×69), 2110cc and 2276cc (94×82). Not for stock 85.5mm or 90.5/92mm builds (use the matching bore case) or Type 4 engines.

Key Features & Benefits

  • All-new heavy-duty aluminum casting: stronger and more heat-stable than magnesium for high-output builds
  • Bubble-top design: adds material in the high-stress upper case area
  • Machined for 94mm cylinder spigots: ready for big-bore and stroker barrels
  • Drilled and tapped for full-flow oil: no extra machine work to plumb an external filter/cooler
  • 8mm case-stud threads: standard stud configuration

Technical Specifications

  • Material: Heavy-duty aluminum, bubble-top, new casting
  • Bore: Machined for 94mm
  • Studs: 8mm
  • Oiling: Full-flow drilled and tapped
  • Part Number: 98-0454-B
  • UPC: 707924368130
  • Country of Origin: Brazil
  • Shipping weight: 44.8 lb

Frequently Asked Questions

  • What size cylinders does it take? Machined for 94mm bore barrels.
  • Is it ready for full-flow oil? Yes — it's drilled and tapped for full-flow; no extra machining needed.
  • Aluminum or magnesium? Heavy-duty aluminum — preferred for high-output big-bore and stroker motors.
  • Will it fit a 90.5/92mm build? No — use the 90.5/92mm-bore case for those.
  • What's the part number? EMPI 98-0454-B (UPC 707924368130).
