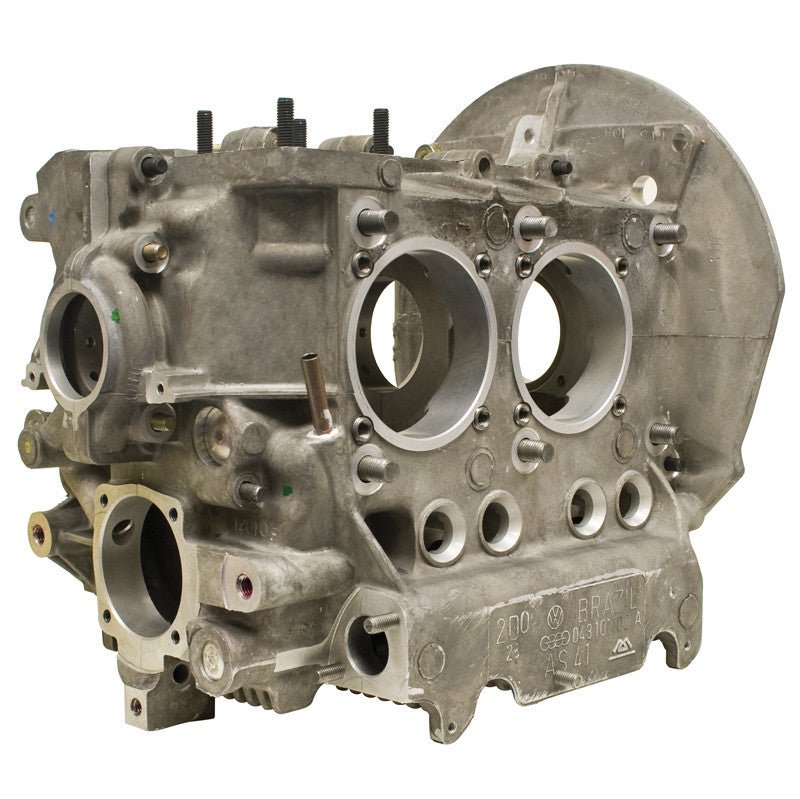

EMPI Magnesium Engine Case — 94mm Bore, Full-Flow Drilled (98-0440-B)

The case is the foundation every air-cooled build sits on. This is EMPI's AS41 magnesium alloy engine case (98-0440-B) — an all-new casting machined for 94mm cylinders and drilled and tapped for full-flow oiling, ready for 1914–2276cc big-bore and stroker builds.

Vehicle Fitment

• VW Beetle: 1954–1977
• VW Super Beetle: 1971–1979 — the Super Beetle did not exist before 1971
• VW Karmann Ghia: 1956–1974
• VW Type 3 (Squareback, Fastback, Notchback): 1961–1973 — the Type 3 runs the same Type 1 case with its own pancake cooling tin and oil-cooler layout
• VW Bus / Transporter (Type 2): 1955–1971 only — the 1972-and-later US Bus is a Type 4 vehicle and uses a completely different case
• VW Thing (Type 181): 1973–1974 — the only two model years the Thing was sold in the US

Confirmed: VW Type 1 94mm builds — 1914cc (94 × 69) through 2276cc (94 × 82) strokers. Not confirmed: stock 85.5mm or 90.5/92mm builds, or any Type 4 engine.

Key Features & Benefits

• All-new casting: AS41 magnesium alloy, not a rebuilt core
• Machined for 94mm cylinders: ready for big-bore barrels
• Drilled and tapped for full-flow: plumbed for an external oil filter and cooler
• Fresh machining throughout: cam tunnel, mains, and lifter bores

Technical Specifications

• Material: AS41 magnesium alloy, new casting
• Bore: Machined for 94mm
• Oiling: Drilled and tapped for full-flow
• Brand: EMPI
• Part Number: 98-0440-B
• UPC: 707924472301
• Country of Origin: Brazil
• Shipping weight: 26.25 lb
• Boxed size: 16.125 × 13.25 × 15.25 in (EMPI published)

Frequently Asked Questions

• Is this a new case or a rebuilt core? All-new casting — not a used core.
• What bore does it take? Machined for 94mm cylinders.
• Aluminum or magnesium? AS41 magnesium alloy. The aluminum bubble-top 94mm full-flow equivalent is 98-0454-B.
• Will it work in a 1976 Bus? No. A 1972-and-later US Bus is a Type 4 vehicle. This is a Type 1 case, correct for Buses through 1971.
• What's the part number? EMPI 98-0440-B (UPC 707924472301).
