EMPI Oil Change Gasket Kit | VW Type 1, 2 & 3 Air-Cooled | Complete Strainer Service Set (00-9909-B)

EMPI Oil Change Gasket Kit — VW Air-Cooled Type 1 / Type 2 / Type 3

Part Number: 00-9909-B | Alternative P/N: 113-198-031 | UPC: 707924343588 | Sold Each. The most-used gasket kit in the air-cooled world. Every Type 1, Type 2, and Type 3 oil change needs fresh gaskets to seal properly — reusing an old, compressed strainer plate gasket is the fastest way to leave a puddle in your driveway. This complete kit gives you everything required for a clean, leak-free oil service in one inexpensive package.

Vehicle Fitment

• VW Beetle / Super Beetle: 1949–1979
• VW Type 2 Bus / Transporter / Kombi (upright engines): 1950–1971
• Karmann Ghia: 1956–1974
• VW Type 3 Notchback / Squareback / Fastback: 1962–1973
• VW Thing (Type 181): 1973–1974

Fits VW 1200cc, 1300cc, 1500cc, and 1600cc air-cooled engines (single port and dual port) using the standard sump-style oil strainer.

Key Features & Benefits

• Complete service set: Both strainer gaskets plus the drain plug crush washer.
• Leak-free seal: Fresh gaskets replace compressed, heat-cycled originals that will not re-seal.
• Inexpensive insurance: Every oil change should include fresh gaskets.

Technical Specifications

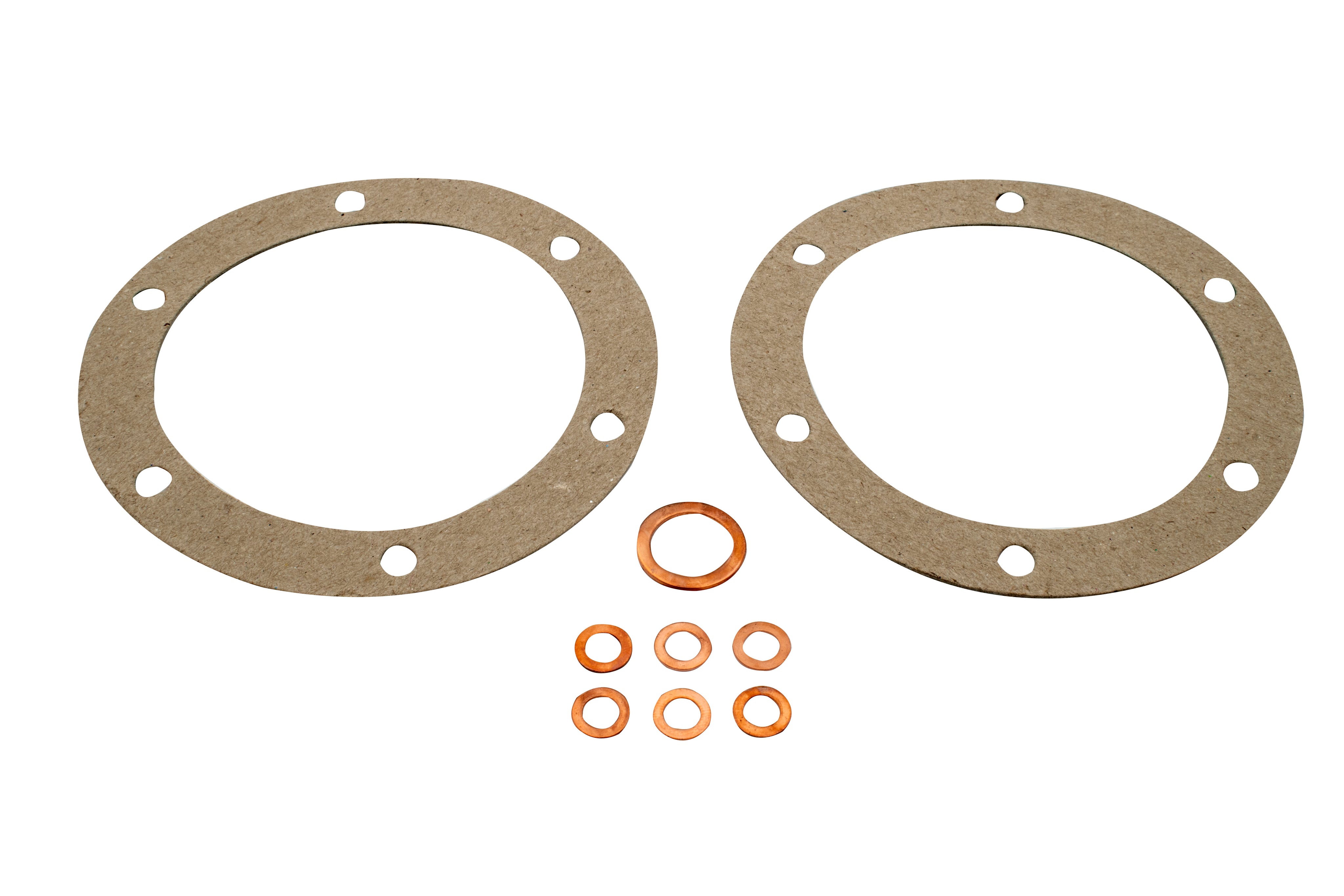

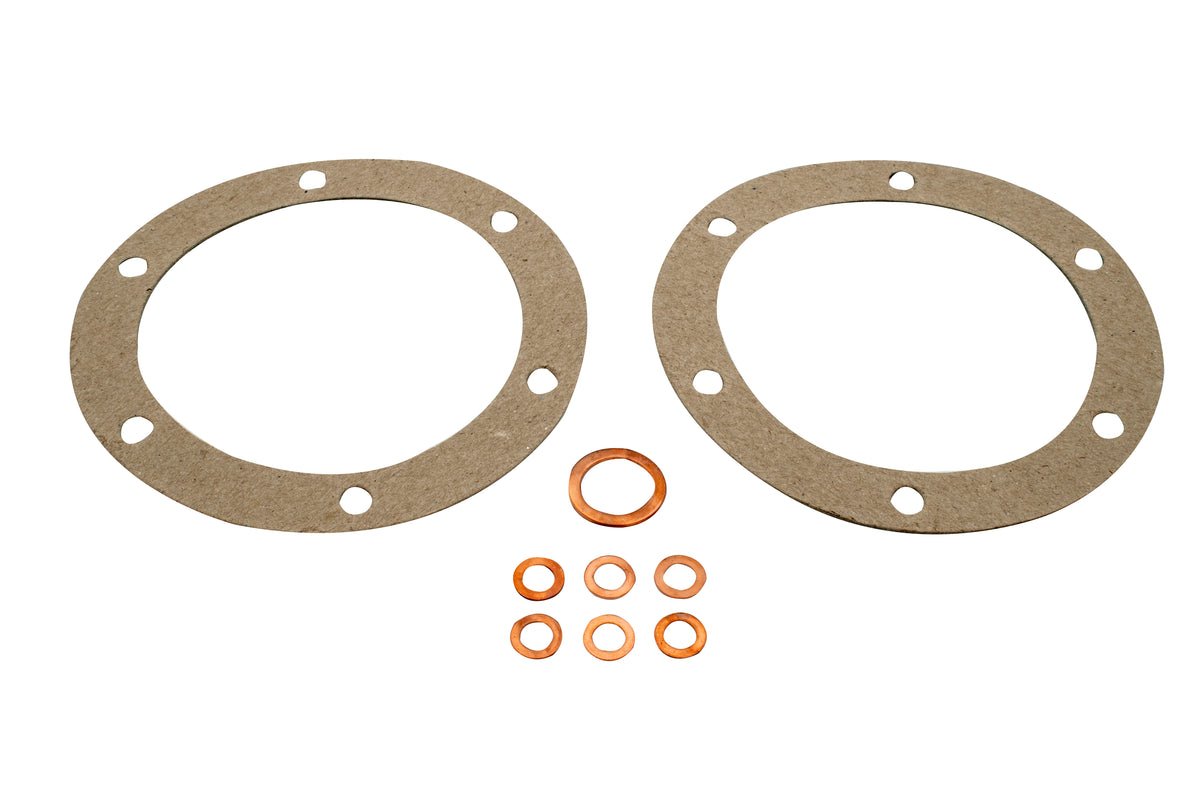

• Includes: Oil strainer plate gasket, oil strainer cover gasket, drain plug crush washer, strainer retainer sealing components
• Part Number: 00-9909-B
• Alternative P/N: 113-198-031
• UPC: 707924343588
• Sold As: Each

Frequently Asked Questions

• What's included? Oil strainer plate gasket (case to plate), oil strainer cover gasket (plate to cover), drain plug crush washer, and strainer retainer sealing components.
• Do I need sealant? No — install the gaskets dry; no sealant or RTV is required or recommended.
• What is the strainer plate nut torque? 5 ft-lbs (factory spec). Over-tightening crushes the gasket and causes leaks rather than preventing them.

Installation

• Always replace both strainer gaskets together. Don't reuse one and replace the other.
• Install gaskets dry — no sealant or RTV is required or recommended.
• Clean both sealing surfaces thoroughly before installation. Old gasket residue is a common cause of leaks.
• Torque the strainer plate nuts to factory spec — over-tightening will crush the gasket and cause leaks rather than prevent them. Recommended: 5 ft-lbs.
• Replace the drain plug crush washer every time. It's a single-use part.
