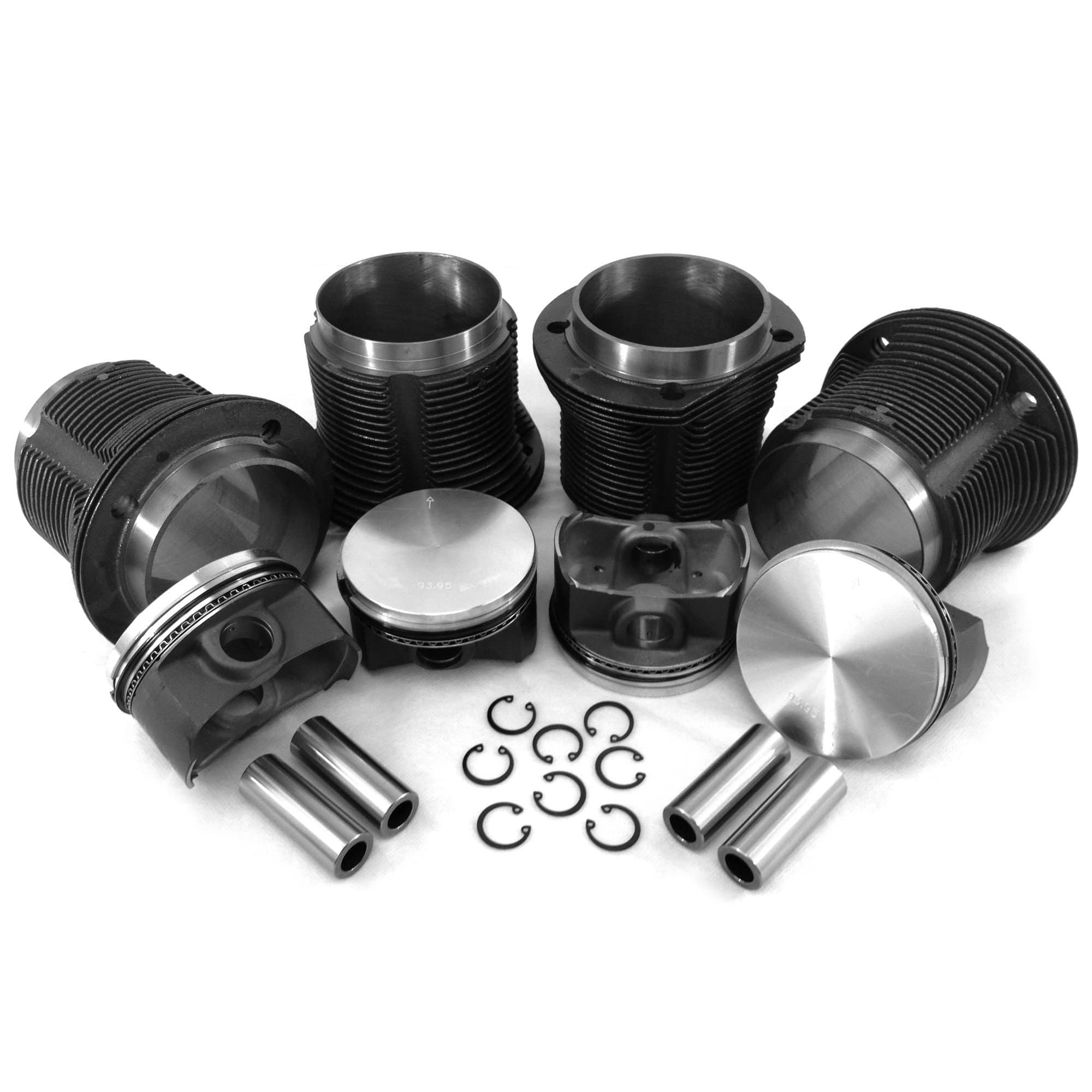

EMPI 98-1957-B AA 94mm x 82mm 2276cc cast hypereutectic piston and cylinder set for VW Type 1 air-cooled engines
EMPI

EMPI Piston & Cylinder Set | VW Type 1 Air-Cooled | 94mm × 82mm, 2276cc Stroker (98-1957-B)

Not currently available

Not currently available.

This part is discontinued or out at our supplier. We often have used stock, a substitute, or can fabricate an alternative.

Call (657) 438-7002 or send us your chassis number.

No reviews
Usually ships within 24 hours
$386.15
Product details
  • Vendor EMPI
  • SKU 98-1957-B
  • Barcode 707924433395
  • Fits
    • All Years|VW|Beetle (case machined for 94mm x 82mm)
    • All Years|VW|Super Beetle (case machined)
    • All Years|VW|Bus
    • All Years|VW|Karmann Ghia

Not sure it fits? Call the shop: (657) 438-7002.

Ask an expert

Description Shipping information Reviews

EMPI Piston & Cylinder Set — 94mm × 82mm, 2276cc Stroker | VW Type 1 Air-Cooled (98-1957-B)

EMPI's 94mm × 82mm piston and cylinder set (98-1957-B) is the heart of the most popular air-cooled stroker there is. Run on an 82mm stroker crank, this matched four-cylinder kit builds a 2276cc Type 1 — pistons, cylinders, rings, pins and clips in one matched set.

Vehicle Fitment

  • VW Type 1 Air-Cooled: Beetle, Super Beetle, Bus (Type 2), Karmann Ghia — cases machined for 94mm × 82mm

This is a build component, not a bolt-in. A 94mm bore requires the case cylinder spigots and the heads to be machined to accept 94mm barrels, and the 82mm stroke requires case clearancing. Not confirmed: stock un-machined cases, Type 4 engines.

Key Features & Benefits

  • 2276cc stroker: 94mm bore × 82mm stroke — the go-to air-cooled stroker displacement
  • Matched set of 4: pistons and cylinders sized together
  • Complete top-end: includes rings, wrist pins and clips
  • Built to pair: designed for the EMPI 82mm counterweighted crank (00-8182-0)

Technical Specifications

  • Bore: 94mm
  • Stroke: 82mm
  • Displacement: 2276cc
  • Quantity: set of 4 (pistons + cylinders)
  • Includes: rings, wrist pins, clips
  • Pairs with: EMPI 82mm crank 00-8182-0
  • Brand: EMPI
  • Part Number: 98-1957-B
  • UPC: 707924433395
  • Country of Origin: China
  • Shipping Weight: 24.6 lb
  • Boxed Dimensions: 12 x 12 x 7 in

Frequently Asked Questions

  • What displacement does this make? 2276cc, on an 82mm stroke crank.
  • Does it fit a stock case? No — the case spigots and heads must be machined for the 94mm bore and the case clearanced for the 82mm stroke.
  • What crank do I run with it? The EMPI 82mm counterweighted crank (00-8182-0).
  • Is everything included to do the top end? Pistons, cylinders, rings, pins and clips are included; bearings and gaskets are separate.
  • What's the part number? EMPI 98-1957-B (UPC 707924433395).
