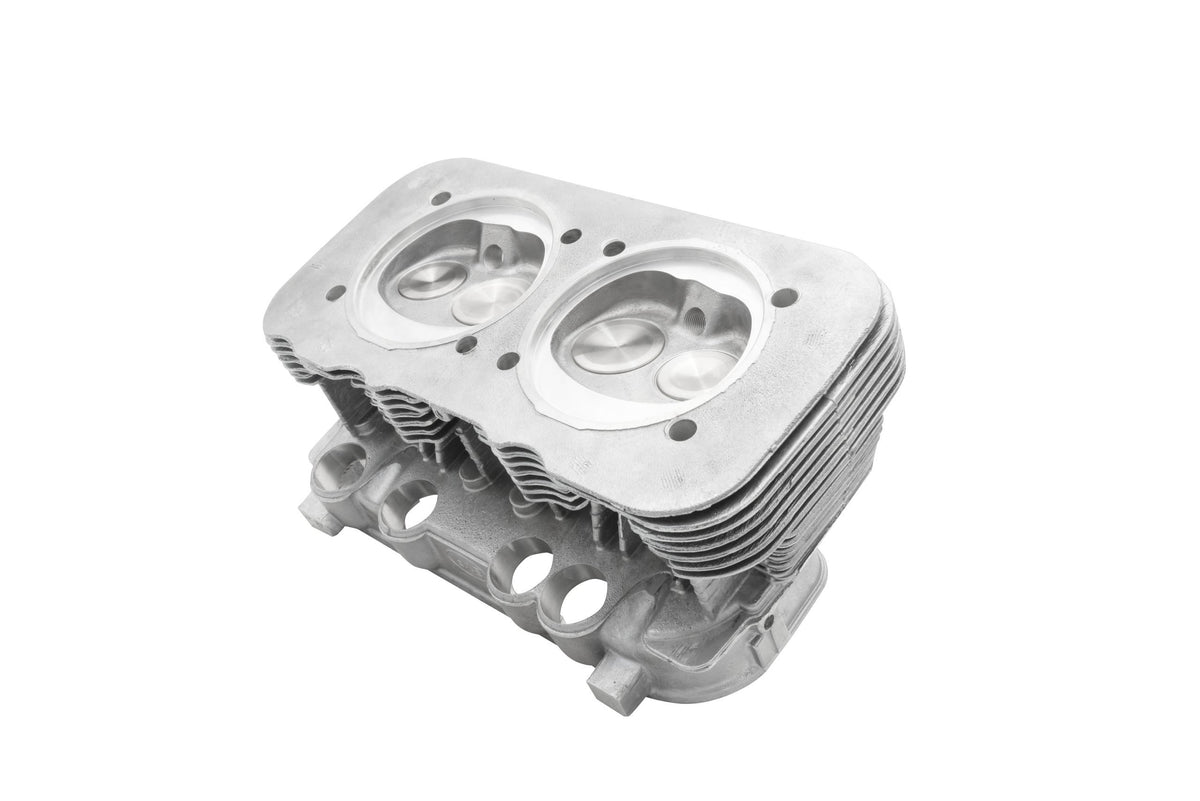

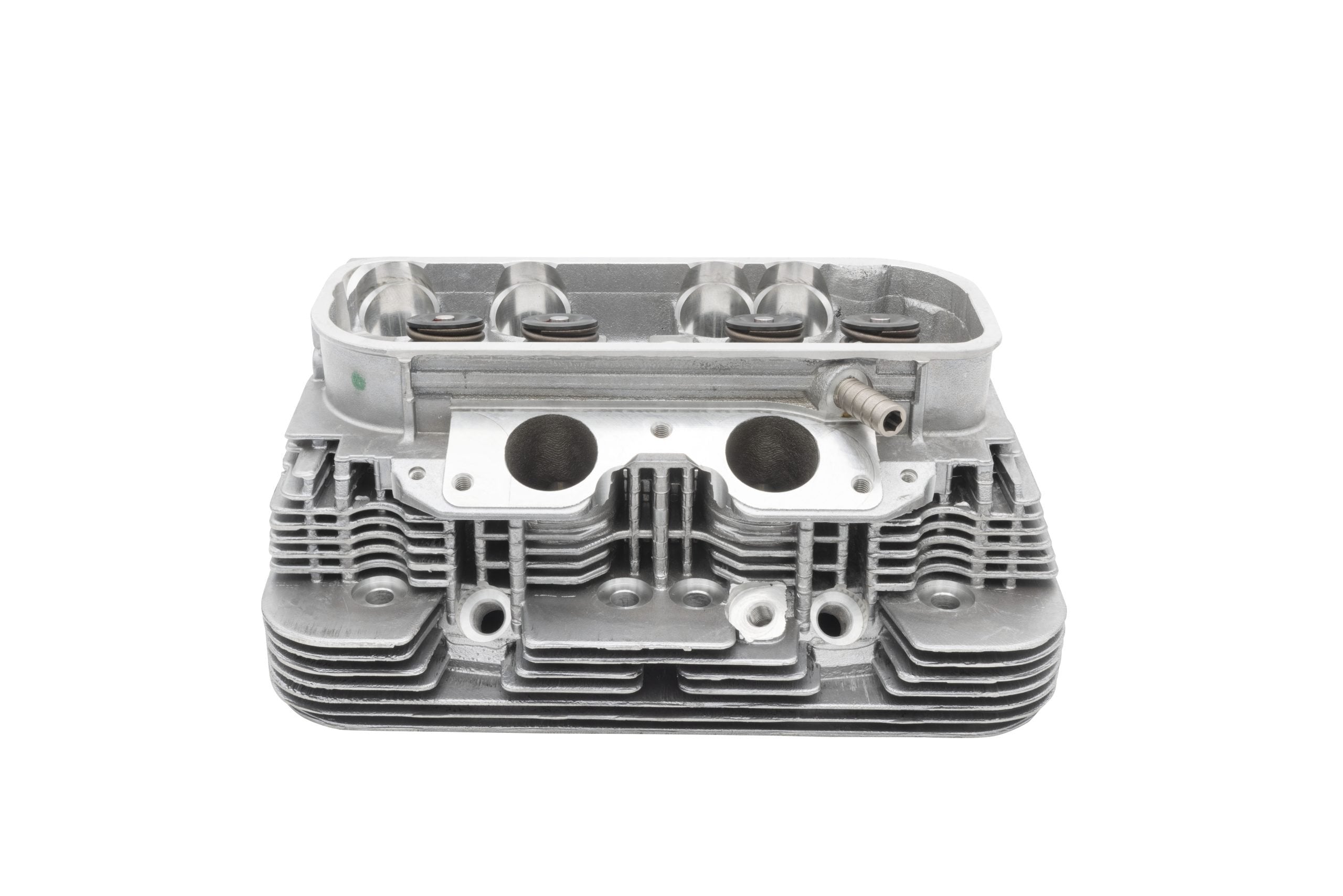

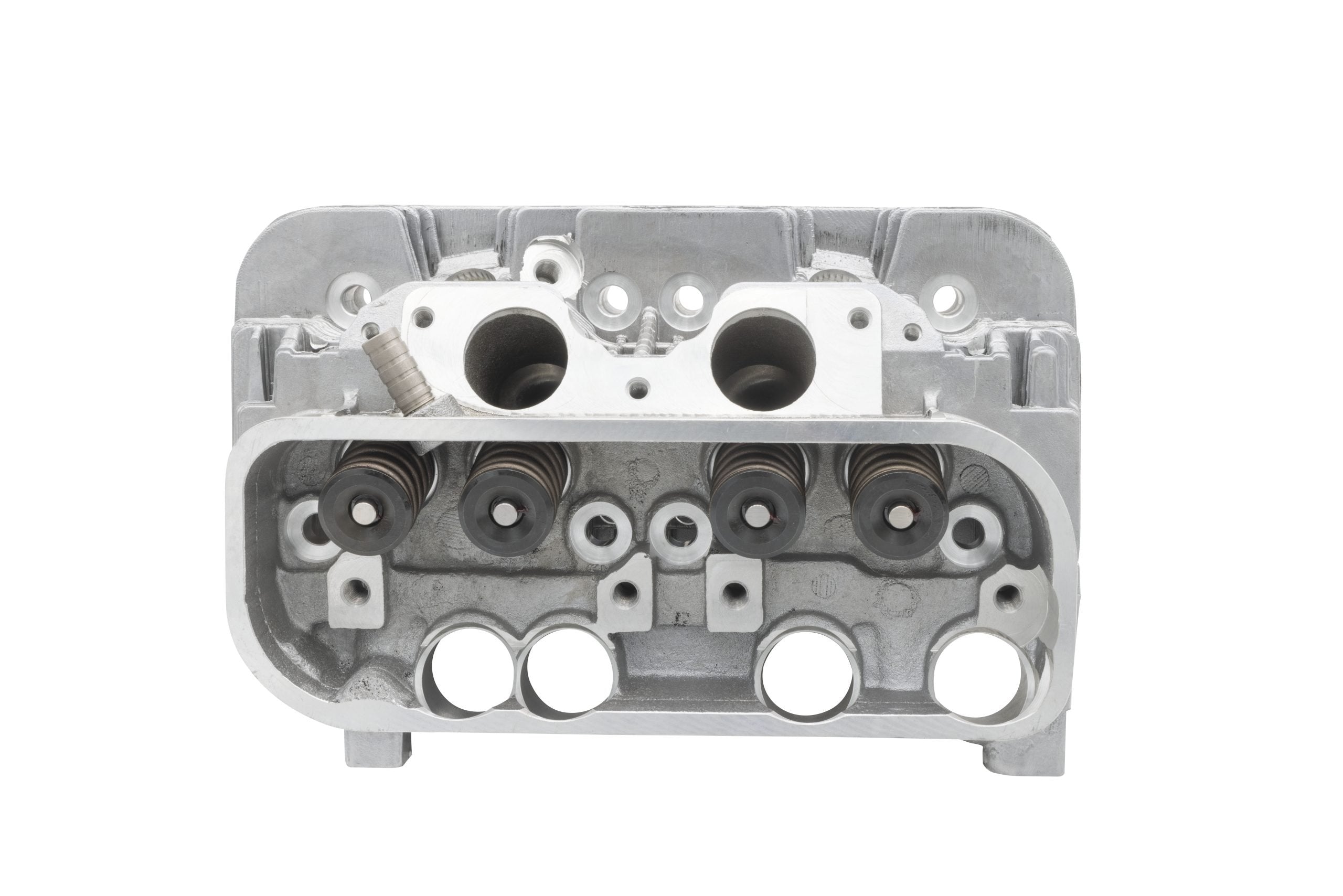

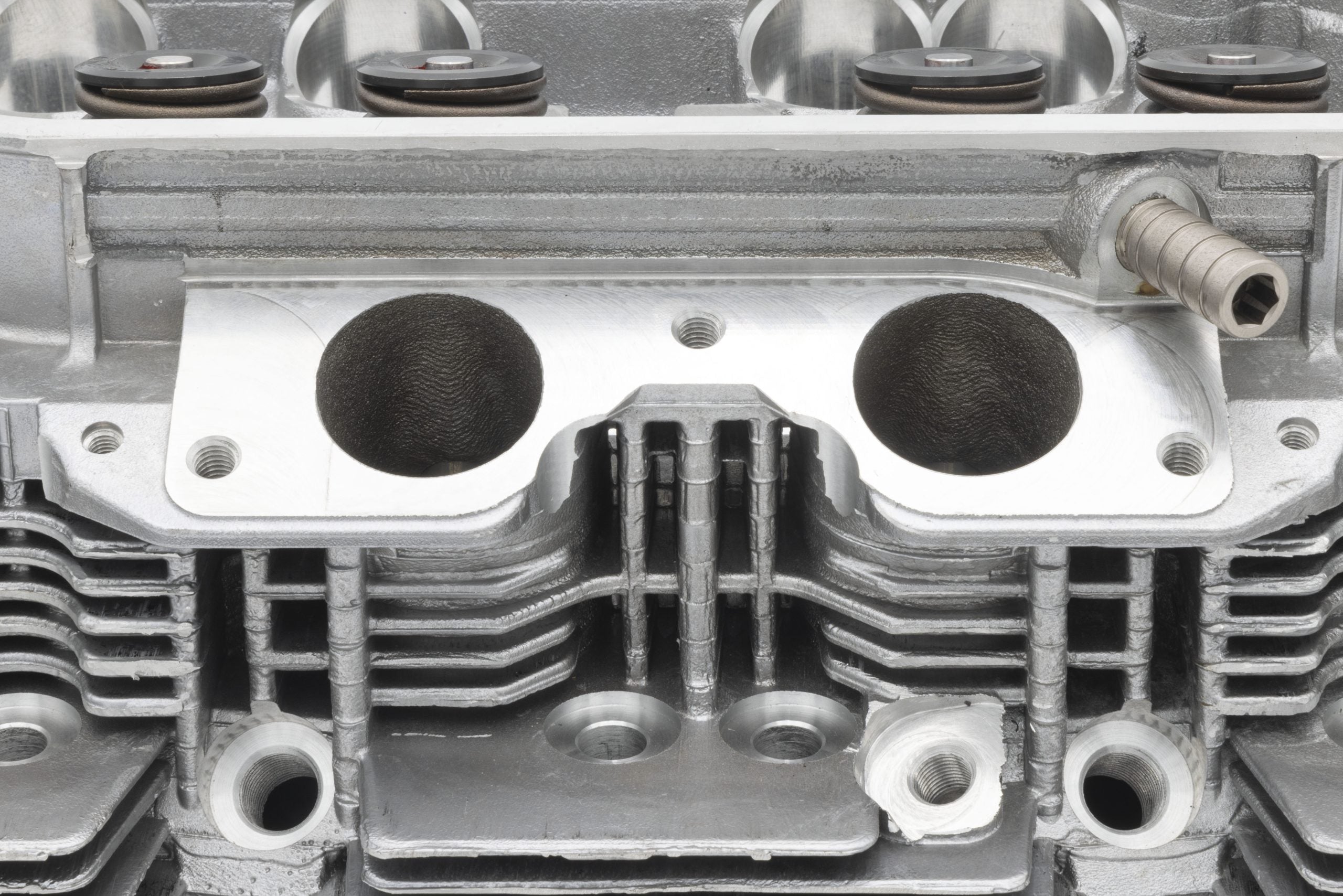

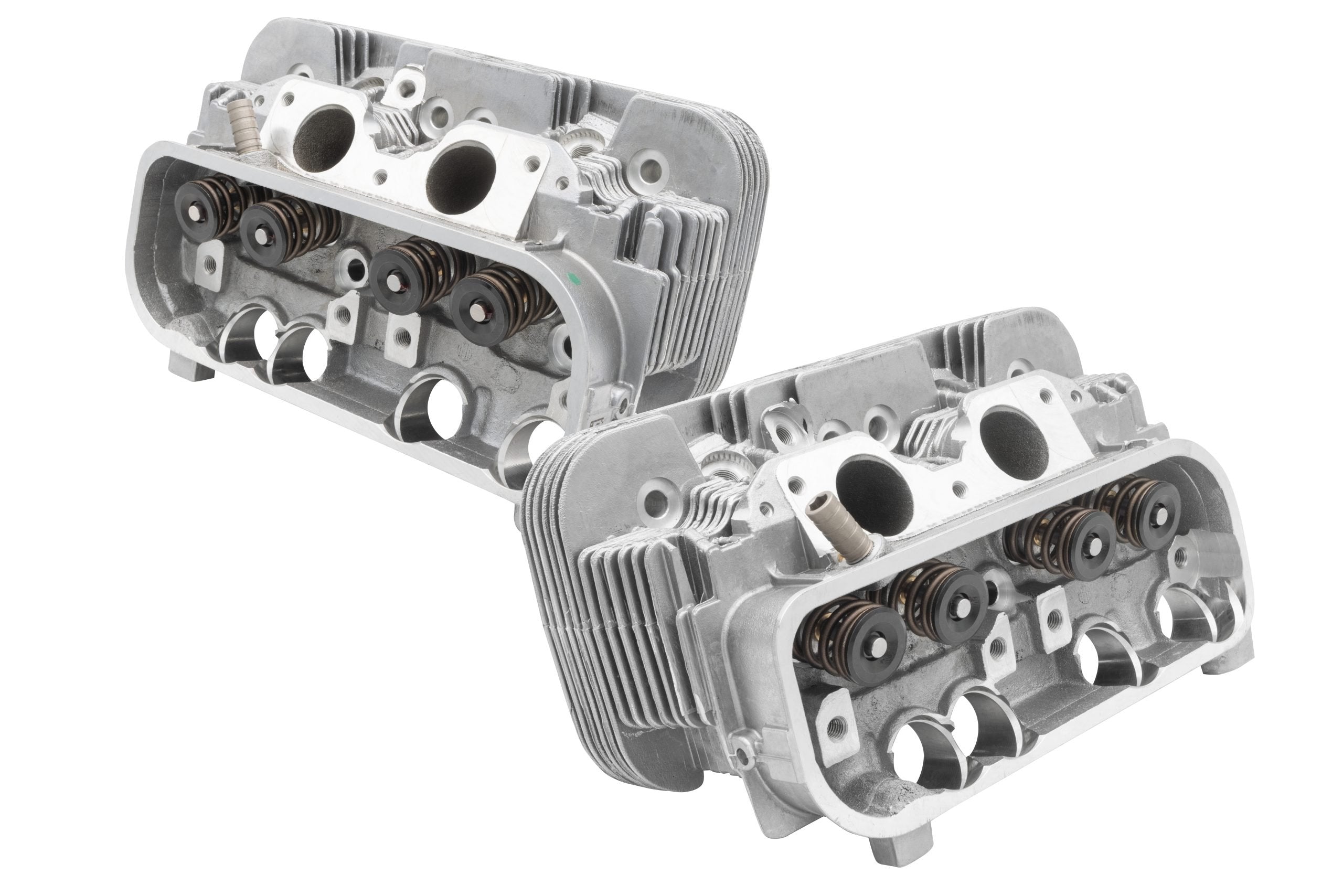

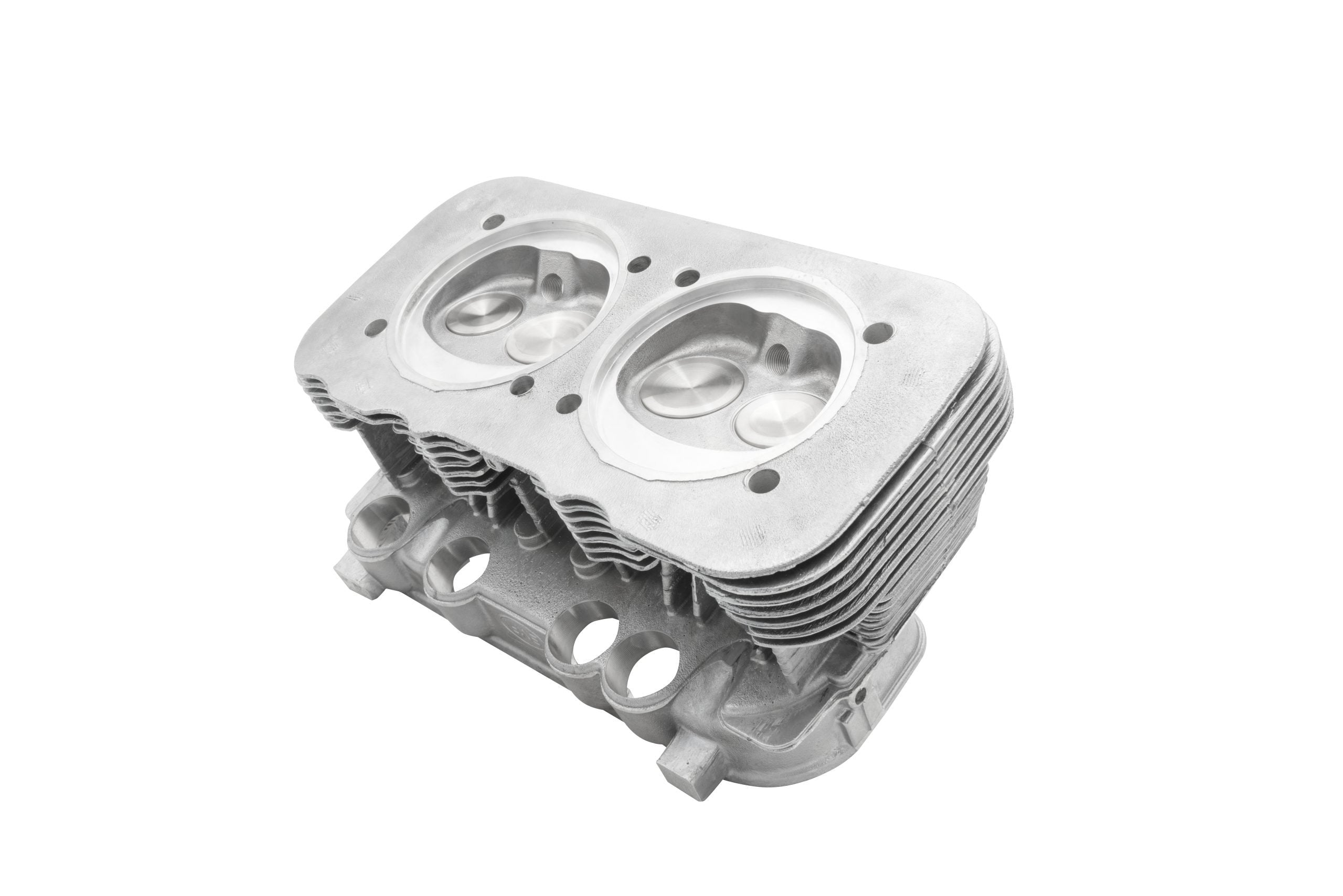

EMPI Super Vee Type 4 Cylinder Heads | VW Bus & Porsche 914 | 94-96mm, 42/36mm SS Valves, Pair (98-5320-0)

EMPI Super Vee Type 4 Stock Cylinder Heads — 94-96mm, 42/36mm SS Valves, Pair (98-5320-0)

High-Performance Cylinder Heads are an EMPI tradition, and the Super Vee Type 4 Cylinder Heads continue the EMPI legacy of quality, speed, and innovation. Starting with high-quality European-sourced castings, EMPI's engineers stuff these Type 4 heads with Manley valves, silicon bronze valve guides, hardened valve seats, heavy-duty valve springs, and chromoly retainers.

All valve seat work is performed on EMPI's Rottler SG7MTS cylinder head machine in their Anaheim, CA shop. Whether you're rebuilding or hot-rodding your VW Type 2/4 or Porsche 914, these cylinder heads deliver the performance you've been looking for. Sold as a matched pair.

Vehicle Fitment

• VW Type 2 Bay Window Bus: Type 4 engine, 1972-1979
• VW Type 4: 1968-1974
• Porsche 914: 1.7L, 1.8L, 2.0L
• 2.0 Liter Type 4 engines.

Why Choose EMPI?

EMPI builds these Super Vee heads from premium European-sourced castings and performs all valve seat work in-house on a Rottler SG7MTS machine at their Anaheim, CA shop — a continuation of EMPI's long tradition of air-cooled performance.

Key Features & Benefits

• 94-96mm bore, Type 4 / 2.0L casting.
• European-sourced premium castings.
• 42mm intake / 36mm exhaust Manley stainless steel valves.
• Silicon bronze valve guides.
• Hardened valve seats.
• Heavy-duty valve springs.
• Chromoly retainers.
• Performance valve seat work on a Rottler SG7MTS machine.
• Performance 3-angle valve job.
• Machined & assembled at EMPI Anaheim, CA.
• Sold as a matched pair.

Technical Specifications

• Valves: 42mm intake / 36mm exhaust, Manley stainless steel
• Valve guides: silicon bronze
• Valve seats: hardened
• Retainers: chromoly
• Bore: 94-96mm (Type 4 / 2.0L)
• Part Number: 98-5320-0
• Sold as: matched pair

Frequently Asked Questions

• What size valves do these use? 42mm intake / 36mm exhaust Manley stainless steel valves.
• What bore are these for? 94-96mm bore Type 4 (2.0L) engines.
• Do I need lash caps? Yes — lash caps (00-4006-0) are required for all stainless steel valve applications, sold separately.
• Sold each or as a pair? Sold as a matched pair.
• Where is the valve work done? All valve seat work is performed on EMPI's Rottler SG7MTS machine in Anaheim, CA.

Installation

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• For 94-96mm bore Type 4 engines.
