EMPI Ultra 40mm HPMX Dual Carburetor Kit — Type 1 Dual Port, Hex Bar Linkage | VW Performance (47-7335-0)

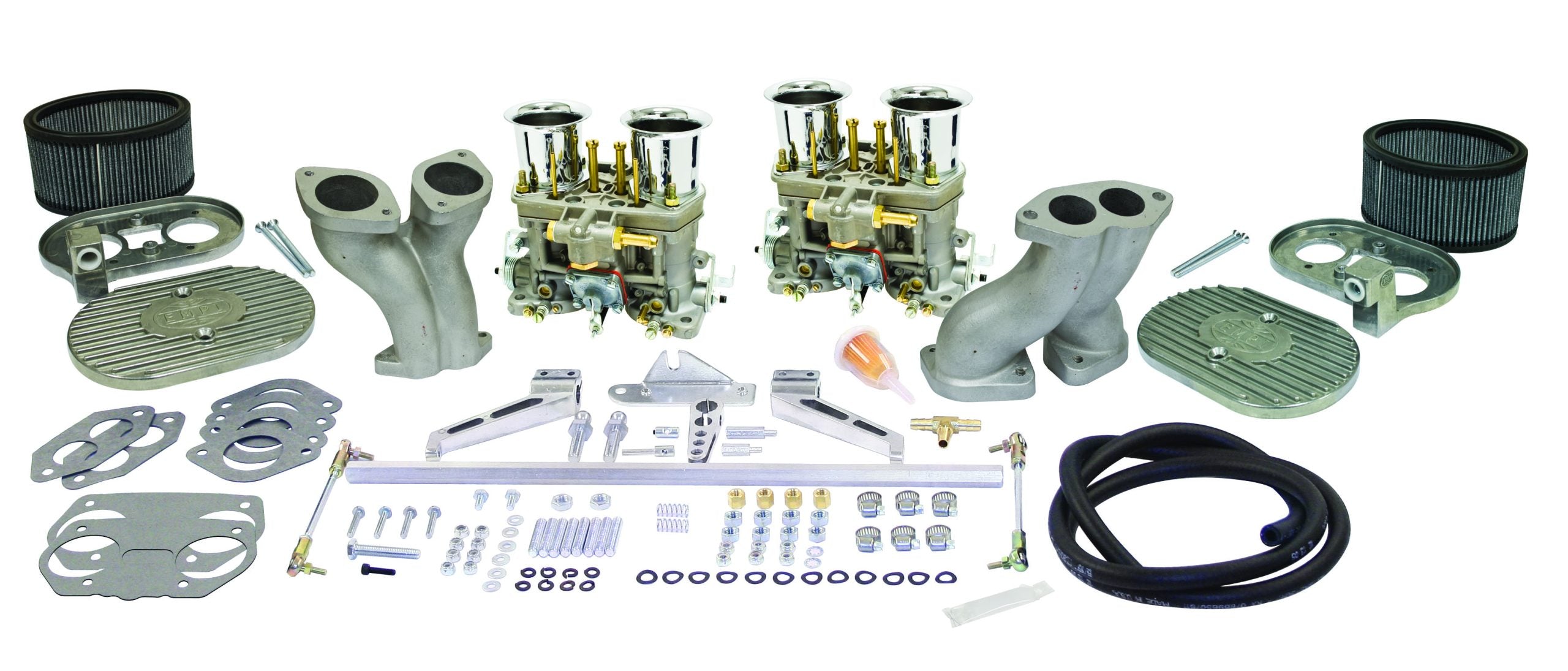

EMPI Ultra 40mm HPMX Dual Carburetor Kit — Type 1 Dual Port, Hex Bar Linkage (47-7335-0)

Maximize your Type 1 engine's performance with the EMPI Ultra 40mm HPMX Dual Carburetor Kit. Engineered for precision and power, this "Ultra" series kit features EMPI's redesigned offset intake manifolds and a streamlined hex bar linkage system, keeping your dual-port engine running smoother and better balanced.

The standout feature is the offset manifold design. By positioning the carburetors straight across the engine, EMPI has solved common body clearance issues while providing thick side walls that allow for custom porting and matching. Paired with high-flow gauze filters and cast aluminum air cleaners, your VW breathes deeper and looks better.

Vehicle Fitment

• VW Beetle (Type 1, dual-port engine): All years
• VW Bus (dual-port engine): All years
• VW Karmann Ghia (dual-port engine): All years

Key Features & Benefits

• Precision performance: Dual 40mm HPMX carburetors provide exceptional throttle response and tuning stability.
• Smart fitment: Offset manifolds eliminate clearance headaches and align the carburetors perfectly across the engine bay.
• Heavy-duty linkage: The hex bar / air cleaner combo features cast aluminum tops and bottoms with built-in X-bar support for "set it and forget it" reliability.
• Complete package: Includes everything from velocity stacks to a coil relocation bracket for a professional-grade installation.

Technical Specifications

• Carburetors: Dual 40mm HPMX
• Manifolds: EMPI offset intake manifolds (dual-port)
• Linkage: Hex bar with built-in X-bar support
• Air cleaners: Cast aluminum with high-flow gauze filters
• Includes: Velocity stacks and coil relocation bracket
• Part Number: 47-7335-0

Frequently Asked Questions

• What engine does this fit? Type 1 dual-port engines (VW Beetle, Bus, and Karmann Ghia).
• Does it include linkage and air cleaners? Yes. The kit includes the hex bar linkage, cast aluminum air cleaners with gauze filters, velocity stacks, and a coil relocation bracket.
• Why offset manifolds? They position the carburetors straight across the engine to eliminate body clearance issues, and the thick side walls allow for custom porting and matching.
