EMPI x CSF SuperKooler Billet Oil Cooler | VW Type 1/2 & Porsche 356/912 | Ceramic Coated (98-1186-B)

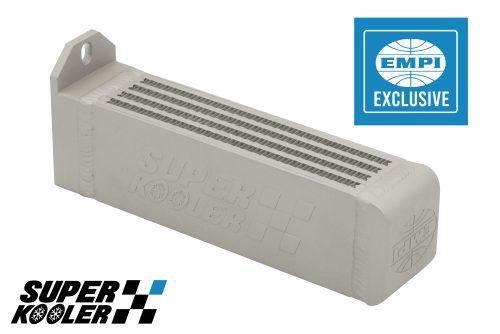

EMPI x CSF SuperKooler Aluminum Oil Cooler — Billet, Ceramic Coated

EMPI collaborated with cooling experts CSF Radiators to deliver a new benchmark in air-cooled performance: the EMPI Exclusive SuperKooler aluminum oil cooler (part #98-1186-B). It is built for Type 1 / Type 2 single relief case, non-doghouse engines and for Porsche 356 and 912.

The SuperKooler pairs billet CNC-machined end tanks with a state-of-the-art bar/plate core that delivers 10% more cooling surface in the OE footprint versus OE tube/fin construction, plus a thermal rejection ceramic coating for improved heat dissipation. It is manufactured exclusively by CSF Cooling for EMPI.

Vehicle Fitment

• VW Type 1 / Type 2: Single relief case, non-doghouse engines
• Porsche 356: All years
• Porsche 912: All years

Key Features & Benefits

• Billet CNC end tanks: Machined top and bottom end tanks for strength and precision.
• Ceramic coating: Thermal rejection ceramic coating for improved heat dissipation.
• Bar/plate core: 10% more cooling surface in the OE footprint versus OE tube/fin construction.
• Lower oil temps: Average 10 degree reduction in engine oil temperature between 2000-5000 RPM.
• Complete kit: Installation hardware and Elring brand oil seals/gaskets included.
• Proven quality: Pressure tested to 120psi (~8.3bar), with engraved EMPI logo and embossed SuperKooler logo.

Technical Specifications

• Part number: 98-1186-B
• Construction: Billet CNC-machined end tanks with bar/plate core
• Coating: Thermal rejection ceramic
• Cooling surface: 10% more than OE tube/fin in the OE footprint
• Oil temp reduction: Average 10 degrees (2000-5000 RPM)
• Pressure tested: 120psi (~8.3bar)
• Included: Installation hardware and Elring oil seals/gaskets
• Applications: Type 1/2 single relief non-doghouse, Porsche 356 & 912

Frequently Asked Questions

• What does it fit? Type 1 / Type 2 single relief case, non-doghouse engines, and Porsche 356 and 912.
• How much does it lower oil temperature? An average 10 degree reduction in engine oil temperature between 2000-5000 RPM, with 10% more cooling surface than OE tube/fin construction in the same OE footprint.
• Does it include installation hardware? Yes. Installation hardware and Elring brand oil seals/gaskets are included. The cooler is pressure tested to 120psi (~8.3bar).
