CMI Billet Crank Pulley Kit 6.75" | Air-Cooled VW Type 1 | 6 or 12 Spoke, Stock or Sand Seal Hub | Black, Red or Blue | Made in USA

A full-diameter billet crank pulley that looks as good as it runs. The CMI Precision Machining 6.75" Billet Crank Pulley Kit is CNC machined in the USA from premium 6061-T651 billet aluminum, with the CMI logo and timing marks engraved directly into the face. The pulley rides on a heat-treated 4140 steel hub with a black zinc finish, fastened with six stainless steel flat-head cap screws, and the back is pre-drilled and tapped to accept CMI's optional Hall-sensor crank trigger wheel for EFI and crank-fire ignition builds.

Washburn's Metal is an authorized CMI Precision Machining dealer — genuine CMI parts, made in the USA, with full factory support.

Vehicle Fitment

• Air-cooled VW Type 1 engines (the upright-fan engine) in Beetle, Karmann Ghia, Type 1-powered Bus, Thing, Baja Bug, dune buggies and sand rails.
• Not for Type 3 (pancake) or Type 4 engines.
• Sand Seal hub versions are for cases machined for a sand seal; choose Stock hub for a standard case.

Key Features

• CNC machined in the USA from 6061-T651 billet aluminum

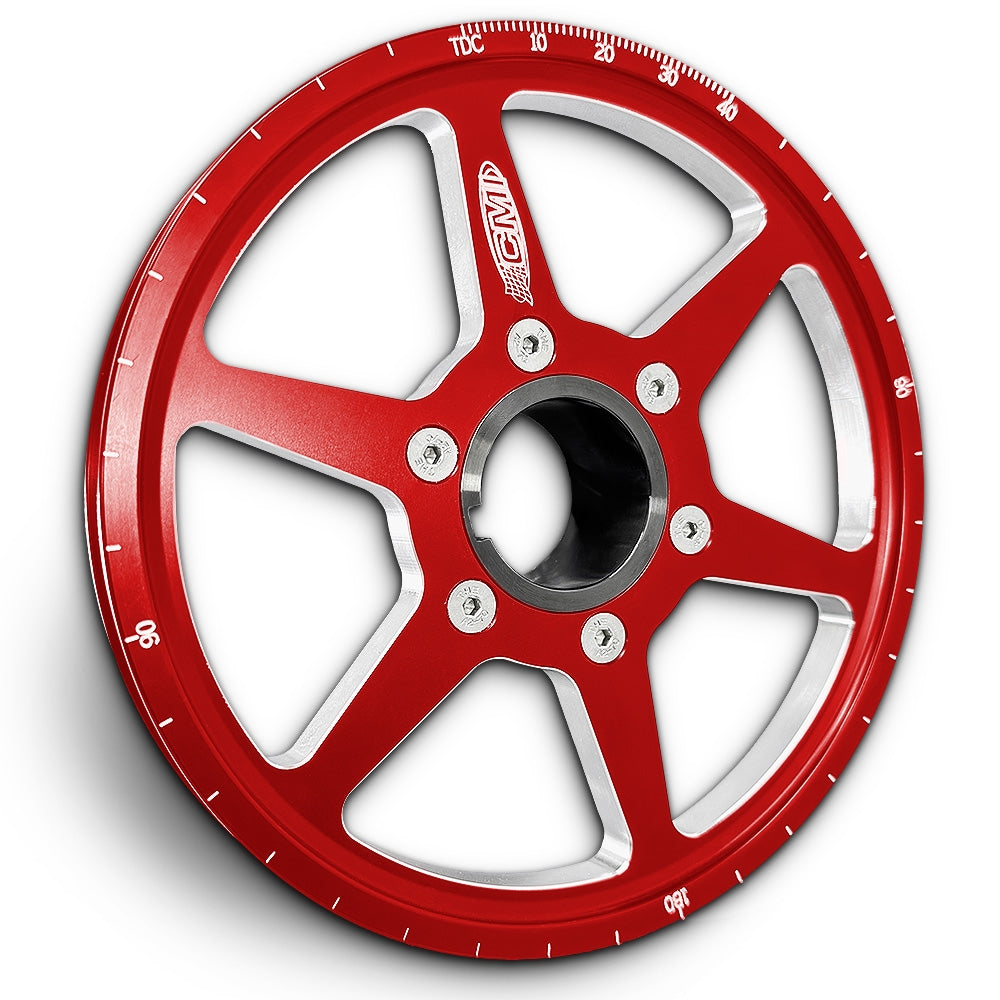

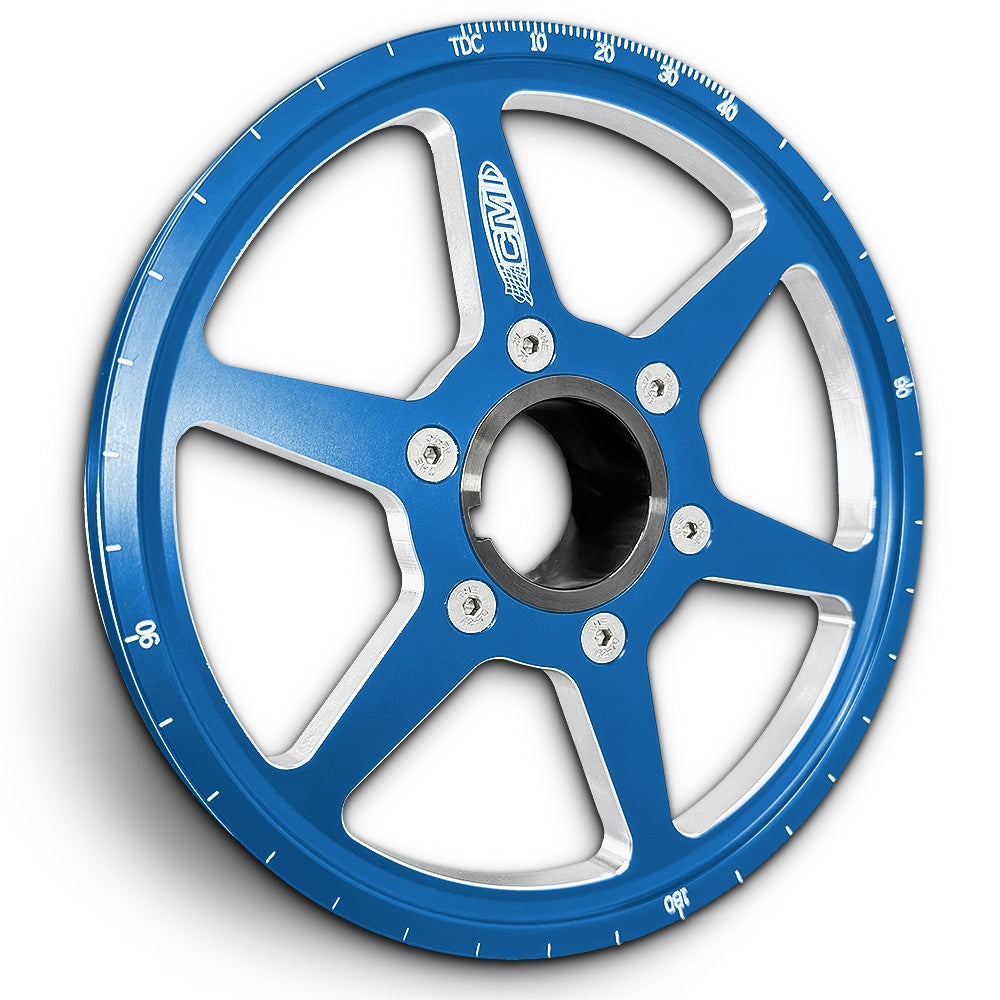

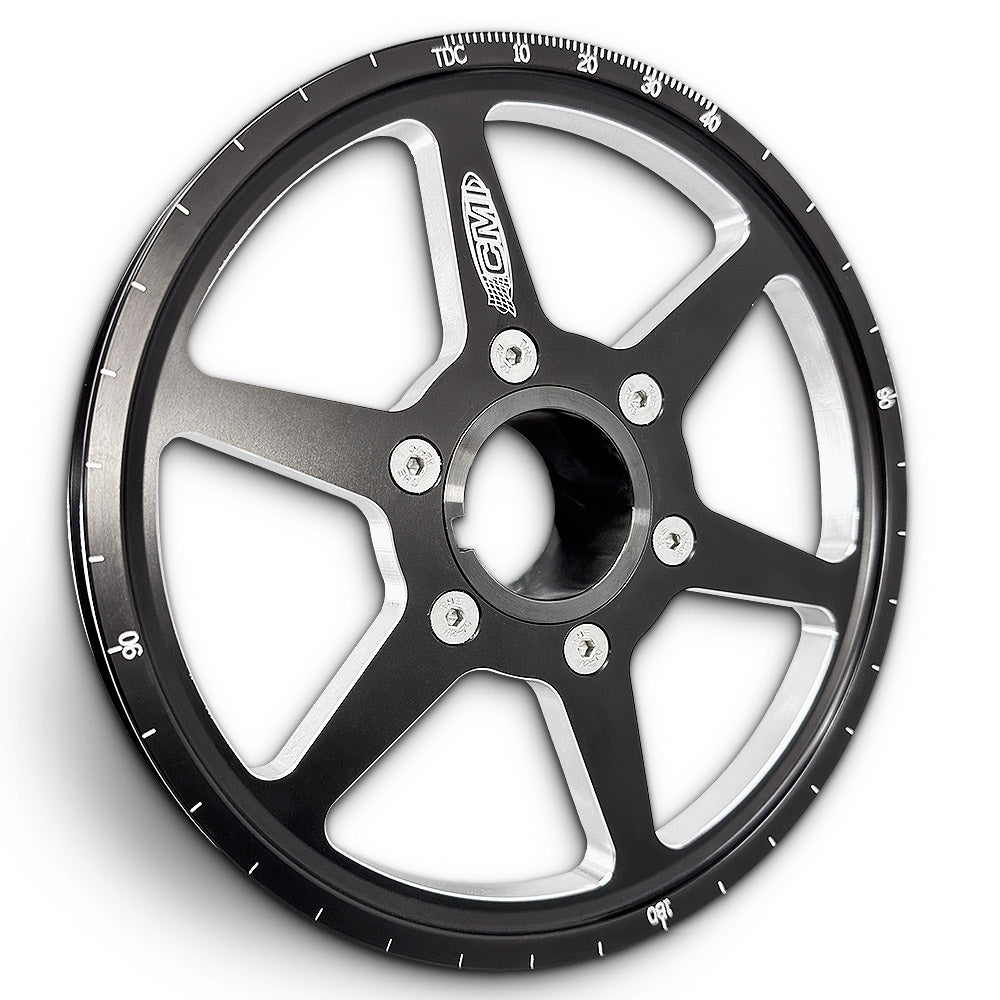

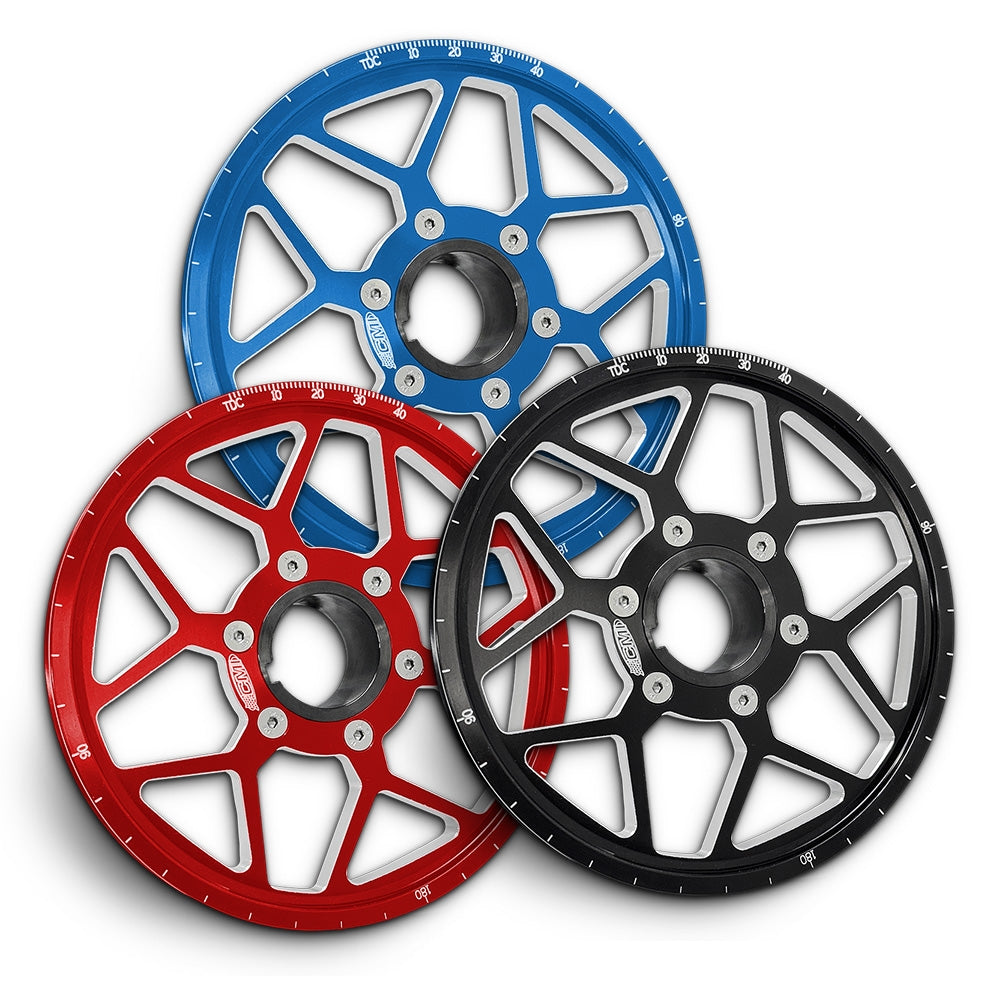

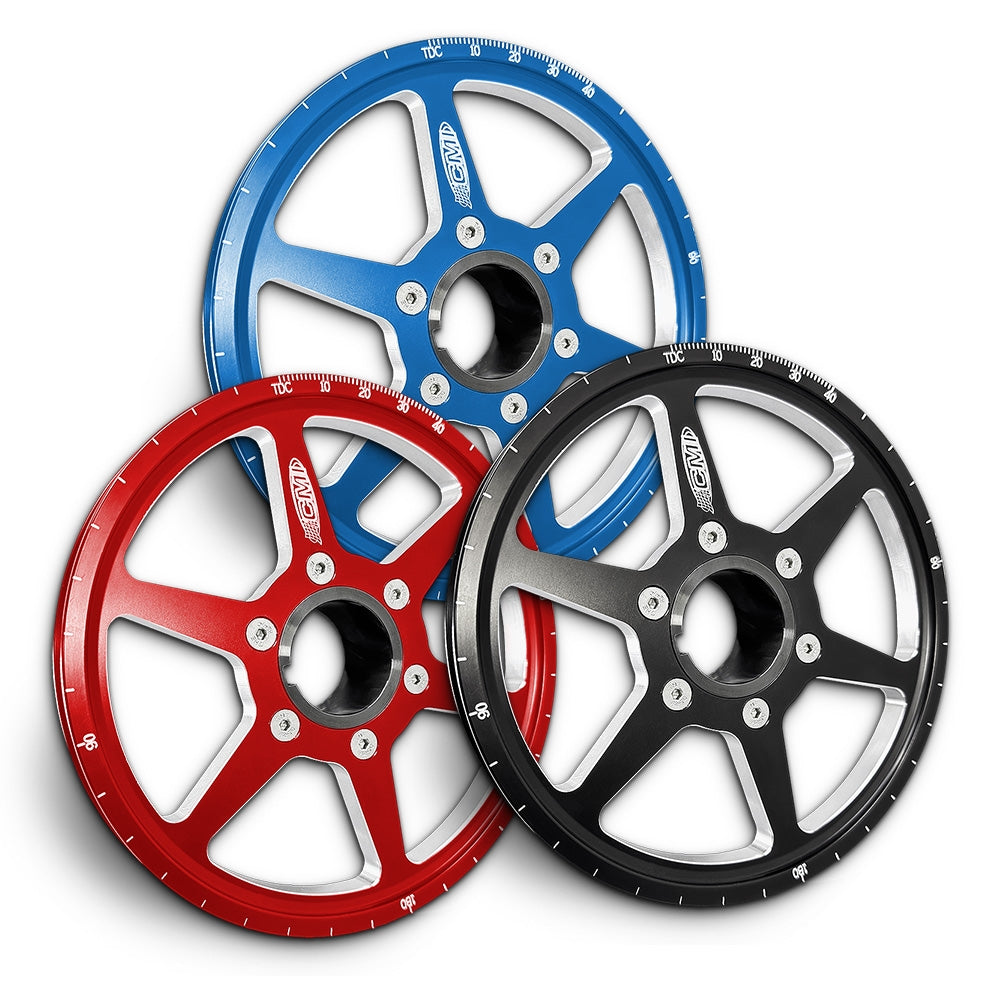

• Anodized finish: hard black anodized, or red or blue anodized (stock-hub versions)
• Heat-treated 4140 steel hub, black zinc plated, secured with six stainless flat-head cap screws
• CMI logo and timing marks engraved into the pulley
• Pre-drilled and tapped for the CMI 6.75" Crank Trigger Wheel Kit (Hall sensor, 36-1), sold separately

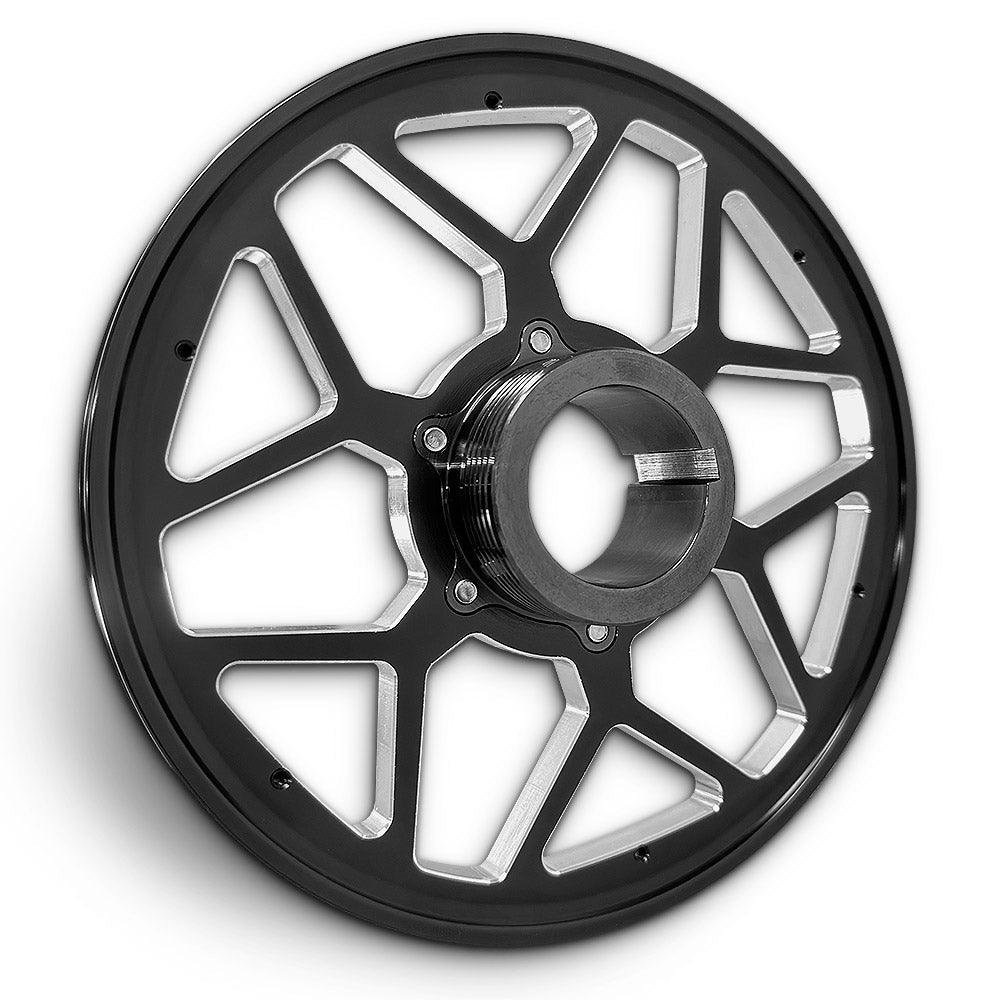

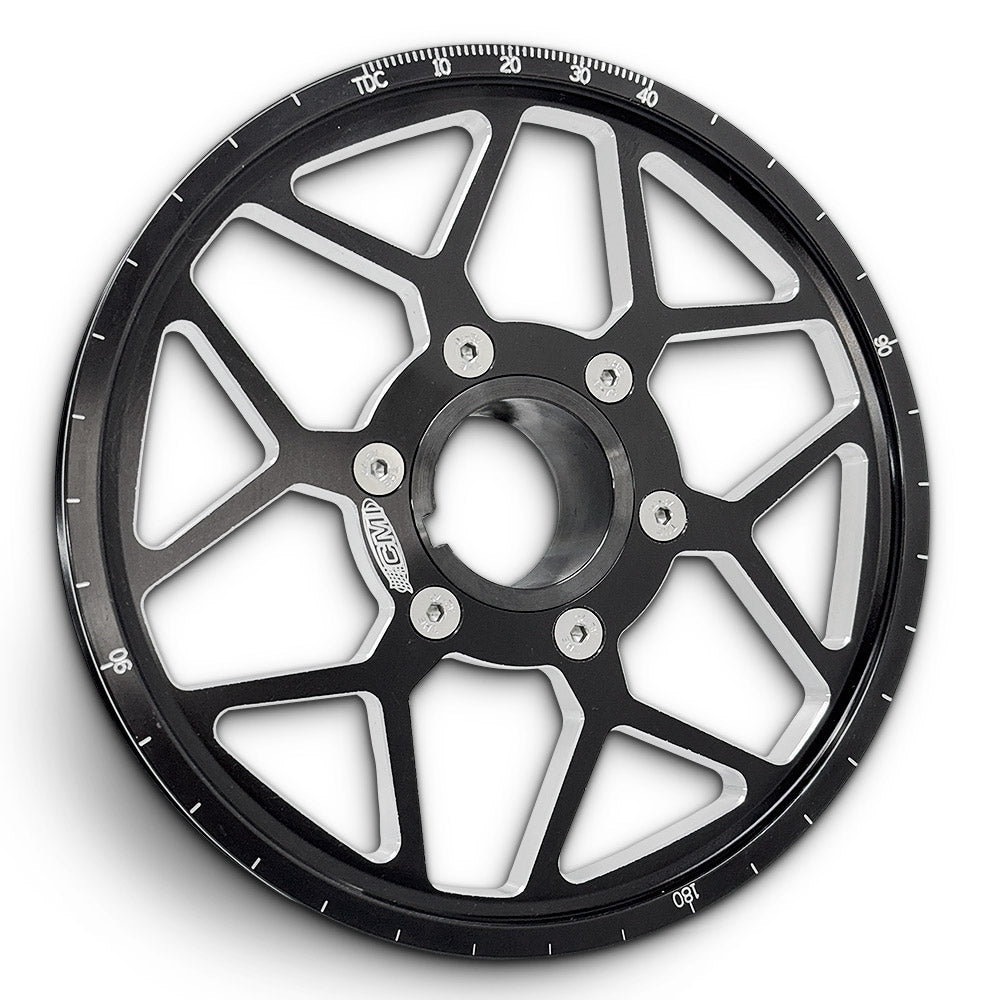

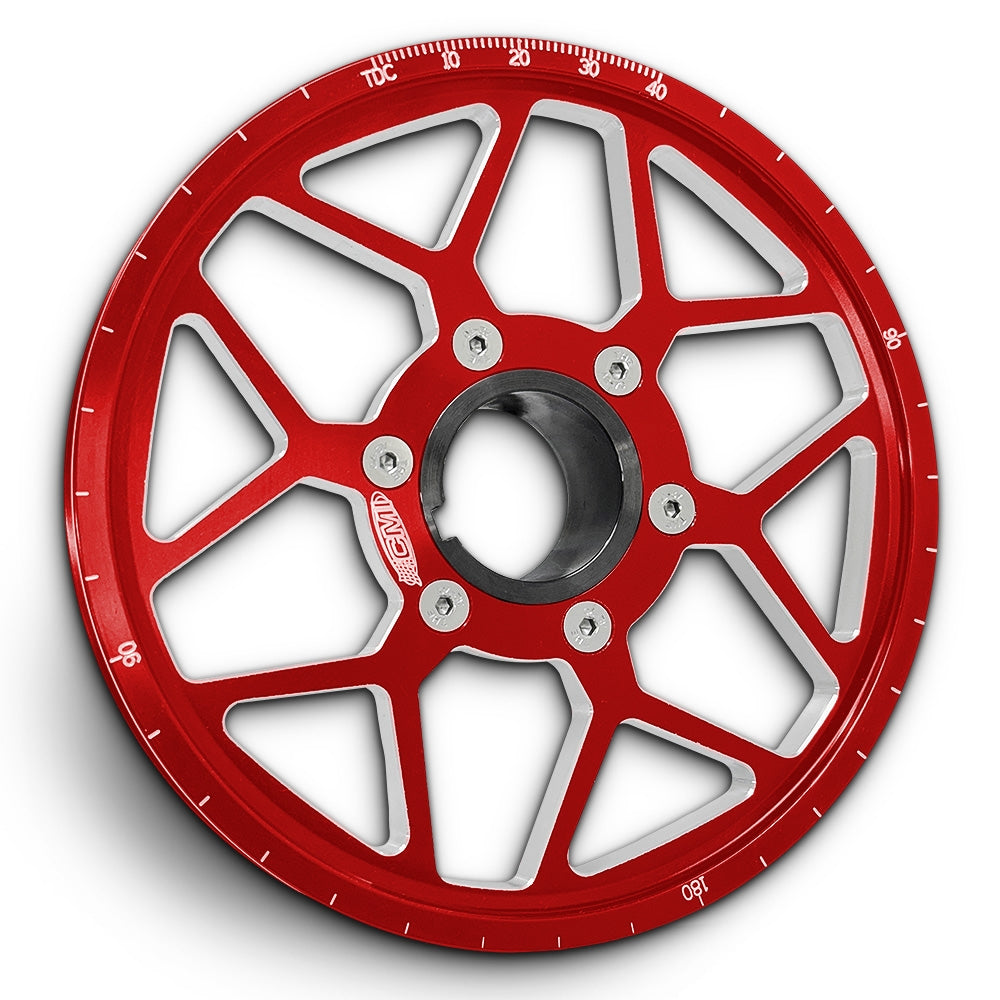

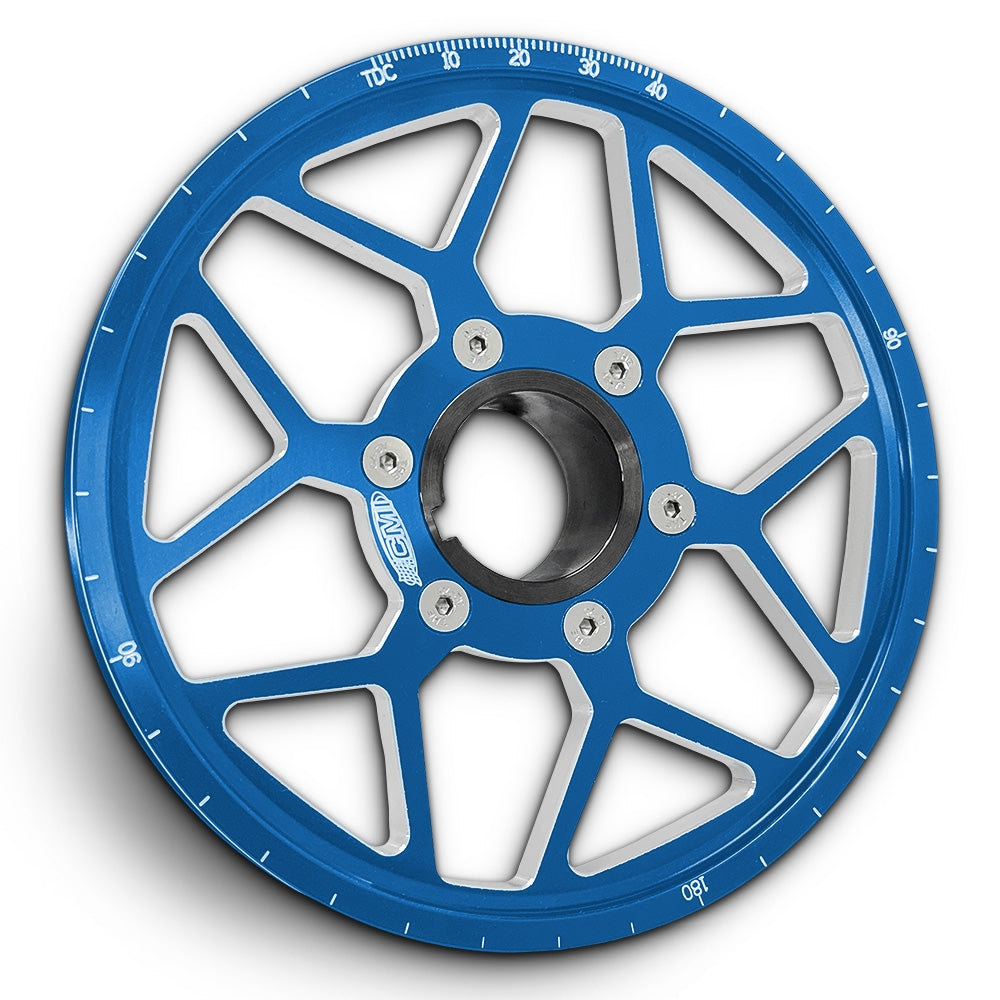

• 6-spoke or 12-spoke design

Specifications

Part Numbers

Which Pulley Do I Need?

• 6.75" vs 5.25": 6.75" is CMI's full-diameter crank pulley. CMI also makes a 5.25" crank power pulley, which CMI pairs with its 3.25" alt/gen power pulley to maintain adequate cooling fan speed. If you are keeping a standard-size alternator/generator pulley (such as CMI's 4.3"), choose this 6.75".
• 6 vs 12 spokes: purely a styling choice; both share the same pulley material, hub and fasteners. Match the look of CMI's 8- or 12-spoke 4.3" alt/gen pulleys.

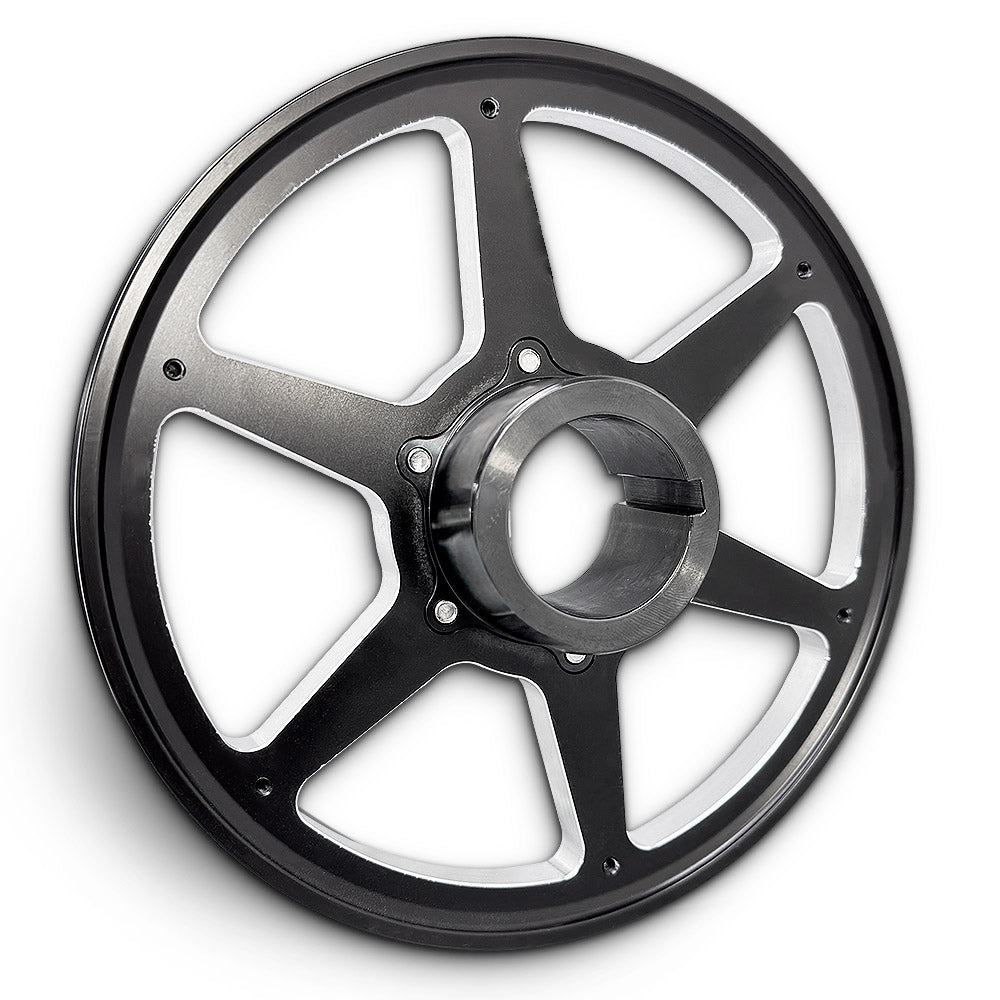

• Stock vs Sand Seal hub: Sand Seal only if your crankcase is machined for a sand seal. Sand Seal hubs are offered in black only.
• Going EFI or crank-fire? Add the CMI 6.75" Crank Trigger Wheel Kit (Hall sensor), which bolts to the pre-tapped holes on the back of this pulley.

Installation Notes

• Installs on the crankshaft snout in place of the factory pulley, using your crank pulley bolt and washer. We also stock the CMI Stainless Steel Crank Pulley Bolt & Washer Kit (A07).
• Confirm belt alignment with the alternator/generator pulley; shim the alt/gen pulley as needed.
• Check timing with the engraved marks and a timing light after installation.
• Follow your engine builder's or the factory manual's torque specification for the crank pulley bolt.

FAQ

Will this fit my Type 3 or Type 4 engine?
No. It is made for the air-cooled VW Type 1 engine.

Which hub should I choose?
Stock hub for a standard case; Sand Seal only if your case is machined for a sand seal (black only).

Is the crank trigger wheel included?
No. The pulley is pre-drilled and tapped for it; the CMI 6.75" Crank Trigger Wheel Kit is sold separately.

Is the bolt included?
The kit is the pulley and hub assembly with its six stainless cap screws. A crank pulley bolt is not listed; see CMI kit A07.

Is there a price difference between colors?
No, all 6.75" versions are the same price.

Where is it made?
CNC machined in the USA by CMI Precision Machining.

Are you an authorized CMI dealer?
Yes. Washburn's Metal is an authorized dealer for CMI Precision Machining, so you get genuine CMI parts and factory support.
