-8 AN Stainless Fuel Line Kit | Air-Cooled VW (Beetle, Bus, Ghia, Type 3, Thing) | 10 ft 304 (#E03)

-8 AN Stainless Fuel Line Kit | Air-Cooled VW | 10 ft 304 Stainless (#E03)

Plumb your air-cooled VW chassis with a professional-grade -8 AN (1/2") stainless fuel line kit. Each kit contains 10 feet of 304 stainless -8 AN line — a great all-around size for a naturally-aspirated dual-carb motor or fuel injection.

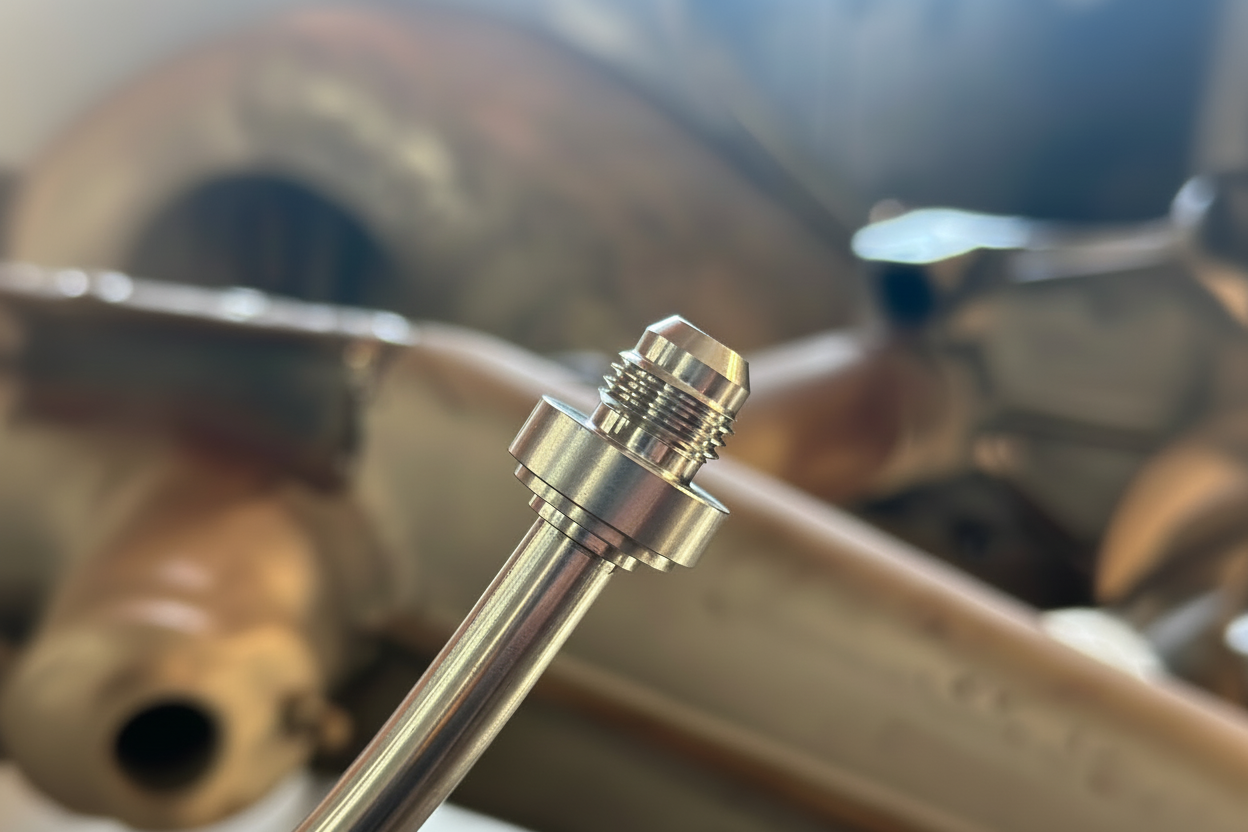

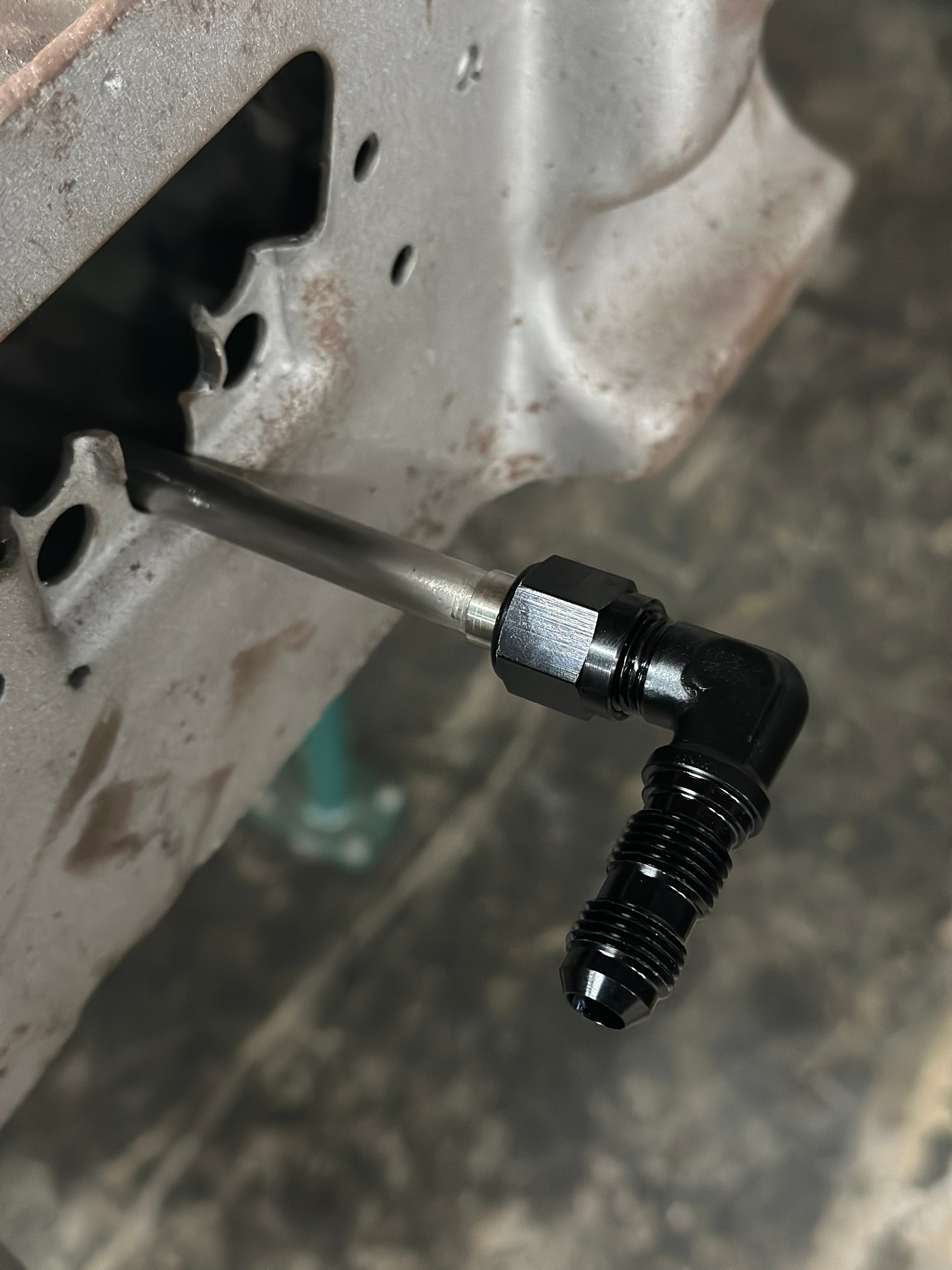

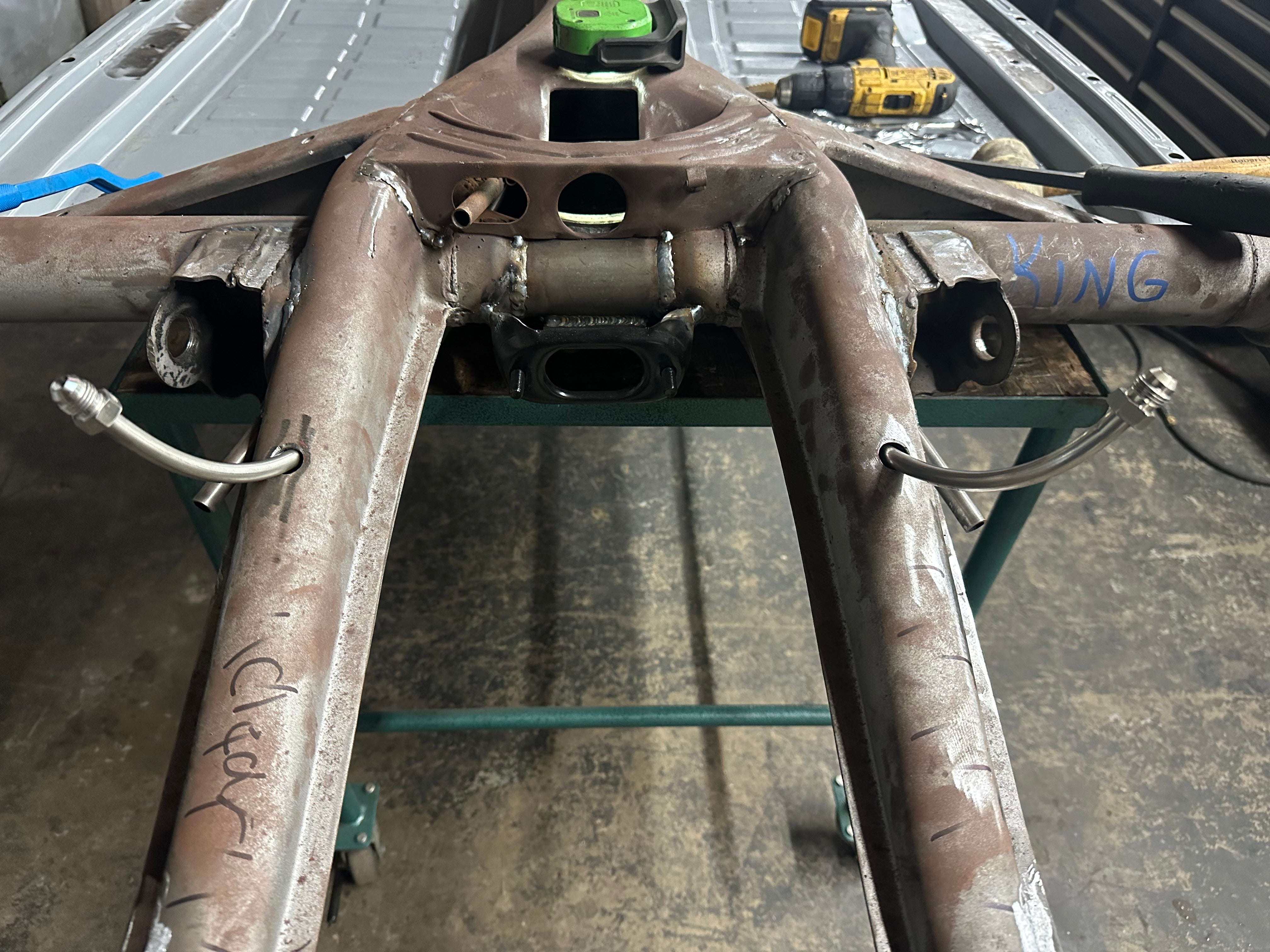

This kit is for the professional-level installer. The rear frame horn bungs are machined to accept the line so it can be welded together before welding the bung to the rear frame horn. The front bulkhead fitting is a 90-degree fitting that exits the top or side of the bulkhead, so tight-radius tube bends aren't required.

Running a feed/return setup for fuel injection? Simply order two kits.

Vehicle Fitment

• Air-Cooled VW: Beetle, Bus, Karmann Ghia, Type 3, and Thing (one chassis per kit)

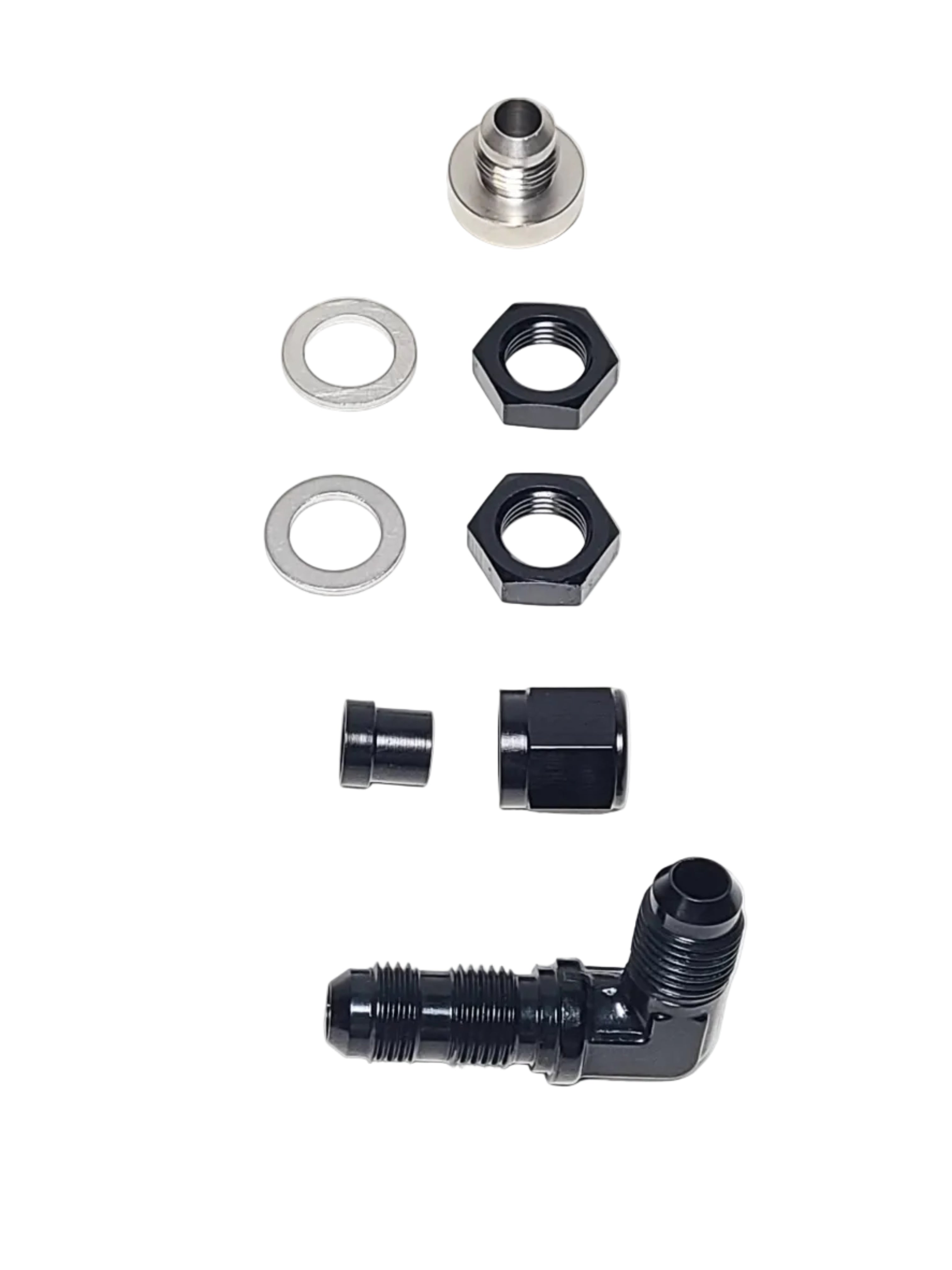

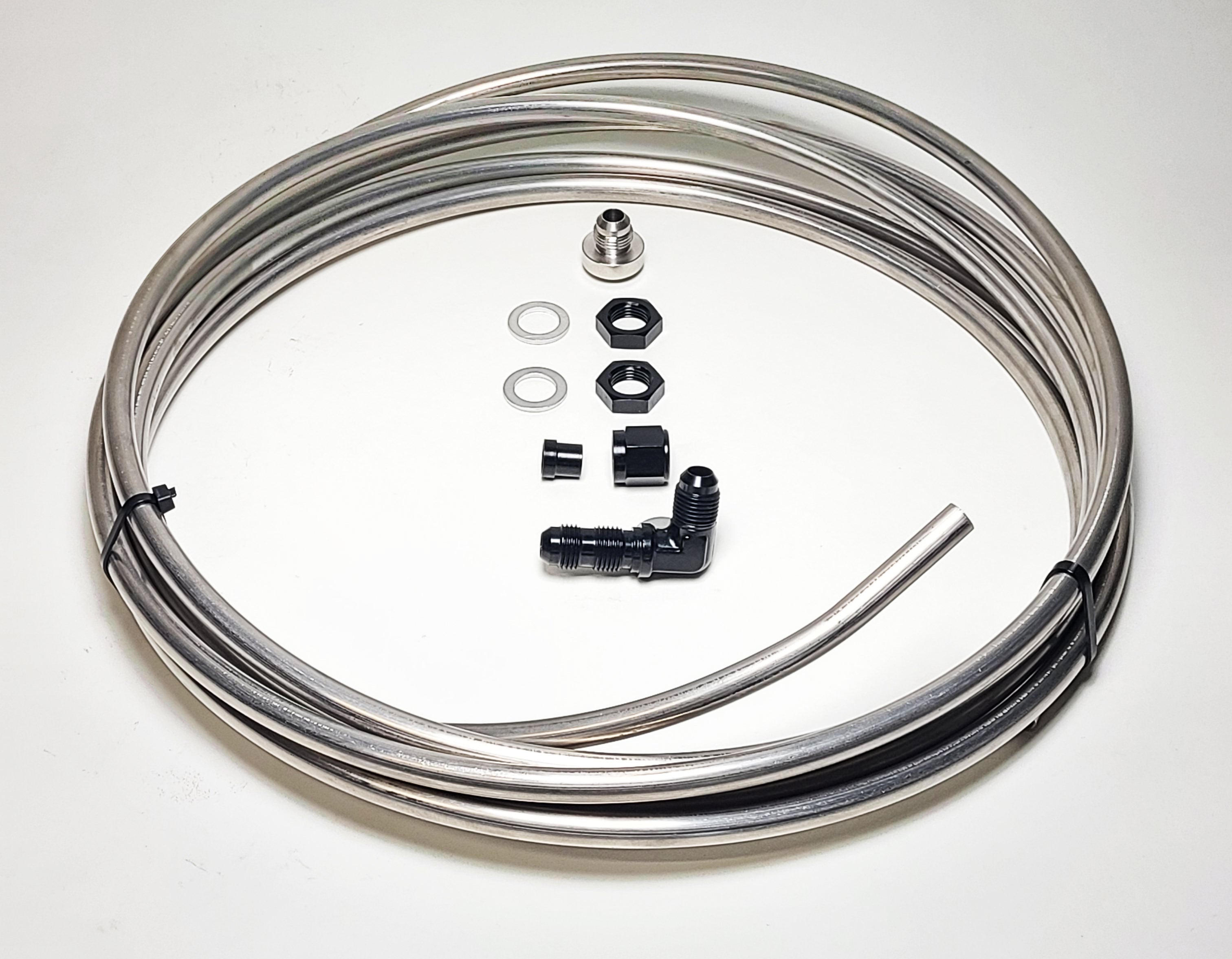

What's Included

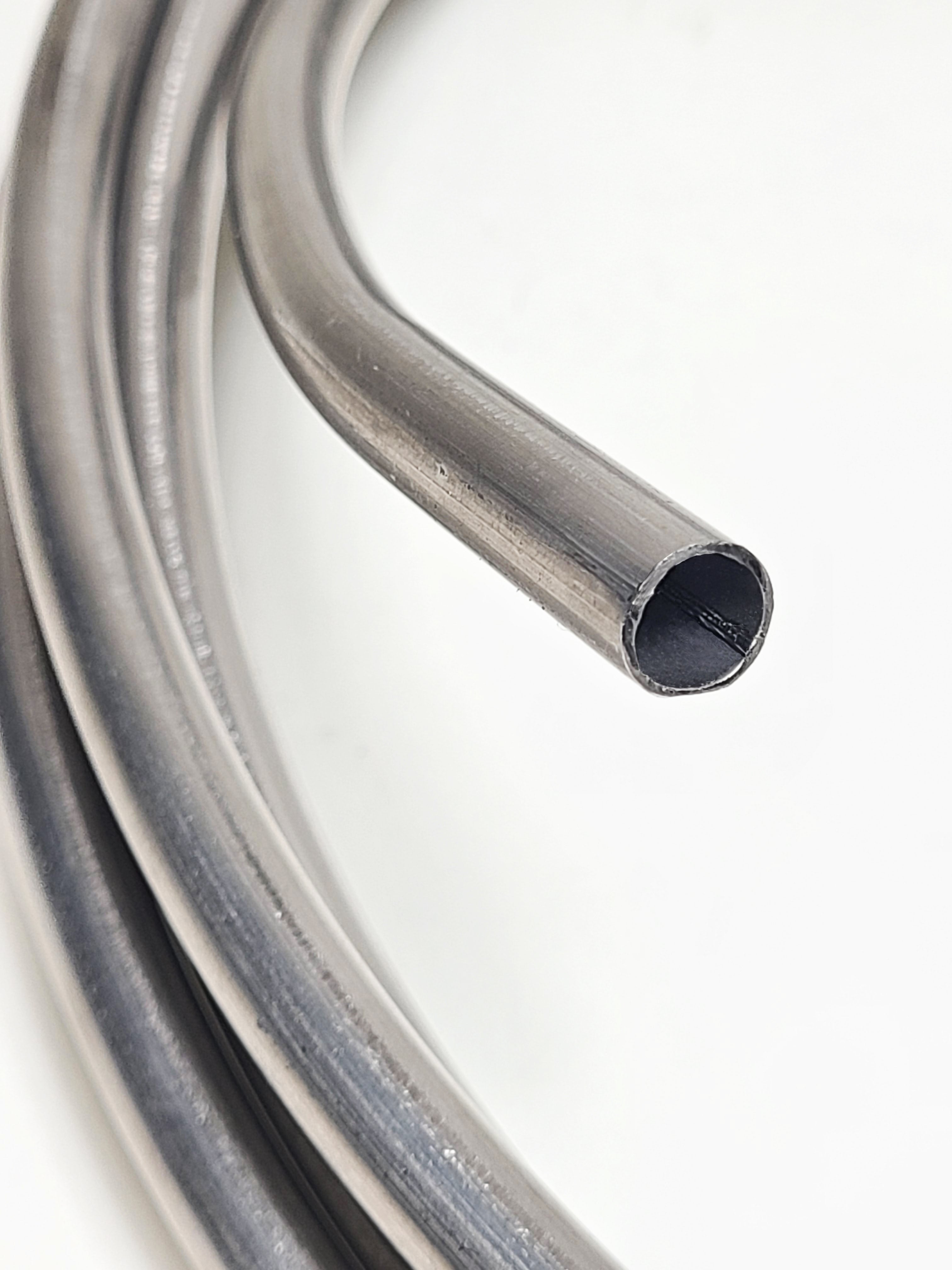

• (1) 10 feet of -8 AN stainless fuel line
• (1) -8 AN 90-degree bulkhead fitting
• (1) -8 AN bulkhead nut
• (2) aluminum crush washers

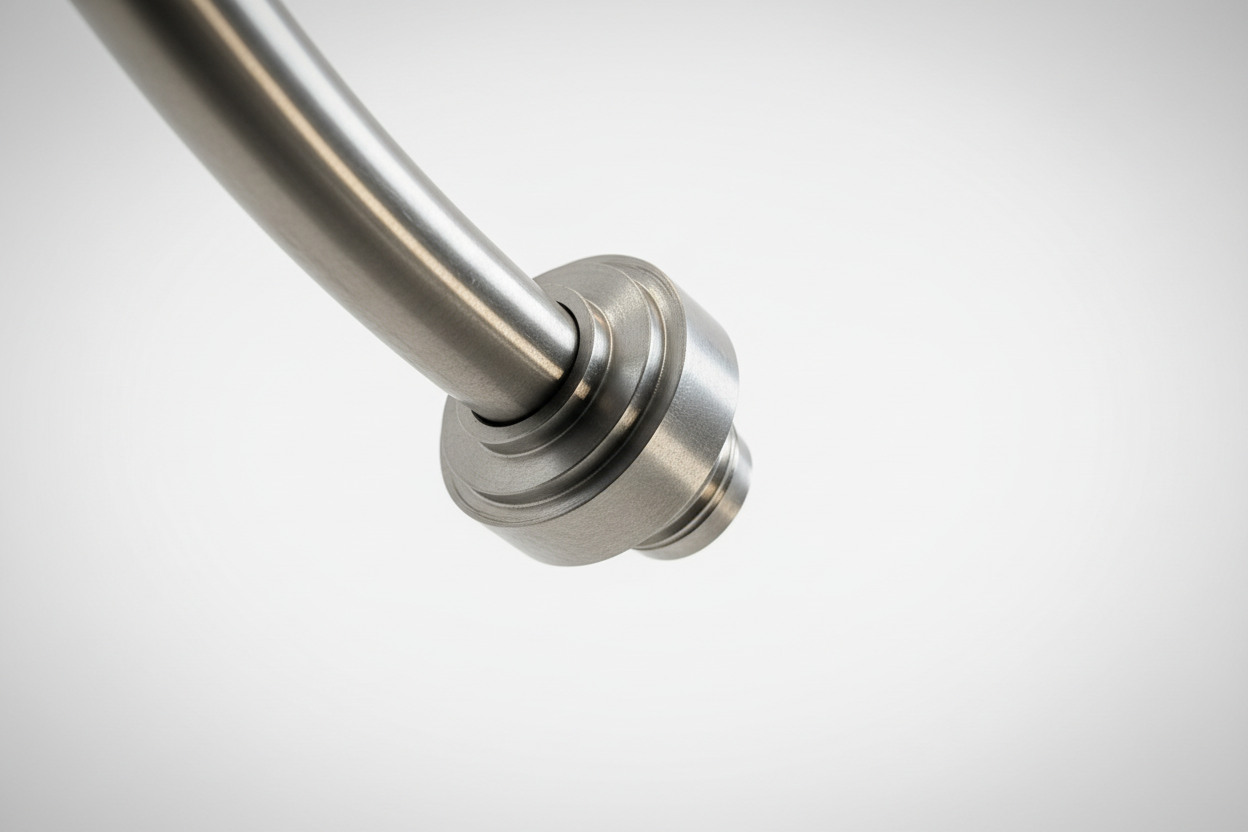

• (1) stainless steel weld fitting
• (1) -8 AN tube nut & sleeve

Technical Specifications

• Line Size: -8 AN (1/2")
• Material: 304 stainless steel
• Length: 10 feet (plumbs one VW chassis)
• Best For: Naturally-aspirated dual-carb or fuel-injection setups
• Part Number: #E03

Frequently Asked Questions

• How much line comes in the kit? 10 feet of -8 AN (1/2") 304 stainless line — enough to plumb one Volkswagen chassis.
• Can I run a feed and return line for fuel injection? Yes — order two kits to run a feed/return setup.
• Do I need to weld it in? Yes — this is a professional-level kit. The rear frame horn bungs are machined so the line can be welded together, then the bung welded to the frame horn.
