EMPI 75-Amp 12V Alternator | Air-Cooled VW Type 1 | Chrome, Internal Regulator, All-New (00-9453-7)

EMPI 75-Amp 12V Alternator — Chrome, Internal Regulator, All-New | Air-Cooled VW Type 1 (00-9453-7)

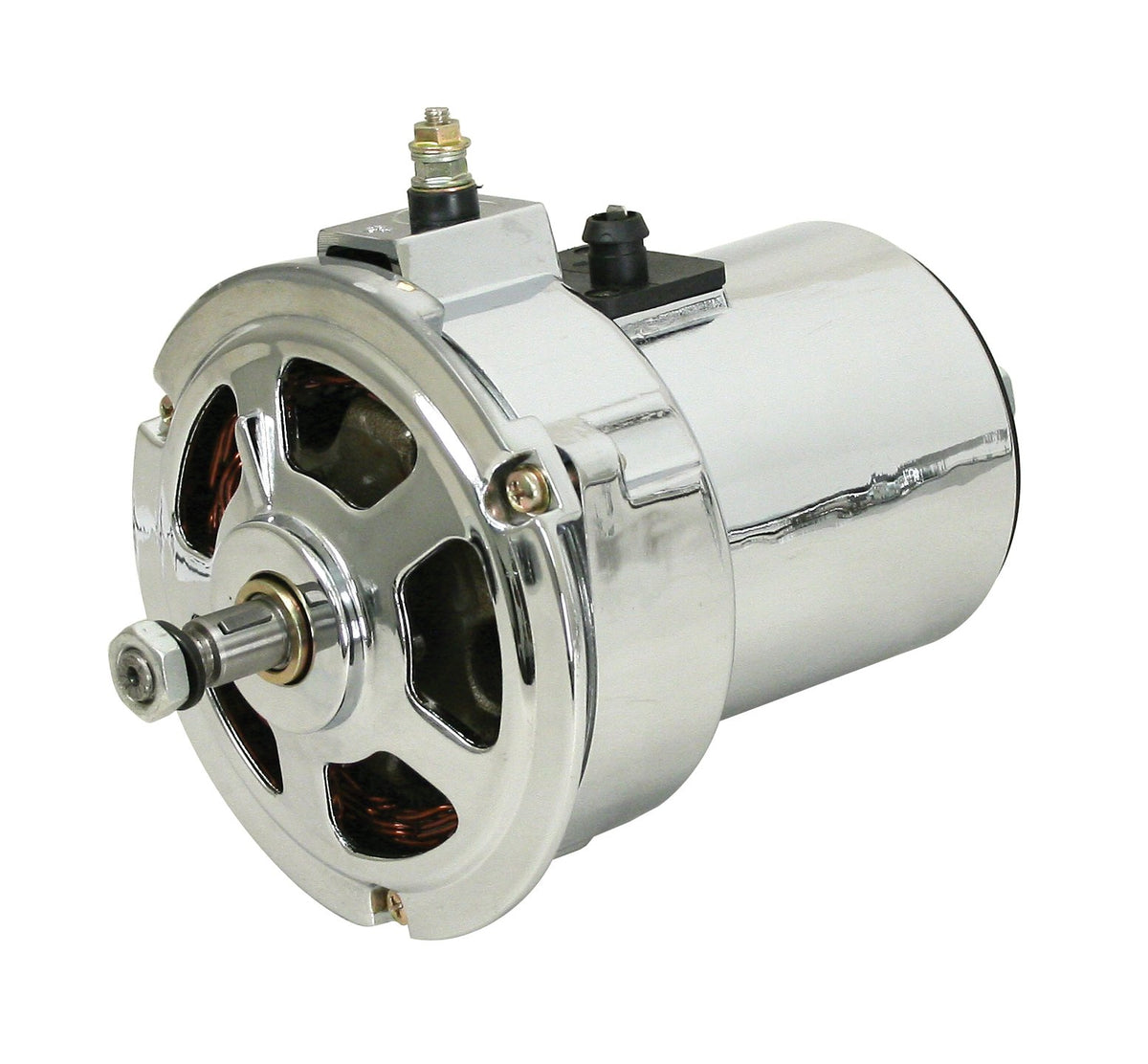

A 12-volt, 75-amp alternator in a polished chrome housing, built for air-cooled VW Type 1 engines. This is the charging upgrade for cars that have outgrown a generator — or outgrown a 55-amp alternator. It is manufactured entirely from new components: no rebuilt cores, no salvaged internals, no reman gamble. This is the same alternator EMPI supplies in its popular 00-9451-0 conversion kit, sold here as a standalone unit.

The factory VW generator put out roughly 30 amps and struggled to charge at idle. That was fine for sealed-beam headlights and a point ignition. It is not fine for halogen or LED lighting, an electric fuel pump, an electronic ignition, an auxiliary cooling fan, a stereo, or any combination of the above. At 75 amps this unit delivers roughly two and a half times stock generator output and produces genuinely useful current at idle — so the battery charges sitting at a light, not just at 3,000 RPM.

Vehicle Fitment

• VW Beetle & Super Beetle: 1960–1979 (12V systems, or 6V cars converted to 12V)
• VW Karmann Ghia: 1960–1974
• VW Bus / Transporter (Type 2): 1960–1971, upright Type 1 engine
• VW Thing (Type 181): 1973–1974
• Dune buggy, Baja, sandrail & kit car: any Type 1-based build

Will NOT fit: 6-volt systems that have not been converted to 12V, Type 3 pancake engines (see the Type 3 Smallternator kit instead), or Type 4 engines — the mounting and pulley geometry differ.

Key Features & Benefits

• 75-amp output: Roughly 2.5× a stock 30-amp generator, with real charging current at idle.
• Internal voltage regulator: The external firewall regulator box comes out entirely. Simple two-wire hookup.
• All-new construction: No rebuilt cores. Reman alternators are a leading cause of repeat charging failures — this one is new throughout.
• Chrome housing: A finished, show-ready look for a chromed or polished engine bay.
• Proven platform: The same unit EMPI ships inside its 00-9451-0 alternator conversion kit.

Technical Specifications

• Part Number: 00-9453-7 (EMPI)
• Manufacturer: EMPI
• Voltage: 12 volts
• Output: 75 amps
• Regulator: Internal — no external regulator required
• Wiring: Two-wire connection; requires a charging indicator light (sold separately)
• Finish: Chrome
• Construction: 100% new components — not rebuilt
• Sold As: Each
• UPC: 707924339772

Installation Notes

• Alternator stand required: The alternator end housing is larger than a generator's. You will need an alternator stand, or the existing generator stand trimmed to clear it.
• Use a real indicator bulb: The charging circuit needs a standard incandescent indicator light to excite the field. An LED will not reliably do this and the alternator may not charge.
• Remove the old regulator: With an internally regulated alternator, the external voltage regulator and its wiring come out of the circuit entirely.
• Check belt alignment: Verify the alternator pulley is square to the crank pulley before final tightening — misalignment is the fastest way to eat a fan belt.

Frequently Asked Questions

• Is this a new alternator or a rebuilt one? New. EMPI builds it from all-new components — no rebuilt cores and no salvaged parts are used.
• Will it bolt straight in where my generator is? Not without a stand. The alternator's end housing is larger than a generator's, so you need an alternator stand or must trim the existing generator stand to clear it. The pulley and fan belt stay in roughly the same plane.
• How is it wired? Two wires: one to the starter/battery and one to the charging indicator light on the dash. The external voltage regulator is removed entirely because this unit regulates internally.
• Can I use an LED for the charging light? No. The alternator needs a conventional incandescent indicator bulb to excite properly. An LED charge light is a common cause of a "dead" new alternator.
• Do I need 75 amps, or is 55 enough? 55 amps covers a stock-plus car with a few upgrades. Choose 75 if you are running an electric fuel pump, auxiliary fan, high-output ignition, upgraded lighting, or audio — or several of those together.
• What is the difference between this and 00-9453-0? Finish. The -7 suffix is the chrome unit; EMPI uses different suffixes across the 9453 family for finish variations. The electrical guts are the same 75-amp internally regulated unit.
• Is this a genuine EMPI part? Yes — Washburn's Metal is an authorized EMPI dealer, so this is a new genuine EMPI part, not a copy.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov. All parts legal for use on pre-pollution controlled vehicles only.
