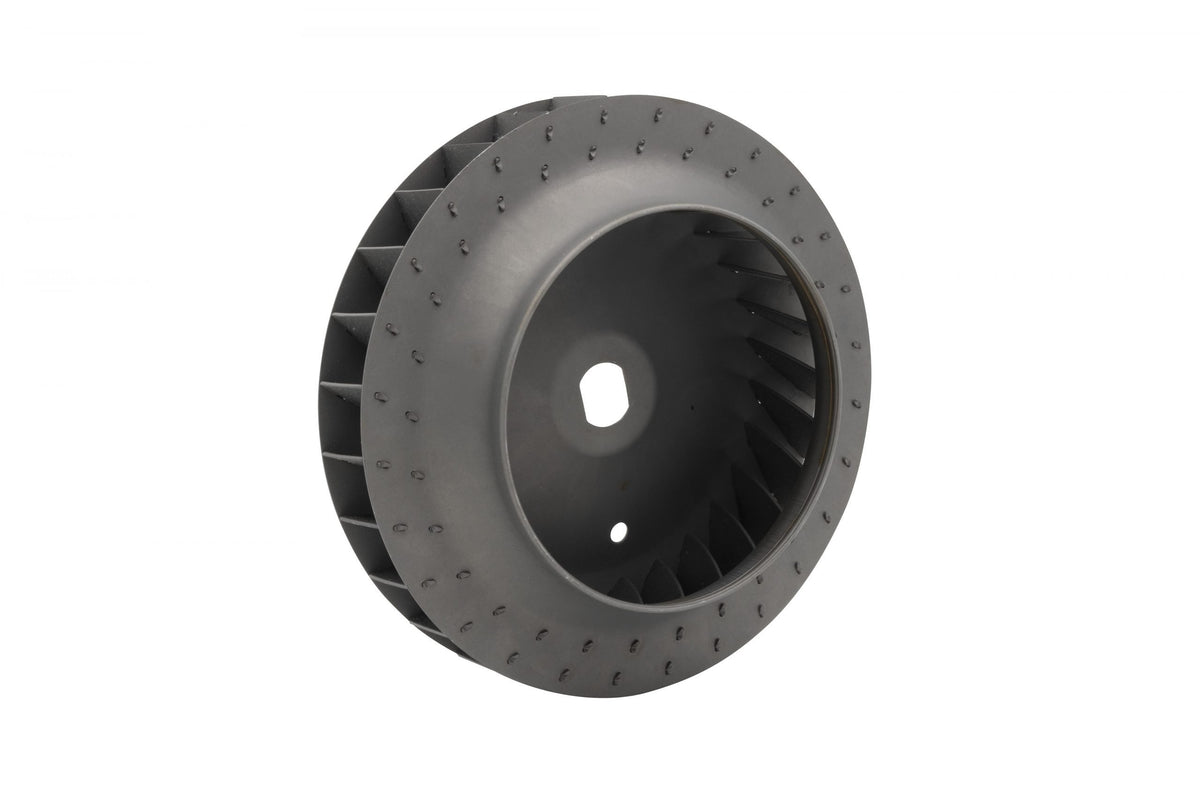

EMPI Late Cooling Fan 36.9mm — Doghouse Shroud | 1971–1979 VW Beetle, Super Beetle, Ghia, Bus & Thing (98-2004-B)

EMPI Late Cooling Fan — The Wide Doghouse Fan for 1971-and-Later Air-Cooled VW

The cooling fan is one of the most important — and most overlooked — components on an air-cooled Volkswagen engine. Bent or cracked fins, a worn hub, or a fan that has gone out of round will drive cylinder head temperatures up and can take the engine with it. This is EMPI's stock-style replacement for the late, wide fan used behind 1971-and-later doghouse shrouds.

The late factory fan is wider than the early version and moves noticeably more air. It is compatible with any EMPI fan housing, stock Type 1 and Type 2 doghouse shrouds, EMPI 36HP-style shrouds and Ram-Air shrouds — which makes it the default fan for most street rebuilds and buggy motors built around a modern aftermarket shroud. It replaces VW part 113-119-031B / EMPI alternate 7X0-119-031.

Vehicle Fitment

• 1971–1977 VW Beetle (Standard)
• 1971–1979 VW Super Beetle
• 1971–1974 VW Karmann Ghia
• 1971 VW Bus / Type 2 (1600cc upright engine — the last year the Bus used the upright Type 1 engine)
• 1973–1974 VW Thing / Type 181
• Any air-cooled upright engine running a 1971-and-later stock doghouse shroud, an EMPI 36HP-style shroud, or a Ram-Air shroud

Late / wide style only. This fan will not fit a pre-1971 narrow non-doghouse shroud — for those engines use the early fan, EMPI 98-2003-B. Type 3 pancake engines use a different fan entirely and are not covered by this listing.

Key Features

• Correct late doghouse profile: 34.7mm inner fan width, 36.9mm outer fan width — the part the trade calls the "35mm", "36mm" or "37mm" fan.
• Wider than the early fan, so it moves more air through the shroud.
• Pressed steel construction with a corrosion-resistant finish.
• Fits stock Type 1 and Type 2 doghouse shrouds, EMPI fan housings, 36HP-style shrouds and Ram-Air shrouds.
• Direct bolt-in replacement — no shroud modification required.
• Sold each, without hardware.

Technical Specifications

What Else You May Need

Hardware is not supplied with this fan. Most installs also need the fan hub hardware kit (EMPI 00-8898-0, also cataloged as 111-198-123A), which carries the hub, spring washer, shims and screws. Fan-to-hub shims are used to set blade clearance inside the shroud.

Frequently Asked Questions

How do I know whether I need the early or the late fan?
Look at the shroud. A doghouse shroud — 1971 and later, with the oil cooler in its own cast box on the side — takes this wide fan. An early shroud with the oil cooler inside the housing takes the narrow EMPI 98-2003-B.

My Bus is a 1973 — will this fit?
Not on the original engine. 1971 was the last year the Bus used the upright Type 1 engine; 1972-and-later Buses moved to the Type 4 pancake engine, which uses a different cooling system entirely.

Is this the welded race fan?
No. This is the stock-style replacement. The welded, statically balanced version for high-RPM engines is EMPI 98-2006-B (bulk) or 98-2006-0 (boxed).

Will it work with my aftermarket shroud?
Yes — EMPI states it is compatible with any EMPI fan housing, all EMPI 36HP-style shrouds, and Ram-Air shrouds, alongside 1971-and-later stock doghouse shrouds.

Is hardware included?
No — the fan is sold without hardware. Hub kits and shims are separate parts.

Is this genuine EMPI?
Yes. Washburn's Metal is an authorized EMPI dealer, so this is a new genuine EMPI part.
