EMPI Tie Rod End | VW Beetle & Karmann Ghia (Type 1) | OE 131-415-811 Cross-Ref (98-4511-B)

EMPI Tie Rod End — VW Type 1 Beetle & Karmann Ghia Steering | OE 131-415-811 (98-4511-B)

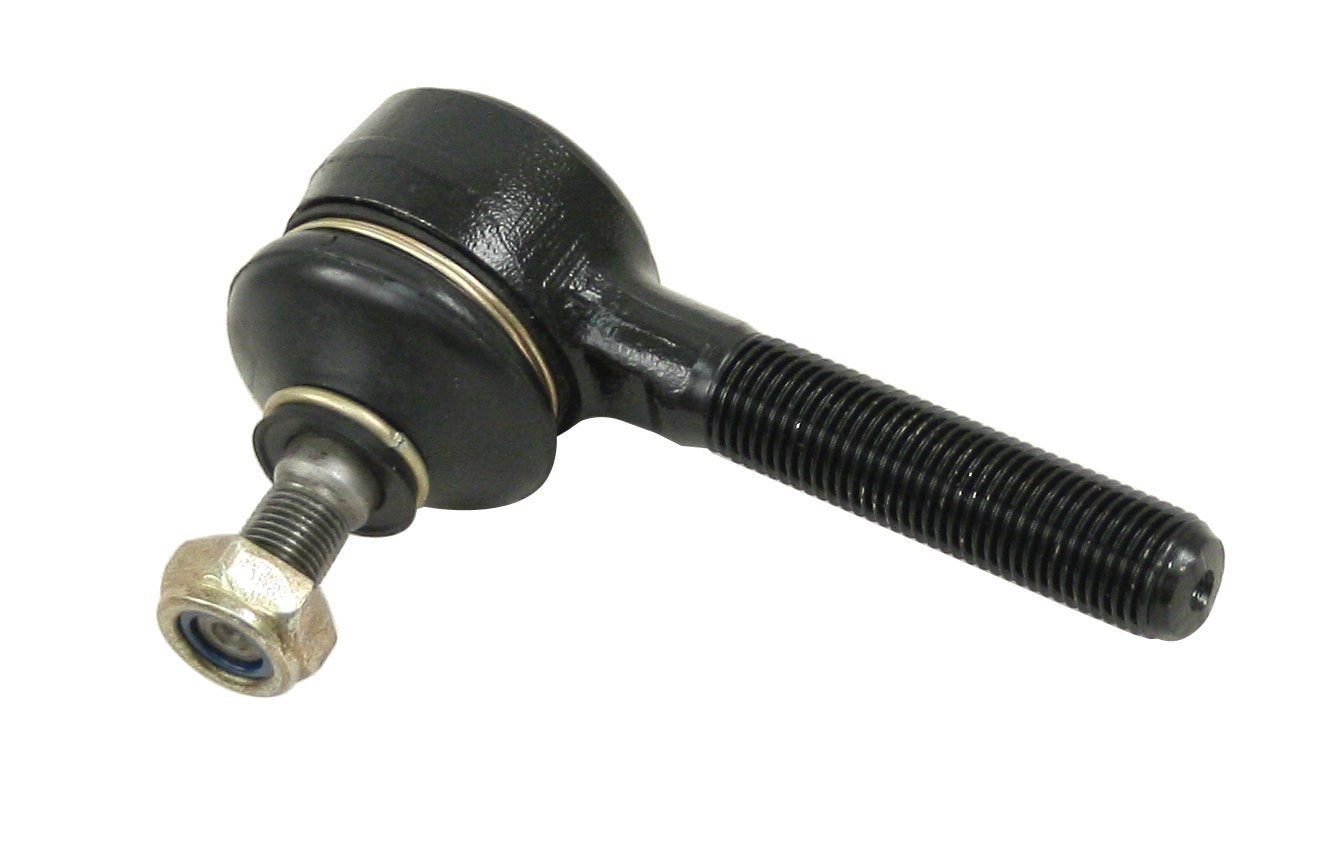

The EMPI 98-4511-B tie rod end is a direct replacement for VW Type 1 Beetle and Karmann Ghia steering, cross-referencing the original VW factory part #131-415-811 — the standard tie rod end VW used across the Type 1 line. It connects the tie rod to the steering knuckle on the front steering.

Tie rod ends are wear items, and on a 50+ year-old VW they're almost always due for replacement. The internal ball joint wears out, develops play, and eventually allows the front wheels to move independently of steering input. Symptoms include vague steering response, clunking over bumps, uneven tire wear, and the inability to hold a proper alignment. A worn tie rod end is a safety issue — in extreme cases, severe wear can lead to separation and loss of steering control.

Vehicle Fitment

• VW Beetle (Type 1): All years using the standard tie rod end (verify with VW part #131-415-811)
• VW Karmann Ghia: All years using the standard tie rod end
• Other VW Type 1 applications: Cross-referencing 131-415-811

Confirm with VW part number. VW used the 131-415-811 tie rod end across most of the Type 1 line, but a few year/model combinations used slightly different parts. The fastest way to confirm fit is to check your existing tie rod end's part number stamping (if visible) or measure the threaded section and ball-joint stud diameter.

Key Features & Benefits

• Restores steering precision: Eliminates the play, vague response, and clunking of a worn tie rod end
• Protects your tires: Fresh tie rod ends let the front end hold a proper toe alignment, preventing uneven wear
• Easy to install: Inexpensive to replace with basic hand tools
• OE cross-reference: Direct replacement for VW factory #131-415-811

Technical Specifications

• Brand: EMPI
• Part number: 98-4511-B
• VW factory cross-reference: 131-415-811
• Sold as: Single tie rod end
• Application: Front steering — connects tie rod to steering knuckle

Frequently Asked Questions

• How do I know if my tie rod end is bad? Jack the front of the car up, grab the tire at 9 and 3 o'clock, and shake it side to side. Play or clunking from the tie rod end indicates wear. Also check during steering — if the wheel can be turned with looseness at the tie rod, replace it.
• Do I need to replace both sides at once? Strongly recommended. If one tie rod end is worn after 50+ years, the other is too. Replacing only one is false economy and creates an uneven steering feel.
• Will I need an alignment afterward? Yes. Tie rod ends affect toe alignment directly. After replacement, the car must be re-aligned — without it, you'll experience rapid tire wear and unpredictable steering.
• Do I need any special tools? A tie rod end "pickle fork" or a small ball joint separator helps press the tapered stud out of the steering knuckle. Otherwise, basic hand tools are sufficient.
• What's the difference between the inner and outer tie rod end? On the Type 1 VW front end, the tie rod is a single rod with adjustable ends. This part is the outer tie rod end that connects to the steering knuckle. The inner end connects to the steering damper/center link.
• Does this come with a grease fitting? Most modern EMPI tie rod ends are sealed-for-life designs without grease fittings. They don't require periodic lubrication, but they also can't be re-greased if dry — they're replacement items rather than serviceable parts.
