Washburn's FIS2-001 Fuel Injection System — Carb-to-EFI Conversion for Type 1 VW Engines

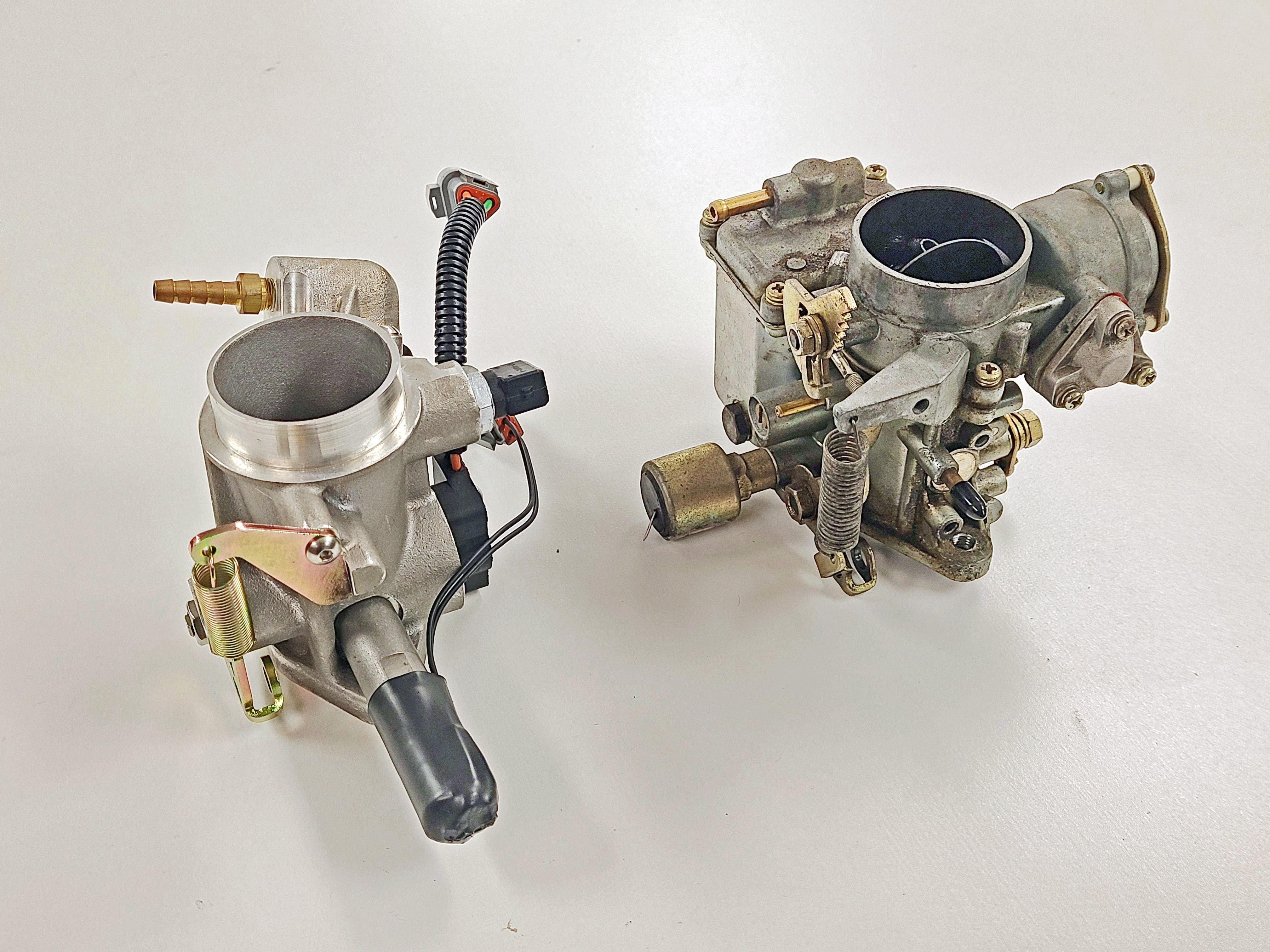

The FIS2-001 Fuel Injection System conversion kit is a complete fuel injection solution for Type 1 Volkswagen engines. It replaces the carburetor with a modular system that an experienced mechanic can install, and its ECU controls both fuel and ignition timing. It ships pre-programmed for a 1600 engine and can be reprogrammed for larger engines by the end user. Beyond optimizing fuel and timing, the system adds a high-idle mode for cold start and compensation for elevation and engine temperature.

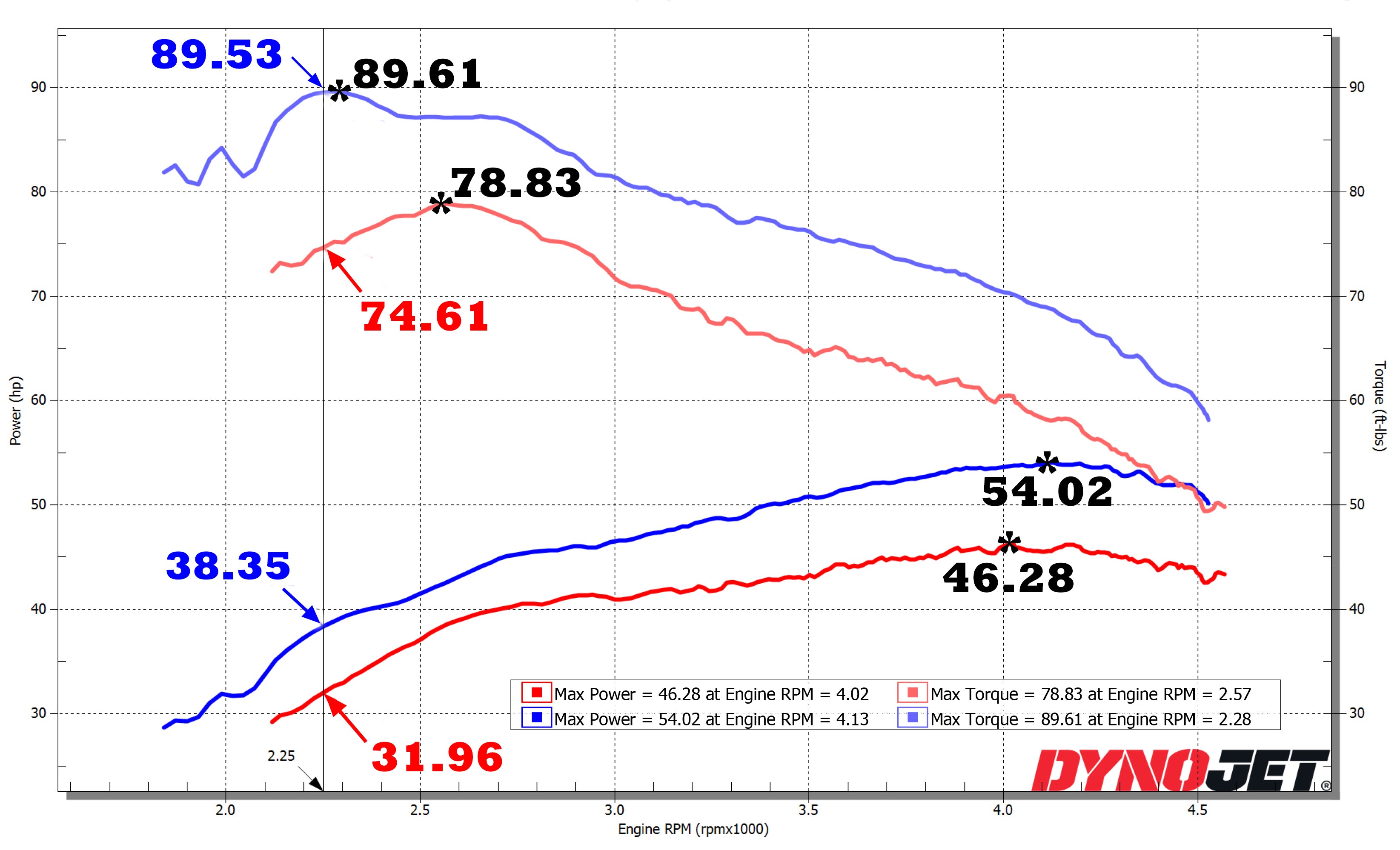

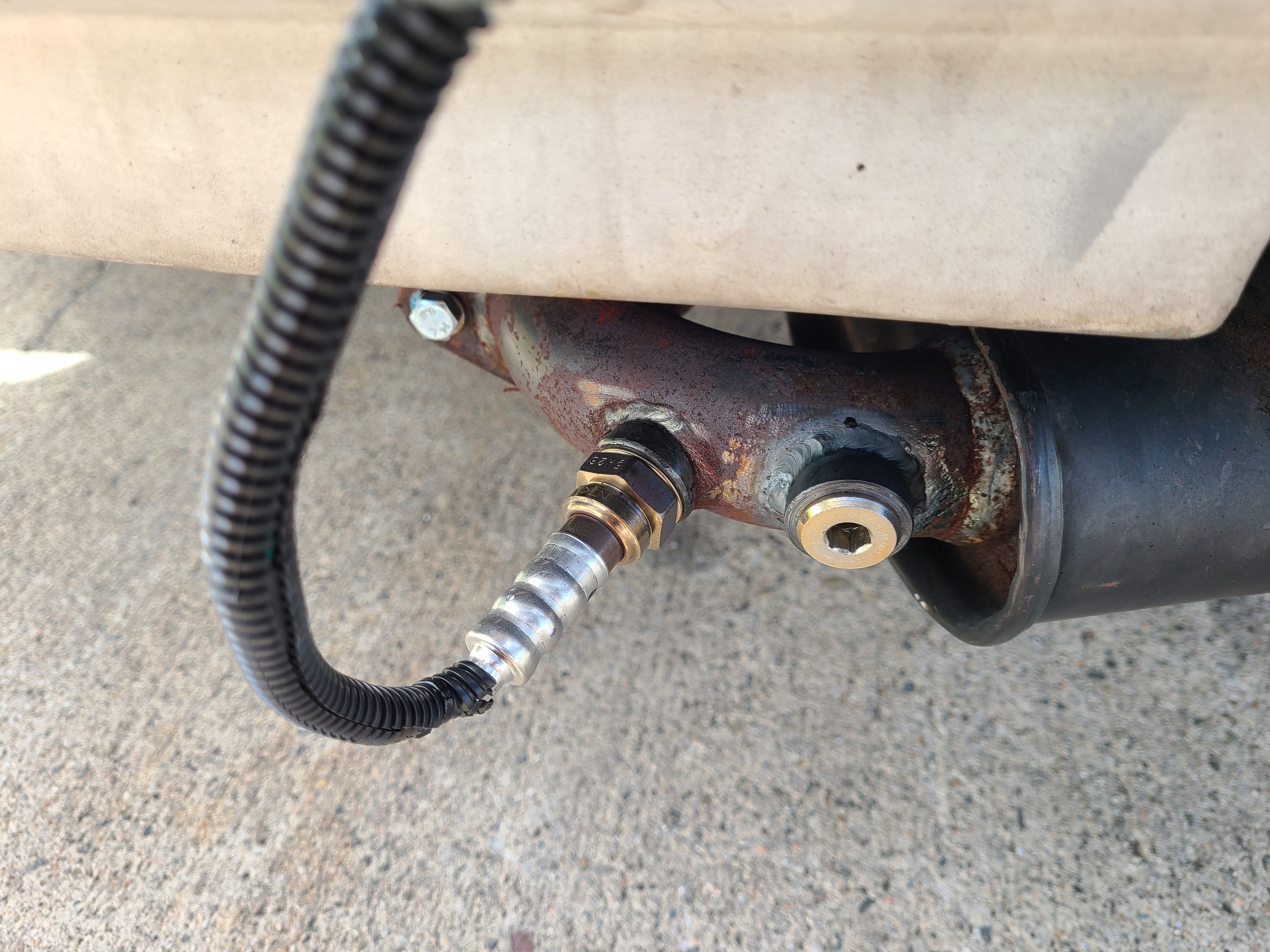

This kit provides significant performance gains: dyno testing showed an 8-HP gain (46 to 54 HP) and an 11 ft-lb torque increase (79 to 90 ft-lbs). The engine starts right up when cranking without touching the accelerator, and when you do hit the gas the response is transformed — instant acceleration on demand and smooth, strong power across the entire RPM range. The added O2 sensor also improves fuel economy.
Vehicle Fitment
- VW Beetle, Bus, Karmann Ghia, Thing & Type 3: All years, Type 1 engine-based
Why Choose Washburn's Metal?
A Washburn's Original — a direct-fit, ready-to-install kit with a pre-assembled fuel system and a custom, clearly labeled wire harness that takes the guesswork out of converting to EFI.
Key Features & Benefits
- Complete conversion: Replaces the carburetor with a full, modular fuel injection system.
- ECU-controlled: Manages both fuel and ignition timing; pre-programmed for a 1600 engine and reprogrammable for larger displacements.
- Smart compensation: High-idle cold-start mode plus compensation for elevation and engine temperature.
- Proven gains: +8 HP (46 to 54 HP) and +11 ft-lbs (79 to 90 ft-lbs) on the dyno, with improved fuel economy from the O2 sensor.
- Direct fit & easy wiring: Pre-assembled fuel pump/regulator/filter unit, integrated throttle body, and a labeled wire harness install in about four hours for an experienced mechanic.
Technical Specifications
- System: Complete carb-to-EFI conversion kit for Type 1 VW engines

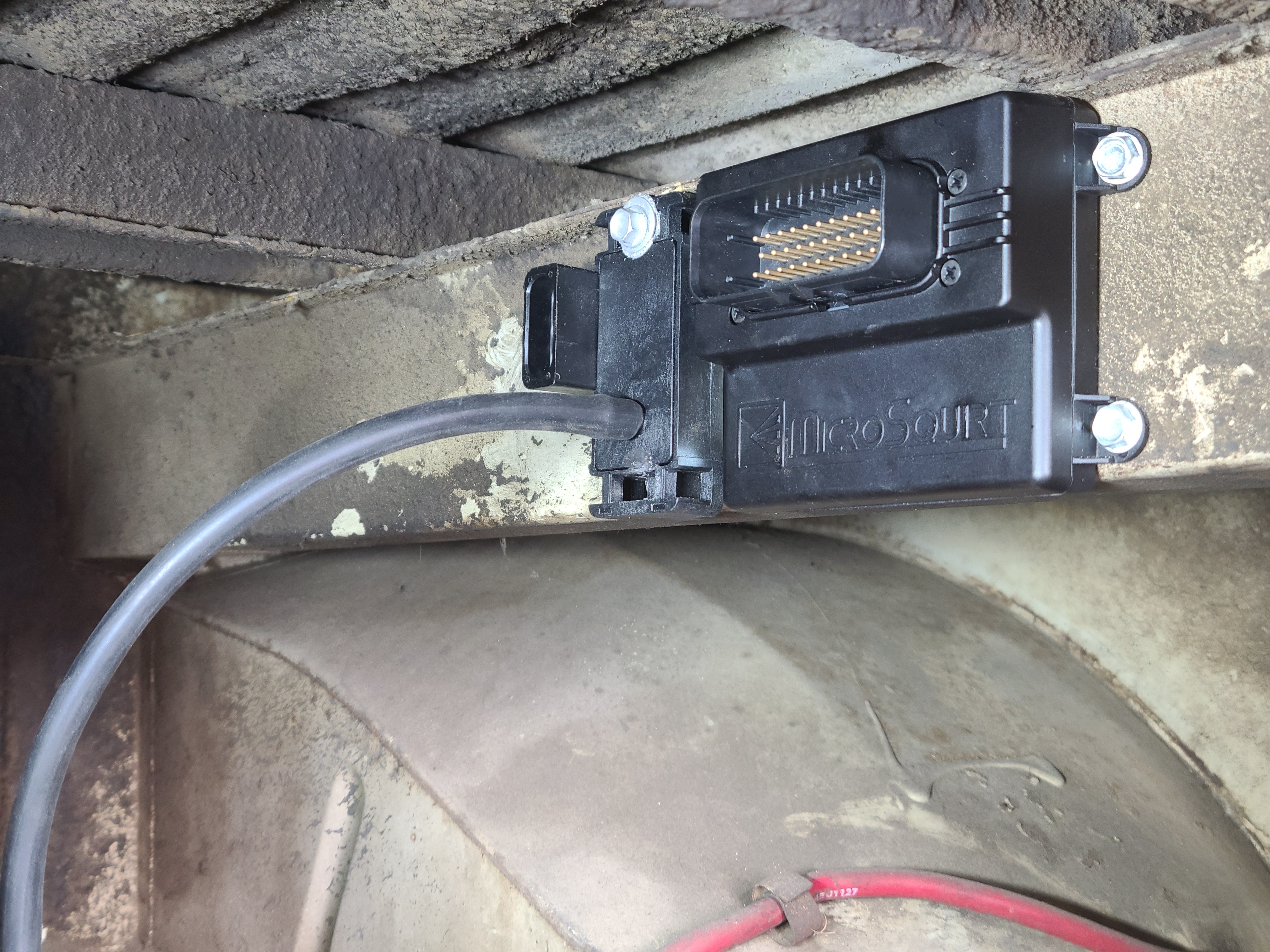

- ECU: Controls fuel and ignition timing; pre-programmed for 1600, end-user reprogrammable

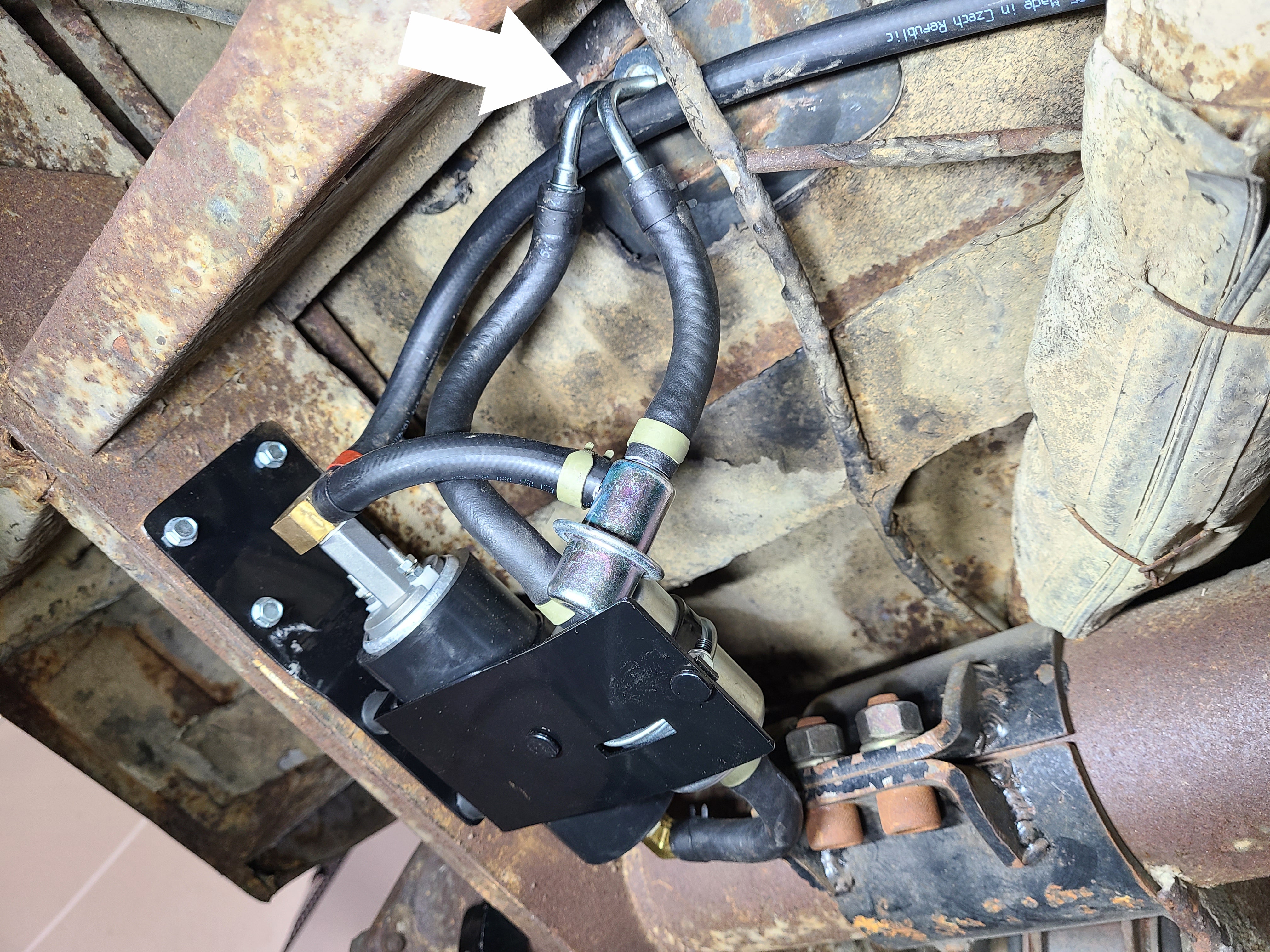

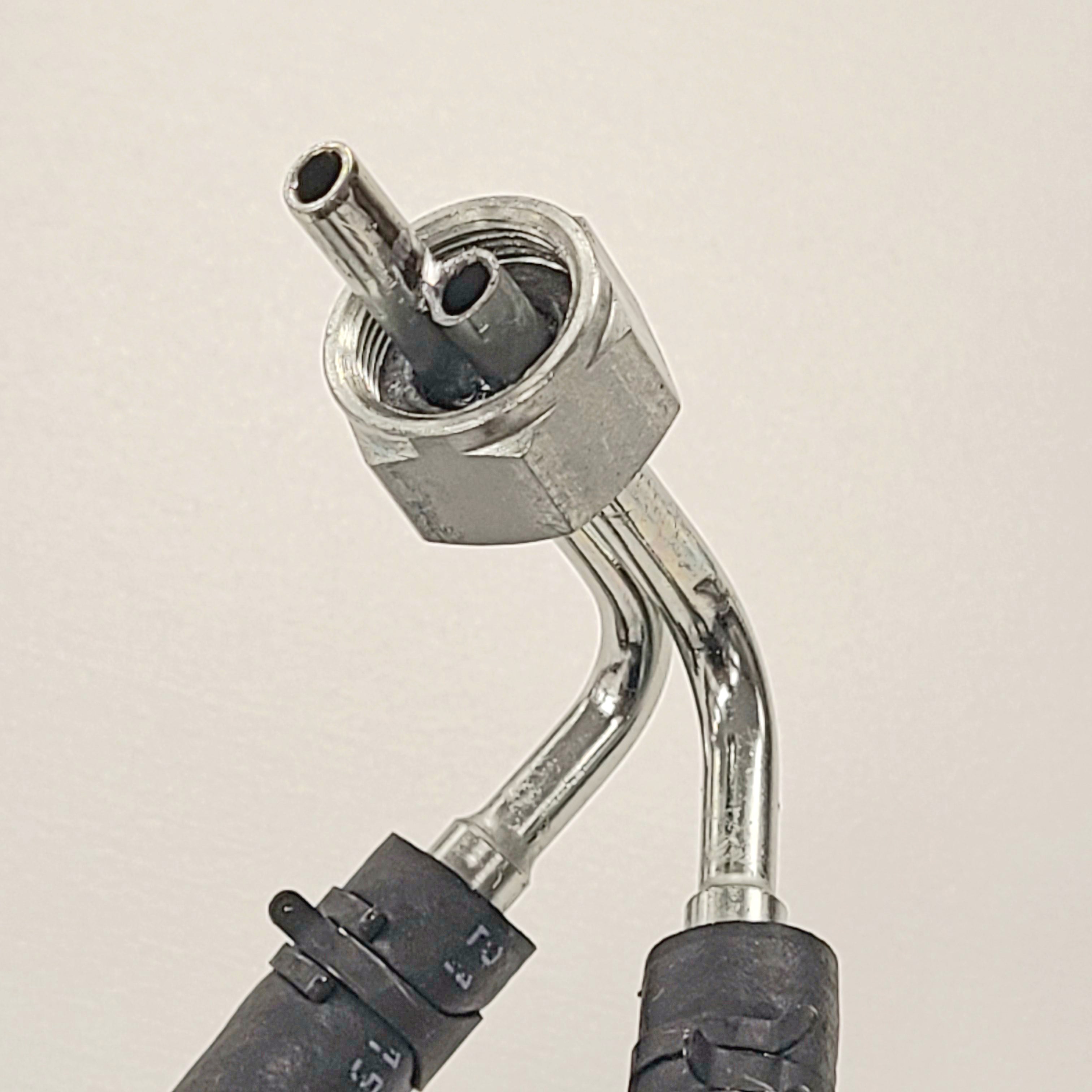

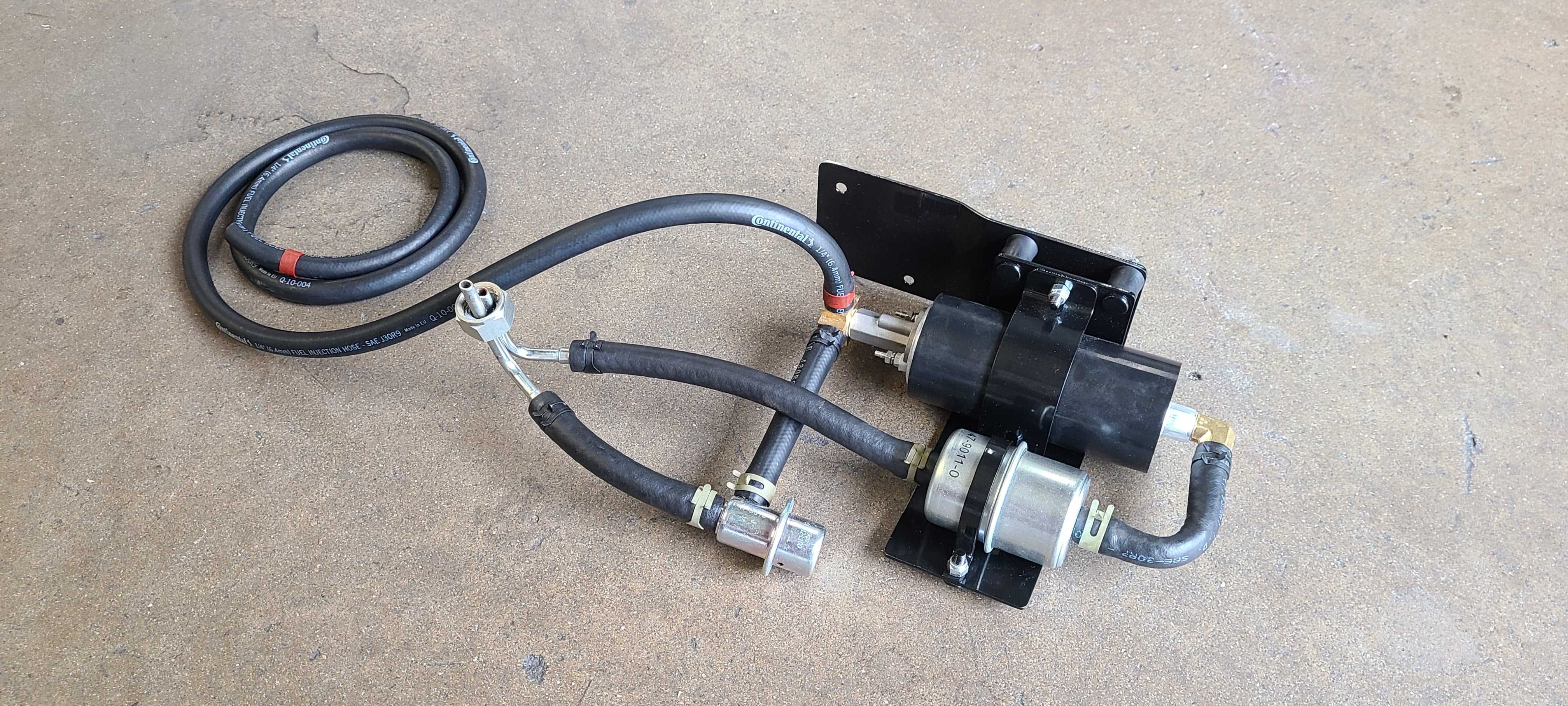

- Fuel Unit: Fuel pump, regulator, and filter pre-assembled into one unit

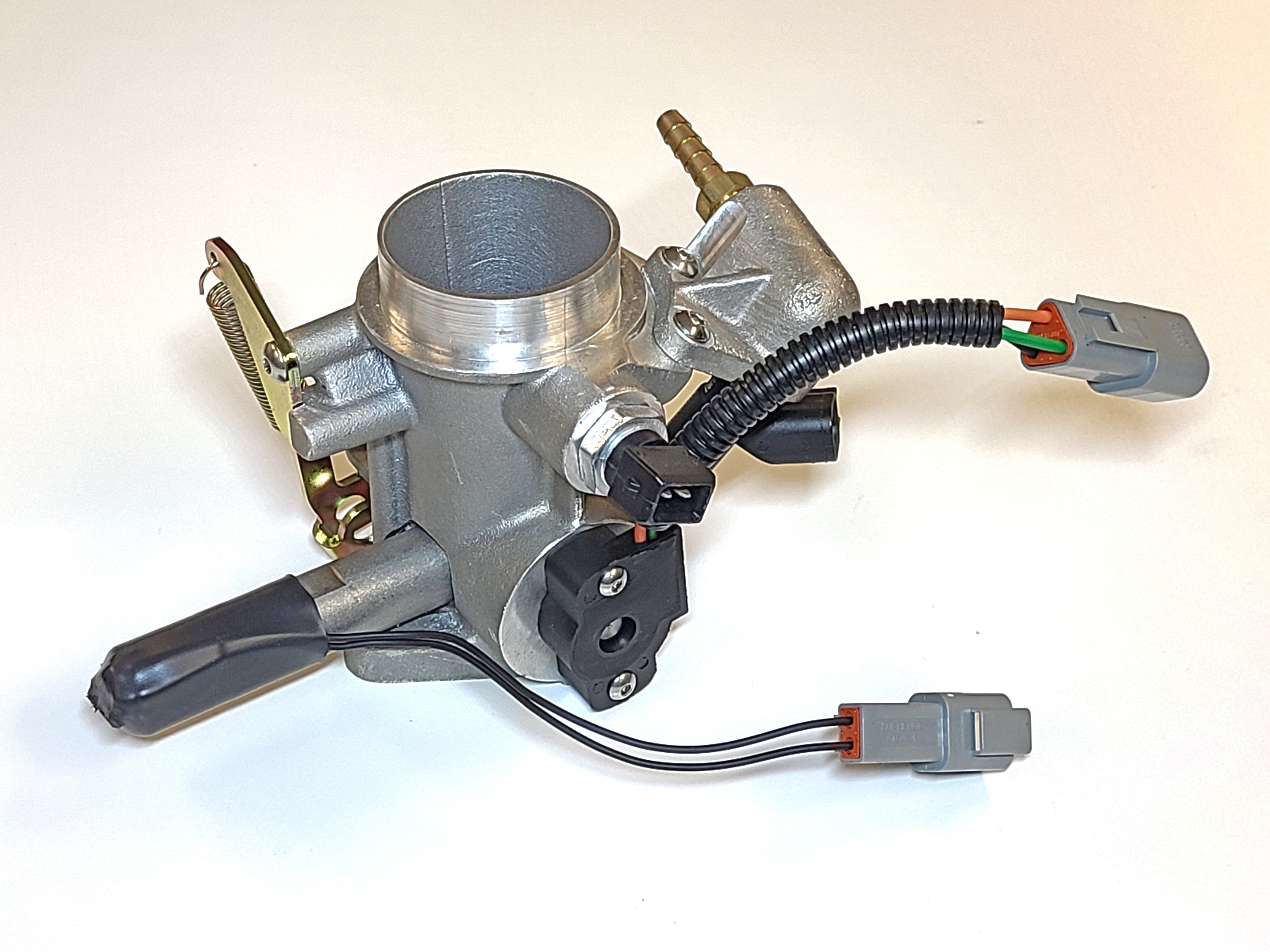

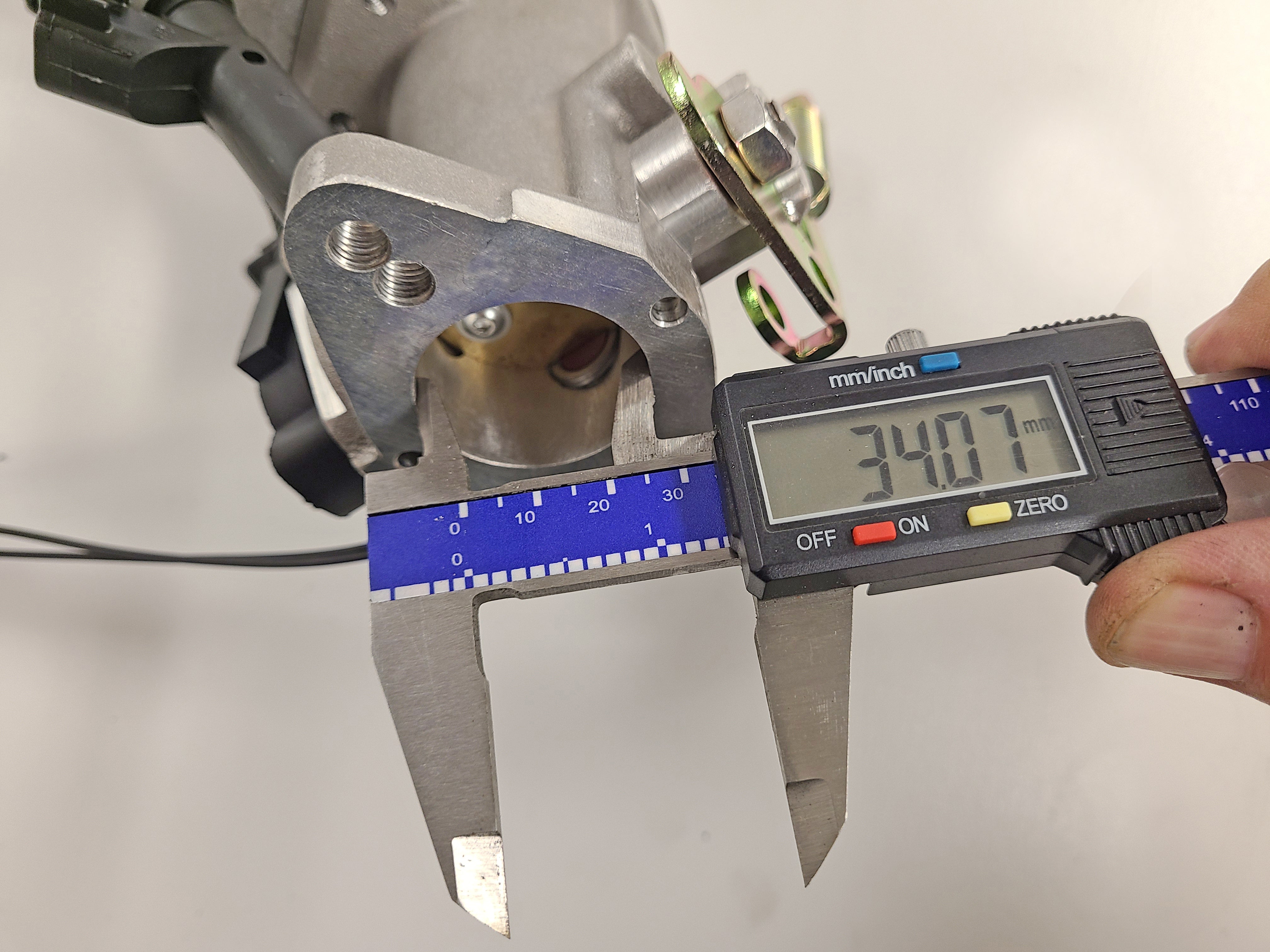

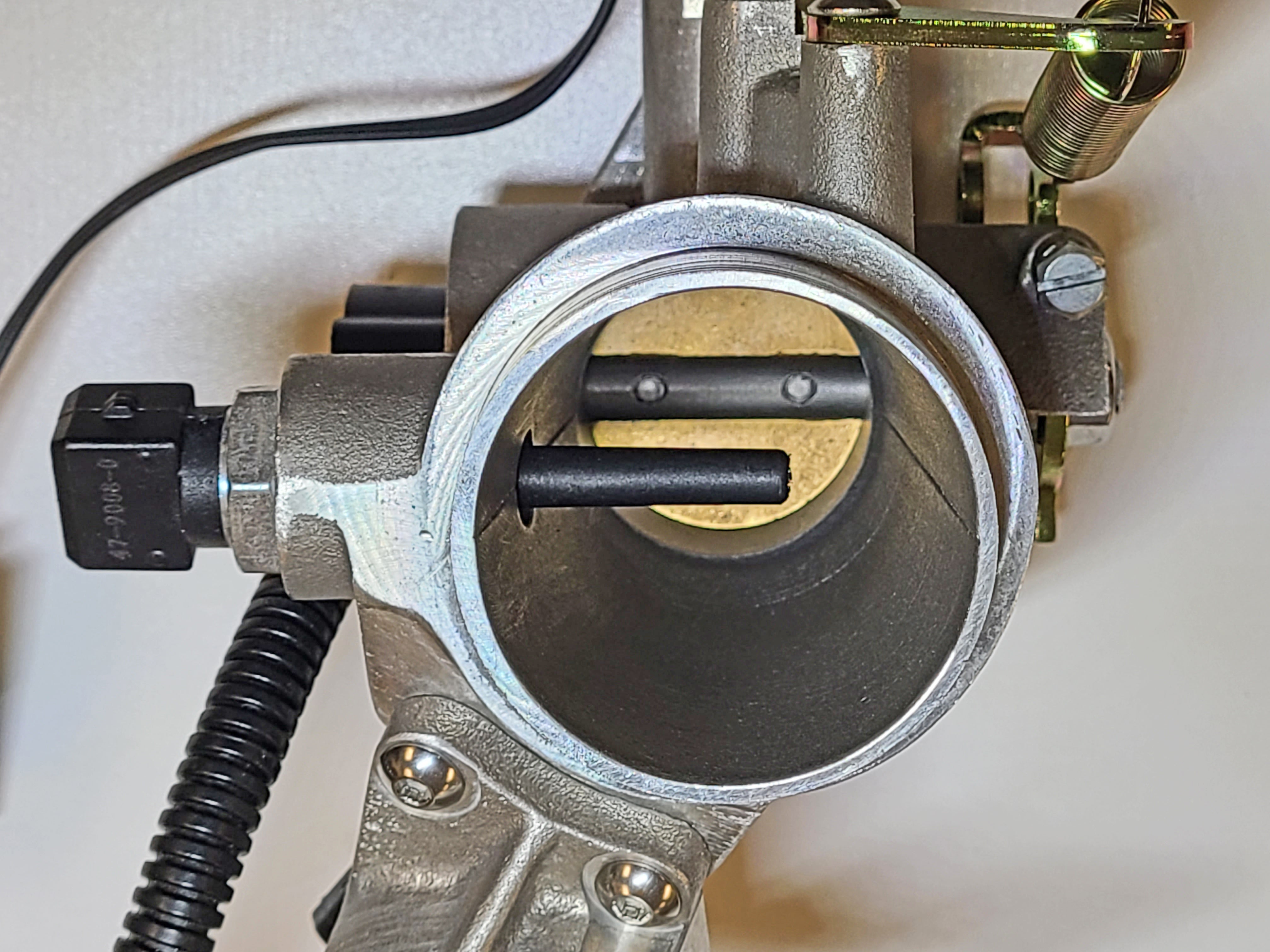

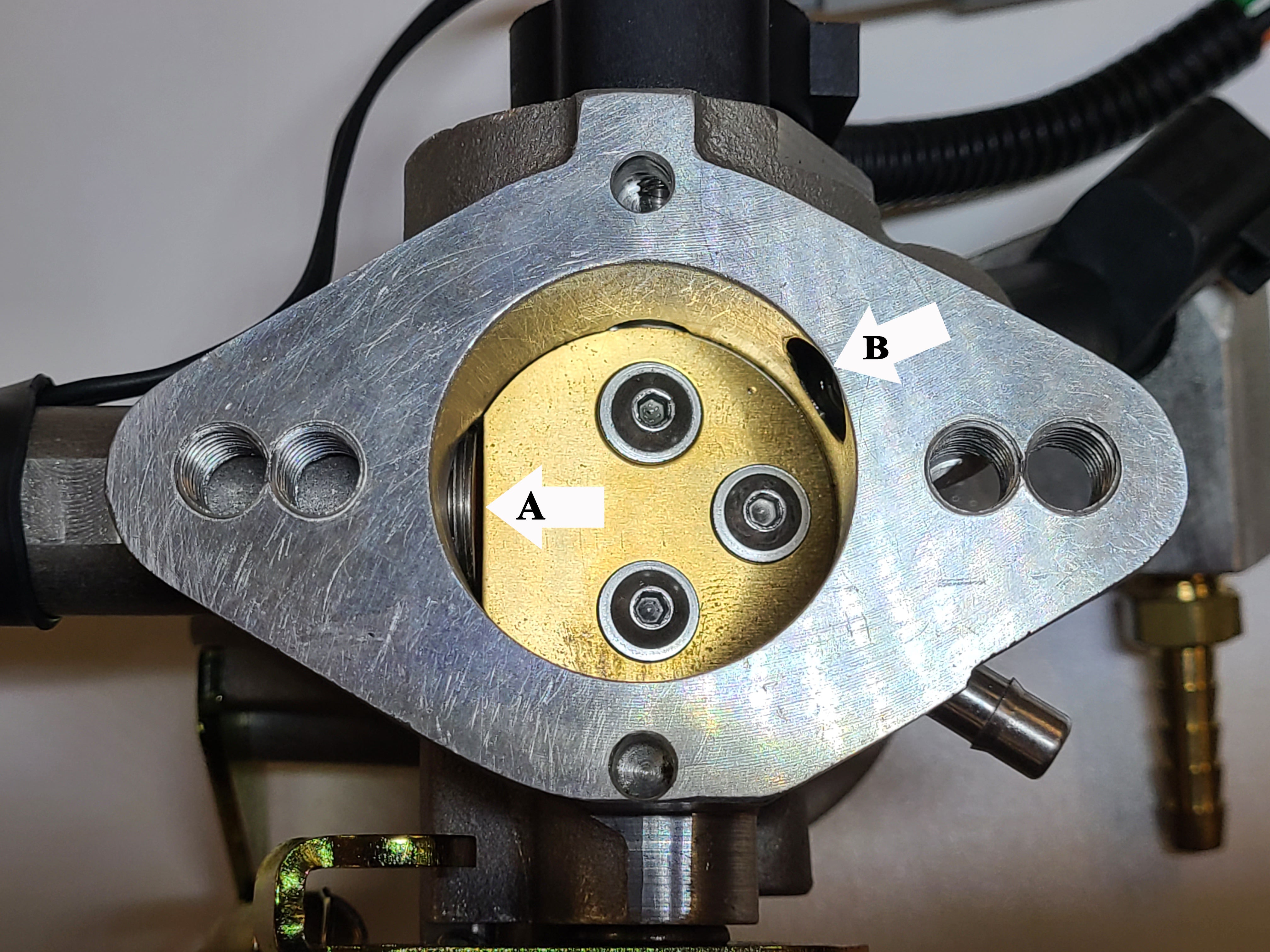

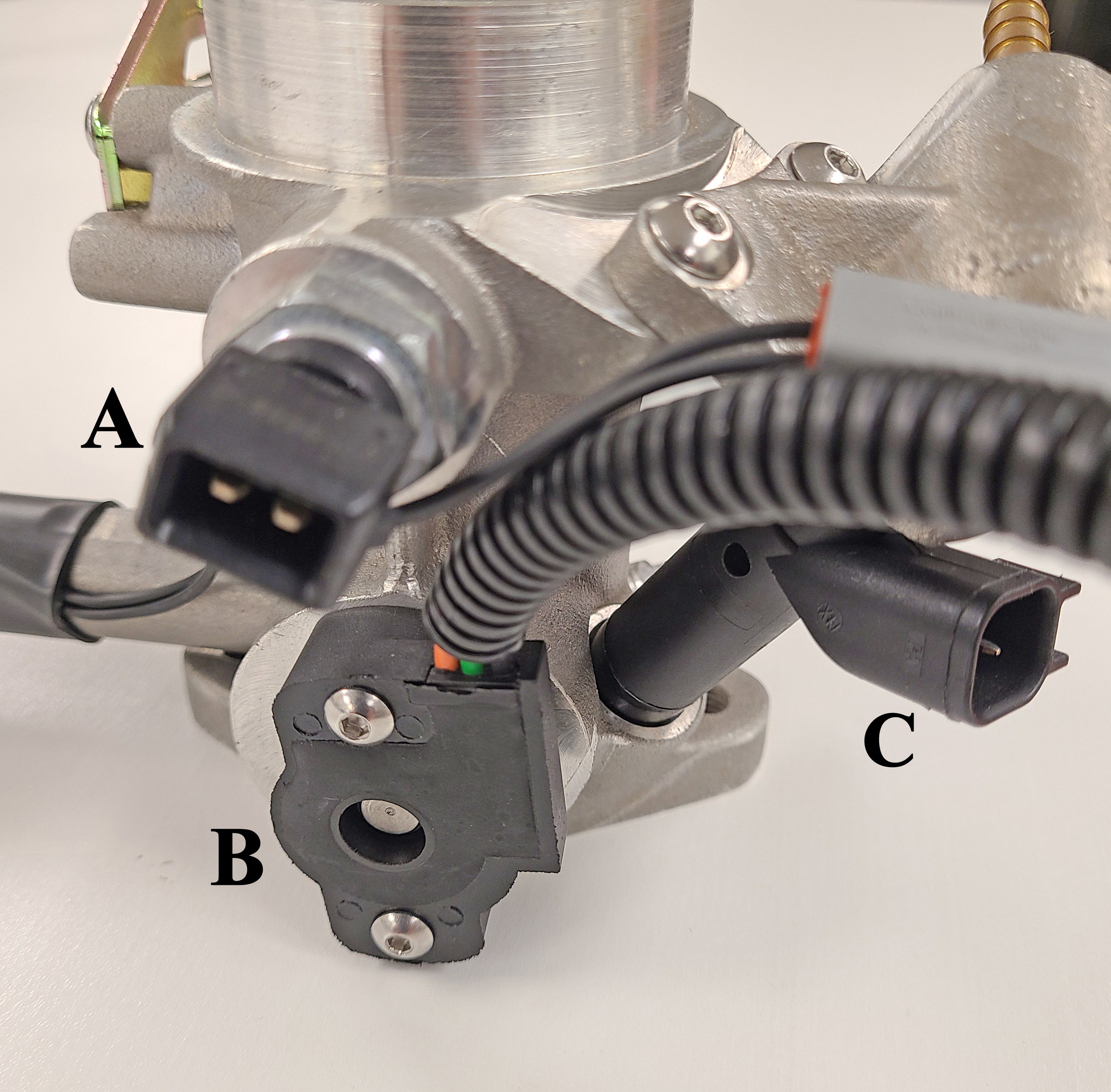

- Throttle Body: Integrated with fuel injector, IAT sensor, TPS sensor, and idle air valve
- Wiring: Custom wire harness with clearly labeled connectors
- Dyno Results: 46 to 54 HP; 79 to 90 ft-lbs torque
- Install Time: About four hours for an experienced mechanic
- Part Number: FIS2-001 (SKU E01)
Frequently Asked Questions
- Will this fit my 1600cc engine? Yes — the ECU ships pre-programmed for a 1600cc engine and is reprogrammable for larger displacements.
- Do I need to touch the throttle to start it? No — the high-idle cold-start mode handles startup automatically.
- How long does installation take? About four hours for an experienced mechanic; the throttle body and fuel system arrive pre-assembled.

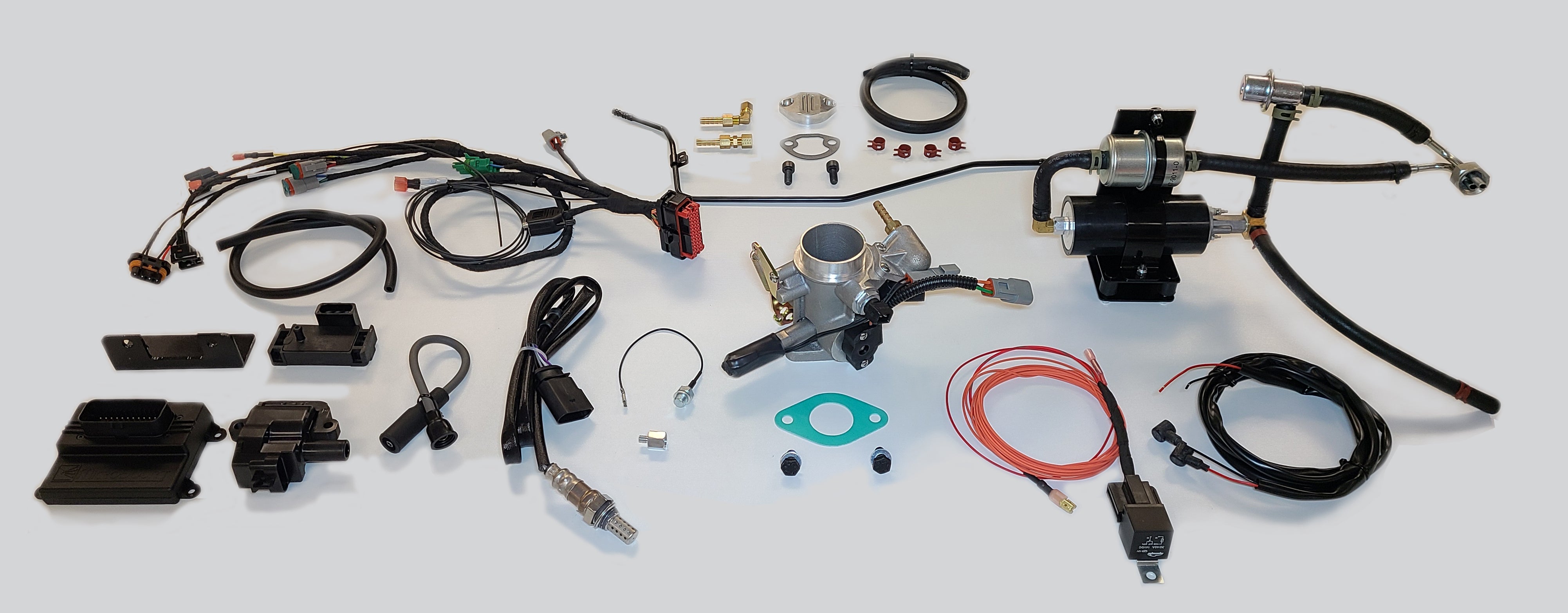

- What's included? Pre-assembled fuel pump, regulator, filter, integrated throttle body with injector, IAT sensor, TPS sensor, idle air valve, and a labeled wire harness.
