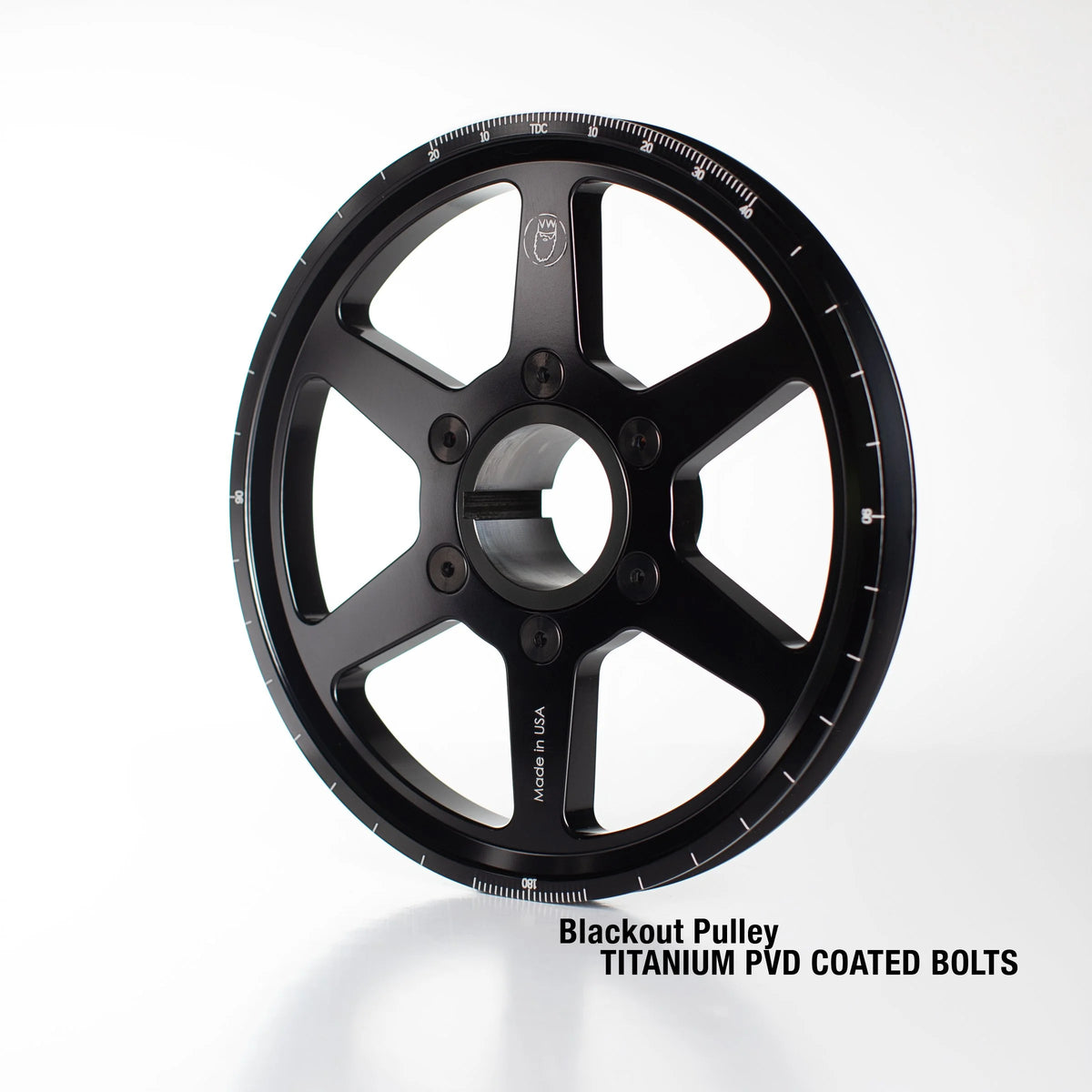

King Performance Blackout Spoked Billet Pulley Kit 6.7" | Air-Cooled VW Type 1 | 6.7" Crank & 4.3" Alternator, Steel Hub | Stainless Hub Bolts, Stock Hub
Couldn't load pickup availability
All black, all billet. The King Performance Blackout Pulley Kit is a complete 6.7" top-and-bottom pulley set for the air-cooled VW Type 1 engine, polished and then deep black anodized for a stealth look. The spoked 6.7" crank pulley is built on King's frenched steel hub, and the six hub bolts can be ordered in stainless or black PVD titanium to keep the look consistent.
This listing is the standard kit: stainless hub bolts and stock hub. Black PVD titanium hub bolts or the 1.750" sand-seal hub are available by special order — contact us for a price.
Fitment
- Air-cooled VW Type 1 (upright-fan) engines: Beetle, Karmann Ghia, Type 1-powered Bus, Thing, Baja Bug, dune buggy and sand rail
- Stock Hub for a standard case, or Sand Seal Hub (4140 steel, 1.750" OD, special order) for a case machined for a sand seal
- Tapped for Dub Shop trigger wheels (crank-trigger ignition / EFI)
- Off-highway use only
Features
- 6.7" (170.7 mm) spoked crank pulley and 4.3" (109.2 mm) alternator pulley
- 6061-T6511 aluminum, polished then deep black anodized
- Six stainless hub bolts (black PVD titanium by special order)
- 100% USA made from domestic material
- Two-year King Performance guarantee on billet products
Specifications
| Item | Detail |
|---|---|
| Crank pulley | 6.7" (170.7 mm), spoked |
| Alternator pulley | 4.3" (109.2 mm) |
| Material | 6061-T6511 aluminum |
| Finish | Polished, then deep black anodized |
| Hub | Stock (4140 steel sand-seal 1.750" OD by special order) |
| Hub bolts (6) | Stainless (PVD black titanium by special order) |
| Included | Crank pulley with hub, alternator pulley, .005" shims, 6061-T651 clamp washer, 7075-T651 hard black anodized nut, crank pulley bolt and washer, bonus belt |
| Origin | USA |
Installation Notes
Shim the alternator pulley until the belt runs straight and correctly tensioned. The bonus belt is King's size recommendation; confirm fit on your engine. King recommends red high-strength thread locker and 80 ft-lb on its crank pulley bolts. The belt drives the cooling fan, so keep your charge light working. Black anodizing will fade over time with heat and sunlight; this is normal.
FAQ
Can I get black titanium hub bolts? Yes, by special order. The standard kit comes with six stainless hub bolts; contact us for the PVD black titanium upgrade price.
Is it a complete kit? Yes, both pulleys, hardware and a belt.
Which hub? This listing is the stock hub. Choose the sand-seal hub (special order) only if your case is machined for one.
