King Performance Spoked "Heavy" Crank Pulley 6.7" | Air-Cooled VW Type 1 | 3.93 lb Billet, 4140 Steel Hub | Stock or Sand Seal
Couldn't load pickup availability

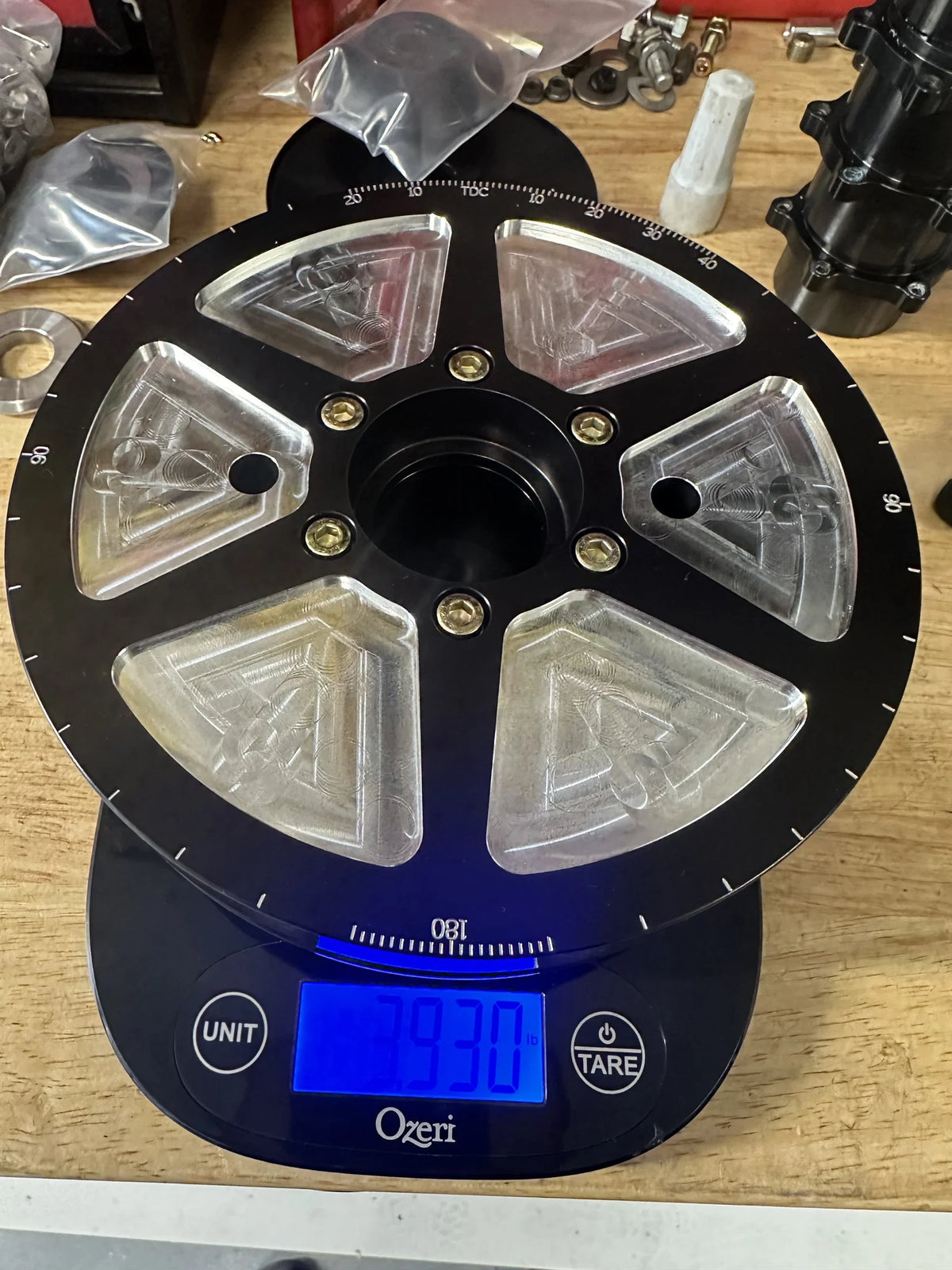

A crank pulley with mass where it counts. King Performance's Spoked "Heavy" pulley keeps the 6.7" (170.7 mm) diameter of a stock-size pulley but weighs 3.93 lb, giving a Type 1 engine a billet pulley with more rotating mass than a typical lightweight aluminum part. It is machined from 6061-T6511 billet, hard black anodized, and built around a heat-treated 4140 steel hub that is frenched into the pulley body.
This listing is the crank pulley and hub only. Want the matching alternator pulley, hardware and belt? See the King Spoked Heavy Pulley Kit.
Fitment
- Air-cooled VW Type 1 (upright-fan) engines: Beetle, Karmann Ghia, Type 1-powered Bus, Thing, Baja Bug, dune buggy and sand rail
- Designed to pair with a 4.3" alternator pulley
- Stock O.D. 1.750" hub for a standard case, or Sand Seal (4140) hub for a case machined for a sand seal
- Off-highway use only
Features
- 3.93 lb crank pulley, 6.7" diameter
- Heat-treated 4140 steel hub, black zinc plated, frenched into the pulley for rigid, concentric mounting
- Hard black anodized finish (about .0015" thick)
- Tapped for the Dub Shop Trigger Wheel, ready for crank-trigger ignition or EFI
- Made in the USA; two-year King Performance guarantee on billet products
Specifications
| Item | Detail |
|---|---|
| Diameter | 6.7" (170.7 mm) |
| Pulley weight | 3.93 lb (King Performance) |
| Material | 6061-T6511 aluminum |
| Hub | Heat-treated 4140 steel, black zinc plated |
| Hub options | Stock O.D. 1.750" or Sand Seal |
| Finish | Hard black anodized |
| Included | Crank pulley and hub assembly |
| Origin | USA |
Installation Notes
Reuse a sound crank pulley bolt or fit a new one, and align the belt to your alternator or generator pulley with shims. King recommends red high-strength thread locker and 80 ft-lb on its crank pulley bolts. Check belt tension after the first run. Because the belt also drives the cooling fan, a working charge light is essential.
FAQ
Why a heavy pulley? It gives you a billet pulley without the very light rotating mass of a race-style pulley.
Does it include the alternator pulley? No, crank pulley and hub only. The kit version includes it.
Which hub do I need? Sand Seal only if your case is machined for one; otherwise Stock O.D. 1.750".
Is it trigger-wheel ready? Yes, tapped for the Dub Shop Trigger Wheel.
