King Performance Titanium 12-Point Bolts for Spring Plate Retainers — M10 x 1.5 x 35mm (Pack of 8)

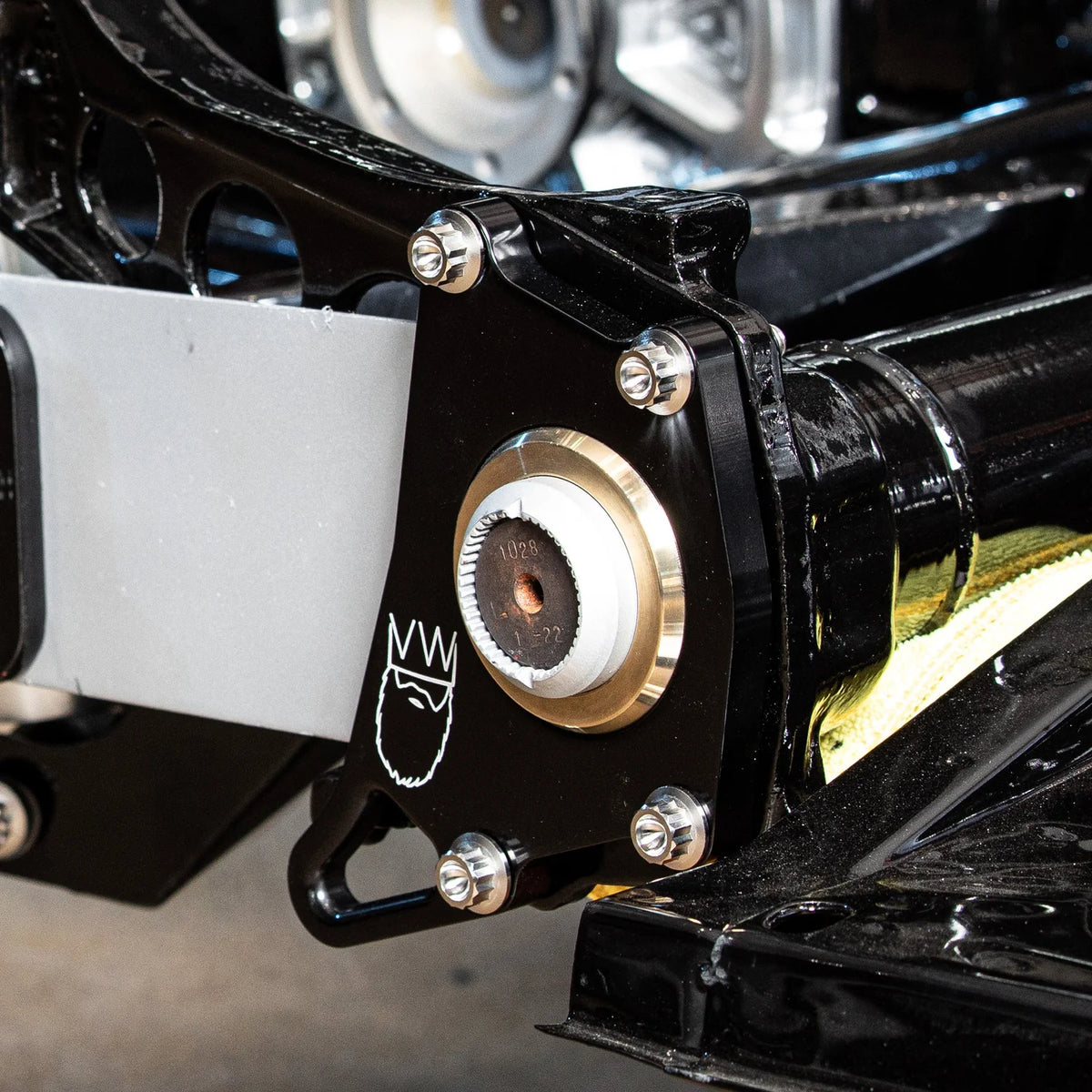

If you have gone to the trouble of fitting billet spring plate retainers, the last thing you want holding them on is a handful of plated steel bolts that rust in the first wet winter. This pack of eight hot-forged Grade 5 titanium (Ti-6Al-4V) 12-point flanged bolts is King Performance's matched hardware for its spring plate retainers — lighter than steel, rust-proof, and finished to match the rest of King's titanium chassis kit.
Fitment
- Made for King Performance spring plate retainers, including our King Spring Plate Bearing Retainers (CH13) and King Spring Plate Retainer Kit with Bronze Bushings (CH14).
- Those retainers are listed for the rear torsion-bar VW Beetle and Karmann Ghia — see each retainer listing for its exact fitment.
- Using different retainers or stock covers? Check your thread and bolt length against the specs below, or ask us before you order.
Key Features
- Grade 5 titanium (Ti-6Al-4V): the aerospace alloy King uses across its titanium range.
- Hot forged with rolled threads: rolled threads are formed rather than cut, keeping the grain flow intact at the root of the thread.
- 12-point flanged head: compact head with a built-in flange that spreads the clamp load across the retainer face.
- Pack of 8 — King sells them in eights for the retainers.
- Never rusts, so the retainers can be removed cleanly at the next suspension service.
Technical Specifications
| Brand | King Performance |
| Material | Titanium alloy Grade 5 (Ti-6Al-4V) |
| Process | Hot forged, rolled thread |
| Thread | M10 x 1.5 |
| Length | 35 mm |
| Head | 12-point flanged |
| Quantity | 8 bolts |
| Our SKU | KP-SPRB-M10X35 |
Installation Notes
- Always use anti-seize on titanium threads (King's instruction). Dry titanium can gall in steel or aluminum threads.
- Tighten the bolts evenly in a cross pattern so the retainer seats flat against the spring plate bushing.
- Use hand tools and a torque wrench; follow the torque figure supplied with your retainers or the factory spec for the location.
Frequently Asked Questions
How many bolts are in the pack?
Eight.
What size are they?
M10 x 1.5 thread, 35 mm long, 12-point flanged head.
Do the King spring plate retainers come with bolts?
The complete CH14 kit is sold as retainer plates and bolts; the CH13 retainers are sold on their own. These titanium bolts are the lightweight upgrade for either.
Do I need anti-seize?
Yes, on every titanium thread.
Will they rust?
No. Titanium does not rust.
Are they street legal?
King sells its titanium hardware for off-highway use only.
Warning
Off-highway use only.
