King Performance VW Titanium Trans Kit | Beetle & Ghia IRS | Axle Nuts, Horn Bolts & Spring Plate Bolts, Grade 5 PVD
Couldn't load pickup availability
King Performance VW Titanium Trans Kit — Axle Nuts, Horn Bolts & Spring Plate Bolts in Grade 5 Titanium
Swapping the hardware around the back of a VW one piece at a time gets expensive and leaves you with a mix of finishes. The King Performance VW Titanium Trans Kit bundles the key rear fasteners into one box: PVD-coated titanium axle nuts, the two transmission cross-brace (horn) bolts, and a full set of 12-point flanged spring plate bolts and nuts. Everything is Grade 5 titanium (Ti-6Al-4V) with hot-forged, rolled threads — and King rates the horn bolts at roughly half the weight of the stock steel parts.
Vehicle Fitment
- VW Beetle and Super Beetle with IRS rear suspension (1969–1979; also 1968 Autostick).
- VW Karmann Ghia with IRS rear suspension (1969–1974).
- The horn bolts and axle nuts also suit swing-axle cars, but the six-bolt/six-nut spring plate set is laid out for IRS. If you are unsure which rear end you have, send us a photo before ordering.

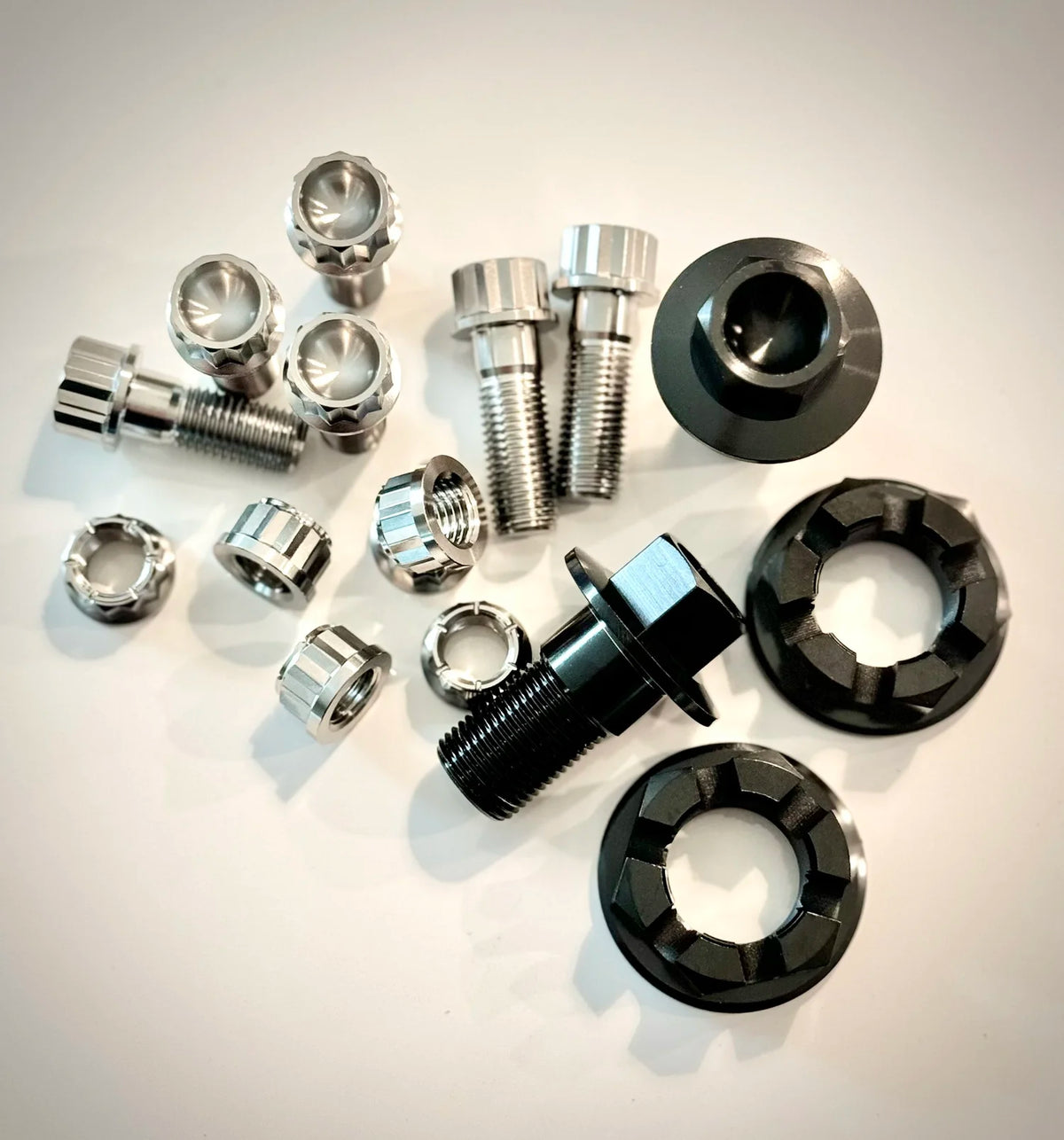

What's in the Kit
- 2 × titanium axle nuts, PVD coated.
- 2 × transmission cross-brace (horn) bolts, PVD coated — M18 x 1.5 thread, 21mm hex head.
- 4 × spring plate bolts, 12mm x 1.5 x 30mm, 12-point flanged.
- 2 × spring plate bolts, 12mm x 1.5 x 35mm, 12-point flanged.
- 6 × 12-point flanged nuts for the spring plate bolts.
Technical Specifications
| Spec | Value |
|---|---|
| Manufacturer | King Performance |
| Material | Titanium alloy Grade 5 (Ti-6Al-4V) |
| Horn bolt thread / head | M18 x 1.5 / 21mm hex |
| Spring plate bolts | 12mm x 1.5, 12-point flanged — (4) 30mm, (2) 35mm |
| Spring plate nuts | (6) 12-point flanged |
| Axle nuts | (2) titanium, PVD coated |
| Coating | PVD on axle nuts and horn bolts |
| Total pieces | 16 |
| Use | Off-highway use only |
Installation Notes
- Always use anti-seize on titanium threads — King's standing instruction for all of its titanium hardware.
- Support the car safely and follow the factory service procedure for the spring plates, axle nuts and transmission mounts; spring plates are under load.
- Torque every fastener to the factory specification for your model and recheck after the first drive. Hand tools and a calibrated torque wrench only — no impact guns on titanium.
Frequently Asked Questions
- What does the King Trans Kit include? Two PVD titanium axle nuts, two M18 x 1.5 horn bolts, six 12mm x 1.5 spring plate bolts (four 30mm, two 35mm) and six 12-point flanged nuts.
- Does it fit a swing-axle Beetle? The axle nuts and horn bolts do; the spring plate set is laid out for IRS cars.
- Can I buy the pieces separately? Yes — we stock King's titanium axle nuts (#A13-T), black PVD horn bolts (#A06-TB) and spring plate hardware kit (#A11T).
- Why titanium? Grade 5 titanium is strong, much lighter than steel and will not rust — King rates the horn bolts at about half the weight of stock.
- Do I need anti-seize? Yes, on every titanium thread.
- Is it street legal? King sells it for off-highway use only.
